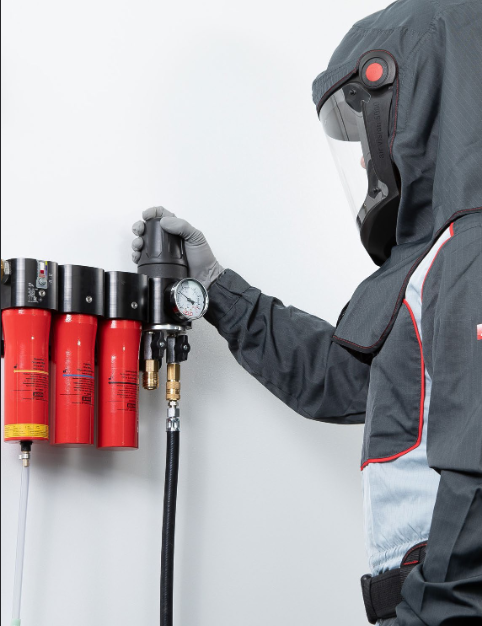

SATA Filter 500 Series

Manufacturer: SATA

Part Number: See Table Below

Description: The SATA filter series provide particle-free, clean compressed air for professional coating. The SATA filter series for spray guns are available as one-stage sintered filters with a water and oil separator, as a two-stage combination filter with a sintered and fine filter, or as a three-stage filter unit with an additional sintered activated charcoal filter. With the SATA compressed air filters, coating flaws such as dust particle inclusions, condensate, silicone craters, and thus possibly expensive rework, can be avoided. The treated compressed air can be used for spraying and, when using a three-stage filter, it is also suitable for air-supplied respirator systems.

SATA's latest filter series, the SATA filter 500 enables a higher absorption of contaminates and enhanced durability due to the optimized position of the charcoal filter. The SATA filter 500 is available with different filter stages. Changing the filter is simple and straightforward and filter maintenance is only necessary every 6 months.

Options Available:

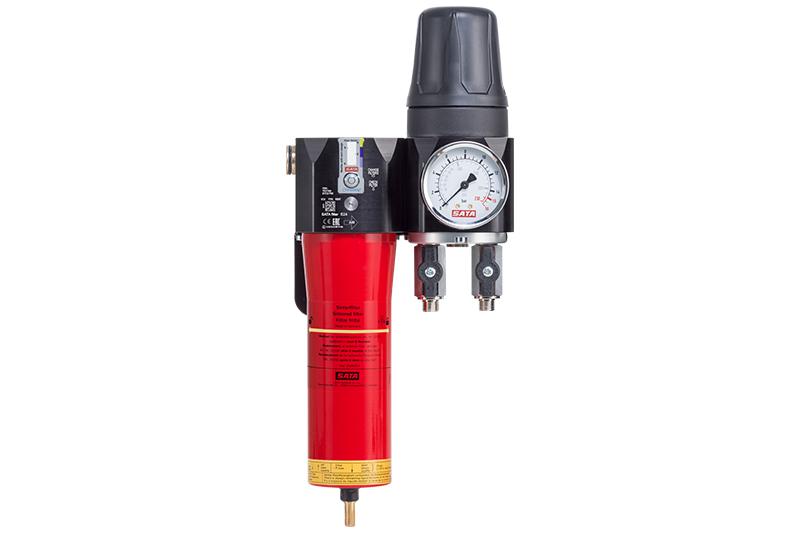

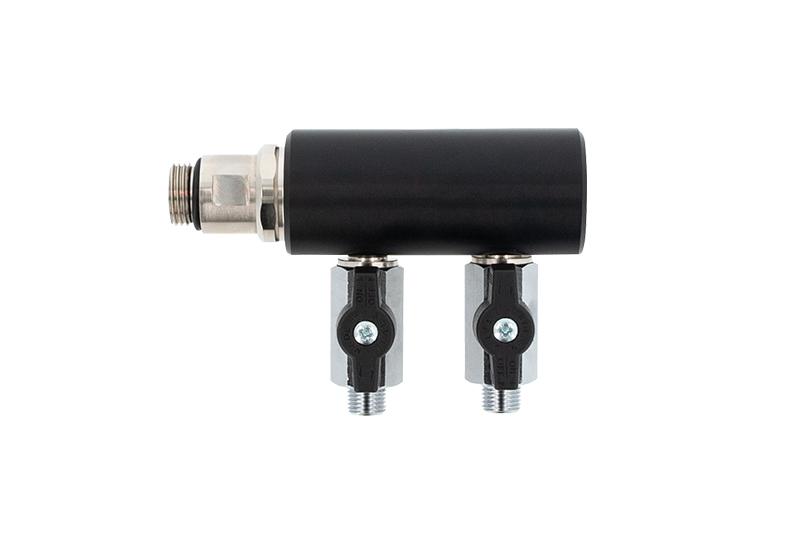

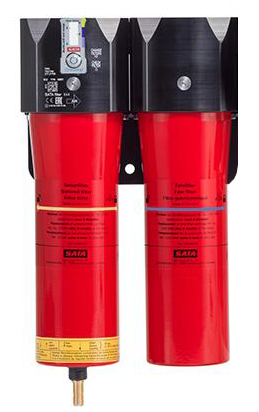

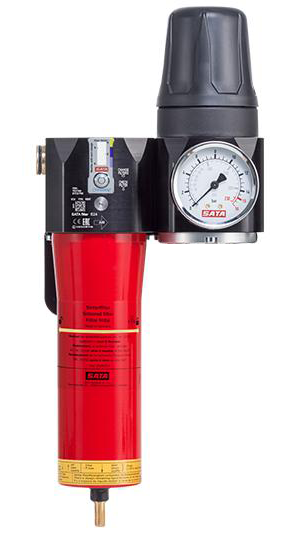

Filter 524 Part no. 1101659	Single-stage sinter filter, with pressure regulator and outlet module (2x 1/4" male thread)
Filter 524 L Part no. 1101641	Single-stage sinter filter, with pressure regulator. For pipeline installation (G 1/2" female thread)

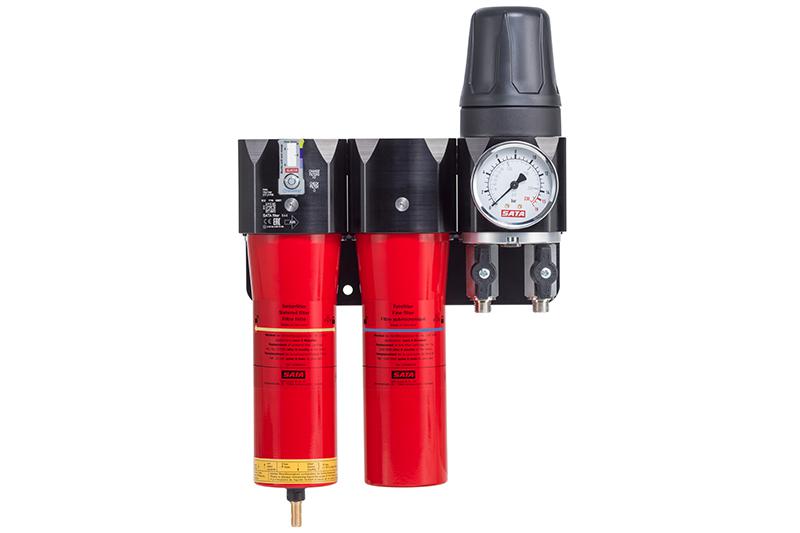

Filter 544 Part no. 1100990	Double-stage sinter filter, fine filter, with pressure regulator and outlet module (2x 1/4" male thread)
Filter 544 L Part no. 1124932	Double-stage inline filter for pipeline installations. Without pressure reducer.

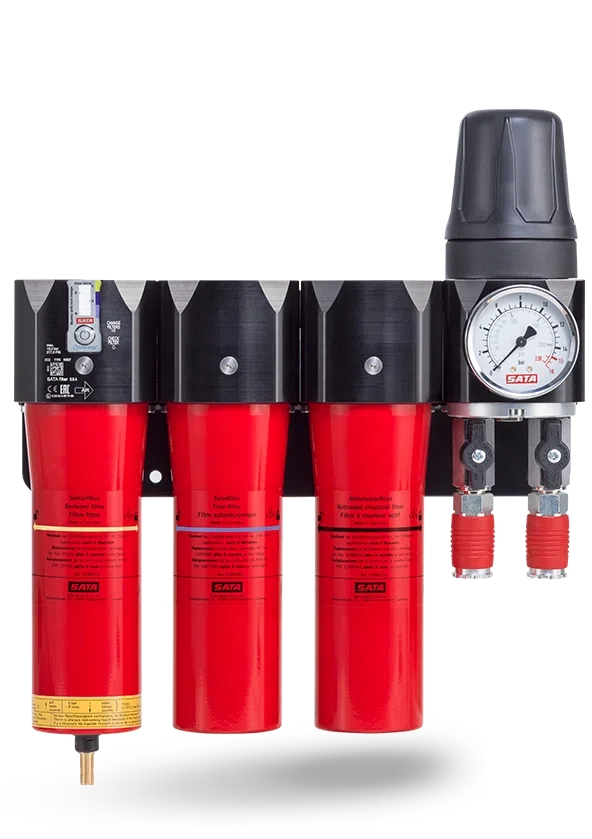

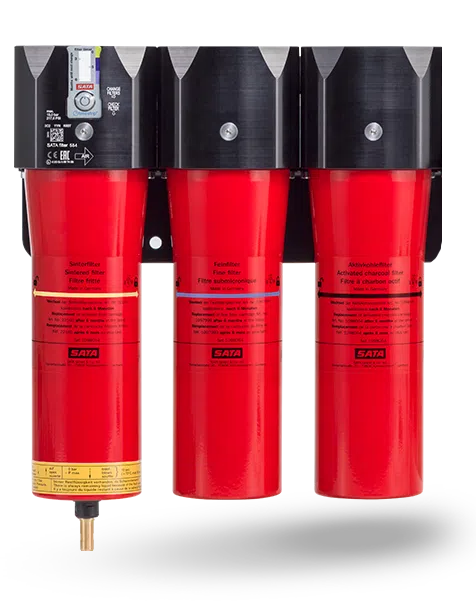

Filter 584 Part no. 1099953	Triple-stage sinter filter, fine filter, activated carbon filter, with pressure regulator and outlet module (2x 1/4" male thread)
Filter 584 L Part no. 1101716	Triple-stage inline filter for pipeline installations. Without pressure reducer.

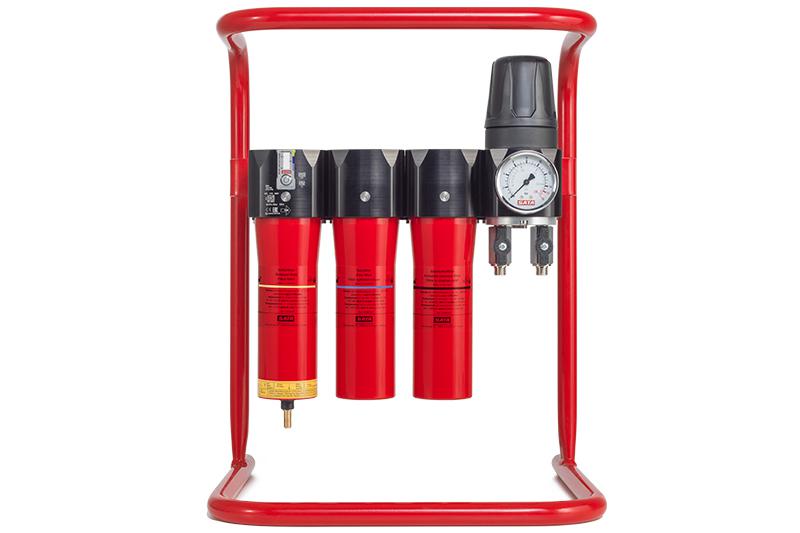

Filter 584 W/ Carrying Support Part no. 1101625	Triple-stage sinter filter, fine filter, activated carbon filter, with pressure regulator and outlet module (2x 1/4" male thread). With carrying stand

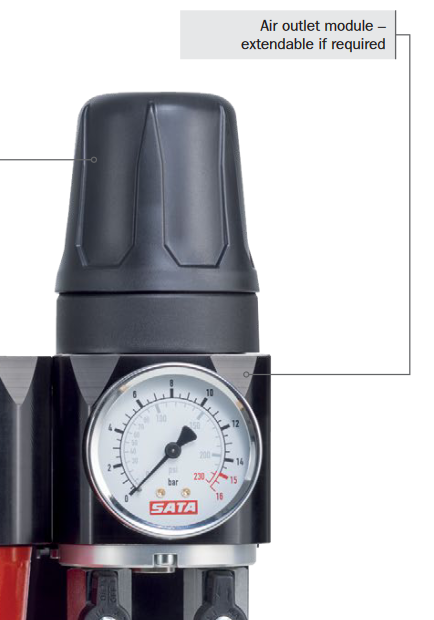

Product Benefits:

• Air flow: approx. 135 CFM at 87 psi

• Meeting highest requirements for high-grade compressed air (100 % technically clean air)

• Higher absorption of contaminates (compared to SATA filter 484) due to the new sintered activated charcoal filter

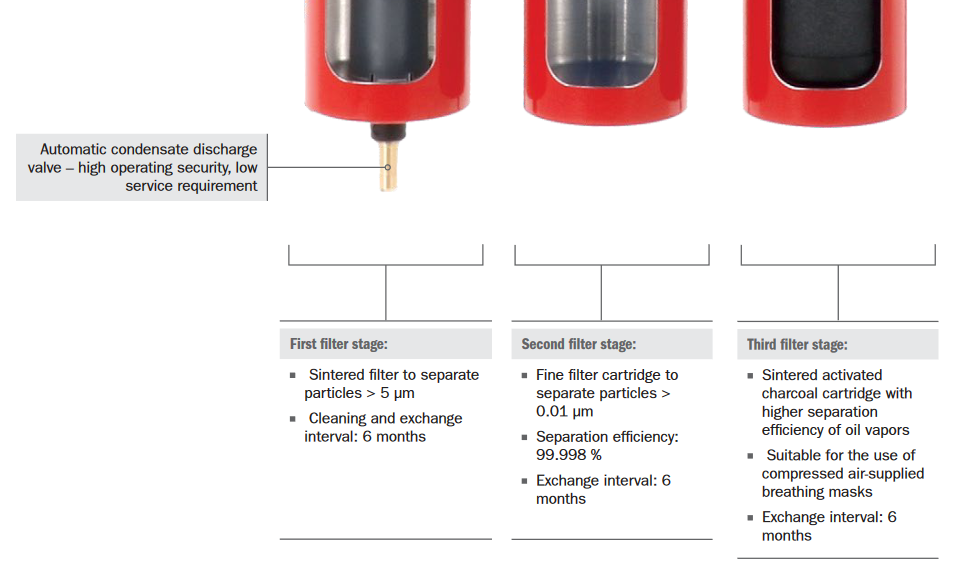

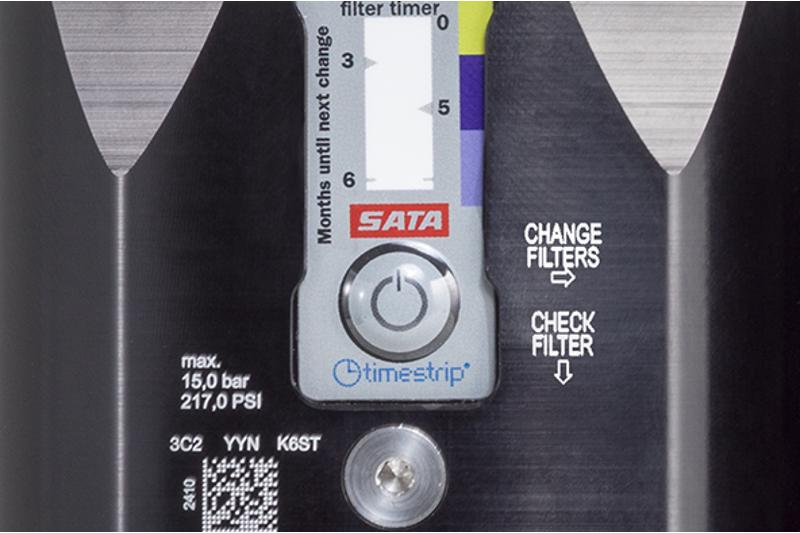

• Synchronized maintenance: Filter maintenance only necessary every six months for all stages

• Maintenance-free bayonet lock with haptic and acoustic feedback

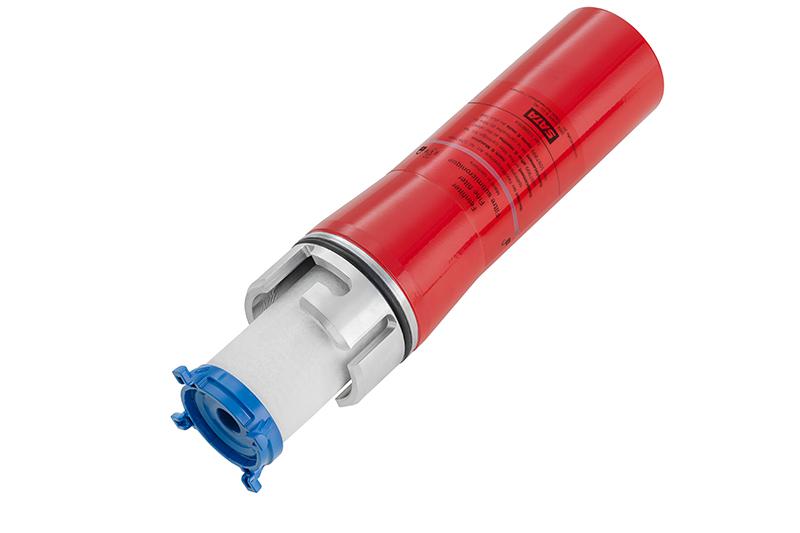

• Fine filter and activated charcoal filter cartridges fit perfectly by simply being inserted—no screw fittings or additional seals

• Simple plug-in system for upgrading SATA filter 544 to 584

• Maintenance-free sealing elements

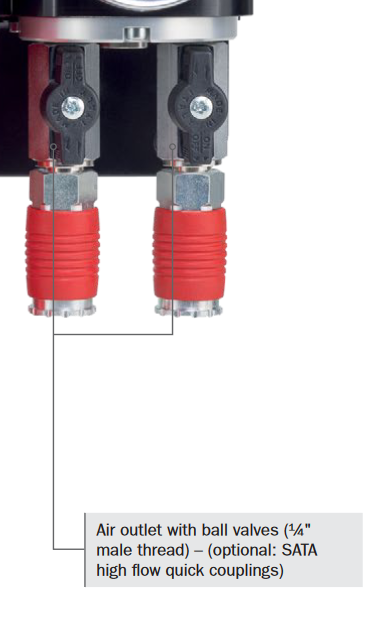

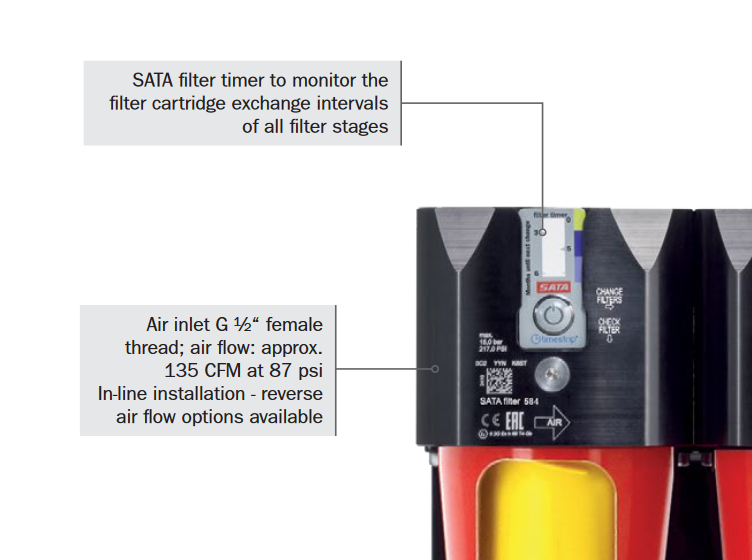

• Line connection possible either from the left or the right side

Log In or Register to See Pricing

Total Finishing Supplies is an authorized SATA Distributor. Beware of sites that claim to offer genuine SATA items. They may not be authorized and you may be buying a fake or an item that won't be covered under SATA's warranty.

Technical Data

Manual

SATA - Complete Clean Compressed Air Brochure

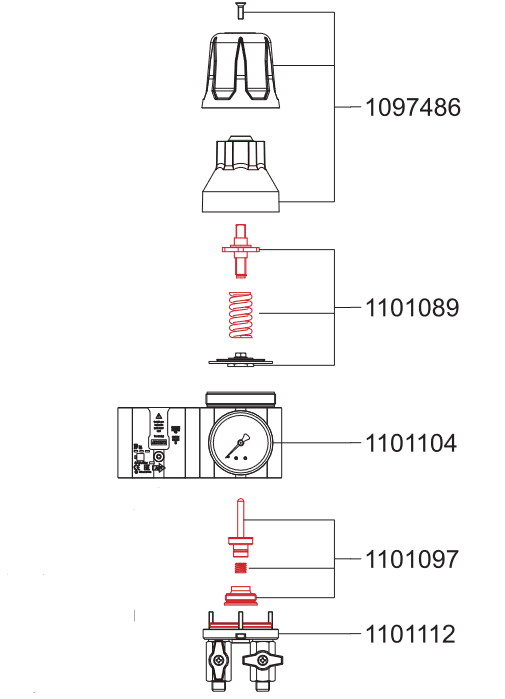

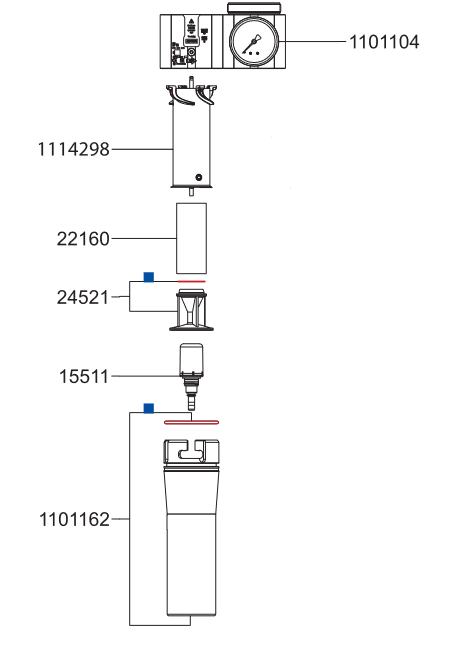

SATA Filter 524 Spare Parts

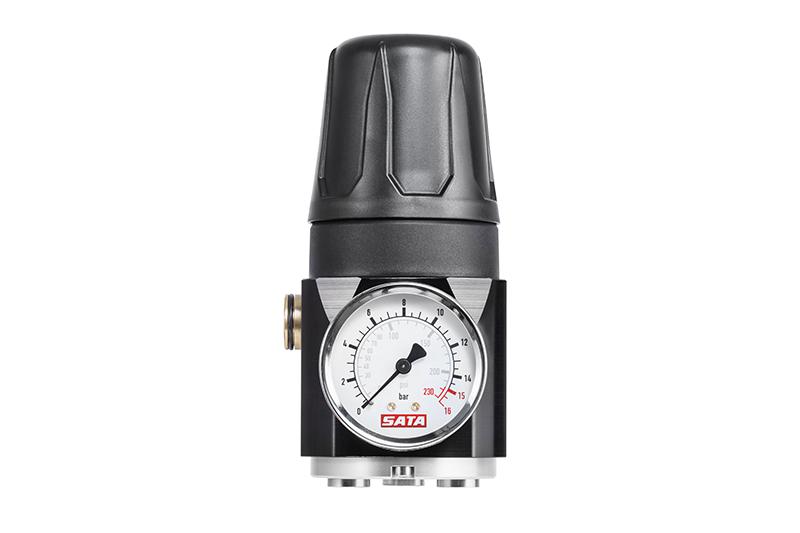

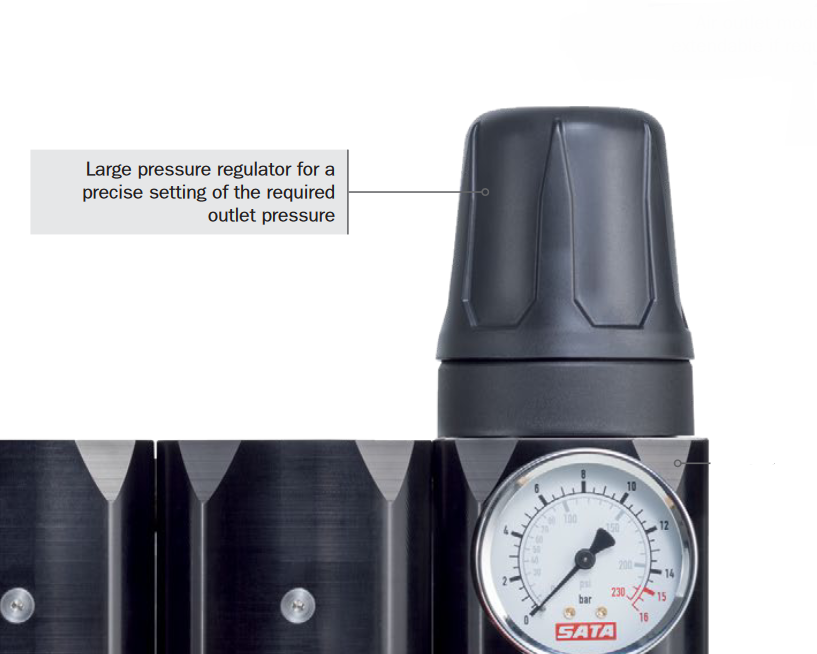

• 1101667 Pressure Regulator & Gauge

• 15511 Automatic Condensate Drain Valve

• 22160 Sintered Filter

• 24521 Condensate Retainer With O-Ring

• 1097486 Pressure Reducer With Adjustment and Counter Screws

• 1101089 Diaphragm Including Pressure Spring and Spindle

• 1101097 Pressure Steering Unit

• 1101104 0–145 PSI Pressure Gauge

• 1101112 Cover Unit With Ball Valves (2 Pcs)

• 1101162 Filter Sleeve With Automatic Discharge Valve

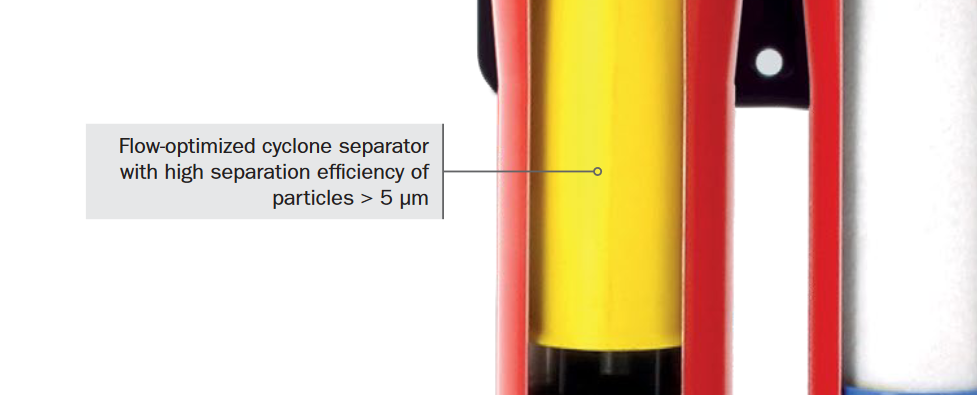

• 1114298 Cyclone Separator

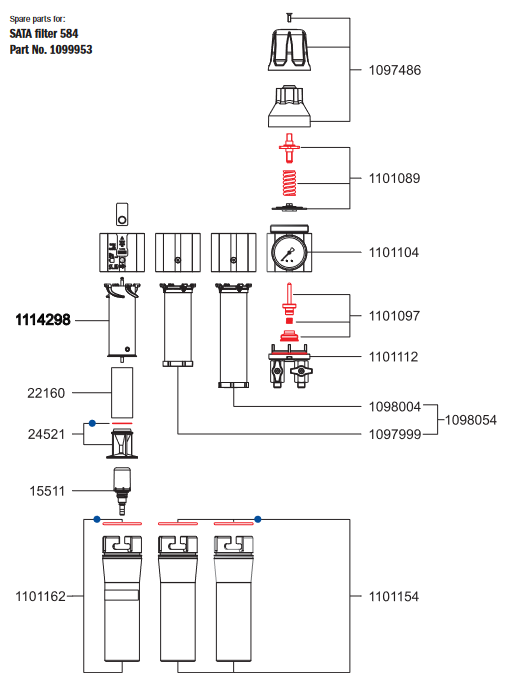

SATA Filter 544/584 Spare Parts

• 1101667 Pressure Regulator & Gauge

• 15511 Automatic Condensate Drain Valve

• 22160 Sintered Filter

• 24521 Condensate Retainer With O-Ring

• 1097486 Pressure Reducer With Adjustment and Counter Screws

• 1097999 Fine Filter Cartridge

• 1098004 Activated Charcoal Cartridge


• 1098054 Service Kit For 500 Series With Fine Filter and Activated Charcoal Cartridge

• 1101089 Diaphragm Including Pressure Spring and Spindle

• 1101097 Pressure Steering Unit

• 1101104 0–145 PSI Pressure Gauge

• 1101112 Cover Unit With Ball Valves (2 Pcs)

• 1101154 Filter Housing

• 1101162 Filter Sleeve With Automatic Discharge Valve

• 1114298 Cyclone Separator

Repair Kits & Accessories

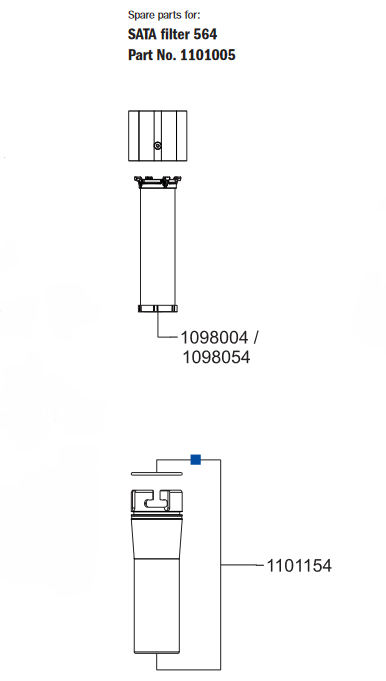

• 1101005 SATA filter 564 add-on kit (converts filter 544 double-stage to filter 584 triple-stage)

• 1102087 Service Unit

• 1101518 Sealing Kit
