UltraTech Ultra-HydroKleen®

Manufacturer: UltraTech

Part Number: 987X, 9478 (custom frame model)

Description: Catch basin inserts (like the Ultra-Drain Guard) are very effective and work well in many applications.

In known “hot spot” drains, however, something with more filtering capability may be necessary.  Because these drains are more likely to encounter more concentrated contamination in stormwater, dedicated filter media can help in reducing pollutants.

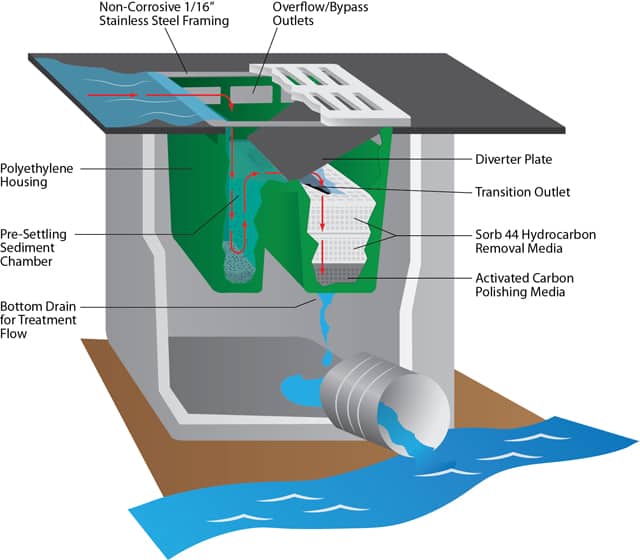

The Ultra-HydroKleen is considered a “true filter” by the EPA and forces water through up to three different filters before it exits into the stormwater system.

Mix and match filter media depending on your specific needs. The Ultra-HydroKleen is the only catch basin filter that allows you to use more than one type of filter media.

• Order Here Sorb 44 — Used to remove oil and other hydrocarbons.
• Order Here Phos Filter — Excellent for removal of phosphorus.
• Order Here Activated Carbon — Excellent “polishing media”. Helps remove certain chemicals, hydrocarbons, and odors.
• Order Here Heavy Metal Removal — Custom filter media blend helps remove zinc, lead, copper, and other harmful, heavy metals.
• Other types of media available for custom applications.

Product Highlights:

• Removes hydrocarbons, heavy metals, sediments and other organics from stormwater and industrial runoff.
• Exceeds 80% sediment removal efficiency. Patented filtration system allows different filter media to be used together to remove targeted pollutants.
• Choose a mix of filters to removes hydrocarbons / oil, chemicals, odor, phosphorus and heavy metals from water flow (must be ordered separately).
• A by-pass system prevents flooding or ponding during high-flow storm events.
• Excellent post-construction control for drains that are more susceptible to large concentrations of contaminants ("Hot Spots").
• Units available for round or square catch basin grates. Custom sizes available.
• Considered a "true filter" and has been verified by the EPA's ETV program (See report in Resources tab below).

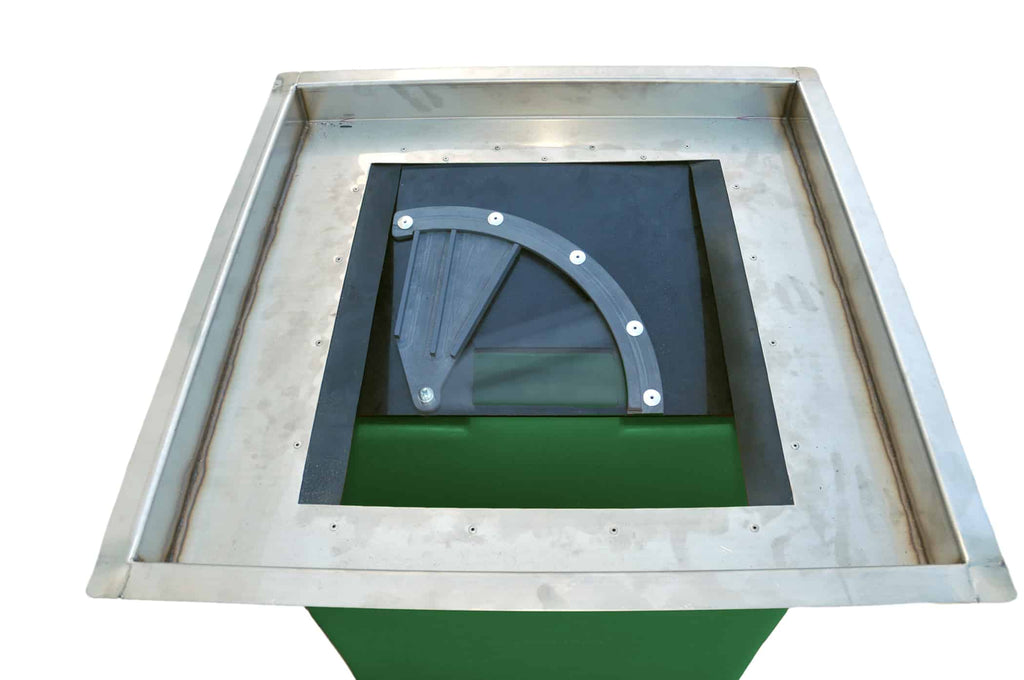

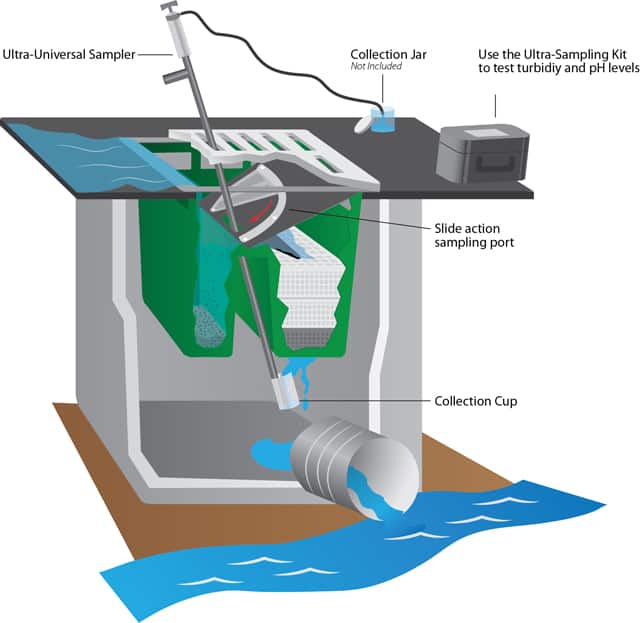

Sampling Option

Convenient and effective means to obtain samples of the post-treatment effluent from the Ultra-HydroKleen to comply with monitoring and testing requirements.

• Sampling option provides standard Ultra-HydroKleen with modifications to allow “post-treatment” water samples to be taken from below the unit’s filters.
• Take real-time samples during storm events.
• Access area stays closed until a sample is desired.
• Port can also be used for visual inspection of catch basin without removing the unit.
• Simple sampling — no need to remove the Ultra-HydroKleen to take a sample (in many cases, even the grate can remain in place).

Custom Frame Models Available

Ultra-HydroKleen custom frame models are custom-made to fit each individual catch basin. The final pricing is based on the configuration of the frame (flat or recessed) and the number of required filter media (2 or 3). This cannot be determined until the end-user has submitted the completed measurement instructions and filter media selection forms. Please contact us for more information.
