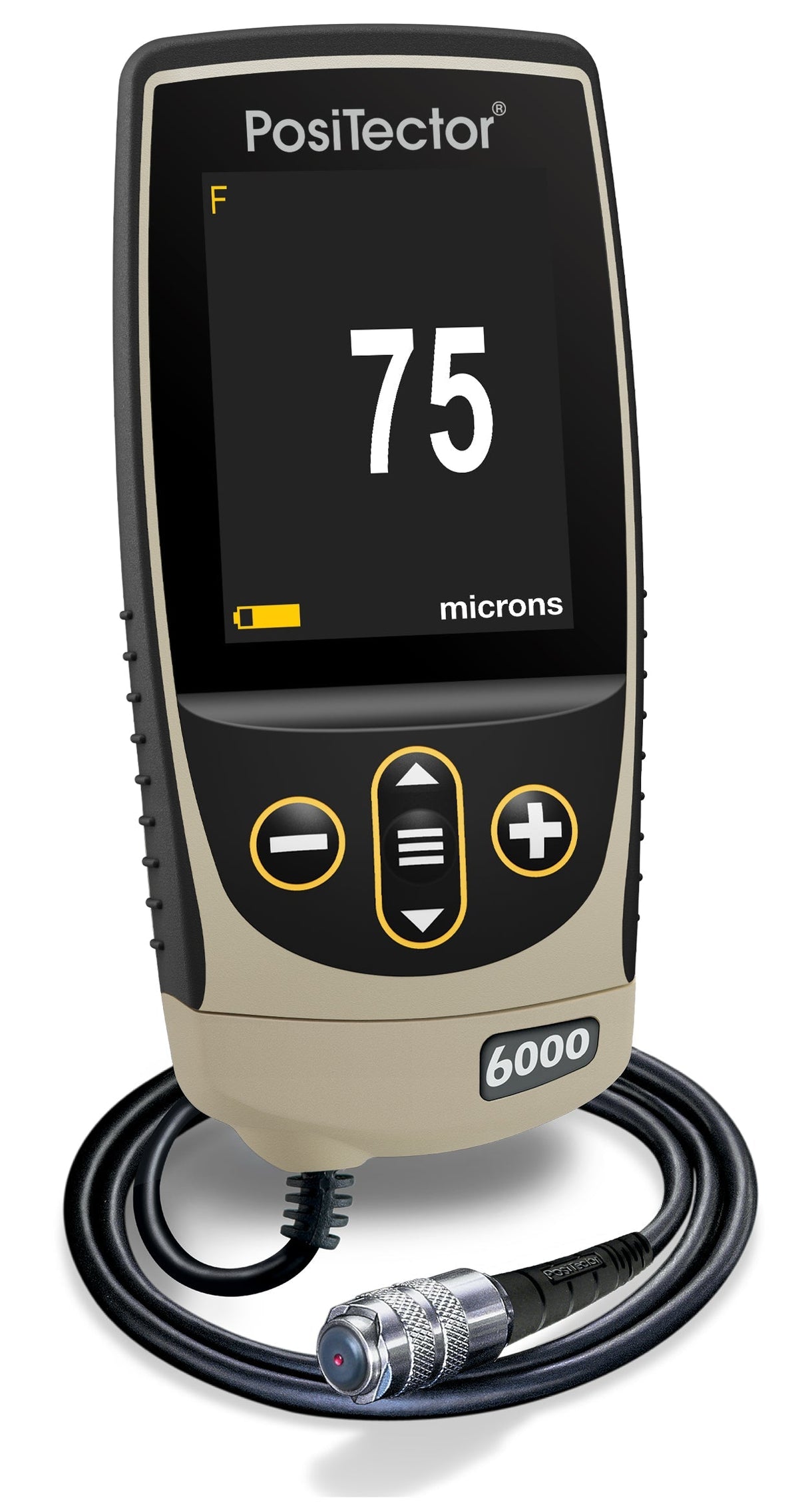

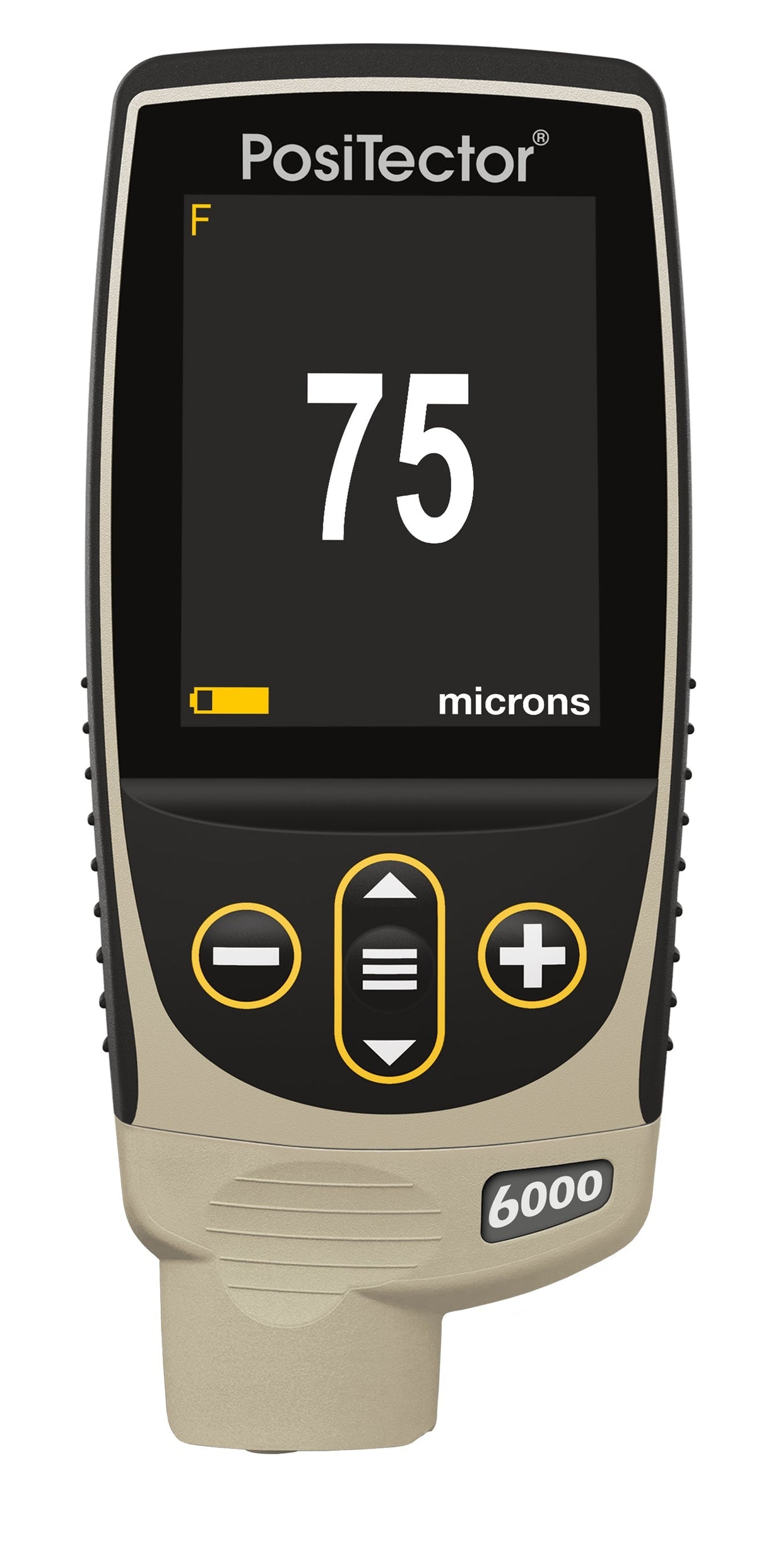

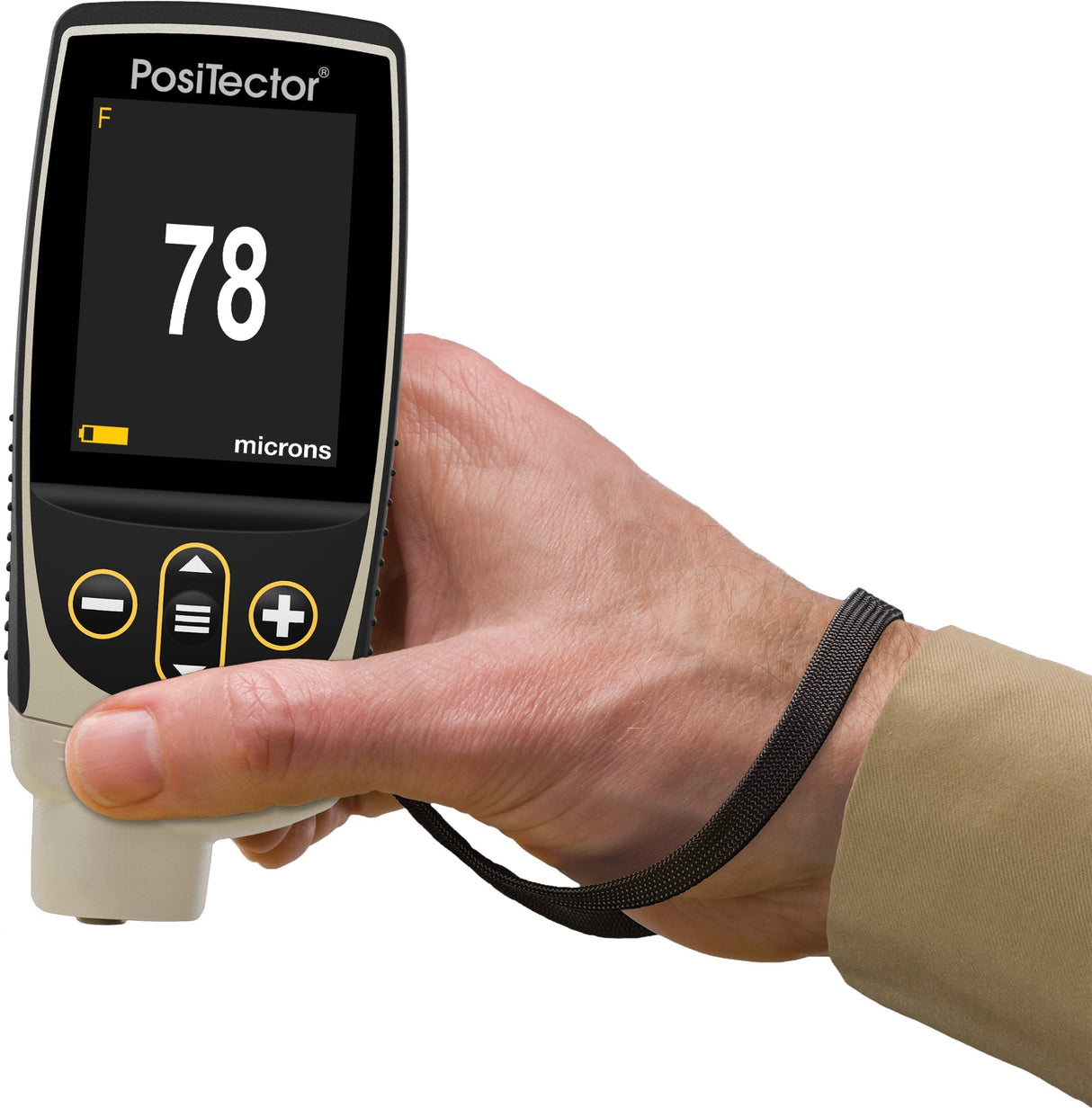

PosiTector 6000 w/ Thick Coatings Probe
Manufacturer: DeFelsko
Part #: See Ordering Guide
Description: Integral and Cabled probes for thick protective coatings; epoxy, rubber, intumescent fireproofing and more. Coating Thickness Gages for ALL Metal Substrates. Probe details found in Ordering Guide above.
Other models available:

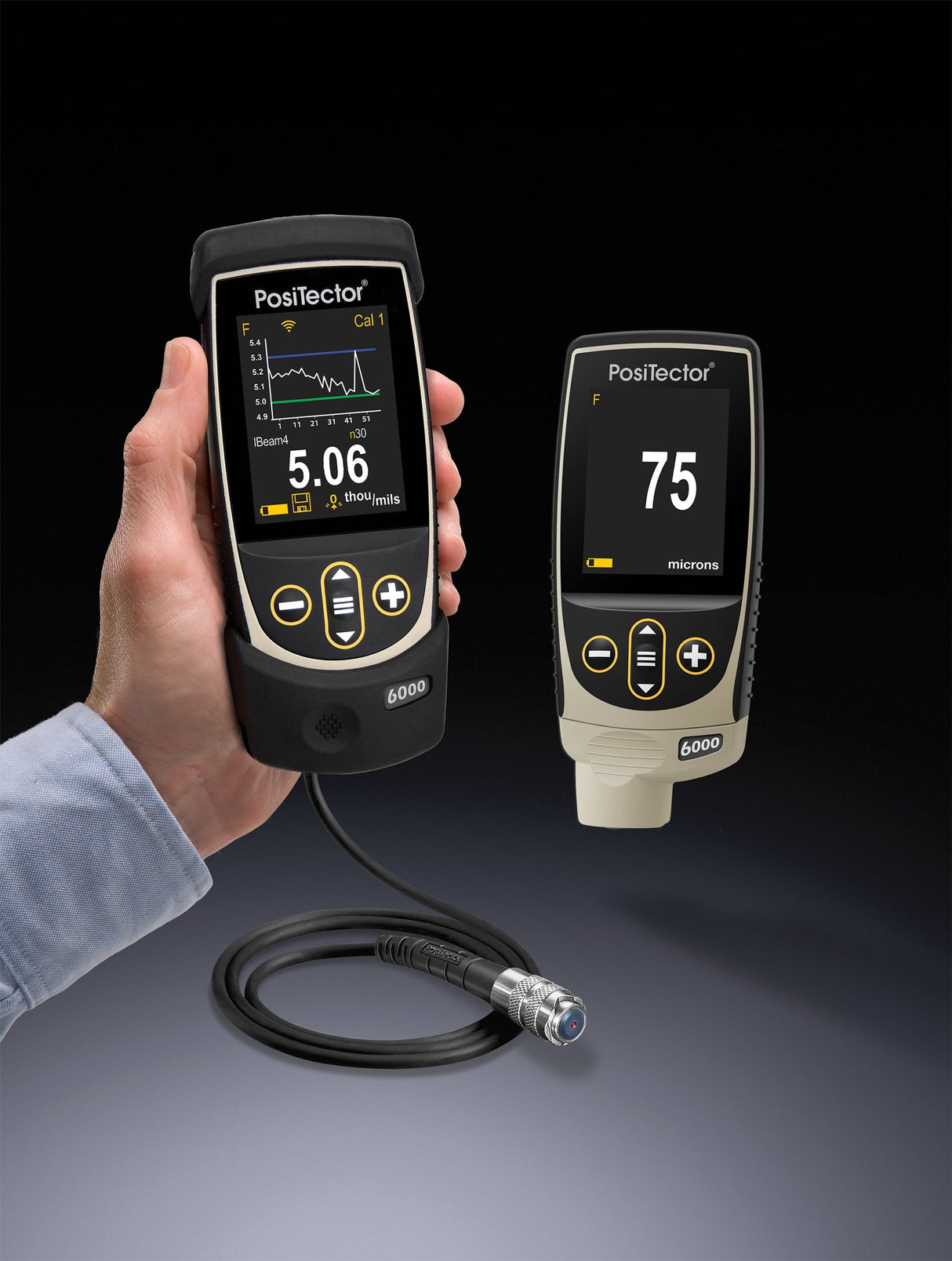

- PosiTector 6000 - Our most popular Integral and Regular cabled probe models.
- PosiTector 6000 w/ Microprobe - Our smallest probes for small parts or hard-to-reach areas.

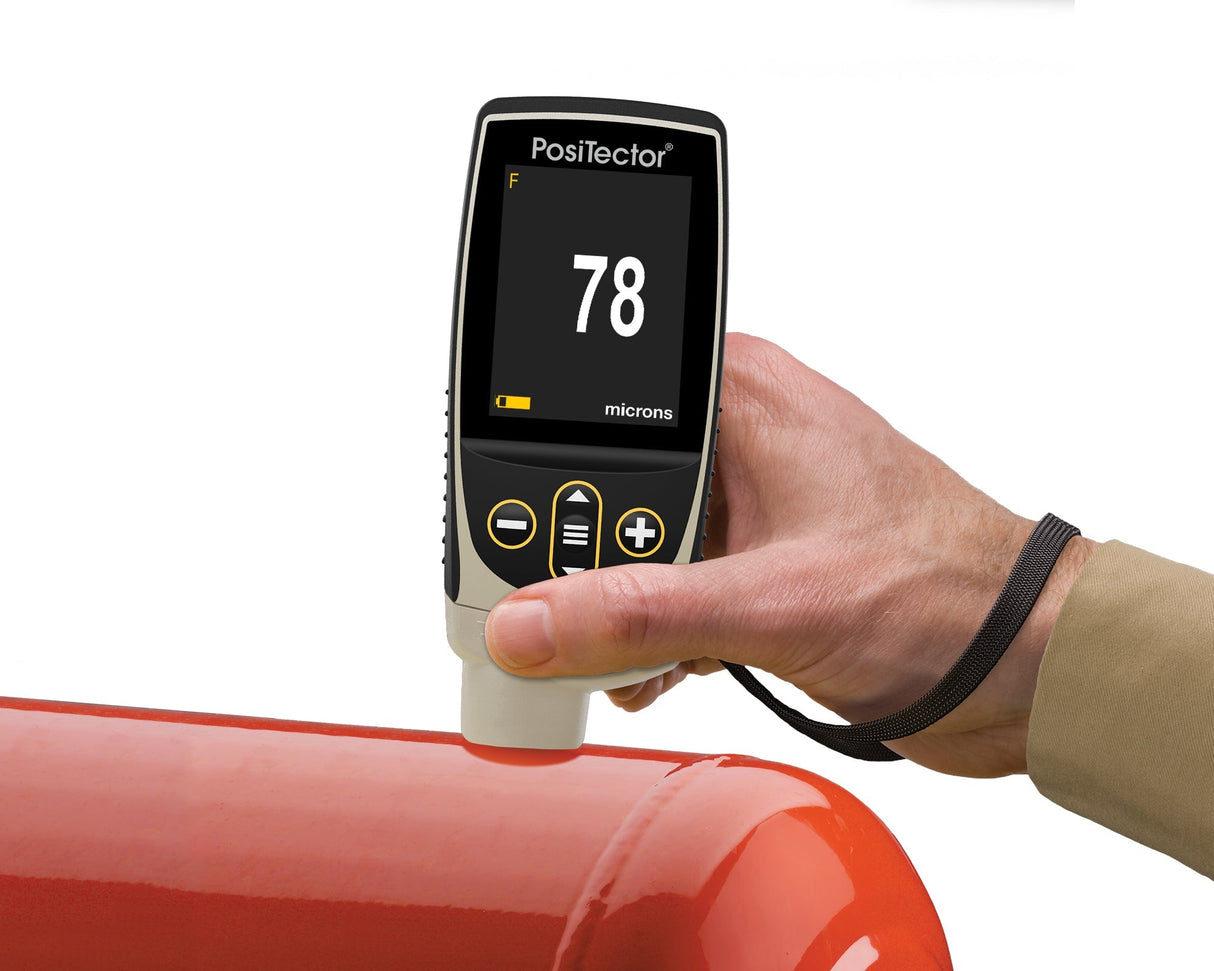

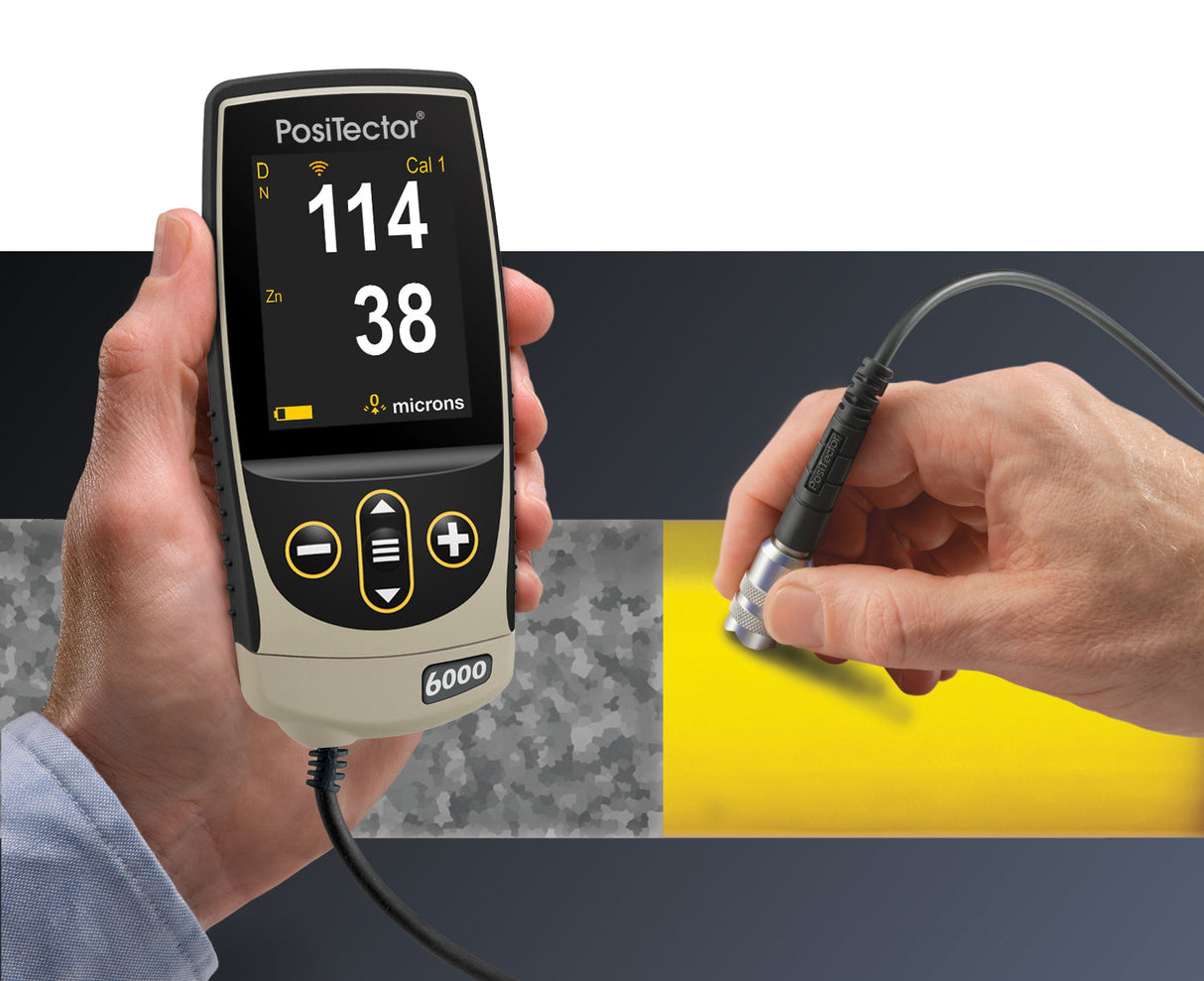

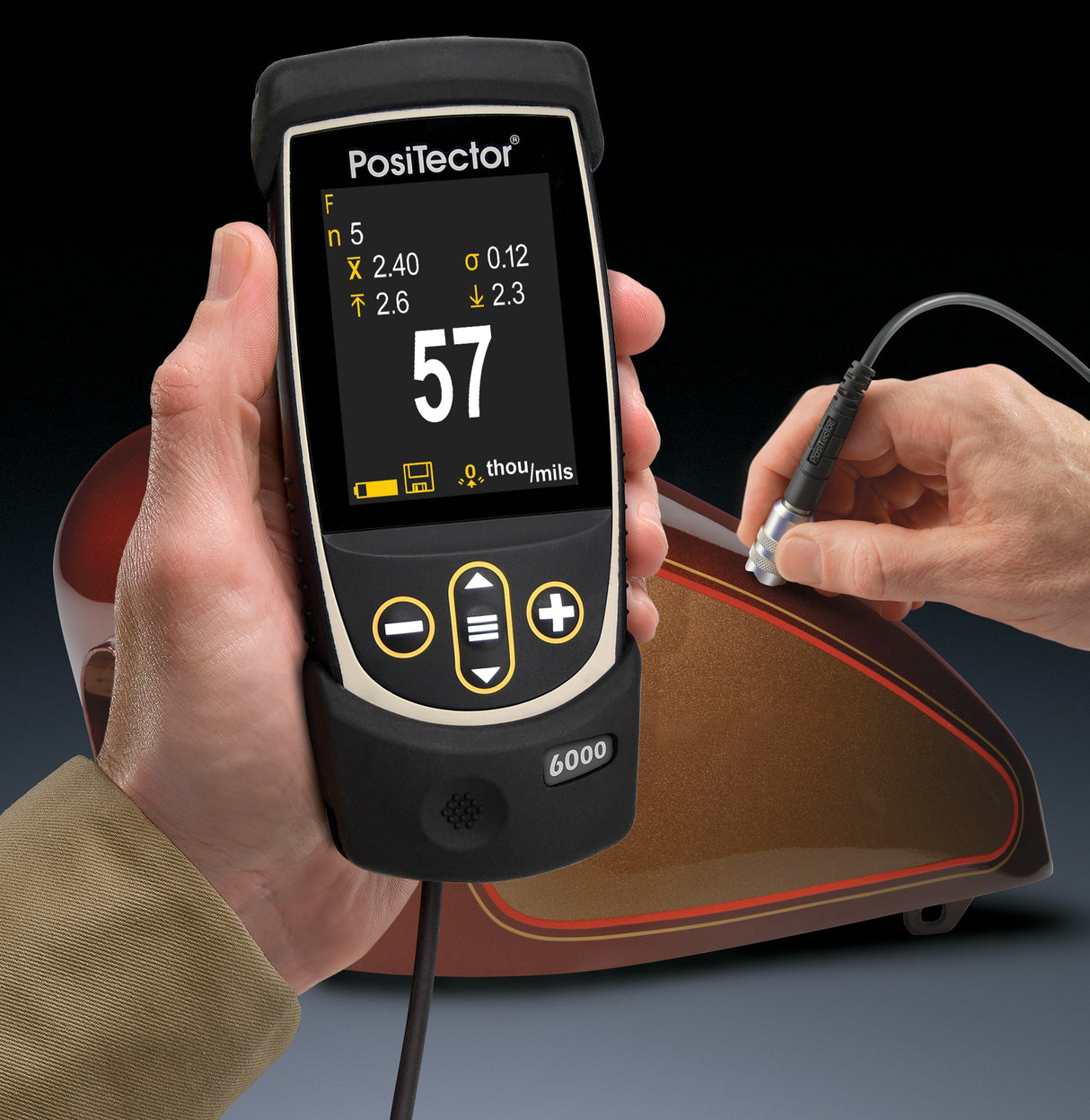

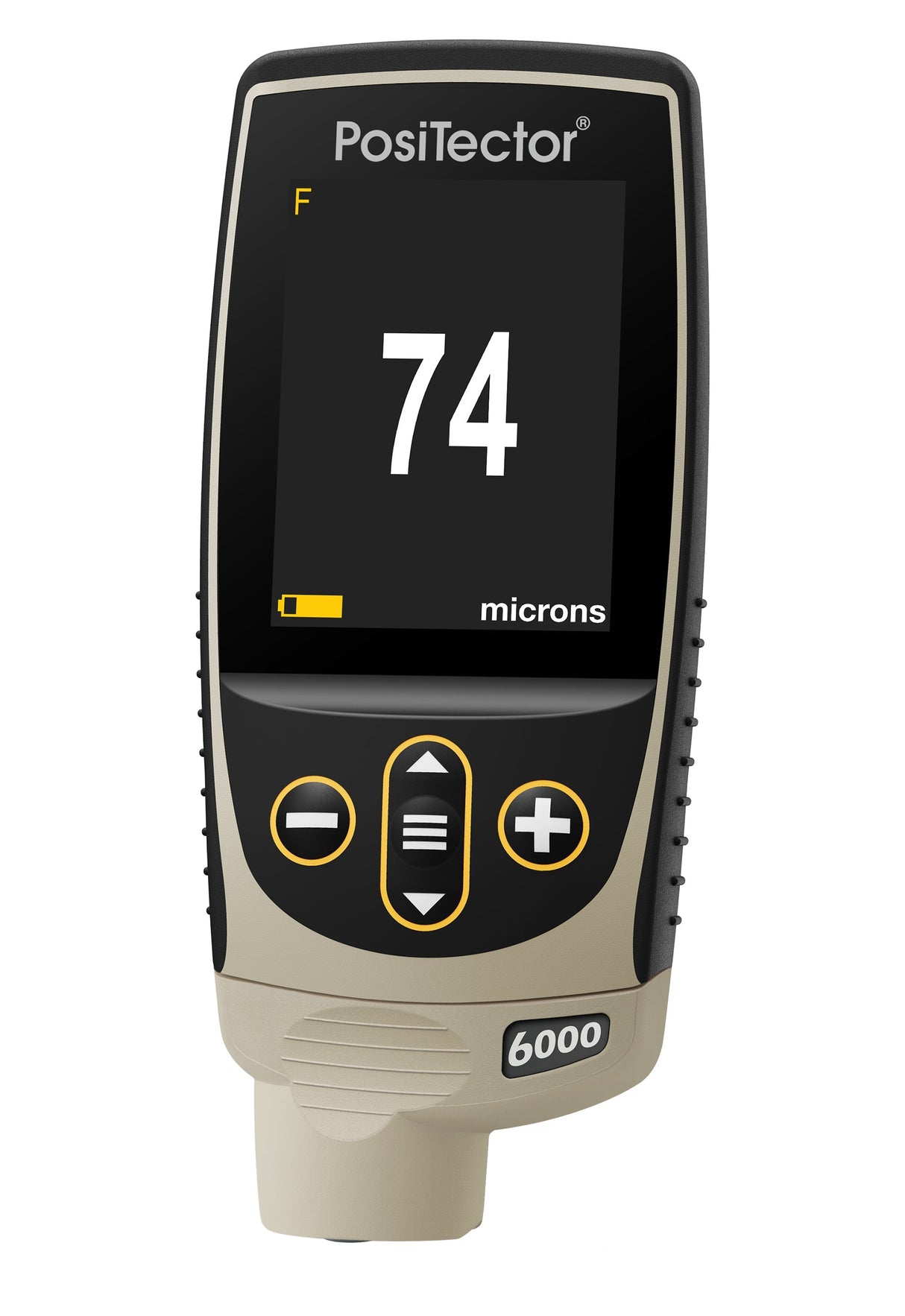

The rugged, fully electronic PosiTector 6000 Paint Thickness Gage uses magnetic and eddy current principles to measure paint thickness on both ferrous and non-ferrous metals, accurately and quickly.
- Ready to measure—no calibration adjustment required for most applications
- NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
- NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
- Wear resistant ruby probe tip, for long-lasting calibration
- PosiTector interchangeable platform—attach any PosiTector probe to a single gage body
- USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
- Certificate of Calibration showing traceability to NIST or PTB included (Long Form)
Simple
- Fast measurement speed—60+ readings per minute. Enhanced FAST mode—90+ readings per minute for quick inspection.
- Ready to measure—no adjustment required for most applications
- NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
- NEW On-gage help explains menu items at the touch of a button
- Flashing display—ideal in a noisy environment
- RESET feature instantly restores factory settings
Durable
- NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
- NEW Ergonomic design with durable rubberized grip
- Wear-resistant probe tip

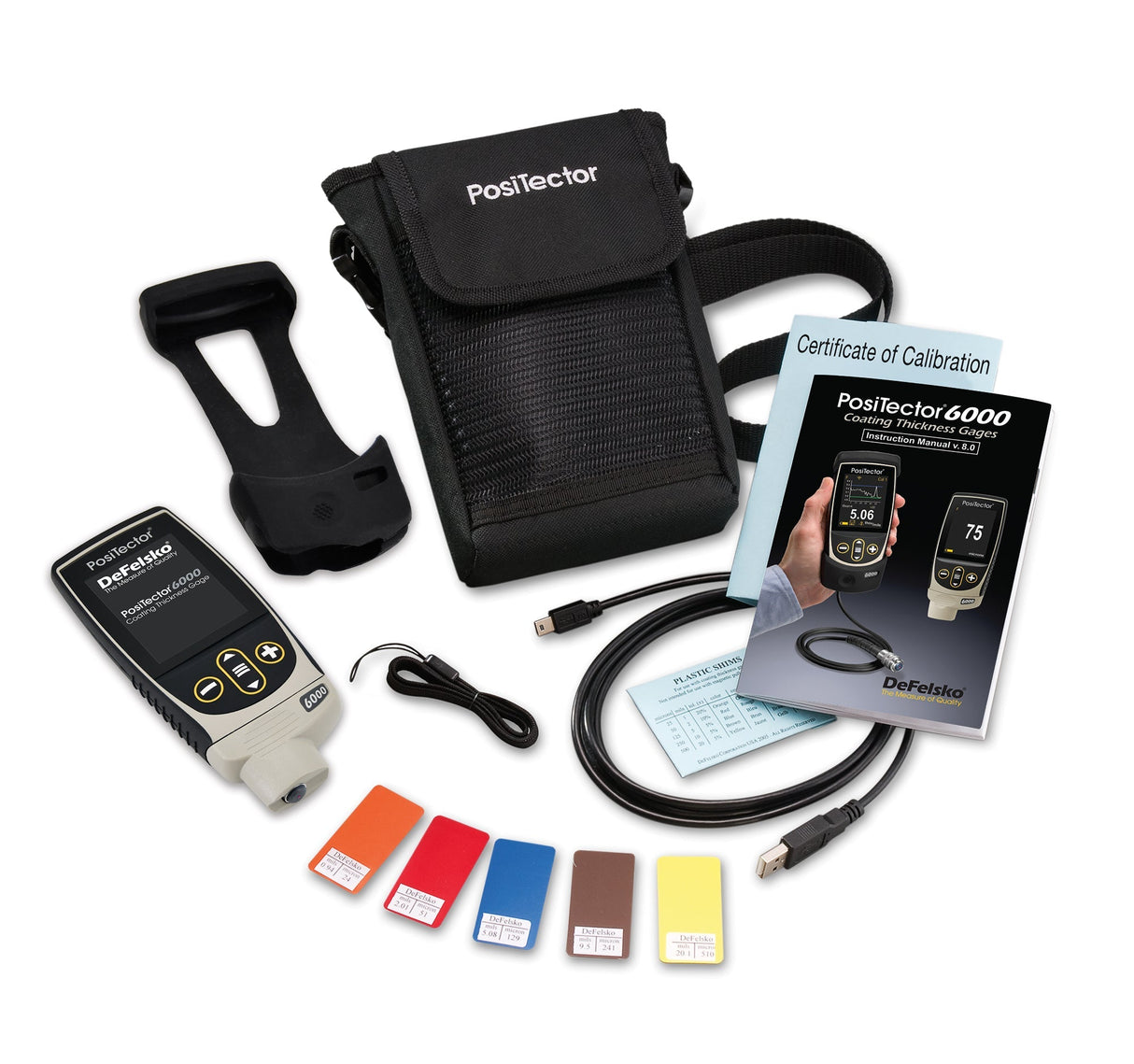

- Shock-absorbing, protective rubber holster for added impact resistance
- Two year warranty on gage body AND probe
Accurate
- Certificate of Calibration showing traceability to NIST or PTB included
- Built-in temperature compensation ensures measurement accuracy
- Hi-RES mode increases displayed resolution for precision applications
- Conforms to national and international standards including ISO and ASTM
Versatile
- PosiTector body accepts all PosiTector 6000, 200, RTR, SPG, DPM, IRT, SST, UTG, SHD, BHI, and GLS probes easily converting from a coating thickness gage to a surface profile gage, dew point meter, soluble salt tester, ultrasonic wall thickness gage, hardness tester, or gloss meter
- Multiple Calibration adjustment options including 1 point, 2 point, and ISO 19840 correction factors
- Selectable display languages
- NEW Auto rotating display with Flip Lock
- Extended cables available (up to 75 m/250 ft) for underwater or remote measuring
- Mils/Microns/mm switchable
Powerful
- Statistics mode continually displays/updates average, standard deviation, min/max and number of readings while measuring
- NEW Screen Capture—save 100 screen images for record keeping and review
- HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
- NEW Instant-on feature quickly powers up the gage if recently powered down
- NEW Up to 30% longer battery life
- USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
- Every stored measurement is date and time stamped
- Software Updates via web keep your gage current
- Software Solutions for viewing, analyzing & reporting data
Features:
Standard Models -
- Include storage of 1,000 readings per probe—stored readings can be viewed or downloaded.
Advanced Models -
- NEW Storage of 250,000 readings in up to 1,000 batches and sub-batches

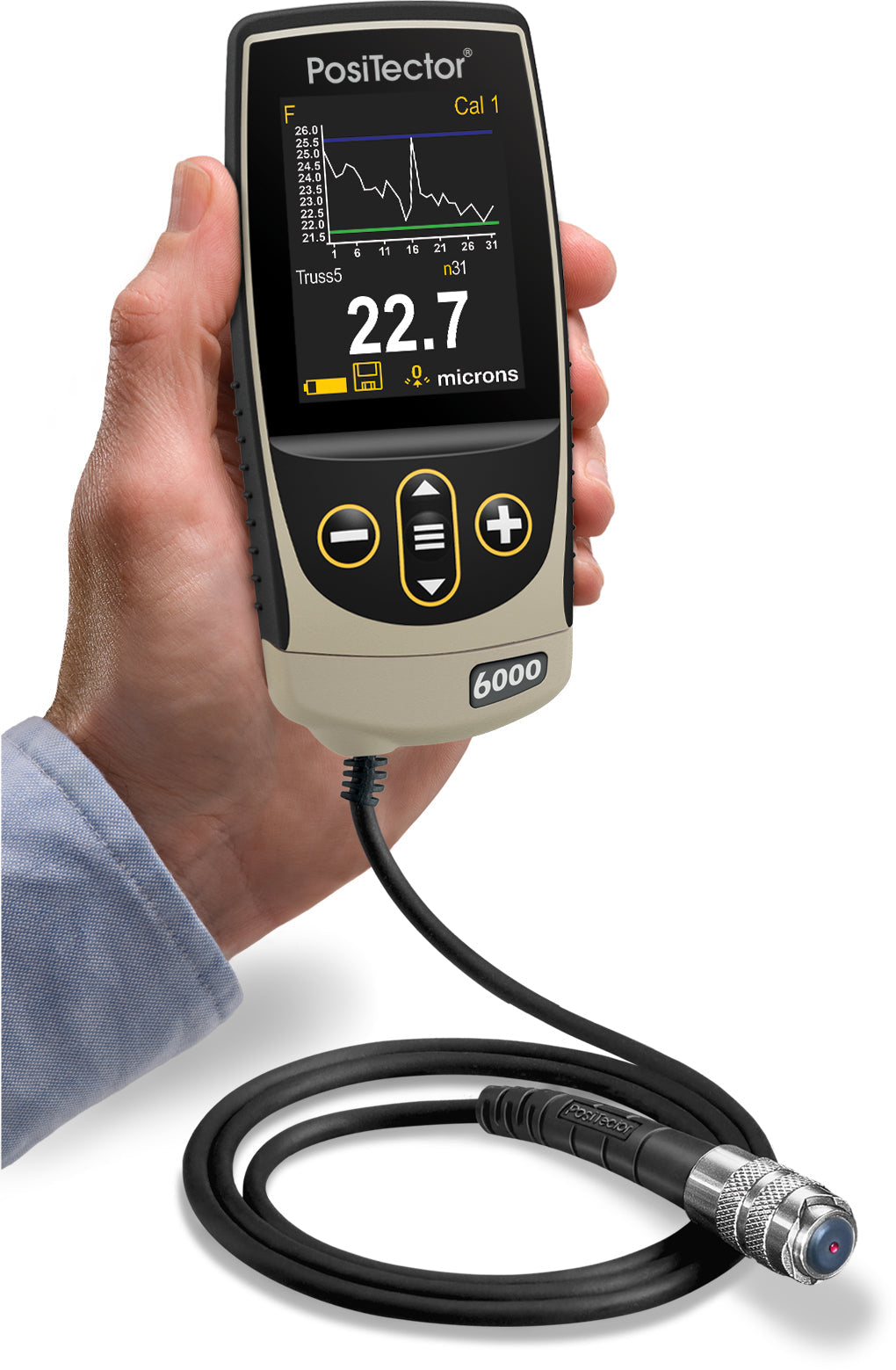

- Live graphing of measurement data

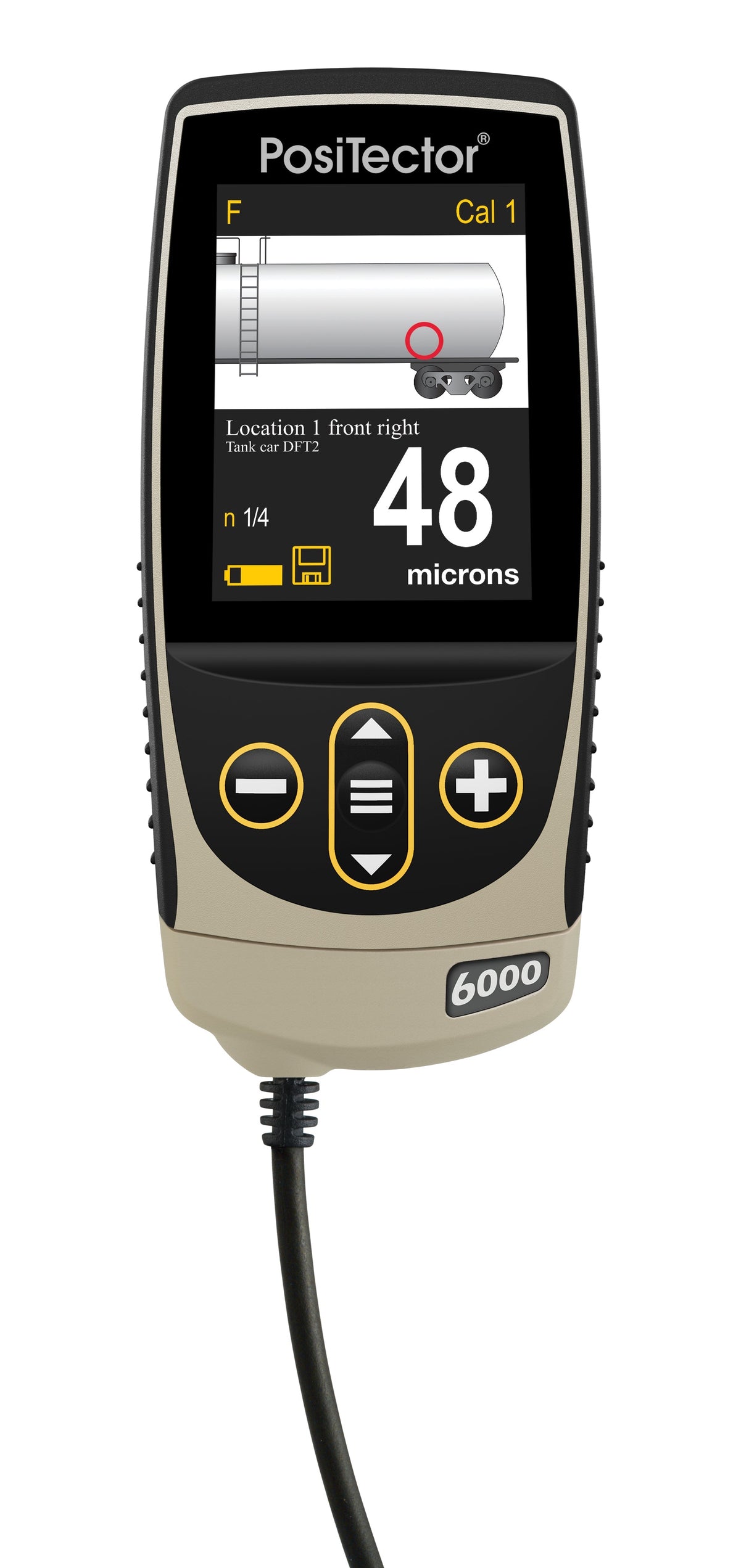

- NEW Prompted Batch Mode—create pre-defined batches with on-screen text and image prompts for each reading
- 3 Scan Modes — increase measurement speed to 180+ readings per minute
- Normal – take continuous readings without lifting the probe
- Statistics – take continuous readings and record average, standard deviation, min/max thickness and number of readings while scanning
- Limited Count Average – take continuous readings up to a user-specified count. The gage displays and records the average of the readings.
- NEW Touchscreen keyboard for quickly renaming batches, adding notes, and more
- Multiple stored calibration adjustments for measuring on a variety of substrate conditions
- NEW Calibration Adjustment Reporting feature documents calibration adjustments into PosiSoft software reports
- NEW SSPC-PA 2, ISO 19840, and IMO PSPC 90/10 modes help users comply with standards by prompting for min/max specifications, displaying the necessary readings, and automatically calculating statistics with a pass/fail result
- WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
- Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software
- Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols
- NEW Connect a Bluetooth barcode scanner or keyboard to instantly annotate readings and batches
