Pure Regenerative Dryers - Tank Dryers

Pure Regenerative Dryers - Tank Dryers

Manufacturer: Tsunami

Part Number:  21999-1105-T, 21999-1105-T-MM, 21999-0955, 21999-0955-220, 21999-0955-PP

The newest line to Tsunami Compressed Air Solutions, Pure Series Regenerative Dryers provides the same high-quality air as the Ultra Dryer line at a reduced cost. The Pure 5 and Pure 10 systems utilize a simple control system and Tsunami pre-filtration to assure removal of water, oil, and particulates before entering the dryer. The Pure 5 and Pure 10 both perform to achieve dew points down to -80°F and relative humidity down to .01% RH.

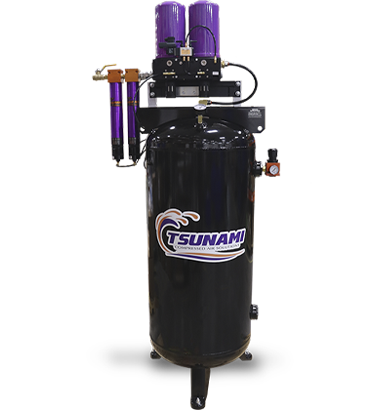

The Pure Series Tank-Mounted dryers come as a complete package with tank attachments to support air flow. The Pure-5T comes with a 1-gallon tank to maximize laminar airflow and the Pure-10T sits atop a 60-gallon storage tank to increase shop capacity

Pure-5T: The Pure-5 Series Regenerative Dryer is rated for 15 CFM airflow, and fitted for 5 Hp compressors. The Pure-5 system uses a Solenoid Timer Valve to control the dryer and Tsunami pre-filtration to assure removal of water, oil, and particulates before entering the dryer.

Pure-10T: The Pure-10 Series Regenerative Dryer is rated for 40 CFM airflow, and fitted for 10 Hp compressors. The Pure-10 system uses a Solenoid Timer Valve to control the dryer and Tsunami pre-filtration to assure removal of water, oil, and particulates before entering the dryer.

Key features

• 2-stage Pre-filtration; Water Separator, Oil Coalescing Filter
• Molecular Sieve Desiccant
• Solenoid Valve Timer
• Automatic Drains
• Purge Exhaust Mufflers
• Wall Mounting Brackets
• Outlet Regulator
• Heater pads available for cold temp applications

Key Benefits

• Low relative humidity - down to .01% RH
• Dew points down to -80°F
• Easy. low-cost maintenance - under $100/ year average
