Manufacturer: UltraTech
Part Number: See table
Description: Stormwater products that install under the catch basin’s grating are nice from an aesthetic standpoint. But in some applications, the function is more important than form. In other words, looks aren’t the primary concern, it just needs to work well.

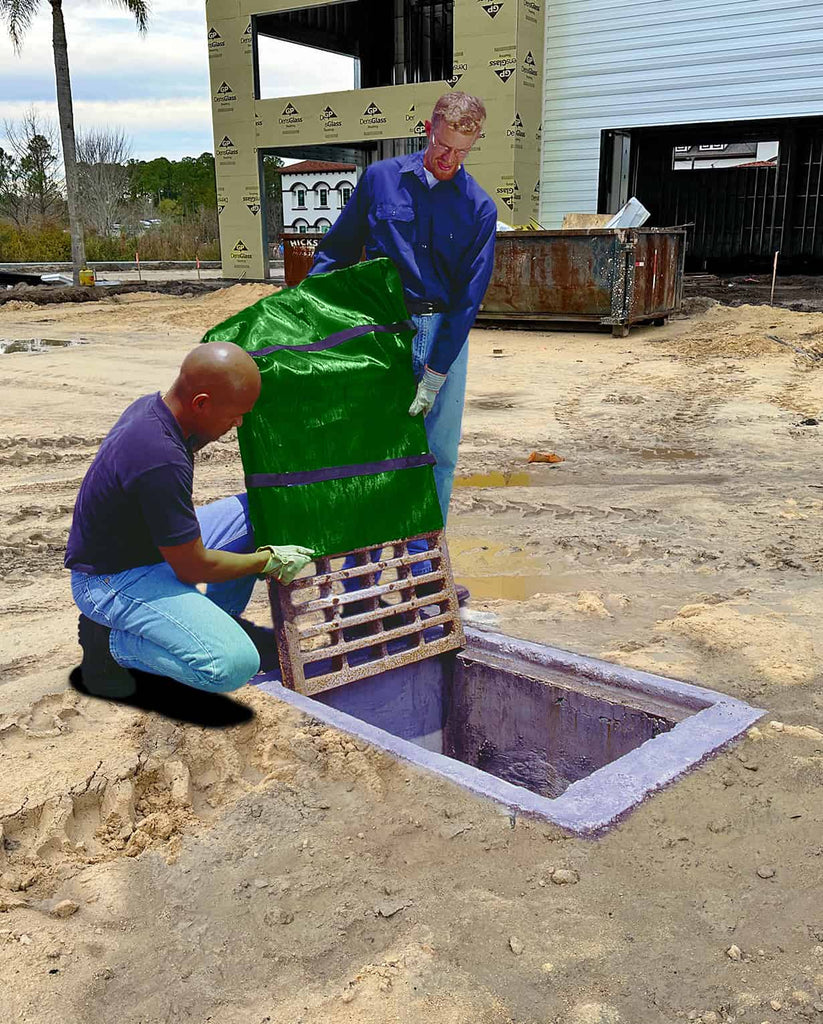

The Ultra-Grate Guard slides onto the storm drain’s grate and uses heavy-duty hook and loop fasteners to keep it closed. Once installed, sediment, dirt, silt, and other pollutants are easily removed with a broom, flat shovel, or similar tool.

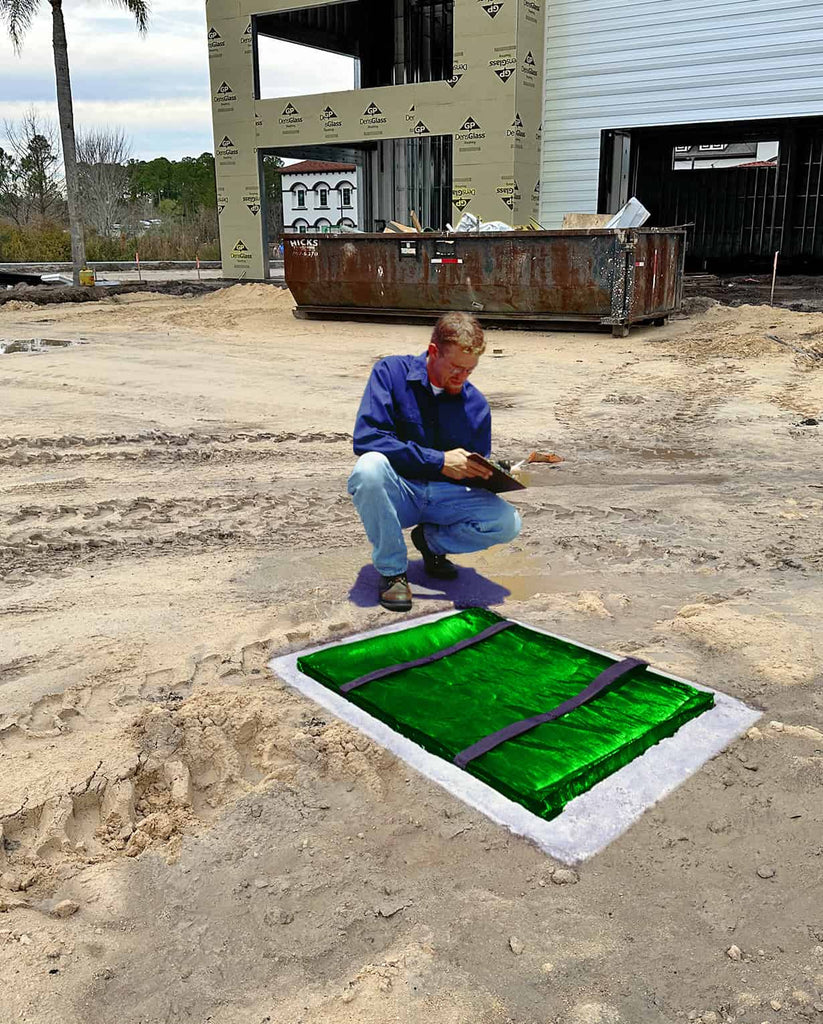

No need to remove the grating. Everything has been kept at street level. This can be especially valuable on construction site and other areas with large amounts of pollutants.
Product Highlights:
- For use with flat grate catch basins.
- Allows run-off to flow through while blocking sediment.
- Standard and custom sizes available.
- Material: High Flow Woven
Part No. | Model | Dimensions in. | Weight lbs. |
9276-SED |
Sediment Only Model | 36 x 24 x 4 | 2 |
9850 | Sediment Only Model, High Flow w/ Overflows | 24 x 24 x 4 | 2 |
9851 | Sediment Only Model, High Flow w/ Overflows | 28 x 28 x 4 | 2 |
9852 | Sediment Only Model, High Flow | 18 x 36 x 4 | 2 |
9853 |
Sediment Only Model, High Flow | 18 x 48 x 4 | 2 |
9854 | Sediment Only Model, High Flow | 24 x 36 x 4 | 2 |
9855 | Sediment Only Model, High Flow | 24 x 40 x 4 | 2 |
9856 | Sediment Only Model, High Flow | 24 x 48 x 4 | 2 |
9857 | Sediment Only Model, High Flow | 28 x 42 x 4 | 2 |
9858 | Sediment Only Model, High Flow | 36 x 36 x 4 | 2 |
9859 | Sediment Only Model, High Flow w/ Curb Deflector | 18 x 36 x 4 | 2 |
9860 | Sediment Only Model, High Flow w/ Curb Deflector | 24 x 36 x 4 | 2 |
9861 | Sediment Only Model, High Flow w/ Curb Deflector | 24 x 40 x 4 | 2 |
9862 | Sediment Only Model, High Flow w/ Curb Deflector | 24 x 48 x 4 | 2 |
9863 | Sediment Only Model, High Flow w/ Curb Deflector | 28 x 42 x 4 | 2 |
