UltraTech Ultra-Inlet Guard Plus®
Manufacturer: UltraTech
Part Number: 916X
Description: If speed of installation and convenience top the list of features you are looking for in a stormwater product, then the Ultra-Inlet Guard should be a serious consideration.

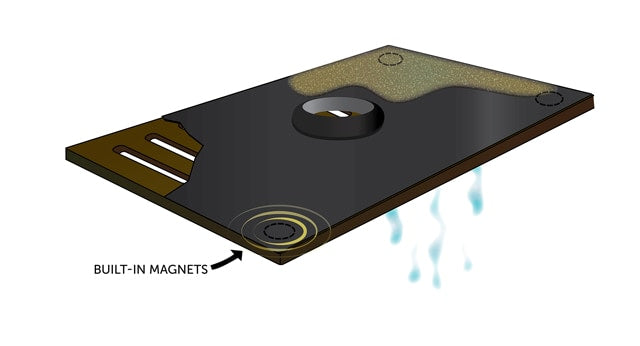

Heavy-duty geotextile material effectively removes oil and sediment from rainfall. And strong, rare earth magnets sewn into each corner make installation quick and easy.
Product Highlights:
- Keeps dirt, sand, sediment, trash, and debris out of drains.

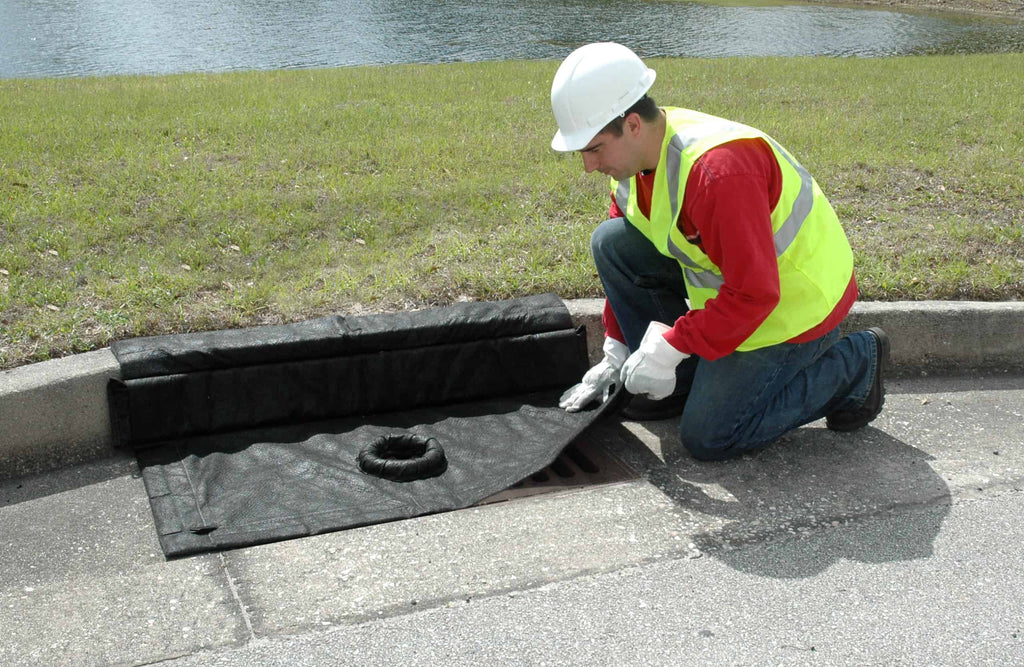

- Quick and easy installation using built-in magnets — no more lifting of heavy catch basin grates.
- Available in several sizes for street drains, combination drains, and trench drains. Custom sizes also available.
- Heavy-duty, material (non-woven, polypropylene geotextile) allows up to 92 gal/ft2/min. through drains.
- Low-profile design can be driven over and is unobtrusive to traffic and personnel.
- Geotextile material helps remove oil and other hydrocarbons from stormwater flow.
| Part No. | Model | Dimensions in. | Weight lbs. |
|
Inlet Guard Plus |
|||
| 9160 | Oil & Sediment Plus Model | 24 x 24 x 0 | 5 |
| 9161 | Oil & Sediment Plus Model | 36 x 24 x 0 | 5 |
| 9162 | Oil & Sediment Plus Model | 48 x 24 x 0 | 5 |
|
Ultra-Inlet Guard Plus - Curb-Style |
|||
| 9163 | Oil & Sediment Plus Model, Curb Style | 24 x 24 x 0 | 5 |
| 9164 | Oil & Sediment Plus Model, Curb Style | 36 x 24 x 0 | 5 |
| 9165 | Oil & Sediment Plus Model, Curb Style | 48 x 24 x 0 | 6 |
