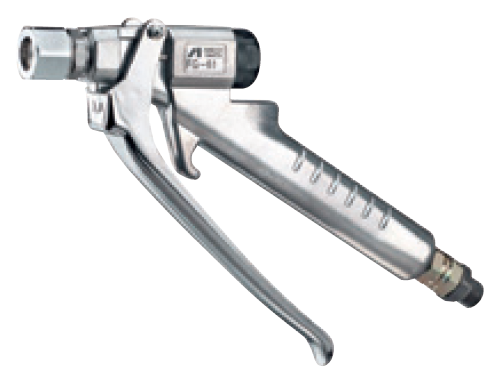

Anest Iwata FG-6X - Flow Gun (Sealant & Adhesive Applications)
Precio normal
Precio unitario
/
Agotado
Los gastos de envío se calcularán al momento de pagar.
Anest Iwata FG-6X - Flow Gun (Sealant & Adhesive Applications)
Precio normal
Desde
Precio unitario
/
Agotado
FG-6X - Flow Gun (Sealant & Adhesive Applications)
Manufacturer: Anest Iwata
Part #: FG-6X
Description: Manual Flow Gun used for high viscosity sealant and adhesive applications, with operating pressures up to 250 bar/3625 psi.
Specifications:
Parts:
| Ref. No. | Part No. | Description |
| 1 | 93546200 | NOZZLE TIP HOLDER |
| 2 | 93807200 | NOZZLE GLAND SET |
| 4 | 93574200 | NEEDLE SEAT |
| 5 | 93808200 | FLUID NEEDLE SET |
| 5-1 | 93809200 | NEEDLE BAR SET |
| 5-2 | 93504180 | SPRING HOLDER |
| 5-3 | 93844170 | CONICAL SPRING WASHER 8 pcs./1 pk. |
| 5-4 | 93067951 | PACKING HOLDER |
| 5-5, 5-6 | 93846170 | NEEDLE PACKING SET |
| 5-7 | 93505180 | NEEDLE PACKING SEAT |
| 5-8 | 93500190 | NEEDLE SPRING HOLDER |
| 5-9 | 96994603 | SCREW |
| 6 | 93501190 | NEEDLE SPRING |
| 7 | 93502190 | NEEDLE SPRING SEAT |
| 8 | 93505200 | TRIGGER STUD |
| 9 | 96994103 | HEXAGON CAP NUT 2 pcs./1 pk. |
| 10 | 93811200 | TRIGGER SET |
| 11-1 | 93810200 | UNIVERSAL JOINT NPS 3/8" |
| 11-2 | 93813200 | UNIVERSAL JOINT BSP 1/4" |
| 11-3 | 93814200 | UNIVERSAL JOINT BSP 3/8" |
| 13 | 93638200 | COLLAR (option) |
| Nozzle Tips |
Literature:
