Binks 0115-010300 AX140 Hardware Kit
Binks 0115-010300 AX140 Hardware Kit
AX140 Hardware Kit
Manufacturer: Binks
Part #: 0115-010300
Description: AX140 Hardware Kit

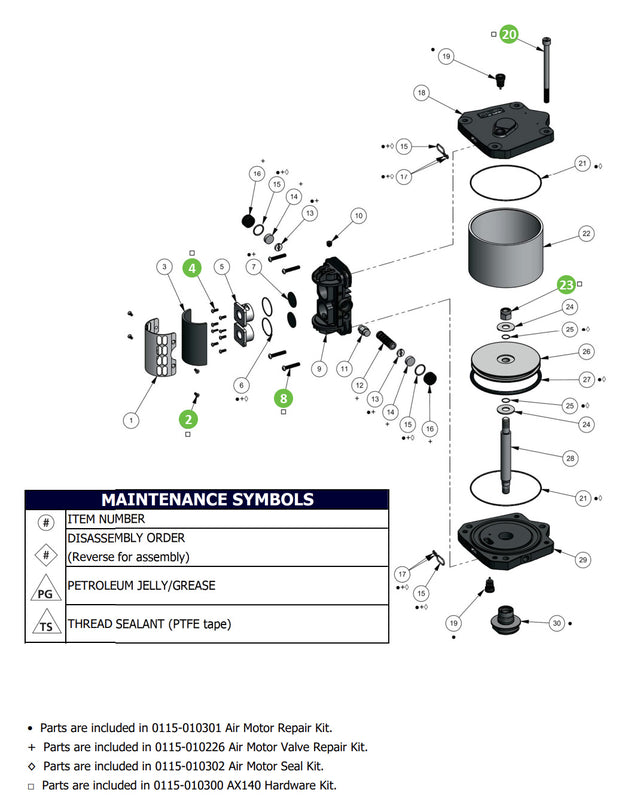

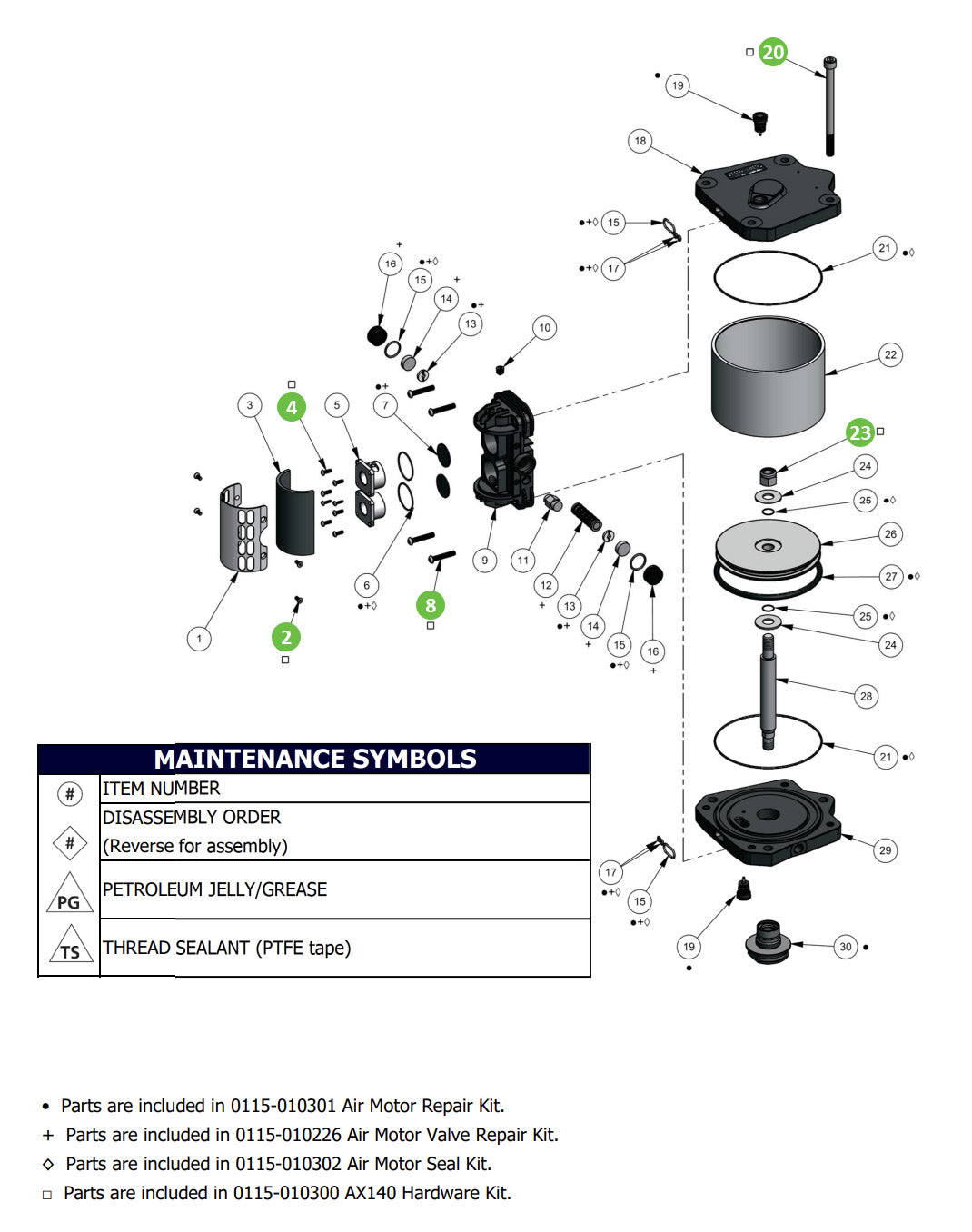

| Ref. No. | Part No. | Description |
Qty |
| 1∆ | 0115-010023 | EXHAUST COVER SCREEN | 1 |
| 2∆□ | 0115-010024 | COUNTER SUNK CAP SCREW | 4 |
| 3∆ | 0115-010022 | EXHAUST COVER | 1 |
| 4∆□ | 0115-010073 | BUTTON HEAD CAP SCREW | 8 |
| 5∆ | 0115-010019 | QUICK EXHAUST VALVE CAGE | 2 |
| 6∆●+ | 0115-010021 | O-RING | 2 |
| 7∆●+ | 0115-010020 | DIAPHRAGM | 2 |
| 8□ | 0115-010026 | BUTTON HEAD CAP SCREW | 4 |
| 9∆ | 0115-010097 | VALVE BLOCK | 1 |
| 10∆ | 0115-010107 | PIPE PLUG | 1 |
| 11∆ | 0114-014774 | SAFETY VALVE | 1 |
| 12∆+ | 0115-010015 | SPOOL AND SLEEVE ASSEMBLY | 1 |
| 13∆●+ | 0115-010016 | BUMPER | 2 |
| 14∆+ | 0115-010017 | MAGNET | 2 |
| 15∆●+ | 0115-010049 | O-RING | 4 |
| 16∆+ |
0115-010018 |
VALVE BLOCK END CAP | 2 |
| 17●+ | 0115-010051 | O-RING |
4 |
| 18 | 0115-010117 | UPPER END CAP MACHINING | 1 |
| 19● | 0115-010037 | POPPET ASSEMBLY |
2 |
| 20□ | 0115-010124 | SOCKET HEAD CAP SCREW | 4 |
| 21● | 0115-010133 | O-RING | 2 |
| 22 | 0115-010116 | CYLINDER |
1 |
| 23□ | 0115-010127 | LOCKNUT | 1 |
| 24 | 0115-010131 | WASHER | 2 |
| 25● | 0115-010132 | O-RING | 2 |
| 26 | 0115-010128 | PISTON | 1 |
| 27● | 0115-010129 | O-RING | 1 |
| 28 | 0115-010130 | MOTOR ROD |
1 |
| 29 | 0115-010119 | LOWER END CAP MACHINING | 2 |
| 30● | 0115-010658 | MOTOR ROD CARTRIDGE ASSEMBLY | 1 |
| 31 | 0115-010181 | 90° SWIVEL ELBOW, Ø12mm TUBE - G3/8" MALE (not shown) | 1 |
NOTE:
∆ Items available separately or as a complete assembly: 0115-010660.
● Parts are included in 0115-010301 Air Motor Repair Kit.
+ Parts are included in 0115-010226 Air Motor Valve Repair Kit.
◊ Parts are included in 0115-010302 Air Motor Seal Kit.
□ Parts are included in 0115-010300 AX140 Hardware Kit.
