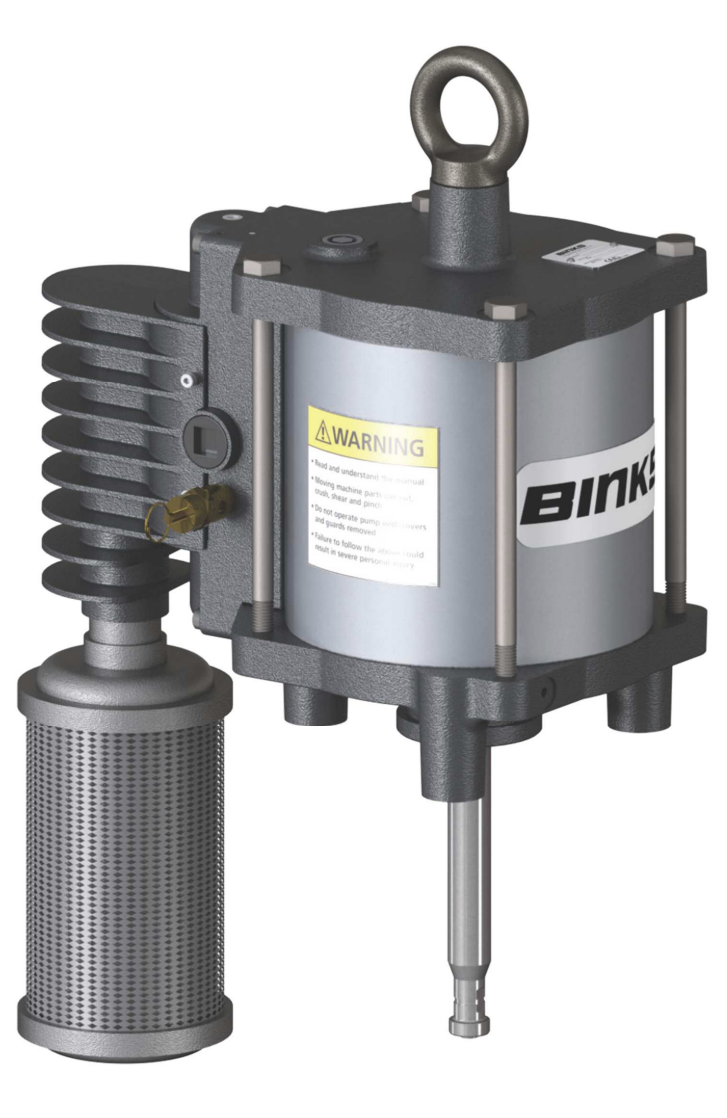

Binks AX160L-8 Air Motor
Binks AX160L-8 Air Motor
AX160 Air Motor
Manufacturer: Binks
Part #: AX160L-8
Description: Air Motor
Specifications:
| Maximum air inlet pressure: | 8 bar [116 psi] |
| Maximum recommended continuous cycle rate [cycles/min]: | 20 |
| Maximum recommended intermittent cycle rate [cycles/min]: | 30 |
| Air inlet connection: | 3/8" BSPP |
| Nominal pump stroke: | 127mm [5"] |
| Ambient temperature range: | 0 - 71°C [0 - 160°F] |
| Weight: | 9Kg [20lbs] |
| Ref. No. | Part No. | Description |
Qty |
| 1 | 192821 | MUFFLER | 1 |
| 2 | 193825 | EXHAUST ADAPTER | 1 |
| 3 | 165528 | SOCKET HEAD CAP SCREW | 4 |
| 4 | 165971 | SPRING LOCK WASHER | 4 |
| 5 | 165970 | PLAIN WASHER | 4 |
| 6● | 161995 | O-RING | 2 |
| 7∆+ | 0115-010018 | VALVE BLOCK END CAP | 2 |
| 8∆●+◊ | 0115-010049 | O-RING | 4 |
| 9∆+ | 0115-010017 | MAGNET | 2 |
| 10∆●+ | 0115-010016 | BUMPER | 2 |
| 11∆ | 0115-010073 | BUTTON HEAD CAP SCREW | 8 |
| 12∆ | 192813 | QUICK EXHAUST VALVE CAGE | 2 |
| 13∆●+◊ | 0115-010021 | O-RING | 2 |
| 14∆●+ | 0115-010020 | DIAPHRAGM | 2 |
| 15 | 163920 | SOCKET HEAD CAP SCREW | 4 |
| 16∆ | 193817 |
VALVE BLOCK | 1 |
| 17∆+ | 0115-010015 | SPOOL AND SLEEVE ASSEMBLY | 1 |
| 18 |
0114-014774 |
8 BAR [116 PSI] SAFETY VALVE |
1 |
| 19●◊ | 162819 | CYLINDER SEAL | 2 |
| 20●+◊ | 0115-010051 | O-RING | 4 |
| 21 | 193826 | UPPER END CAP | 1 |
| 22● | 0115-010037 | POPPET ASSEMBLY | 2 |
| 23 | 193689 | EYE BOLT | 1 |
| 24 | 162818 | HEX HEAD CAP SCREW | 4 |
| 25 | 194073 | CYLINDER | 1 |
| 26 | 193822 | PISTON |
1 |
| 27●◊ | 162817 | PISTON SEAL |
1 |
| 28●◊ | 193820 | U-CUP SEAL | 2 |
| 29 | 0115-010123 | LOWER END CAP | 1 |
NOTE:
∆ Items available separately or as a complete assembly: 193818
● Parts are included in 250731 Air Motor Repair Kit.
+ Parts are included in 0115-010226 Air Motor Valve Repair Kit.
◊ Parts are included in 250721 Air Motor Seal Kit.
Literature:
Binks charges a significant fee to drop ship orders of less than $250.00. Therefore, any parts orders under $250.00 will be added to our stocking orders and then reshipped to you. If you need these products faster you can contact us for an expedited drop shipping fee.
Contact: 503-545-3176
