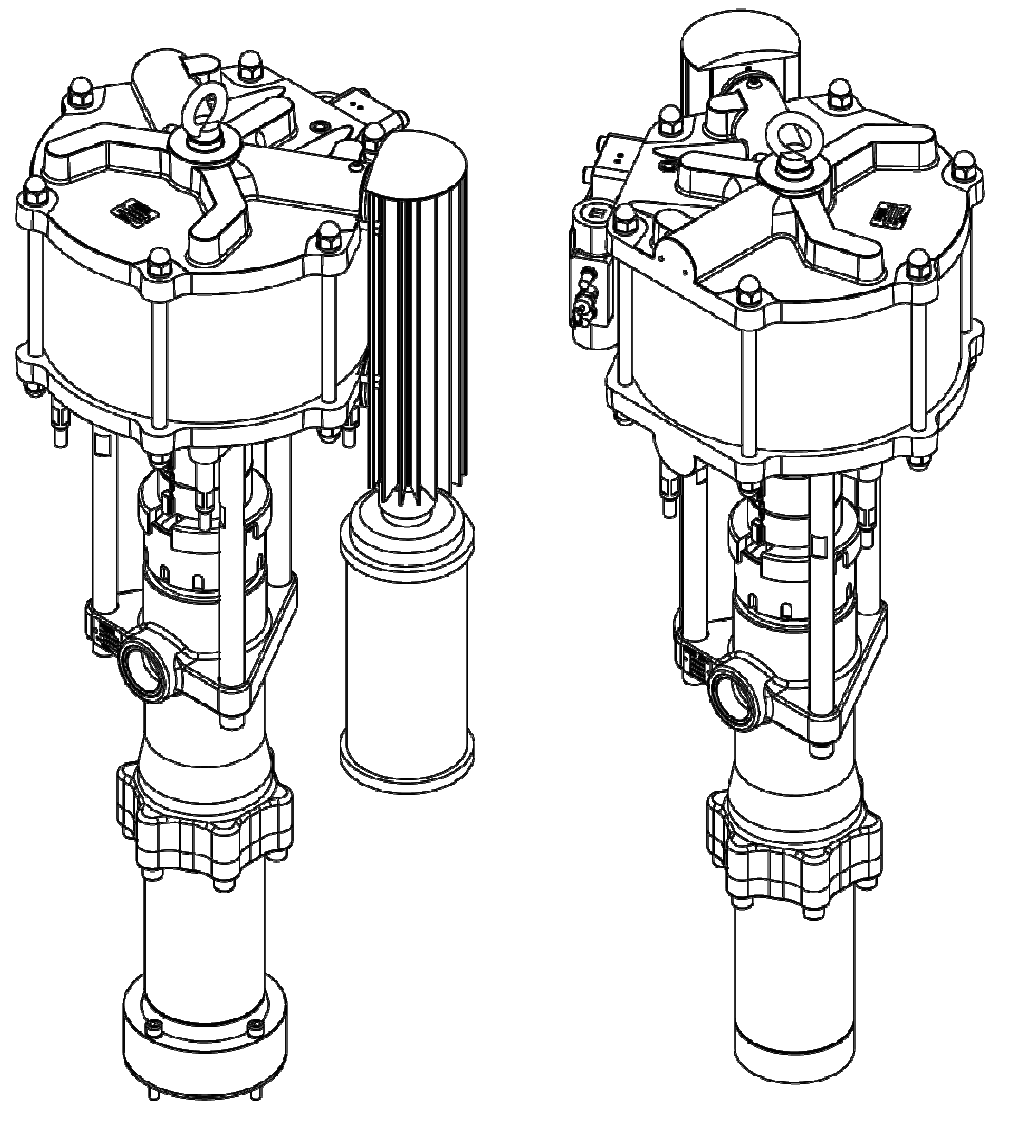

Binks MX88023PU-XXX Bare Pump Assembly

MX88023PU Bare Pump Assembly

Manufacturer: Binks

Part #'s: MX88023PU-XXX

Description: MX88023PU Bare Pump Assembly

The MX88023XX-XXX fluid paint pump is designed for pumping High Viscosity materials such as Mastic, PVC, Underseals, Sound deadeners and other similar materials.

Features:

• The fluid section is a ‘ROD’ type design which means the rod displaces the material and is the only wear contact
  with the packings. A two-ball check valve system ensures precise, smooth volume output. Tungsten Carbide ball
  seats ensure maximum operating life between servicing.
• The interior design maintains high flow capacity with minimum pressure drop ensuring high efficiency; special
  surface treatments provide a smooth micro surface making cleaning and flushing easier.
• The piston and rod seals are the chevron type, which can be adjusted by means of a gland nut, should wear
  occur, a preloaded wave spring is employed to adjust and maintain the lower chevron packing preload when
  wear occurs. A built in Solvent cup cleans and lubricates the pump rod and seals to prolong working life.
• The air motor also utilizes the Binks quick exhaust technology to prevent air valve freezing conditions when high
  cycle speeds are employed.
• The air motor is furnished with an exhaust muffler to control air exhaust noise emission. An adapter kit is also
  available to facilitate connection to a piped exhaust system if required.

Specifications:

Ratio:	23:1
Output @ 60 cycles / min:	52.8 l/m [14.4 US gal/m]
Nominal flow volume / cycle:	0.880 l [0.24 US gal]
Maximum recommended intermittent cycle rate:Cycles/min	25
Stroke	5" [127mm]
Maximum fluid pressure:	161 Bar [2355 psi]
Fluid inlet connection:	2" NPT (CMH, SMH) & Ram Inlet (CMB, SMB)
Fluid outlet connection:	1 ½" NPT
Weight:	100 kg / 220 lbs
Rod Surface Treatment:	Plasma Nitride Coated Stainless Steel (CMX) Ceramic Coated Stainless Steel (SMX)
Rod Upper Packing Seal Options:	PTFE UHMW-PE (PU)
Upper Packing Nut Adjustment:	170Nm
Rod Lower Packing Seal Options:	PTFE UHMW-PE (PU)
Air Inlet:	¾" NSP / BSP
Air Quality ISO 8573.1 Class 3.3.2	Dirt: 5 microns Water: -20°C @ 7bar [0.1g/m³] Oil: 0.1mg/m³



MX88023PU-XXH

MX88023PU-XXB

Pump Assembly Parts List
