Low Pressure Automatic Gun Air Caps
Manufacturer: DeVilbiss
Part #'s: See Below

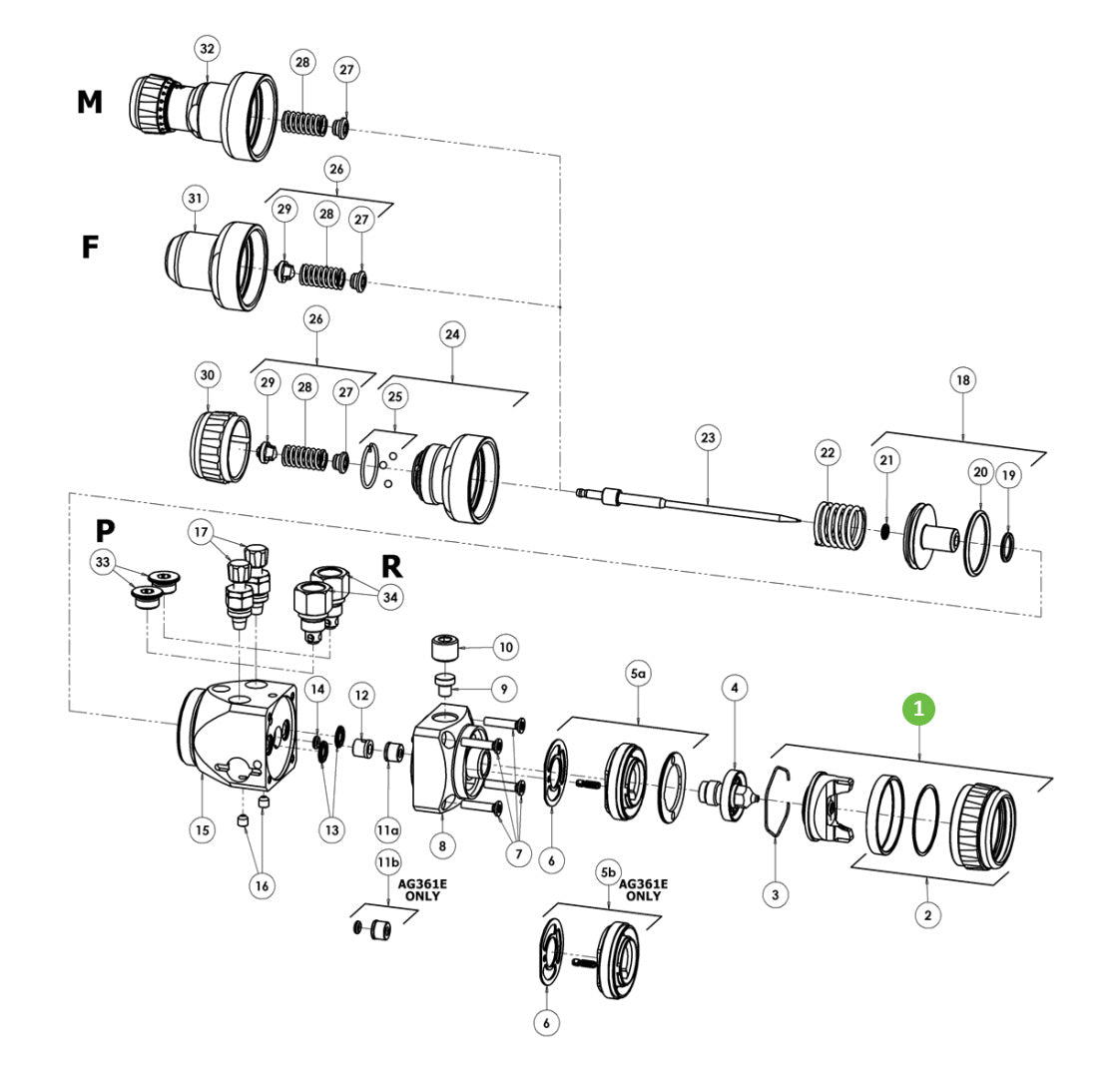

Description: Air Cap & Retaining Ring. See reference 1.
Conventional
- Part # PROC-120-C1-K = Type - Conventional, Air Consumption - 300 L/min [10.7 cfm], Recommended Air Inlet Pressure - 3 Bar [45 psi], Typical Fluid Flow* - 150-250 ml/min, Typical Fan Pattern Size** - 270mm
- Part # PROC-120-C2-K = Type - Conventional, Air Consumption - 290 L/min [10.3 cfm], Recommended Air Inlet Pressure - 3 Bar [45 psi], Typical Fluid Flow* - 100-350 ml/min, Typical Fan Pattern Size** - 270mm
- Part # PROC-120-TE10-K = Type - Conventional, Air Consumption - 440 L/min [15.7 cfm], Recommended Air Inlet Pressure - 3 Bar [45 psi], Typical Fluid Flow* - 250-600 ml/min, Typical Fan Pattern Size** - 360mm
Trans-Tech
- Part # PRO-100-TE10-K = Type - Trans-Tech/Compliant, Air Consumption - 255 L/min [9.1 cfm], Recommended Air Inlet Pressure - 2 Bar [30 psi], Typical Fluid Flow* - 150-200 ml/min, Typical Fan Pattern Size** - 300mm
- Part # PRO-100-TE20-K = Type - Trans-Tech/Compliant, Air Consumption - 325 L/min [11.6 cfm], Recommended Air Inlet Pressure - 2 Bar [30 psi], Typical Fluid Flow* - 150-200 ml/min, Typical Fan Pattern Size** - 290mm
- Part # PRO-100-TE30-K = Type - Trans-Tech/Compliant, Air Consumption - 375 L/min [13.3 cfm], Recommended Air Inlet Pressure - 2 Bar [30 psi], Typical Fluid Flow* - 200-300 ml/min, Typical Fan Pattern Size** - 300mm
- Part # PRO-100-TE40-K = Type - Trans-Tech/Compliant, Air Consumption - 355 L/min [12.6 cfm], Recommended Air Inlet Pressure - 2 Bar [30 psi], Typical Fluid Flow* - 250-400 ml/min, Typical Fan Pattern Size** - 380mm
- Part # PRO-100-TE50-K = Type - Trans-Tech/Compliant, Air Consumption - 425 L/min [15.1 cfm], Recommended Air Inlet Pressure - 2 Bar [30 psi], Typical Fluid Flow* - 250-400 ml/min, Typical Fan Pattern Size** - 300mm
HVLP
- *** Part # PRO-100-HV30-K = Type - Trans-Tech/Compliant, Air Consumption - 450 L/min [16.0 cfm], Recommended Air Inlet Pressure - 1.75 Bar [26 psi], Typical Fluid Flow* - 160-200 ml/min, Typical Fan Pattern Size** - 315mm
Air Cap / Fluid Tip Combinations
Literature:
Binks, which DeVilbiss is a part of, charges a significant fee to drop ship orders of less than $250.00. Therefore, any parts orders under $250.00 will be added to our stocking orders and then reshipped to you. If you need these products faster you can contact us for an expedited drop shipping fee.
Contact: 503-545-3176
