Hosco Monoline Coaxial Paint Hose Assembly (Various Hose Length Options)

Hosco Monoline Coaxial Paint Hose Assembly

(Various Hose Length Options)

Manufacturer: Hosco

Part #'s: MCPHA-XX

Description:

• Part # MCPHA-15 = 15’ Hose Assembly with Fittings
• Part # MCPHA-20 = 20’ Hose Assembly with Fittings
• Part # MCPHA-25 = 25’ Hose Assembly with Fittings
• Part # MCPHA-25-B = 25’ Hose Assembly with Fittings, BSP Threads
• Part # MCPHA-40 = 40’ Hose Assembly with Fittings

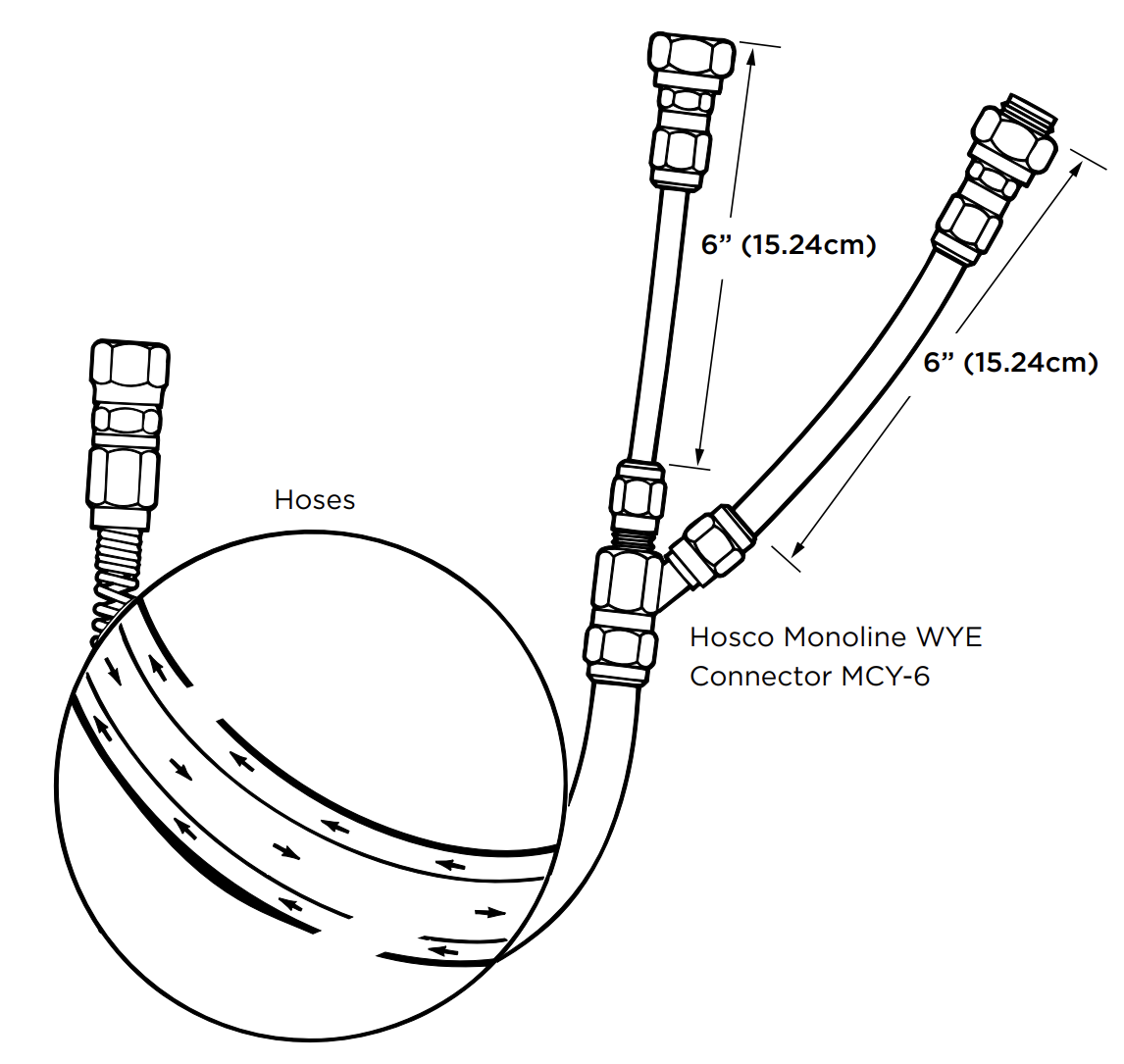

Hosco MCPHA (Monoline Coaxial Paint Hose Assembly) is a unique and novel method of circulating paint or any fluid with the appearance of a single hose system. This innovation
reduces the hose management issues at dispense or spray stations for materials needing recirculation by supplying the material in the annulus area between the outside and inside
hoses, and returning the material being circulated thru the inside hose ID. On the primary product family, the frictional loss is equivalent to a 1/4” ID (6.35mm) hose on the supply side and a 0.236” ID (6mm) hose on the return side and is dependent on the MCPHA assemblies length, normally up to 35 feet in standard configurations (15ft (4.5m), 20ft (6.1m), 25ft (7.6m), 30ft (9.1m), and 35ft (10.7m)). In the Mini-Monoline versions to supply heated flush materials to the spray applicator, the frictional loss is equivalent to 4mm ID on the supply side hose, and a 1.8mm ID on the return side hose (this version is flow limited to approximately 400cc/min of solvent or amine flushing materials and operating temperatures to 140 degrees F). The flexibility and ergonomic benefits of the primary family assemblies are accomplished with the use of the proprietary Hosco CPH hose (Coaxial Paint Hose) which is a three layer PA/PUR/PA hose construction that reduces weight and increases flexibility of the hose assembly’s use and comfort for the spray operator. In addition, its compact design is now incorporated into robot and automation stations for circulating paint and flush materials due to challenges of routing and connecting normal two hose (supply and return) systems. Heat loss in the hose station is reduced with the MCPHA primarily due to the fact that the return hose is not exposed to heat loss because of the “hose in a hose” design.

Features:

Single Hose Design Provides Recirculation
• Reduces hose management issues
• Compact design for hose routing challenges
Multiple Configurations And Lengths
• Two sizes for two uses-larger version for circulating paint, Mini-Monoline for circulating and supplying heated flush materials to the robot bell or gun.
• Assembly lengths from 7ft (2m) to 35ft (10.7m)
No Assembly Required At Site
• MCPHA assemblies ready to install when received
Rebuildable On Site
• SST fittings provide long life, tubing, hose and seal kits available as spare parts for rebuilding
Unique Ergonomic/Flexible Hose Designs
• CPH tri-layer hose provides new levels of comfort and flexibility in manual spray operations
