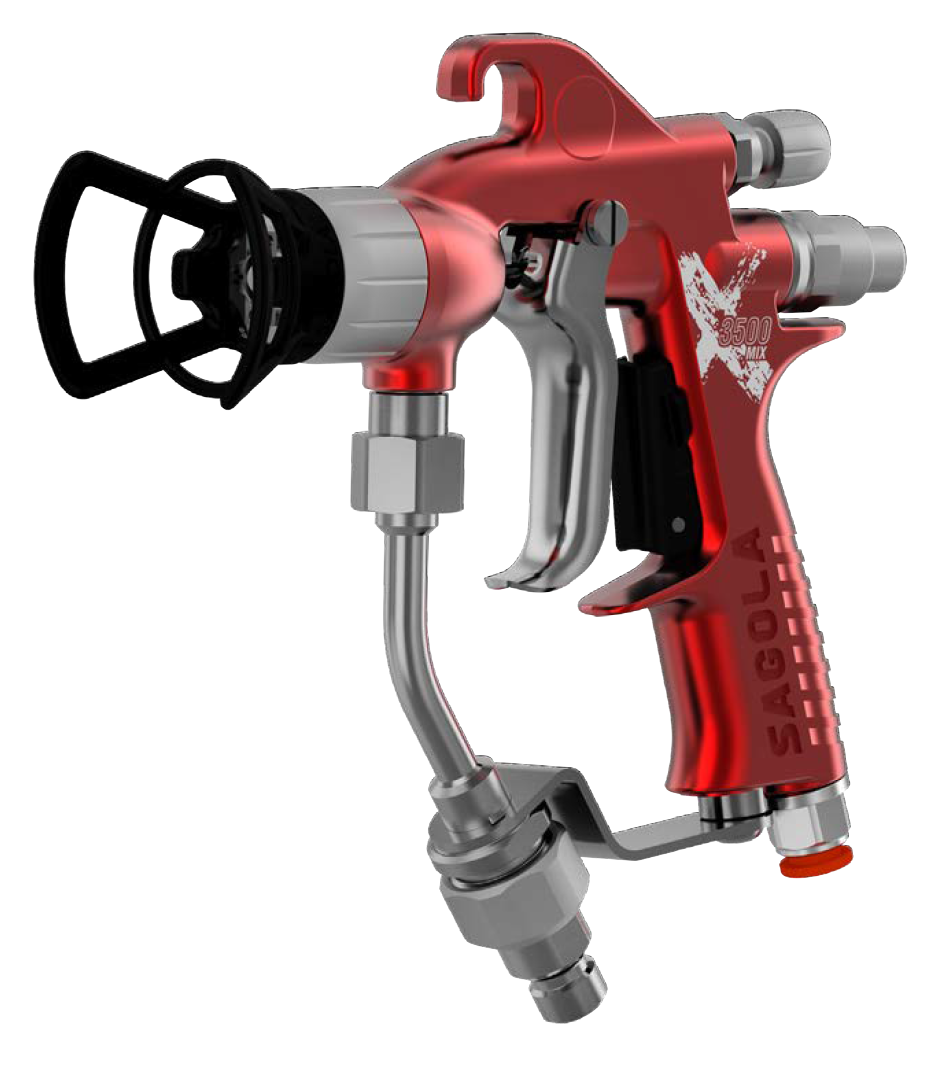

Sagola X3500 Mix Air-Assisted Airless Spray Gun

X3500 Mix Air-Assisted Airless Spray Gun

Manufacturer: Sagola

Part Number: 3513021X

Description: The Sagola X3500 Mix Spray Gun is a lightweight, high-performance air-assisted airless spray gun designed for demanding industrial finishing applications. Its hybrid spray technology combines pressurized fluid delivery with air-assisted atomization to produce a fine, uniform spray pattern while maintaining the application speed and transfer efficiency of an airless system. The result is controlled material delivery, reduced overspray and a consistent professional finish—even when spraying higher-viscosity coatings.

Designed for extended daily use, the X3500 Mix features a compact, balanced gun body that weighs only 510 grams without the optional fluid swivel. Its optimized weight distribution helps reduce operator fatigue and provides stable control throughout each spray pass. A rotating filter holder improves hose positioning and makes it easier to reach confined or difficult areas, while the integrated safety lock helps prevent accidental triggering during service, cleaning or downtime.

The X3500 Mix is manufactured with high-strength materials and precision-machined components for dependable performance in industrial environments. Critical fluid areas use metal-to-metal contact to reduce unnecessary seals in the application zone, simplifying disassembly and cleaning while helping minimize component wear and maintenance-related downtime. Fluid-contact components include brass, stainless steel, tungsten carbide, PTFE, polyamide and FKM for compatibility with a wide range of industrial finishing materials.

Available with 11/40 or 13/40 MIX tips, the X3500 can be configured with either an 8 mm quick-connect or M16 air inlet. The 1/4-inch BSP male fluid inlet is offered with a fixed connection or an optional rotating swivel fitting. These configuration options allow the gun to be matched to different hoses, pumps and finishing-system requirements.

Features

• Hybrid air-assisted airless technology for fine atomization and efficient material transfer
• Stable, uniform spray pattern with reduced overspray and rework
• Suitable for high-viscosity industrial coating materials
• Lightweight and ergonomically balanced 510-gram gun body
• Rotating filter holder for improved access and reduced hose resistance
• Easy-to-operate trigger safety lock
• Metal-to-metal contact in critical fluid areas
• Precision-machined, high-strength construction
• Easy disassembly and cleaning

Recommended Applications

The Sagola X3500 Mix is suitable for industrial wood finishing, furniture and cabinetry, metal fabrication, machinery, commercial vehicles, structural components and other production environments requiring efficient application with a controlled, high-quality finish. It can be used with compatible solvent-based or waterborne lacquers, varnishes, enamels, primers, polyurethane coatings and other industrial finishing materials.

Specifications

Spray technology:	Air-assisted airless / hybrid MIX
Net weight:	510 g / 1.12 lb
Weight with swivel coupling:	550 g / 1.21 lb
Dimensions:	16.1 × 18 cm / 6.34 × 7.09 in
Dimensions with swivel:	16.1 × 20.1 cm / 6.34 × 7.91 in
Recommended atomizing-air pressure:	2 bar / 29 psi
Air inlet options:	8 mm quick connector or M16 fitting
Fluid inlet:	1/4-inch BSP male
Fluid-inlet options:	Fixed or rotating swivel coupling
Fluid-filter options:	60 or 100 mesh
Average sound-pressure level:	80 dB
Wetted materials:	Brass, stainless steel, tungsten carbide, PTFE, polyamide and FKM
Available tip sizes:	11/40 and 13/40



Parts and Accessories

Ref. No.	Part No.
01	56418791
02	See AAA Spray Tip Table
03	56418614
04	50850605
05	51910623
06	57251403
07	56413707
08	57250415
09	56418613
10	56418615
11	51910235
12	57251904
13	55751810
14/1	56418053
14/2	56418054
14/3	83660037
15	56410110
16	56418046
17	10011250
18	54251011
19	50810258
20/1	54710288
20/2	54710289
21	57810343
22	56411624
23	54710312
24	54110012
25	50810202
26	56418612
27	56415256
28	50210214



Literature:

• AAA Tip Chart
