Samoa CE10 Metallic Pivot Series 1" Air-Operated Double Diaphragm Pump

CE10 Metallic Pivot Series 1" Air-Operated Double Diaphragm Pump

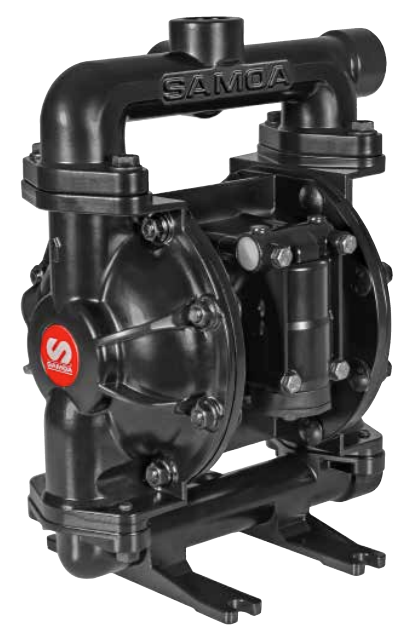

Image for reference only. Actual pump may vary based on material selection

Manufacturer: Samoa

Part Number: CE10A-BAS-SSZ-01

Description: The 1" (25 mm) air operated diaphragm pumps, made of cast metal, feature a compact design and can reach a flow rate of up to 35 gal/min (130 l/min). They incorporate the new Quick-fill valve, which ensures precise air chamber filling and reduces consumption. Multiport manifolds can rotate 180º for extraordinary pump installation versatility.

Specifications

Pump Type & Size	CE10 Compact Pump (Bolted) with electronic interface
Central Body & Air Chambers	Aluminum
Fluid Ports / Location	1" BSP threaded ports
Fluid Chambers & Manifolds	Aluminum
Hardware Bolts	Stainless Steel
Valve Seats	AISI 316 Stainless Steel
Valve Balls	AISI 316 Stainless Steel
Diaphragms Type & Material	Two piece - PTFE (Teflon®) with TPV (Santoprene®) backer
Air valve type	Externally driven pump



Features:

• Higher Efficiency - Maximum fluid flow with reduced air consumption.
• Increased Reliability - No stall, no icing, reliable start-up and longer air valve and diaphragms life.

• Easy Servicing - Simplified maintenance and cleaning. Components designed for long life and reliability.
• Connectivity - Can be cofigured to connect a Smart Pump-Controller System to actuate, control, and monitor your pumps.

Technical Data

Pressure Ratio	1:1
Maximum Free Delivery	35 US gal/min
Air Pressure Range	20 to 120 psi (1.5 to 8 bar)
Max. Size Solids in Suspension	1/8" (3.2 mm)
Max. Dry Suction Lift	16’ (5 m)
Max. Wet Suction Lift	26’ (8 m)
Displacement Per Cycle	0.1 gal (0.4 l)
Fluid Inlet/Outlet Connections	1" BSP or 1"NPT (F) Threaded
Air Inlet Connection	3/8" NPT (F)
Air Exhaust Connection	1/2" NPT (F)
Sound Level	75 dB (A) @50 cycles/min @70 psi (5 bar)
Weight	14.5 lb (6.6 kg)



Parts and Accessories

Part No.	Description
CP10R-WP-00Z	Diaphragm Kit
CP10R-WP-99T	Seat O-ring Kit
