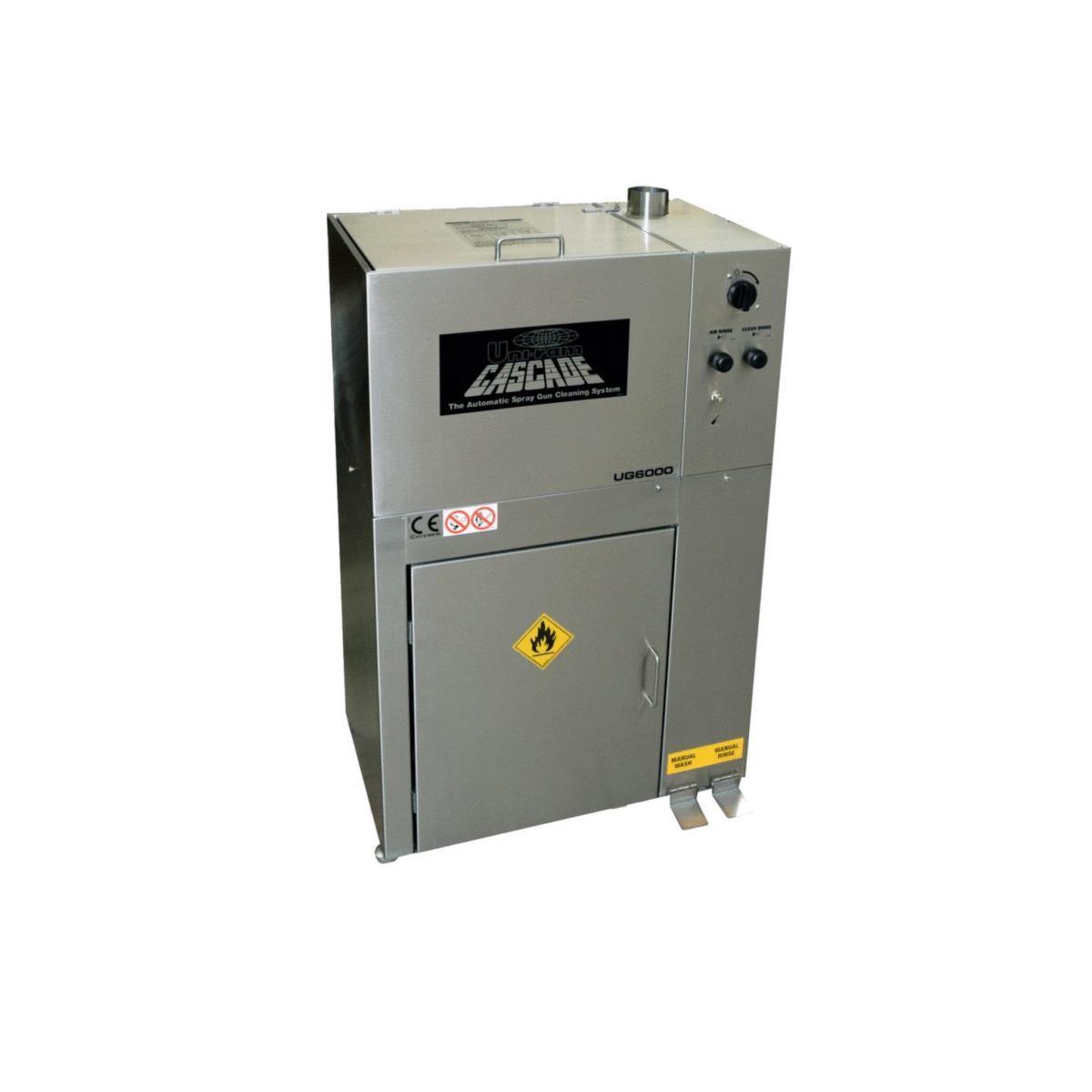

Uni-Ram UG6000 Spray Gun Washer, Solvent-based
Uni-Ram UG6000 Spray Gun Washer, Solvent-based
UG6000 Spray Gun Washer, Solvent-based
Manufacturer: Uni-Ram
Part Numbers: UG6000D, UG6000E & UG6000EH
Description: Efficient. Durable. Designed for Professional Painters.
The UG6000D is a high-capacity, stainless steel spray gun washer engineered for solvent-based paint systems. Combining hands-free automatic washing with flexible manual control, this unit is ideal for body shops, refinishing centers, and industrial environments where performance, safety, and reliability are critical.
| Part No. | GUN CLEANED | SOLVENT RINSE | AIR FLUSH | AUTO VENT | MANUAL WASH | MANUAL RINSE | DIAPHRAGM PUMPS |
| UG6000 | 2 GUNS, 2 POTS | YES | YES | YES | BRUSH* | SPIGOT | 3 |
*Brush Type - Flow-through brush activated by a foot pedal.
Model Specifications:
UG6000 Features:
• Manual Wash using a Flow-through Brush to clean outside of Spray Gun, Spigot to flush the paint channel.
• Regulated solvent flow to the Brush and Spigot is Pump driven and activated by separate foot pedals.
• 304 stainless steel cabinet.
• Tank is larger than tank of UG4000D: 20 x 17 x 14.25
(WDH”) vs 17.25 x 13.5 x 14.25 (WDH”).
• 18 Gauge polished stainless steel body vs 22 gauge for UG4000D.
UG6000 Accessories included:
• Trigger Holding Clamp and a Knurled Nut to prevent solvent from entering air passage of
Spray Gun.
• Operator’s Manual.
• 4 nozzle Extensions; select the nozzle extension that matches the diameter of the opening of the fluid passage way of the Spray Gun.
Technical Data:
Shipping Dimensions 30 X 20 X 45 inches
• Weight 115 lb (48 kg)
You will be contacted with a freight quote for shipping
Standard Features for UG4000D - UG7500:
• Clean spray guns automatically in under 60 seconds.
• Enhanced Cleaning cycle consists of Wash, Clean Rinse (100cc) and Air Flush.
• Clean 2 Spray Guns and 2 Pots.
• 14 Swirl Action Jets.
• Build-in Vent for automatic fume extraction with Vent Control.
• Non-corrosive HDPE Pail; operator sees the solvent level.
• Stainless steel inlet filter on suction tube in wash pail to prevent debris from reaching
the diaphragm pump and the cleaning tank. See photo below. Inlet filter is removable
for cleaning.
Power Supply:
Compressed air at a minimum of 85 PSI, 2 CFM
Safety:
• Always disconnect this machine from power sources before performing maintenance.
• Do not smoke or use near open flames, sparks or heat.
• Make sure all ground wires are connected and that unit itself is grounded properly.
• Wear safety eyeware, respiratory protection and protective clothing.
• Wear deluxe extended length neoprene gloves; SAS PN 6588 or Thicksters PN 6602-20 through 6605-20
Safety Features:
• Popular models are CE approved.
• Safety Switch terminates cleaning cycle when lid is raised.
• Automatic cleaning is “Hand Free”. Operator has minimal exposure to solvent. The solvent pail is kept inside the cabinet.
• Most models have a built-in vent for automatic fume extraction.
CAUTION
SOLVENT BORNE UNITS WITH WATER BORNE PAINT
Parts and Accessories:
- DIAPHRAGM PUMP
- 102-8200 AQUA-KLEEN Paint Residue Cleaner
- 102-8300 COAG-KLEEN Flocculant Granules, 2 KG
- FILTER PAD (Pack of 3)
Literature:
