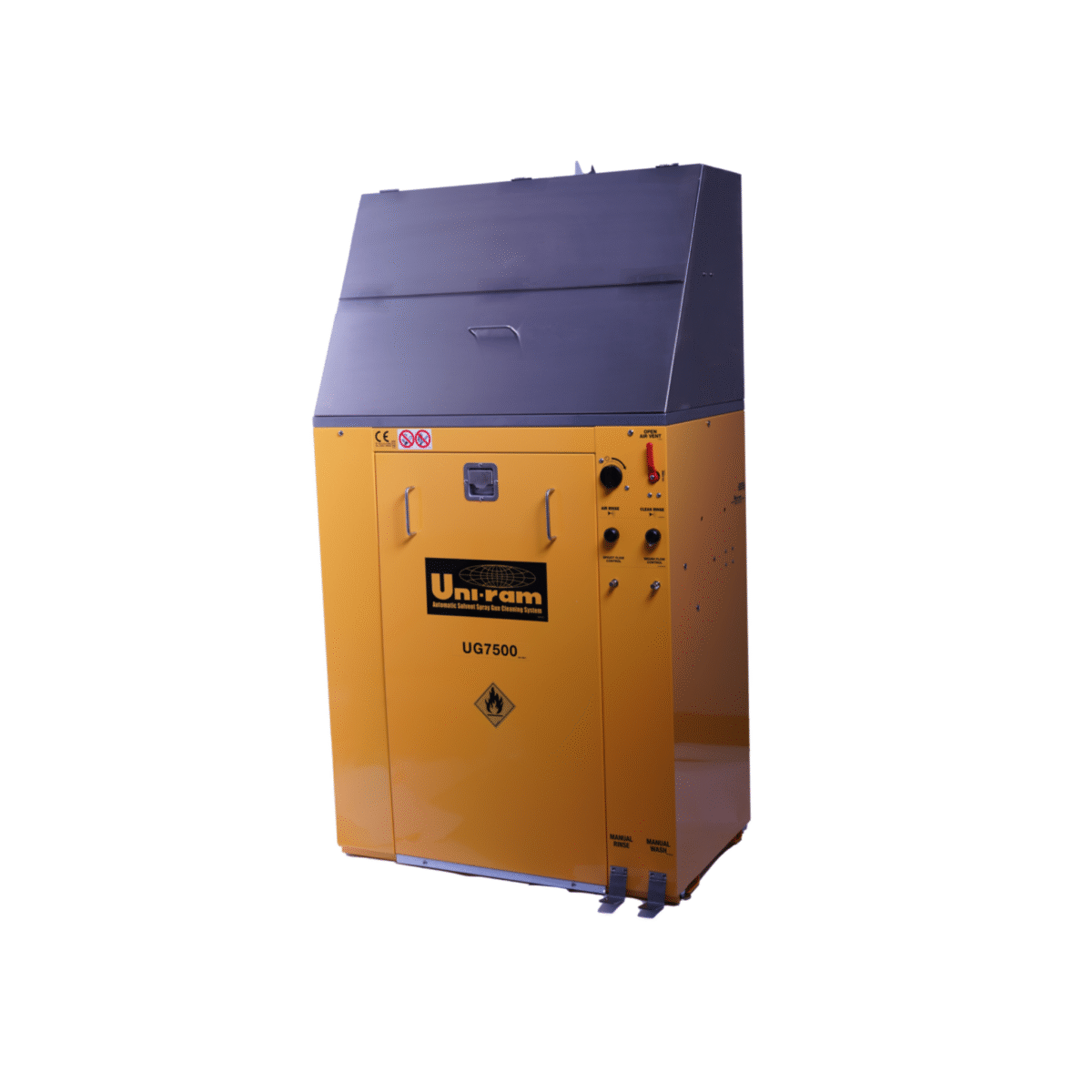

Uni-Ram UG7500 Spray Gun Washer, Dual Automatic/Manual
Uni-Ram UG7500 Spray Gun Washer, Dual Automatic/Manual
UG7500 Spray Gun Washer, Dual Automatic/Manual
Manufacturer: Uni-Ram
Part Numbers: UG7500, UG7500E & UG7500HE
Model Specifications:
Description: Complete Dual-Mode Cleaning System for Spray Guns and Pots.
The Uni-ram UG7500E is a premium, top-loading automatic spray gun cleaner built for professional paint shops handling high-volume or multi-color applications. This advanced model combines powerful automatic cleaning with versatile manual functionality, ensuring consistent, fast, and environmentally responsible performance.
| Part No. | GUN CLEANED | SOLVENT RINSE | AIR FLUSH | AUTO VENT | MANUAL WASH | MANUAL RINSE | DIAPHRAGM PUMPS |
| UG7500 | 2 GUNS, 2 POTS | YES | YES | YES | BRUSH* | SPIGOT | 3 |
*Brush Type - Flow-through brush activated by a foot pedal.
UG7500E, Top Of The Line:
• Clean spray gun automatically in the stainless steel tank (left side) 17.25 x 13.5 x 14.25 (WDH”).
• Wash and rinse spray guns manually above large, conveniently located sink.
• Manual wash with Wash Solvent using Flow through Brush.
• Clean-rinse guns using flexible spigot.
• Control overhead venting with On/Off switch.
• “Combo Ready” (ready for connection to a Uni-ram “EP2” Series Solvent Recycler.
UG7500E Accessories included:
• Trigger Holding Clamp and a Knurled Nut to prevent solvent from entering air passage of
Spray Gun.
• Operator’s Manual.
• 4 nozzle Extensions; select the nozzle extension that matches the diameter of the opening of the fluid passage way of the Spray Gun.
Technical Data:
Dimensions 38 X 26 X 68 inches
96 X 66 X 173 cm
• Weight 185 lb (84 kg)
You will be contacted with a freight quote for shipping
Standard Features for UG4000D - UG7500:
• Clean spray guns automatically in under 60 seconds.
• Enhanced Cleaning cycle consists of Wash, Clean Rinse (100cc) and Air Flush.
• Clean 2 Spray Guns and 2 Pots.
• 14 Swirl Action Jets.
• Build-in Vent for automatic fume extraction with Vent Control.
• Non-corrosive HDPE Pail; operator sees the solvent level.
• Stainless steel inlet filter on suction tube in wash pail to prevent debris from reaching
the diaphragm pump and the cleaning tank. See photo below. Inlet filter is removable
for cleaning.
Power Supply:
Compressed air at a minimum of 85 PSI, 2 CFM
Compatibility:
Solvent or aquous cleaners
Safety:
• Always disconnect this machine from power sources before performing maintenance.
• Do not smoke or use near open flames, sparks or heat.
• Make sure all ground wires are connected and that unit itself is grounded properly.
• Wear safety eyeware, respiratory protection and protective clothing.
• Wear deluxe extended length neoprene gloves; SAS PN 6588 or Thicksters PN 6602-20 through 6605-20
Safety Features:
• Popular models are CE approved.
• Safety Switch terminates cleaning cycle when lid is raised.
• Automatic cleaning is “Hand Free”. Operator has minimal exposure to solvent. The solvent pail is kept inside the cabinet.
• Most models have a built-in vent for automatic fume extraction.
CAUTION
DO NOT USE WATER BORNE UNITS WITH SOLVENT BORNE PAINT
OR
SOLVENT BORNE UNITS WITH WATER BORNE PAINT
Parts and Accessories:
- DIAPHRAGM PUMP
- 102-8200 AQUA-KLEEN Paint Residue Cleaner
- 102-8300 COAG-KLEEN Flocculant Granules, 2 KG
- 102-8125 Primary Filter Bag
- 102-8126 Secondary Filter Bag
