Anest Iwata WA-M220 Spare Parts
Manufacturer: Anest Iwata
Part #: See Below
Description: See list below for reference number, part number, and description. Manifold Units (Ref.#12) are purchased separately and are linked in the description.
*Note: The WA-M220 and WA-M220L share all of the same components besides air cap, nozzle, and needle. These components for the WA-M220L are located at the bottom*

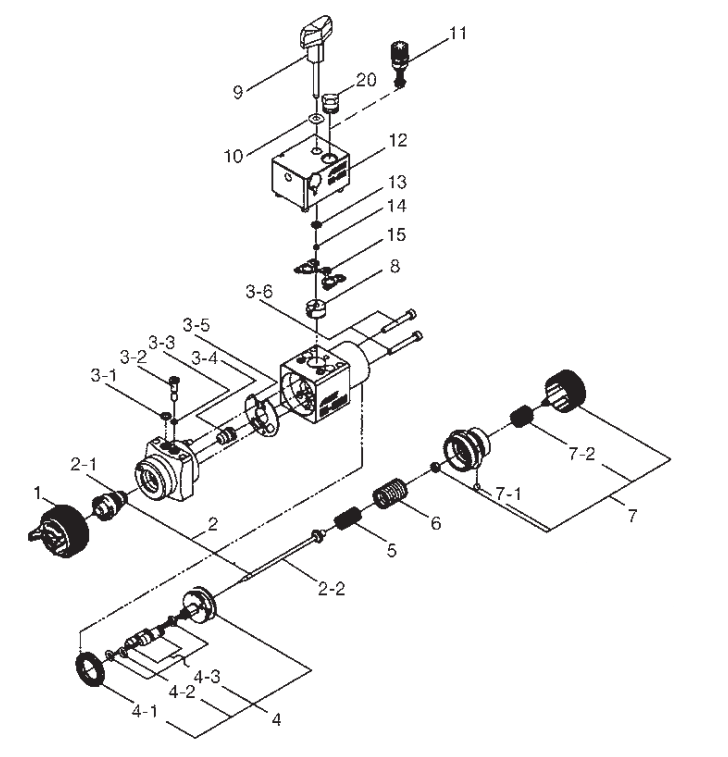

| Ref.# | Part No. | Description |
| 1 | 93006500 | Air Cap Set (fluid nozzle sizes 0.4 - 1.0mm) |
| 93006460 | Air Cap Set (fluid nozzle sizes 1.5 - 1.6mm) | |
| 2 | 93006850 | Fluid Nozzle-Needle Set (0.4mm) |
| 93006860 | Fluid Nozzle-Needle Set (0.6mm) | |
| 93006660 | Fluid Nozzle-Needle Set (0.8mm) | |
| 93006670 | Fluid Nozzle-Needle Set (1.0mm) | |
| 93006680 | Fluid Nozzle-Needle Set (1.5mm) | |
| 93006870 | Fluid Nozzle-Needle Set (1.6mm) | |
| 2-1 | Fluid Nozzle | |
| 2-2 | Fluid Needle | |
| 3-1 | 96639506 | O-Ring |
| 3-2 | 93570630 | Plug |
| 3-3 | 93570640 | O-Ring |
| 3-4 | 93765610 | Needle Packing Cartridge |
| 3-5 | 93008640 | Spray Gun Unit Seal |
| 3-6 | 96365043 | Hex Socket Head Bolt |
| 4 | 93008650 | Piston Set |
| 4-1 | 93903441 | Piston Packing Set |
| 4-2 | 96631005 | O-Ring |
| 4-3 | Air Valve (Included with Ref.#4) | |
| 5 | 93514580 | Needle Spring |
| 6 | 93513580 | Piston Spring |
| 7 | 93840581 |
Fluid Adjustment Set |
| 7-1 | Ball (Included with Ref.#7) | |
| 7-2 | 93104420 | Fluid Adjustment Spring |
| 8 | 93010400 | Filler Nut Block |
| 9 | 93009680 | Wing Bolt Set |
| 10 | 93009690 | Washer |
| 11 | 93009620 | Pattern Adj. Set |
| 12 | 5488 | Manifold Unit |
| 13 | 93009580 | Turn Shaft Washer |
| 14 | W3COM2051 | Retaining Ring |
| 15 | 93009640 | Manifold Seal |

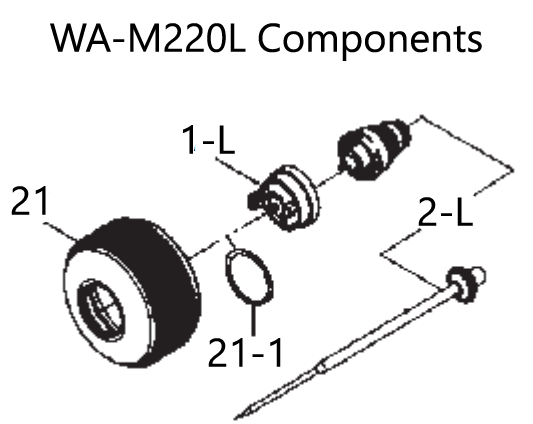

WA-M220L Components:
| 1-L | Air Cap (included in Ref.# 21) | |
| 21 | 93984880 | Air Cap Cover Set |
| 21-1 | 93512600 | Packing |
| 2-L | 93984890 | Small Nozzle-Needle Set (0.4mm) |
| 93984900 |
Small Nozzle-Needle Set (0.6mm) | |
| 93984910 |
Small Nozzle-Needle Set (0.8mm) | |
| 93984920 | Small Nozzle-Needle Set (1.0mm) | |
| 93984930 | Small Nozzle-Needle Set (1.2mm) |
