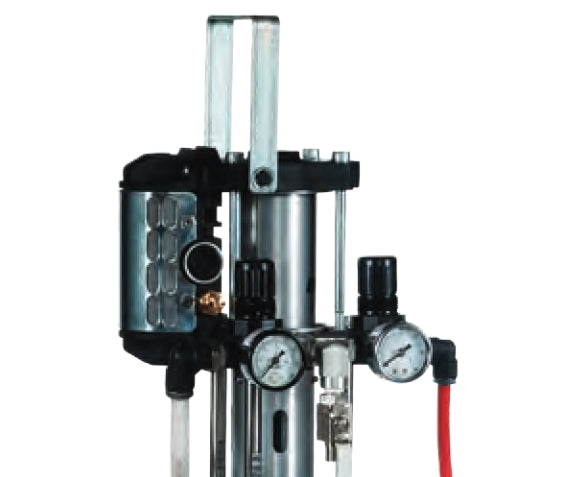

Binks Wall Mounted MX432 Series
32:1
Air Assist Airless Piston Pumps
Manufacturer: Carlisle Binks
Part Number: MX432XX-XXXXXXX
Description:
Binks MX Pumps are a completely new design in air operated pump technology utilizing a patented magnetic detents to provide fast changeover with virtually no pulsation. The result is paint delivery with less pulsation for a more consistent finish.
The MX Medium pressure pumps are available in the ratios of 12:1 and 32:1, with outputs of 0.4 GPM or 1.2 GPM. The MX pistons are ceramic coated, which is the most durable surface available for resisting wear from abrasive materials.
The MX pumps are ideal for air assist airless spray finishing and support one to two spray guns with thin to medium viscosity coatings.
-
Wood Stains, Lacquers, & Varnishes
-
Primers & Sealers
-
Solvent & Waterborne Coatings
-
Enamel & Polyurethanes
Markets
-
Woodworking
-
Aerospace
-
Agriculture & Off-Road
-
Marine
-
and Truck & Bus
Features
-
Long Lasting Ceramic Coated Piston Rods
Resists wear from highly abrasive fluids and lasts up 3X longer that hard chrome
-
Low/No Ice
Operate 2.5X longer than the competition
-
Patented Air Valve Technology
Enables pump to change over quickly without pulsing
-
Lubrication Free Air Motor & Valve Design
Reduces maintenance and simplifies operation
MX432 Pump System Specifications
|
Ratio: |
32:1 |
|
Maximum Air Inlet Pressure: |
8 bar (116 psi) |
|
Maximum Fluid Pressure: |
256 bar (3,712 psi) |
|
Displacement Per Cycle: |
24cc (0.8 oz) |
|
Output @ 60 Cycles/Min: |
1.4 L/m (0.4 gal/min) |
|
Air Consumption @ 20 Cycles/Min @ 8 Bar (116 Psi) Air Inlet Pressure: |
147 LPM (5.2 SCFM) @20 LPM |
|
Maximum Recommended Continuous Cycle Rate: |
20 cycles/min |
|
Air Inlet Connection: |
3/8” BSP(m) and ¼” NPS(m) |
|
Air Piston Diameter: |
85 mm (3.3 in) |
|
Stroke Length: |
75 mm (3.0 in) |
|
Fluid Inlet Connection: |
¾” NPS(m) |
|
Fluid Outlet Connection: |
3/8” BSP(m)/3/8” NPS(m) |
|
Sound Level: |
96.2 dB |
|
Wetted Parts Materials Construction: |
Stainless Steel, Tungsten Carbide, Hard Chrome, PTFE, Polyurethane, Leather |
MX432 Wall Mounted Pump Systems
|
Option |
Part Number (MX432) |
Packing |
Gun |
Air Control |
Filter |
Siphon |
Hose |
|
1 |
PU-0DW0000 |
PTFE/UHMWPE |
No Gun |
Dual |
None |
None |
None |
|
2 |
PU-GDW1S25 |
PTFE/UHMWPE |
AA4400 Flat Tip |
Dual |
100 Mesh |
5 gallon |
25 ft |
|
3 |
UC-0DW0000 |
PTFE/UHMWPE |
No Gun |
Dual |
None |
None |
None |

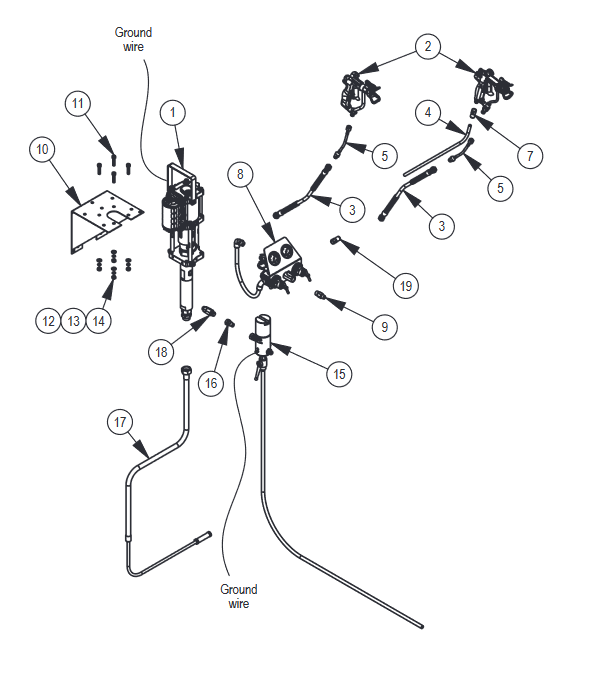

MX432 Wall Mounted Pump System Spare Parts
|
Part Number |
Description |
Quantity |
Item # |
|
MX432PL |
BARE PUMP ASSEMBLY (PTFE/LEATHER) |
1 IF SEAL TYPE = PL |
|
|
MX432PP |
BARE PUMP ASSEMBLY (PTFE) |
1 IF SEAL TYPE = PP |
1 |
|
MX432PU |
BARE PUMP ASSEMBLY (PTFE/UHMW) |
1 IF SEAL TYPE = PU |
|
|
MX432UC |
BARE PUMP ASSEMBLY (U-CUPS) |
1 IF SEAL TYPE = UC |
|
|
0909-4400-HF0000 |
AA4400 GUN ASSEMBLY (FLAT TIP HOLDER) |
1 IF GUN TYPE = G |
|
|
RS-1310 |
FLAT SPRAY TIP (1310) |
1 IF GUN TYPE = G OR T |
|
|
0909-4400-HT0000 |
AA4400 GUN ASSEMBLY (TWIST TIP HOLDER) |
1 IF GUN TYPE = H |
2 |
|
4400-HF0000 |
TROPHY AA 4400 GUN (FLAT TIP) |
1 IF GUN TYPE = T |
|
|
4400-HT0000 |
TROPHY AA 4400 GUN (TWIST TIP) |
1 IF GUN TYPE = U |
|
|
9-613-75 |
TWIST SPRAY TIP (613) |
1 IF GUN TYPE = H OR U |
|
|
0811-7500-1 |
AIRLESS 75 GUN |
1 IF GUN TYPE = P |
|
|
9-515-75 |
TWIST SPRAY TIP (515) |
1 IF GUN TYPE = P |
|
|
71-4830 |
MATERIAL HOSE (1/4" ID X 25', 4000 PSI) |
1 IF HOSE LENGTH = 25 |
3 |
|
71-4831 |
MATERIAL HOSE (1/4" ID X 50', 4000 PSI) |
1 IF HOSE LENGTH = 50 |
|
|
71-4803 |
AIR HOSE (3/8" OD TUBE X 28FT) |
1 IF HOSE LENGTH = 25 |
4 |
|
71-4804 |
AIR HOSE (3/8" OD TUBE X 53FT) |
1 IF HOSE LENGTH = 50 |
|
|
71-6844 |
MATERIAL HOSE (1/8" ID X 3', 5000 PSI) |
1 IF HOSE LENGTH = 25/50 |
5 |
|
72-2332 |
SWIVEL ADAPTER (1/4" NPS M X F) |
1 IF GUN TYPE = P |
6 |
|
54-4976 |
ADAPTER FITTING (3/8" OD TUBE X 1/4" NPS F) |
1 IF GUN TYPE = G / H |
7 |
|
0115-010180 |
AIR CONTROL ASSEMBLY |
1 IF AIR CONTROL = D |
8 |
|
83-4233 |
DM NIPPLE (1/4" NPS/NPT X 3/8" NPS/NPT) |
1 IF AIR CONTROL = D |
9 |
|
0115-010179 |
PUMP BRACKET |
1 |
11 |
|
0115-010001 |
SOCKET HEAD CAP SCREW (M8 X 35mm) |
4 |
12 |
|
0115-010030 |
HEX NUT (M8) |
4 |
13 |
|
0115-010031 |
LOCK WASHER (M8) |
4 |
14 |
|
0115-010035 |
FLAT WASHER (M8) |
4 |
15 |
|
0115-010326 |
S.S. FILTER ASSEMBLY (100 MESH) |
1 IF FILTER TYPE = 1 |
16 |
|
0115-010630 |
S.S. FILTER ASSEMBLY (200 MESH) |
1 IF FILTER TYPE = 2 |
|
|
103-1238 |
SWIVEL ADAPTER (3/8" NPS F X 1/4" NPT/NPS M) |
1 IF NO FILTER |
17 |
|
41-17260 |
SIPHON TUBE ASSEMBLY (5 GALLON) |
1 IF SIPHON SIZE = S |
18 |
|
0115-010381 |
SIPHON TUBE ASSEMBLY (55 GALLON) |
1 IF SIPHON SIZE = T |
|
|
0115-010256 |
CHECK VALVE |
1 |
20 |
|
85-521 |
SWIVEL ELBOW (3/8" OD TUBE X 1/4" NPT) |
1 IF AIR CONTROL = D |
