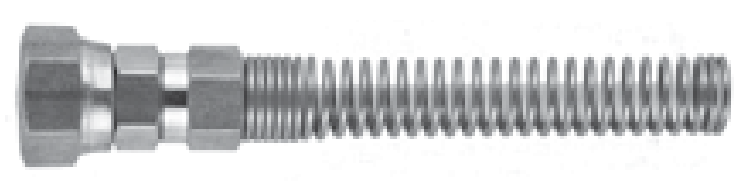

Hosco 3814-SG (1/4" NPSF) Swivel Hose Fitting With Spring Guard For 1/2"OD X 3/8"ID

(1/4" NPSF) Swivel Hose Fitting With Spring Guard For 1/2"OD X 3/8"ID

Manufacturer: Carlisle Hosco

Part #: 3814-SG

Description: (1/4" NPSF) Swivel Hose Fitting With Spring Guard For 1/2"OD X 3/8"ID. Stainless steel construction. Hose part #: NHA-0806. Hosco SST Hose Connectors are designed to provide connections of hose and tubing using the robust and industry leading Hosco barb and nut style retention system.

These connectors significantly exceed the performance of other style connectors and provide the highest level of safe and reliable connections found today for use in flammable or hazardous fluid handling. The SST connectors are available in both springguard versions to provide support for the hose or tube at the connector when strain relief is needed, or non-springguard version for a static or stationary connection point.

The SST family of hose connectors are available in common sizes of fractional inch or metric hose connection ends, and in straight or compact 90 degree configurations. The connection point is available in two common ends- NPT/BSPT(PT) male in 1/8”, 1/4”, and 3/8” sizes, or NPS/BSPP(PF) female swivel nut in 1/4” and 3/8” sizes.

ALL FITTINGS, VALVES, & ADAPTERS ARE NOT RETURNABLE. ALL SALES ARE FINAL
