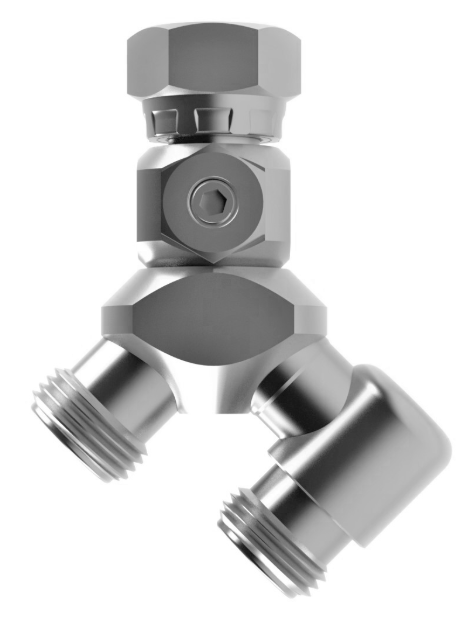

Hosco Externally Adjustable Y Restrictors, Female x Male

Externally Adjustable Y Restrictors, Female x Male

Manufacturer: Hosco

Part Number: RYA-X

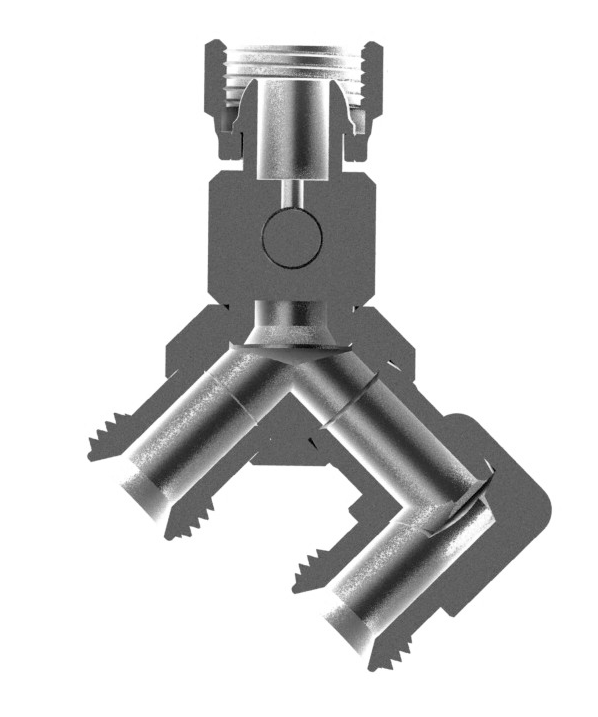

Description: Hosco Stainless Steel Restrictors provide reliable, long life fluid flow control to an applicator. The long tapered needle design of the restrictors provide fine flowrate adjustments from complete shut off to over 1000 cc/ min (depending on pressure and viscosity). Settings are repeatable from restrictor to restrictor station so set up is relatively easy. The externally adjusted version requires an Allen wrench for adjustment which is included with the restrictor. Can be adjusted even while dispensing.

Feature and Benefits:

• SST Construction
  • Long life
  • Compatible with all coatings and adhesive materials known

• Compact Design
  • Allows spray operators to maneuver the spray gun into small areas or tight spaces much easier than alternatives
  • Much smaller and lighter than regulator based alternatives

• Low Shear Design
  •  0.350” smooth bore passageways in circulating versions protect the coating from excessive shear during operation and minimize pressure loss of the recirculating function

• Highest ROI Flow Control Device
  • Hosco Restrictors are generally 1/3 the cost of older regulator versions, and last easily 10X longer between service events or replacement
