Total Finishing XL Automotive Full-Down Airflow Paint Spray Booth

XL Automotive Full-Down Airflow Paint Spray Booth

Manufacturer: Total Finishing

Part Number: TFS - XL Full-Down Airflow

Description: Widely recognized as the gold standard in airflow technology delivering the cleanest environment and the highest-quality finishes in the industry. Engineered with extra height, the XL version is built to handle today’s taller vehicles such as sprinter vans, box trucks, and fleet units without compromising performance.

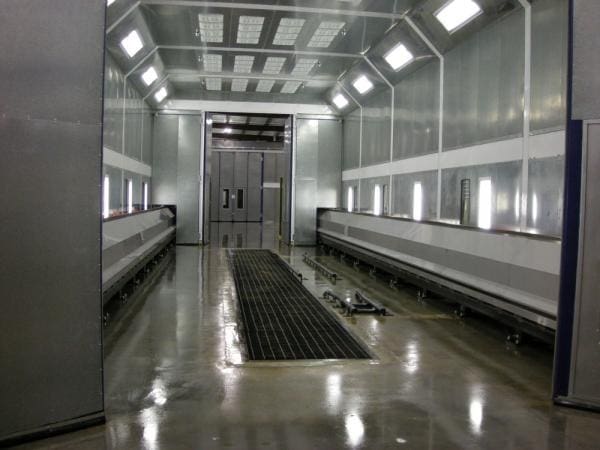

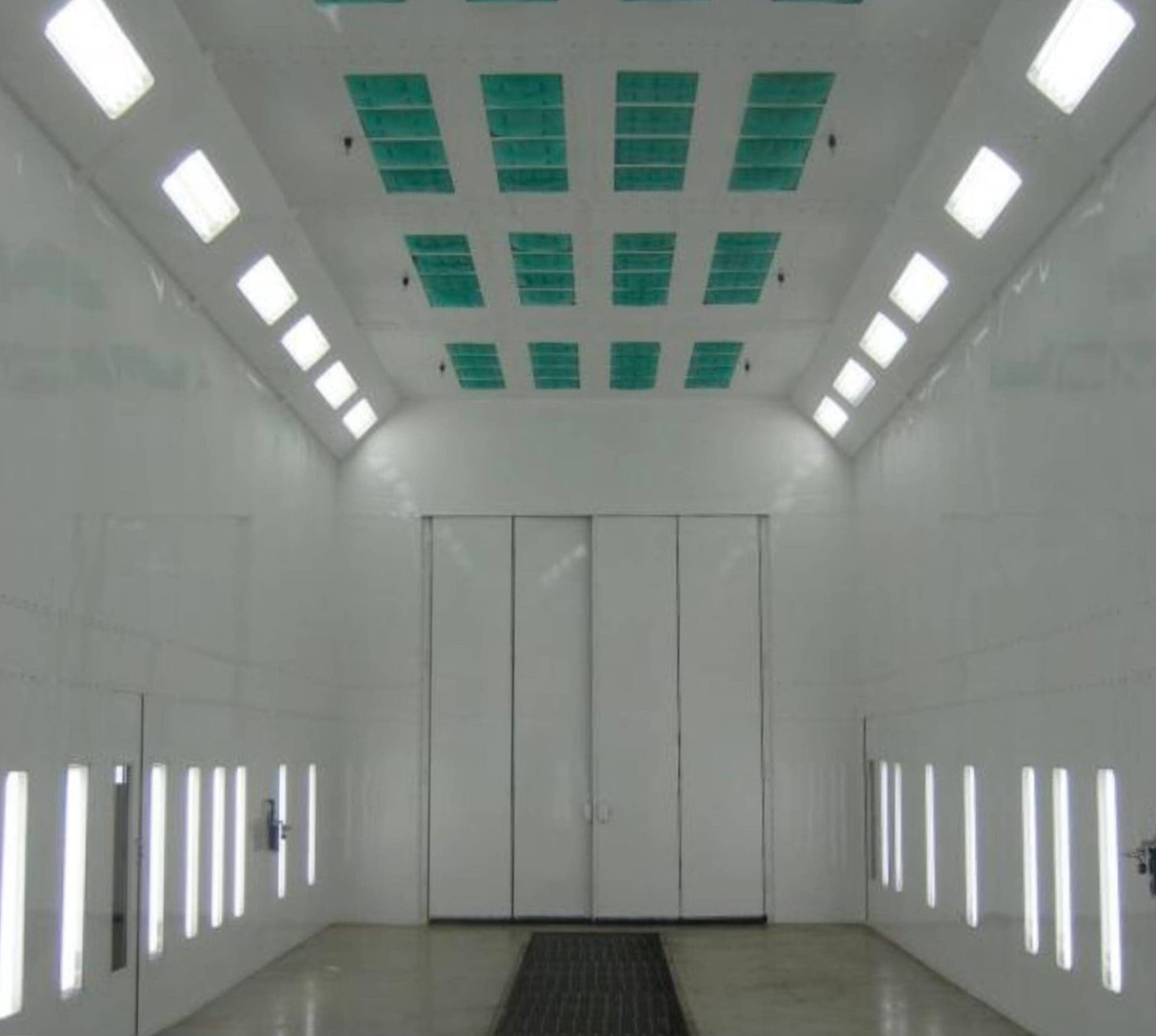

Fresh air enters through a full-length, fully filtered ceiling plenum and flows vertically down over the entire vehicle, surrounding it in clean air just like the systems trusted in elite professional shops. Overspray and contamination are controlled at the source as air is pulled through the fully filtered floor plenum and exhausted safely out of the booth.

The result? A safer environment, flawless finishes, and professional-grade results every time, even on the biggest jobs.

Heavy Duty Construction:

All of our single wall booths are made with premium G90 18 ga. Zinc galvanized steel panels, companion flanged and pre-punched at 6" on center for easy assembly with 1/4" nuts and bolts. Single Wall. Better air flow, lighting, and strength because of gabled roof design. Total Finishing uses high-quality hardware — including heavy-duty latches, long-lasting brass bushings, durable hollow rubber seals and sturdy handles — to ensure ease of use and many years of reliable service. Hinges and latches stay secured and are fully adjustable for a perfect fit. Our weld-free designs prevent against weak points and corrosion, making for a sturdy, long-lasting booth.

• Fans & Motors: 208-240V, 3 Phase standard. Please call if alternative electrical is required.

  • 34" Tube-axial fan with aluminum spark-proof blades belt drive exhaust fan -7.5hp 3ph Belt-drive motor 208-230/460v. 60 hz
• Doors:
  • (3) Tri-fold doors with observation windows and (1) Man access door with observation window

Additional Booth Options:

• Lighting - Full booth illumination from four-tube, 4’ light fixtures with 4 fluorescent lamps, ETL listed
• White Powder Coated Finish - ultra white inside and out of the spray booth. cover all wall panels, doors frame, floor channels and ceiling panels.
• Ducting Kit - Spray booth exhaust system includes: *(2) Plain duct, (1) Service door duct, (1) Flashing for the roof (1) damper cap

• UL Listed Control Panel with Emergency Stop

Additional Accessories:

• 4' Exhaust Stack Sections

• 3' Exhaust Stack Section with Clean-Out Door
• 45 Degree Elbow
• Upflow Cap with Damper
• Motor Enclosure

• Stack/Connector Ring
• Roof Flashing - Flat Roof / Pitched Roof

NFPA Guide

Ships by Truck Freight.
FOB California - You will be contacted with a freight quote or you can arrange your own freight.  Forklift required at the time of delivery.

Manufacturers Warranty
TFS warrants that all equipment sold hereby will be of the kind and quality described in this agreement. The equipment manufactured by TFS is guaranteed to be free from all latent defects in material and workmanship disclosed under normal use and service, and should any part thereof be found, within one year from the date of shipment, to be so defective at the time shipped, TFS will repair or, at TFS's option, replace said part. In the case of standard apparatus furnished, but not manufactured by TFS, such as fans, motors, ovens, heaters, controls, and light fixtures. TFS extends to the purchaser the same guarantee as is given by their respective manufacturers. TFS is not required to provide equipment or meet performance specifications or standards not expressly set forth in this agreement. TFS's liability hereunder, however, is expressly limited to the materials furnished by it and does not extend to any damages to buildings, contents, products, or persons. This warranty shall not apply to any of TFS's apparatus which shall have been altered or repaired outside of TFS's factory in any way so as, in TFS's judgment, to affect its performance, nor which has been subjected to misuse, negligence, accident or improper installation. IT IS EXPRESSLY AGREED THAT THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES OF FITNESS OR MERCHANTABILITY, EXPRESS OR IMPLIED.

All paint spray booths and spray booth accessories — including but not limited to ducting, lighting, and control panels — are custom made to order and are not refundable
