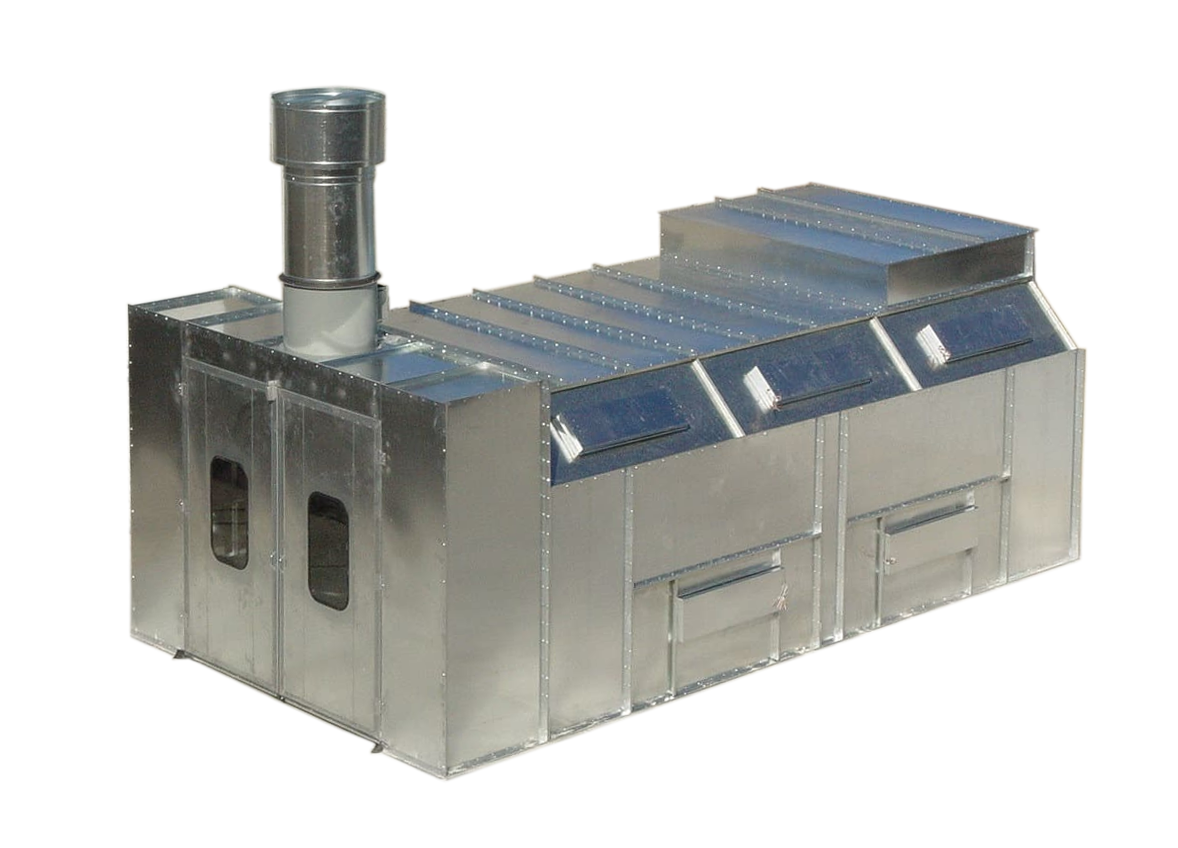

Total Finishing XL Automotive Semi-Downdraft Tower Paint Spray Booth

XL Automotive Semi-Downdraft Tower Paint Spray Booth

Manufacturer: Total Finishing

Part Number: TFS - XL Semi-Downdraft Tower

Description: A quality, economical booth engineered for performance and durability, with extra height to fit larger vehicles such as sprinter vans, box trucks, and fleet units. Built for shops that need both reliability and the capacity to handle oversized vehicles, it delivers consistent results with the same efficiency as the standard model.

Fresh air enters the booth through the top filter plenum of the cabin and travels evenly down into the back wall corner tower exhaust plenum, providing a safe environment and supreme airflow for a great paint job—even on high-roof vehicles.

XL Semi-Downdraft Tower Paint Spray Booth Models:

24' Model

Outside Dim. 14'4" Wide x 24'-4" Long x 14'-6" High Work Inside Dim. 14' Wide x 24’ Long x 12' High

27' Model

Outside Dim. 14'4" Wide x 27'-4" Long x 14'-6" High Work Inside Dim. 14' Wide x 27’ Long x 12' High

30' Model

Outside Dim. 14'4" Wide x 30'-4" Long x 14'-6" High Work Inside Dim. 14' Wide x 30’ Long x 12' High



Heavy Duty Construction:

All of our single wall booths are made with premium G90 18 ga. Zinc galvanized steel panels, companion flanged and pre-punched at 6" on center for easy assembly with 1/4" nuts and bolts. Better air flow, lighting, and strength because of gabled roof design. Total Finishing uses high-quality hardware — including heavy-duty latches, long-lasting brass bushings, durable hollow rubber seals and sturdy handles — to ensure ease of use and many years of reliable service. Hinges and latches stay secured and are fully adjustable for a perfect fit. Our weld-free designs prevent against weak points and corrosion, making for a sturdy, long-lasting booth.

• Fans & Motors: 208-240V, 3 Phase standard. Please call if alternative electrical is required.

  • 30" to 34" Dia. Tube-axial fan with aluminum spark-proof blades belt drive exhaust fan
• Doors:
  • (3) Tri-fold doors with observation windows and (1) Man access door with observation window

Additional Booth Options:

• Lighting - Full booth illumination from LED (standard) 4’ Long, 4 tube LED T8 light fixtures 120v. ETL listed
• White Powder Coated Finish - ultra white inside and out of the spray booth. cover all wall panels, doors frame, floor channels and ceiling panels.
• Ducting Kit - Spray booth exhaust system includes: *(2) Plain duct, (1) Service door duct, (1) Flashing for the roof (1) damper cap

• UL Listed Control Panel with Emergency Stop

Additional Accessories:

• 4' Exhaust Stack Sections

• 3' Exhaust Stack Section with Clean-Out Door
• 45 Degree Elbow
• Upflow Cap with Damper
• Motor Enclosure

• Stack/Connector Ring
• Roof Flashing - Flat Roof / Pitched Roof

NFPA Guide

Ships by Truck Freight.
FOB California - You will be contacted with a freight quote or you can arrange your own freight.  Forklift required at the time of delivery.

Manufacturers Warranty
TFS warrants that all equipment sold hereby will be of the kind and quality described in this agreement. The equipment manufactured by TFS is guaranteed to be free from all latent defects in material and workmanship disclosed under normal use and service, and should any part thereof be found, within one year from the date of shipment, to be so defective at the time shipped, TFS will repair or, at TFS's option, replace said part. In the case of standard apparatus furnished, but not manufactured by TFS, such as fans, motors, ovens, heaters, controls, and light fixtures. TFS extends to the purchaser the same guarantee as is given by their respective manufacturers. TFS is not required to provide equipment or meet performance specifications or standards not expressly set forth in this agreement. TFS's liability hereunder, however, is expressly limited to the materials furnished by it and does not extend to any damages to buildings, contents, products, or persons. This warranty shall not apply to any of TFS's apparatus which shall have been altered or repaired outside of TFS's factory in any way so as, in TFS's judgment, to affect its performance, nor which has been subjected to misuse, negligence, accident or improper installation. IT IS EXPRESSLY AGREED THAT THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES OF FITNESS OR MERCHANTABILITY, EXPRESS OR IMPLIED.

All paint spray booths and spray booth accessories — including but not limited to ducting, lighting, and control panels — are custom made to order and are not refundable
