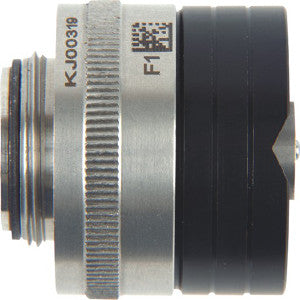

Ferrous Substrate Plug In Integral Probe (PINIP™) | Scale 1 | Elcometer 456
Manufacturer: Elcometer
Part #: T456CF1P
Description: Designed to work with any of our Ferrous or Dual FNF Elcometer 456 Separate Gauges.
Probe attaches to a separate gauge to give it the performance and profile of an integral probe gauge.
Specifications:
- Range: 0-60 mils (0-1500µm)
- Accuracy*: ±1-3% or ±0.1 mil (±2.5µm)
- Resolution: 0.01 mil: 0-5 mils; 0.1mil: 5-60 mils (0.1µm: 0-100µm; 1µm: 100-1500µm)
- Minimum convex surface radius 4mm (0.16")
- Minimum concave surface radius 60mm (2.36")
- Minimum headroom 170mm (6.69")
- Minimum sample diameter 4mm (0.16")
