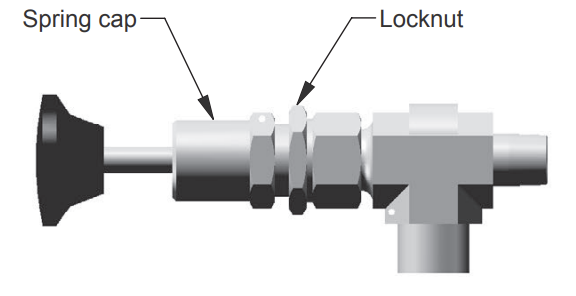

Binks 107-1649 Relief Valve
Relief Valve
Manufacturer: Binks
Part Number: 107-1649
Description: Relief Valve
Relief Valve Accessories:
- Part # 107-1666 = Low Pressure Spring Kit, Internal Mix, 350-750 psi pressure range, red color.
- Part # 107-1667 = Medium Pressure Spring Kit, Internal Mix, 750-1500 psi pressure range, orange color.
- Part # 107-1668 = High Pressure Spring Kit, Internal Mix, 1500-2250 psi pressure range, yellow color.
- Part # 107-1669 = Low Pressure Spring Kit, External Mix, 50-350 psi pressure range, gray color.
- Part # 107-1650 = Relief Valve Seal Kit
Parts:
CATALYST RELIEF VALVE ASSEMBLIES
| Item No. | Part No. | Description | Qty |
| 1 | 20-6901 ◊ | COTTER RING | 1 |
| 2 | 101-9482 | LEVER | 1 |
| 3 | 101-9483 | PIN | 1 |
| 4 | 101-9479 | CAP | 1 |
| 5 |
101-9480-75 101-9480-800 101-9480-2050 |
SPRING - 75 PSI SPRING - 800 PSI SPRING - 2050 PSI |
1 |
| 6 | 101-9481 | VALVE | 1 |
| 7 | 20-6864 ◊ | O-RING | 1 |
| 8 | 20-6900 ◊ | O-RING | 1 |
| 9 | 101-9484 ◊ | SCREW | 1 |
| 10 | 101-9478 | RELIEF VALVE BODY | 1 |
| 11 | 20-6902 ◊ | TUBE ADAPTER | 1 |
◊ Items are included within the 106-1280 Repair Kit.
ALL FITTINGS, VALVES, & ADAPTERS ARE NOT RETURNABLE. ALL SALES ARE FINAL
Literature:
Binks charges a significant fee to drop ship orders of less than $250.00. Therefore, any parts orders under $250.00 will be added to our stocking orders and then reshipped to you. If you need these products faster you can contact us for an expedited drop shipping fee.
Contact: 503-545-3176
