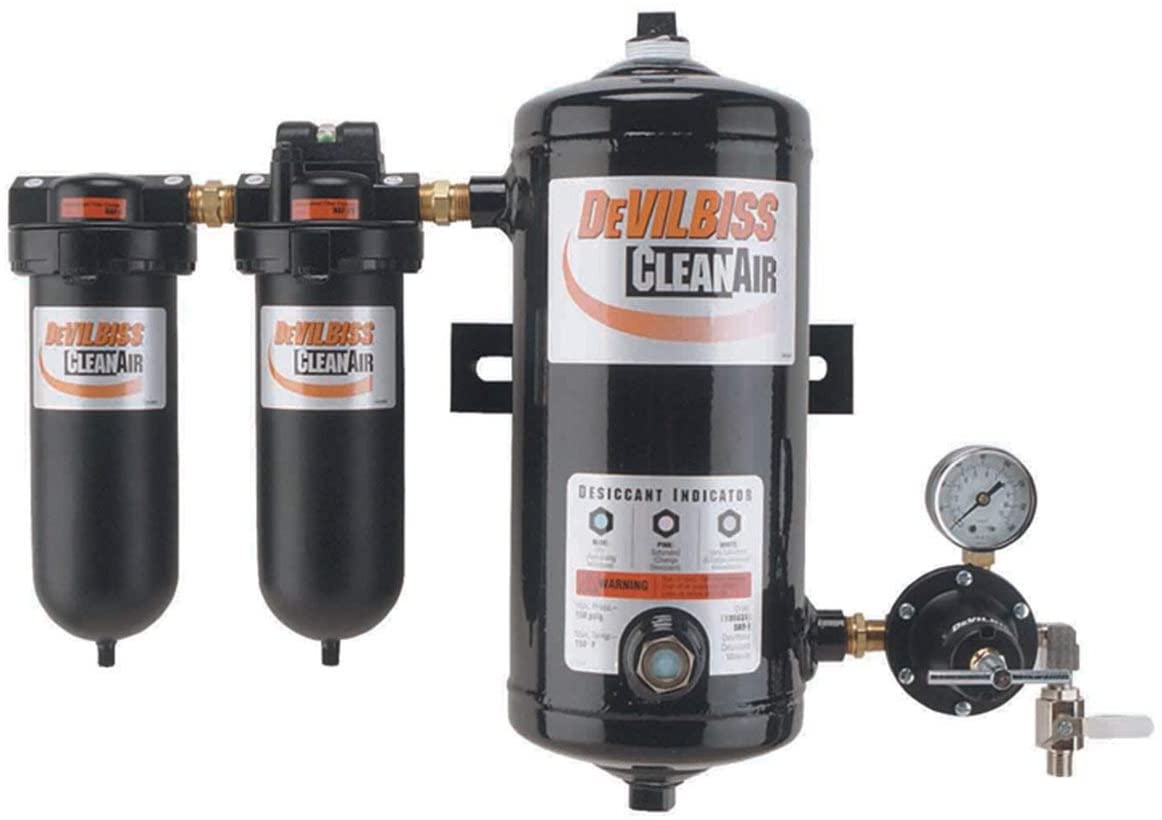

DeVilbiss DAD500 3-Stage Desiccant Dryer Unit

Manufacturer: DeVilbiss

Part Number: DAD-500

Description: Cleaner, drier air for spray gun systems.

The 25 CFM DAD-500 Desiccant Air Drying System is designed to be a point of use system. It is capable of removing dirt, water, oil and water vapor from compresssed air. It consists of a filter separator, coalescing filter, desiccant dryer, air regulator and main air supply shut off valve.

CleanAir™ Air Line Filters and Air Control Units will improve the quality of all of your paint jobs. Our filters and regulation systems remove dirt, oil, and water from airlines down to .01 micron. The removal of dirt and oil prior to the painting process will help to eliminate the need for redos due to particles in the airline. These units are ideal for low humidity conditions and supply cleaner, drier air to the spray gun in the system.

• The first stage centrifugal filter removes oil, water, and dirt down to 5 microns
• The second stage coalescer filter removes oil, water, and dirt down to .01 microns
• Easy to see humidity indicator will change to pink or white when desiccant needs to be replaced
• Quick-release bowl guard and spin-off filter element provide quick, one-minute filter changes
• Maintenance-free operation – features automatic bowl drain

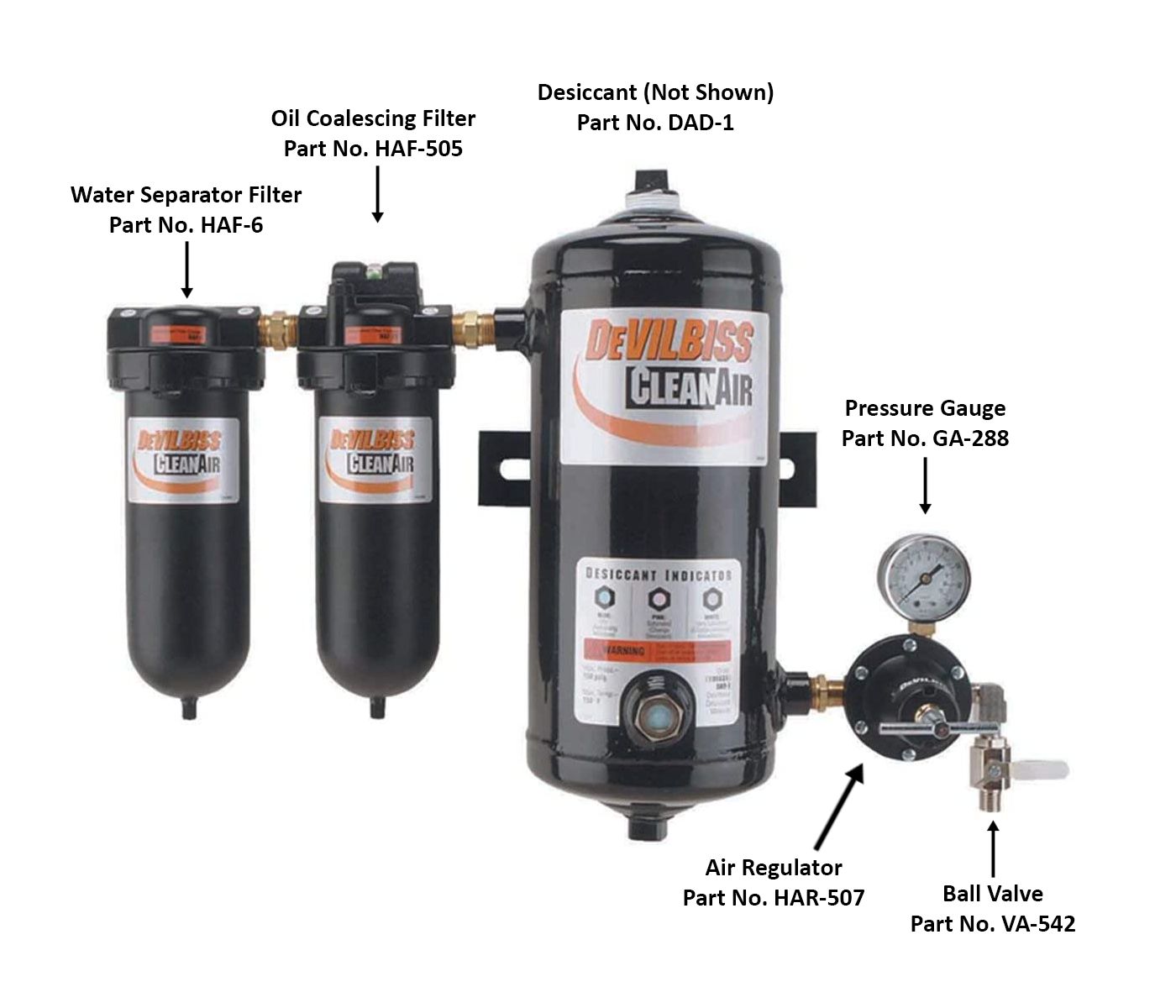

Parts and Accessories:

• HAF-6 - Water Separator Filter
• HAF-505 - Oil Coalescing Filter
• DAD-1 - Premium Desiccant
• HAR-507 - Pressure Regulator
• GA-288 - Pressure Gauge
• VA-542 - Ball Valve

Literature:

• Manual
