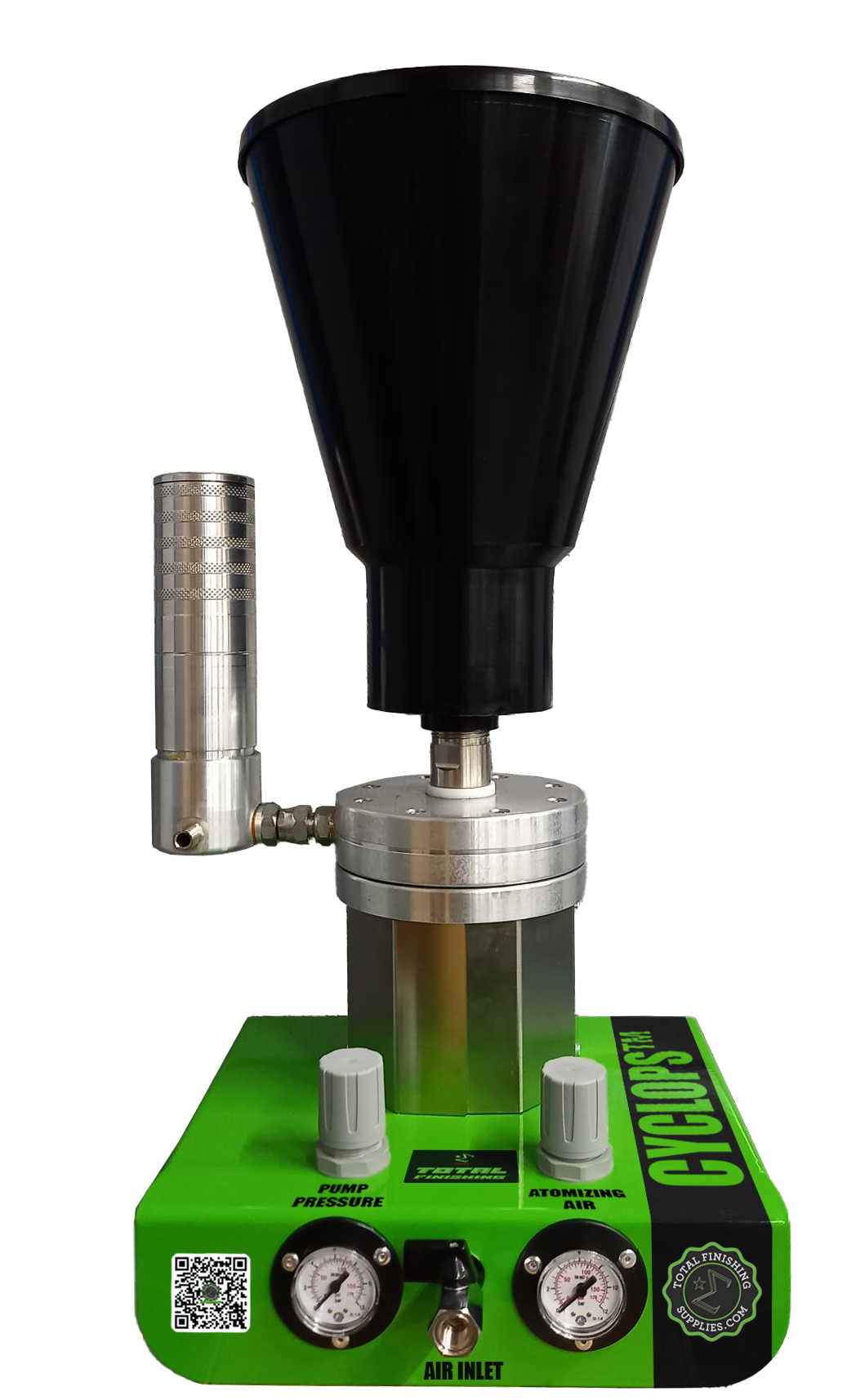

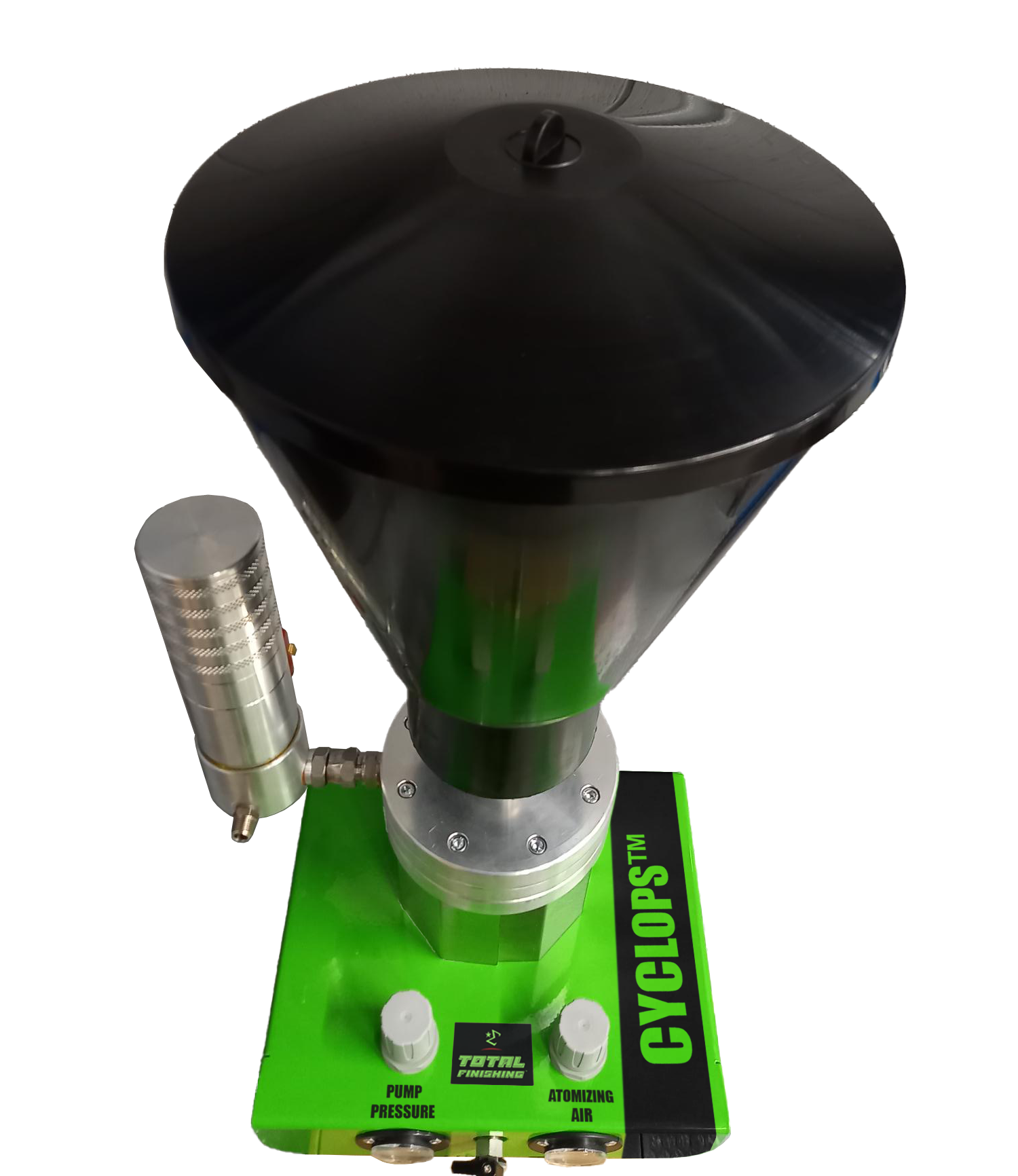

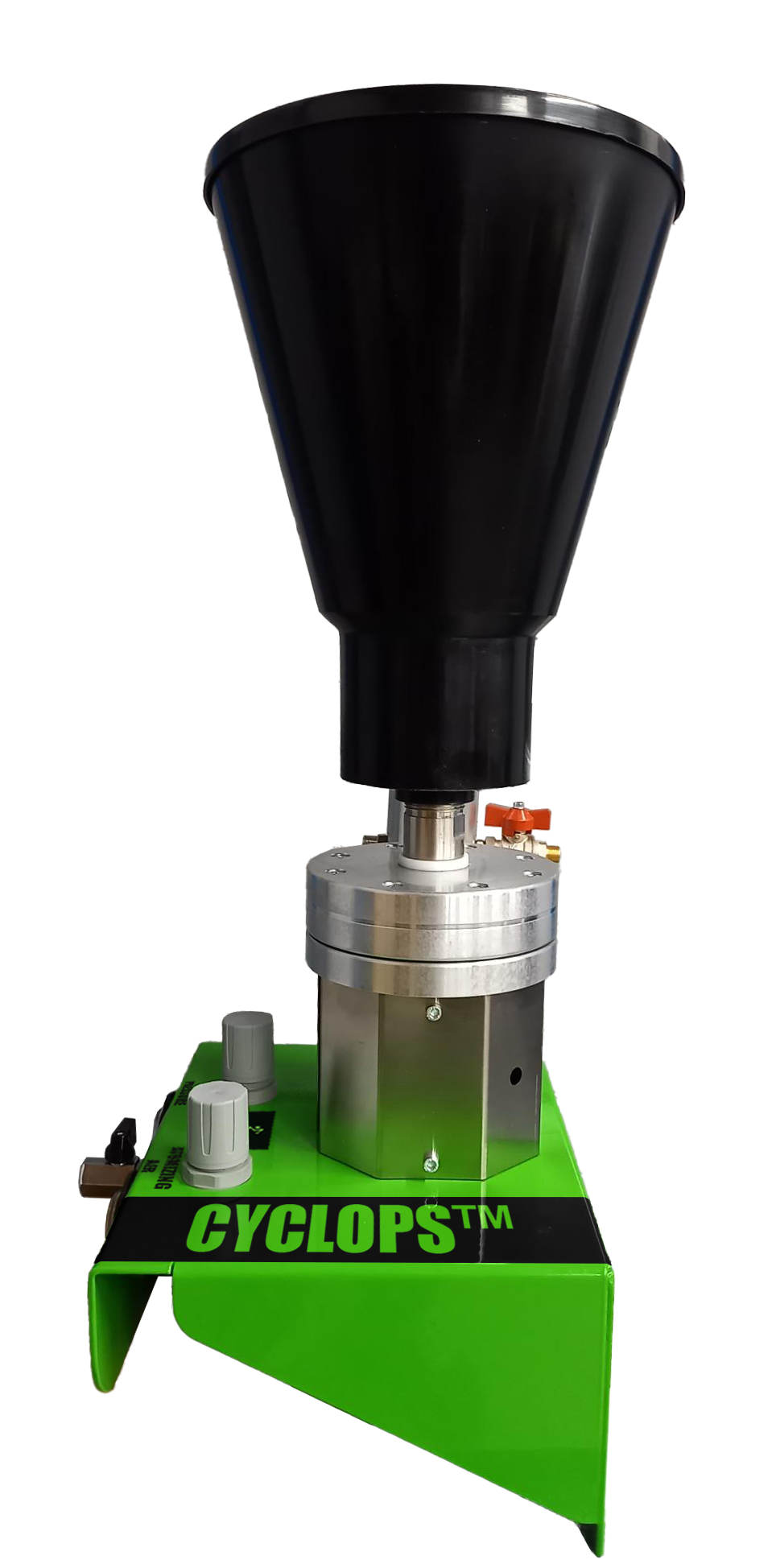

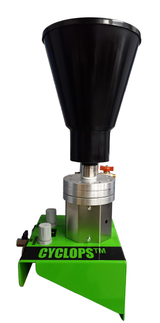

TFS CYCLOPS™ Low-Pressure Diaphragm Pump
Manufacturer: Total Finishing Supplies
Part #: TFS900954
Description:
Introducing the CYCLOPS™ Pump, your new go-to for pulse-free pumping that delivers impeccable results. This powerhouse is perfect for industrial painting, furniture, plastics, and more, offering unmatched control and consistency. Equipped with double air regulators and a fluid filter that also acts as a pulsation dampener, you can fine-tune your setup to meet the demands of any project.
The CYCLOPS™ Pump comes standard with a Gravity Hopper, or a 5-gallon suction rod is available as an optional upgrade.
A CYCLOPS™ Never Blinks!
1:1 Ratio, diaphragm pneumatic pump complete with air regulators and line filter. Wall mounted. Suitable for industrial painting, furniture painting, plastic painting, enamels, anti-corrosion paints, polyurethane, epoxy. Available with Gravity Hopper or optional 5-gallon suction rod
Features:
- Pulse-free pumping - The CYCLOPS™ has only a small quick-acting diaphragm so it is nearly pulse-free when it cycles.
- Manifold filter - The CYCLOPS™ comes standard with a manifold filter which also works as a surge chamber to further minimize pulse.
- Double air regulators - These are for precision control of pump pressure and atomizing air with gauges built into the wall mount.

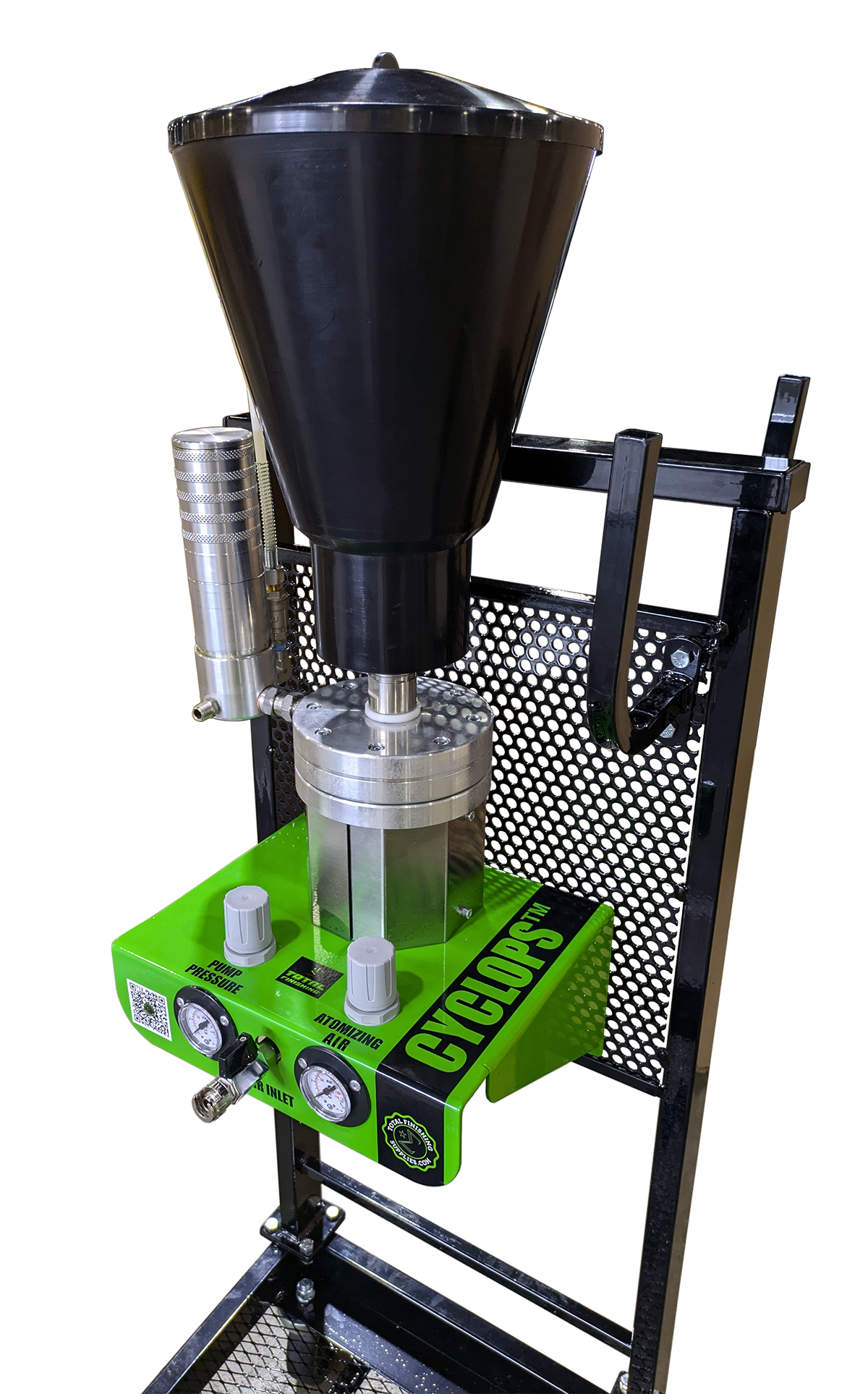

- Cart mounted option includes the 18" x 30" Powder Coated Cart
Specifications:
Pressure Ratio: | 1:1 |
Flow: | 10 l/min |
Operating Pressure: | 2-8 bar |
Optional Accessories:
Parts and Accessories:
- Manifold Filter - 60 Mesh
- Hopper Mesh Filter
- Low-Pressure Hose Set - Includes air and fluid hoses in a protective braided sleeve. Includes fittings.
- Suction Rod Set
Spare Hoses & Fittings:
- 25 Foot Air Hose
- 50 Foot Air Hose
-
Fluid Hose
- Braided Hose Sleeve
- 90° Elbow Fitting - 1/4" (M) x 1/4" (F)
- 1/4" (M) x 1/4" (M) Adapter
- Push Fitting - 1/4" (F) x 3/8" Push (connects fluid hose to pump)
- Push Fitting - 3/8" (F) x 3/8" Push (connects fluid hose to gun)

Ref. No. | Part No. | Description |
TFS1500 | Liquid Pressure Regulator 0-6 bar | |
1 | TFS1935 | Screw M6X45 |
2 | TFS1980 | Screw M6X60 |
3 | TFS321 | Flange |
4 | TFS2448-4 | Screw M8x16 |
5 | TFS75012 | Membrane pad |
6 | TFS75015 | Membrane |
7 | TFS306 | Air flange |
8 | TFS309 | Washer |
9 | TFS312 | Sensor |
10 | TFS315 | Intake valve body |
11 | TFS54 | Stainless steel ball |
12 | TFS318 | Spring |
13 | TFS75057 | Valve support |
14 | TFS324 | Gasket |
15 | TFS327 | Exchange valve |
16 | TFS2448-16 | Screw M8 |
17 | TFS75054 | Stainless steel cover |
18 | TFS1530 | Screw M10 |
19 | TFS330 | Micron support |
20 | TFS10902 | Exchange valve |
21 | TFS358854 | Rapid fitting 1/8” 6x4 |
22 | TFS1275 | Screw M4 |
23 | TFS10845 | Microflow valve |
24 | TFS333 | Rapid discharge valve |
25/27 | TFS105072 | PTFE hose 2x4 |
26 | TFS72 | T Rapid fitting 2x4 |
28 | TFS339 | Stainless steel cover |
29 | TFS465114 | Copper washer 3/8” |
30 | TFS551400 | Aluminium spacer |
31 | TFS1201329 | Spring |
32 | TFS1201341 | Support ring |
33 | TFS1470033 | Stainless steel ball ø11 |
34 | TFS521514 | Fitting FS 3/8”x3/8” |
35 | TFS381 | Shaft |

Ref. No. | Part No. | Description |
1 | TFS3628 | Accumulator |
2 | TFSVTBRX610 | Screw M6x10 Stainless steel |
3 | TFSRFP100G | Mesh filter |
4 | TFS3651G | Filter core |
5 | TFS3611 | O-ring of Plenum filter |
6 | TFSM1438 | Niples 1/4 - 3/8 |
7 | TFSRBMF14 | Tap MF 1/4 |
8 | TFSRR14 | Copper Washer |
9 | TFSTPM14 | Top 1/4 |
10 | TFS3630 | Accumulator body |
11 | TFSSf11 | Stainless steel ball ø 11 |
12 | TFSAPM38 | Swivel niples 3/8 MF |
13 | TFS1030 | Spring |
14 | TFSM1414 | Niples 1/4 BP |
