Anest Iwata TOF-5B/6B Automatic Spray Gun
Description
Description

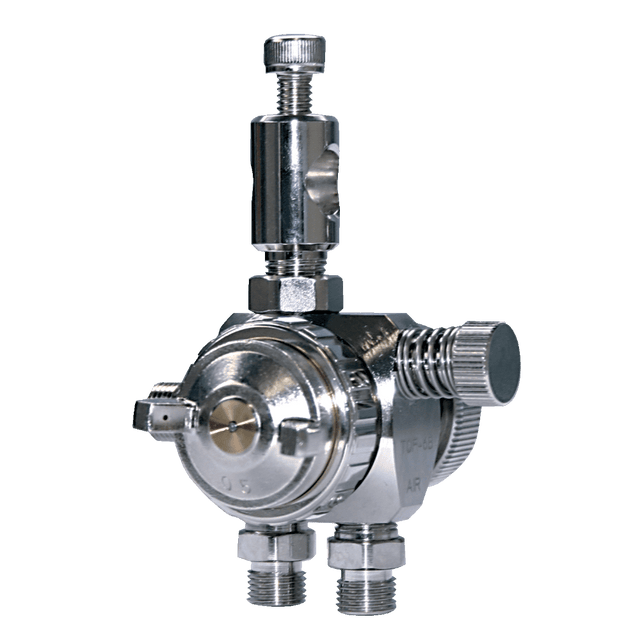

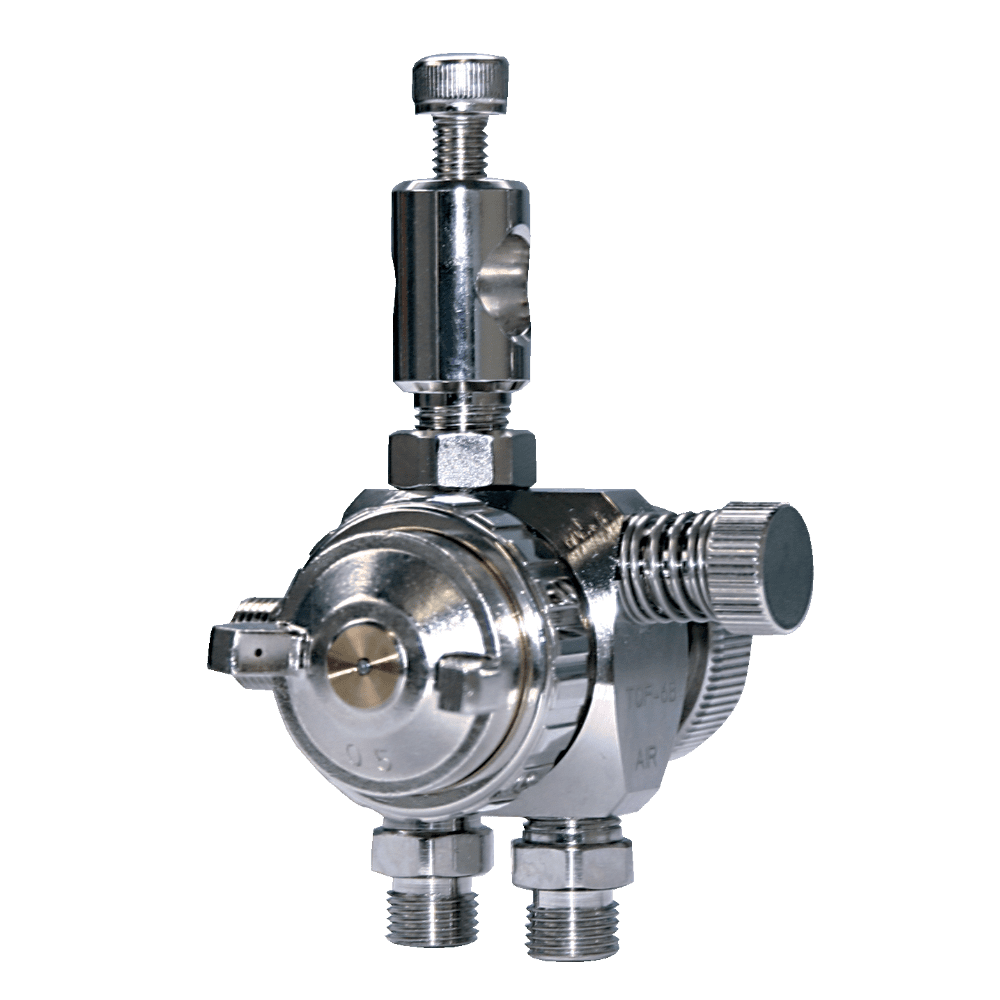

TOF-5B/6B Special Purpose Automatic Spray Gun
Manufacturer: Anest Iwata
Part #: 54XXX
Desciption: The Anest Iwata specialist spray gun for release-agent-release. Very unique due to its fan adjustment lock and its bomb-proof durability.
Features:
- Fan Pattern - The low overspray and the soft yet perfectly controllable fan pattern make it possible to apply thinnest release-agent films.
- Highly Versatile - Thanks to the several options offered, with either Round or Standard Patterns, and 2-Way or 3-Way versions available, the TOF Automatic series will offer what you are looking for.
- User Friendly - The TOF-5B and 6B are nearly bomb proof. And even in the unlikely event of malfunction, the replacement of parts is extremely simple: needle and air valves are made in one piece.
Specifications:
| Nozzle | Aircap | PSI | Fluid Output | Air Cons. (fan) | Air Cons. (round) | Fan Pattern (fan) | Fan Pattern (round) |
| 0.5mm | 05 | 43.5 | 60ml/min | 2.1 CFM | 1.4 CFM | 200mm | 50mm |
| 1.0mm | 10 | 43.5 | 250ml/min | 2.8 CFM | 1.8 CFM | 250mm | 70mm |
| 1.3mm | 13 | 43.5 | 360ml/min | 3.5 CFM | 1.9 CFM | 350mm | 80mm |
| 2.0mm | 20 | 43.5 | 600ml/min | 4.9 CFM | 3.0 CFM | 400mm | 90mm |
Parts and Accessories:
- 93002XXX - Nozzle + Piston Set
- 930XX982 - Air Cap Set TOF-5B/6B
- 930XX982 - Air Cap Set TOF-5RB/6RB
- 93903980 - O-RING (2 pcs./1 pk.)
- 93015980 - O-RING SEAT
- 93195980 - PISTON SPRING
- 93002650 - PATTERN ADJ. SET
- 93057980 - PLUG
- 93002671 - HOLDER
- 93213981 - HEXAGON NUT
- 96350612 - BOLT
- 93023980 - NIPPLE
- 96997085 - O-RING
- 93024980 - JAM NUT
- 93002680 - FLUID ADJ. KNOB
- 93002660 - SPRING
