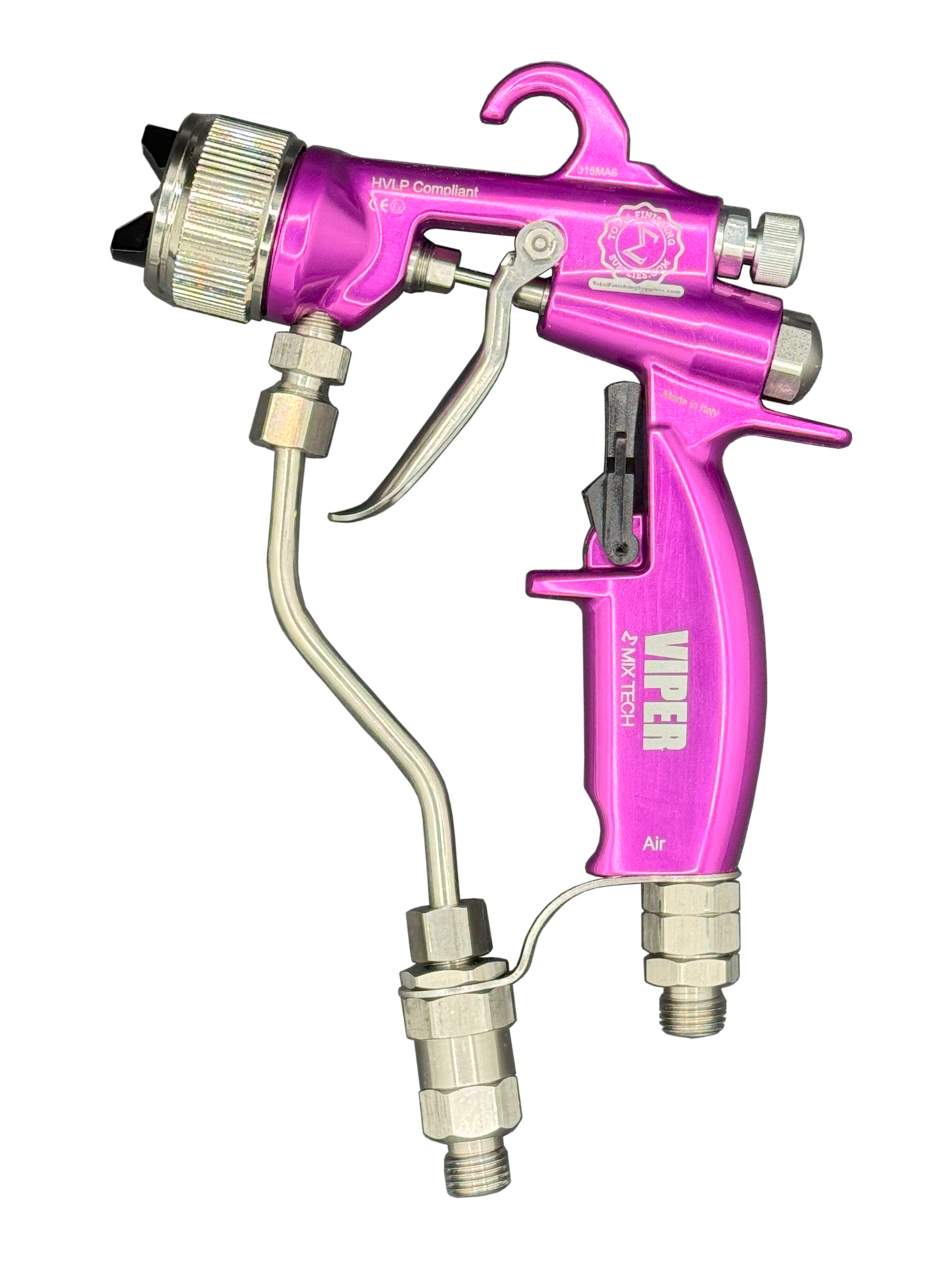

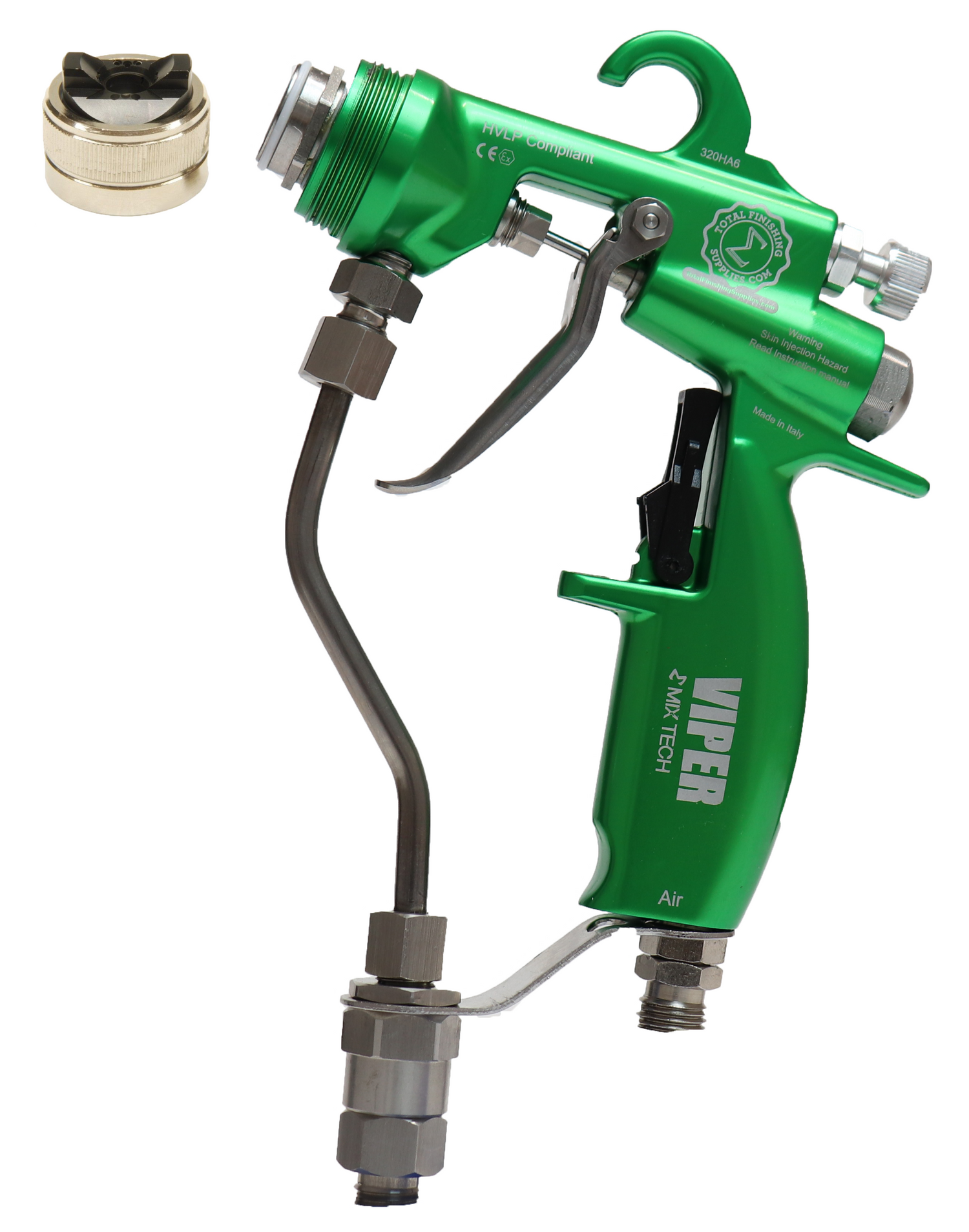

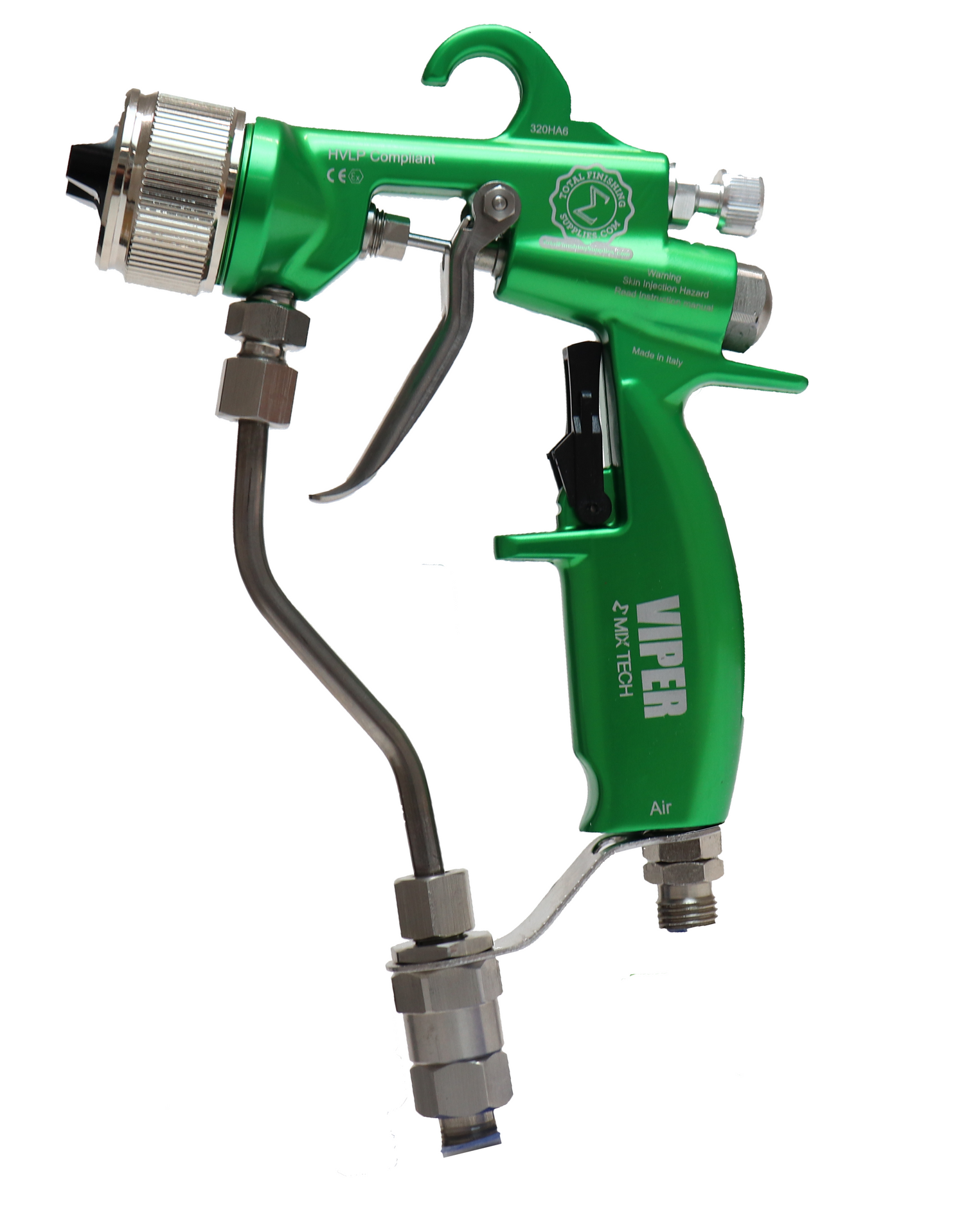

VIPER® Mix Tech Air Assisted Airless
Manual Spray Gun
Manufacturer: Total Finishing Supplies
Part Number: Viper
Description: The VIPER® manual spray gun uses our Mix Tech spray technology to provide you with exceptional atomization, performance, value, durability, and finish quality. VIPER® is constructed with our aftermarket parts (Non-OEM) manufactured for the KREMLIN® Xcite® gun. The VIPER® spray gun boasts an 86% transfer efficiency. The VIPER® Mix Tech competes with other much higher-priced European Air Assisted Airless spray guns. VIPER® can be used with water-based or solvent-based coatings with fluid pressures up to 120 bar (1,740PSI).
Features:
-
Material savings & environmental protection
-
VIPER® is manufactured by an ISO9000 facility
-
HVLP compliant
-
Unsurpassed atomization and quality of spraying at almost half the price
-
Lightweight and ergonomic design for outstanding performance
-
Performance comparable to KREMLIN® Xcite® and uses our Non-OEM Aftermarket Standard and Ultra Fine Finish tips, seals, air cap, diffuser, fluid needle and spray gun filter screens
Reasons to choose the TFS VIPER® over any other Air Assisted Airless (AAA) on the market:
-
You have high standards and like saving money! The VIPER® Mix Tech delivers Top tier performance at a mid-market price while offering rugged durability and superior atomization.
-

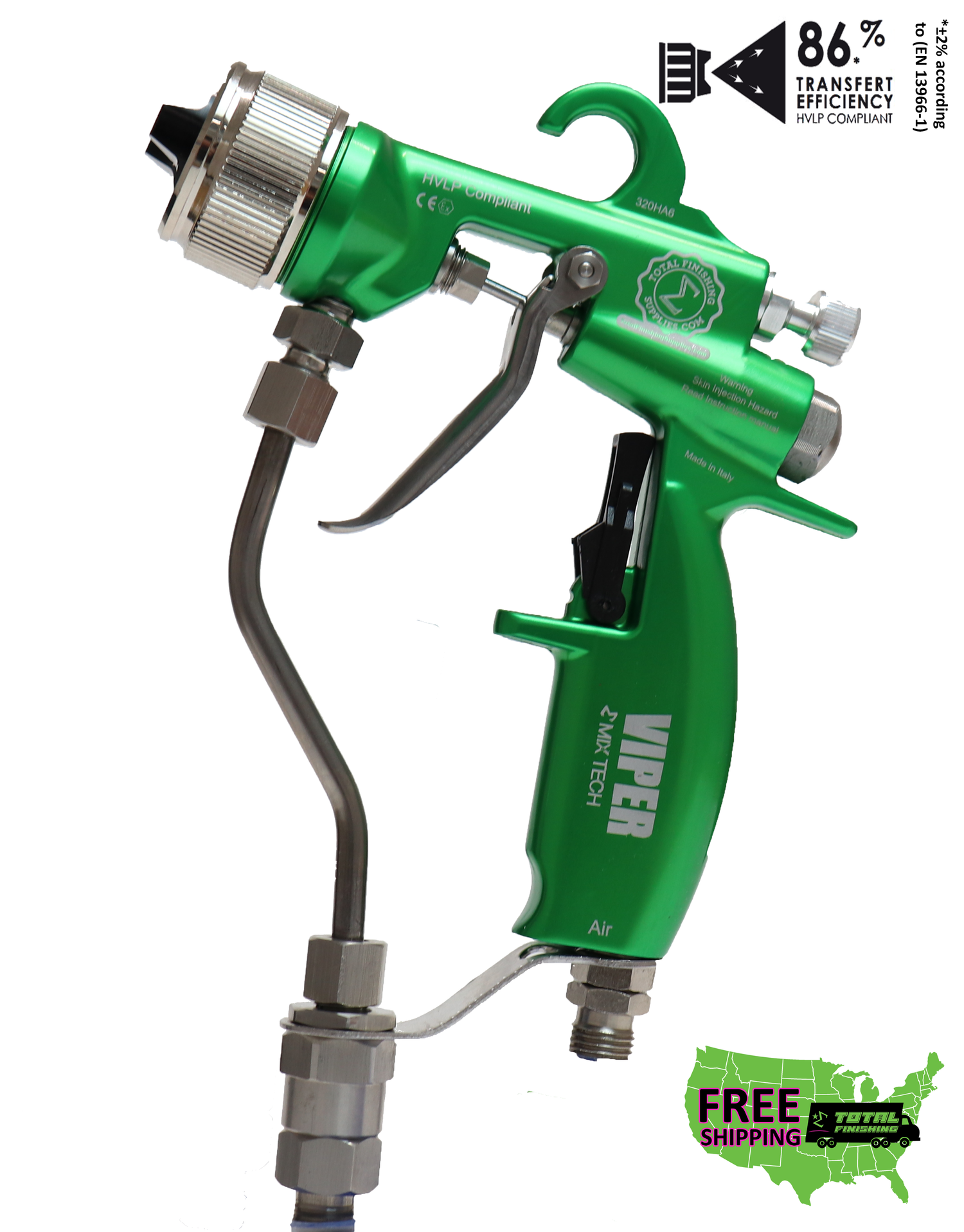

Get more done with less coating and waste! High Transfer Efficiency for Air Assisted Airless! Testing has shown this gun to have 86% transfer efficiency.
“Why Pay for GOLD when you can save approx. 50% and go GREEN!"
Specifications
|
Fluid Inlet: |
NPSM 1/4” |
|
Compressed Air Connection: |
NPT 1/4” |
|
Max. Material Pressure: |
120 bar (1,740 PSI) |
|
Max. Material Temperatrue: |
55°C (131°F) |
|
Max. Air Inlet Pressure: |
8 bar (116 PSI) |
|
Operating Temperature Range: |
5°–40°C (41°–104°F) |
|
Weight: |
0.6kg (1.3 lb) |
|
Max. Sound Level: |
82dB (A) |
Literature
-
TIP CHART
Accessory Part List
- Air Assisted Airless Hose Set - 3/16" Fluid Hose
- Air Assisted Airless Hose Set - 1/8" Fluid Hose
- GripFx Spray Gun Grip
-
Non-OEM Standard Tips 134-5xx-xx4 or 134.5xx.xx4
-
Non-OEM Ultra Series Fine Finish Tips 134-5xx-xx2 or 134.5xx.xx2
-
Non-OEM VX24 Air Cap 132-720-020 or 132.720.020
-
Non-OEM Aftermarket Tip Sieve (gun filter) Support 029.520.310
- Non-OEM Aftermarket Replacement Gun Filters (select mesh) 129.609.90X
-
Non-OEM Aftermarket 100 & 140 Mesh Tip Sieves 129.609.90X
- 60 Bar Spring
- 120 Bar Spring
- 200 Bar Spring
-
3/16" High-Pressure Fluid Line (select fittings when ordering)
Replacement Part List:
| Ref. No. | Description |
| 2 | Wedge |
| 3 | Fan Regulation Set |
| 4 | Pressure Wedge |
| 5 | Fluid Needle Gasket |
| 6 | Fluid Needle Screw |
| 7 | Air Valve Complete |
| 8 | Needle Set* |
| 9 | Air Valve Spring |
| 10 | 60 Bar Spring |
| 120 Bar Spring | |
| 200 Bar Spring | |
| 11B | Back Cap |
| 12 | Air Inlet 1/4” |
| 13 | Pin |
| 14 | Safety Lock |
| 15 | Trigger Pin |
| 16 | Trigger |
| 17 | Sealing Gasket |
| 18 | Gun Head / Diffuser Set |
| 18-1 | Sleeve Gasket / Diffuser Seal |
| 18-2 | Diffuser O-Ring (10 pk) |
| 23-1 | Mix Nozzle Standard |
| 23-2 | Air Cap Gasket, 10/pkg |
| 23-3 | Air Cap (Non-OEM KREMLIN® VX24) |
| 23-4 | Air Cap Seal (2/pkg) |
| 24-1 | Pre-Atomized Nozzle (Ultra Tips) |
| Aftermarket KREMLIN® Compatible O-Ring Teflon Tip Seals (10 pk) | |
| 120 Bar Needle Kit, Complete | |
| Filter Support Cap |
- *= Included in 120 Bar Needle Kit, Complete
NO DISCOUNT CODES may be applied to this item
NOTES:
KREMLIN®, AIRMIX®, and Xcite® are registered trademarks of Sames Kremlin SA or Exel Industries SA, and the same companies may claim unregistered trademark rights in other words. The advertised parts are intended to fit KREMLIN® and Xcite® spray equipment. They are not, however, manufactured, endorsed, or sponsored by Sames Kremlin SA or Exel Industries SA or any of their affiliates, and no warranty by Sames Kremlin SA, Exel Industries SA, or any of their affiliates applies. Total Finishing Solutions, LLC is not affiliated with or sponsored or endorsed by Sames Kremlin SA or Exel Industries SA and is not one of their authorized distributors.
Click here to view other products, parts, & accessories!
Warranty:
1 year MFG warranty from MFG defect.
Guns are not returnable once it has been loaded with paint.
Comparable to:
668-720-100 668.720.100
668-720-400 668.720.400
668-720-900 668.720.900
668-720-901 668.720.901
668-720-401 668.720.401
668-720-402 668.720.402
668-720-425 668.720.425
668-720-450 668.720.450
668-720-125 668.720.125
668-720-150 668.720.150
668-720-300 668.720.300
668-720-302 668.720.320
668-720-800 668.720.800
668-720-225 668.720.225
668-720-250 668.720.250
668-720-275 668.720.275
