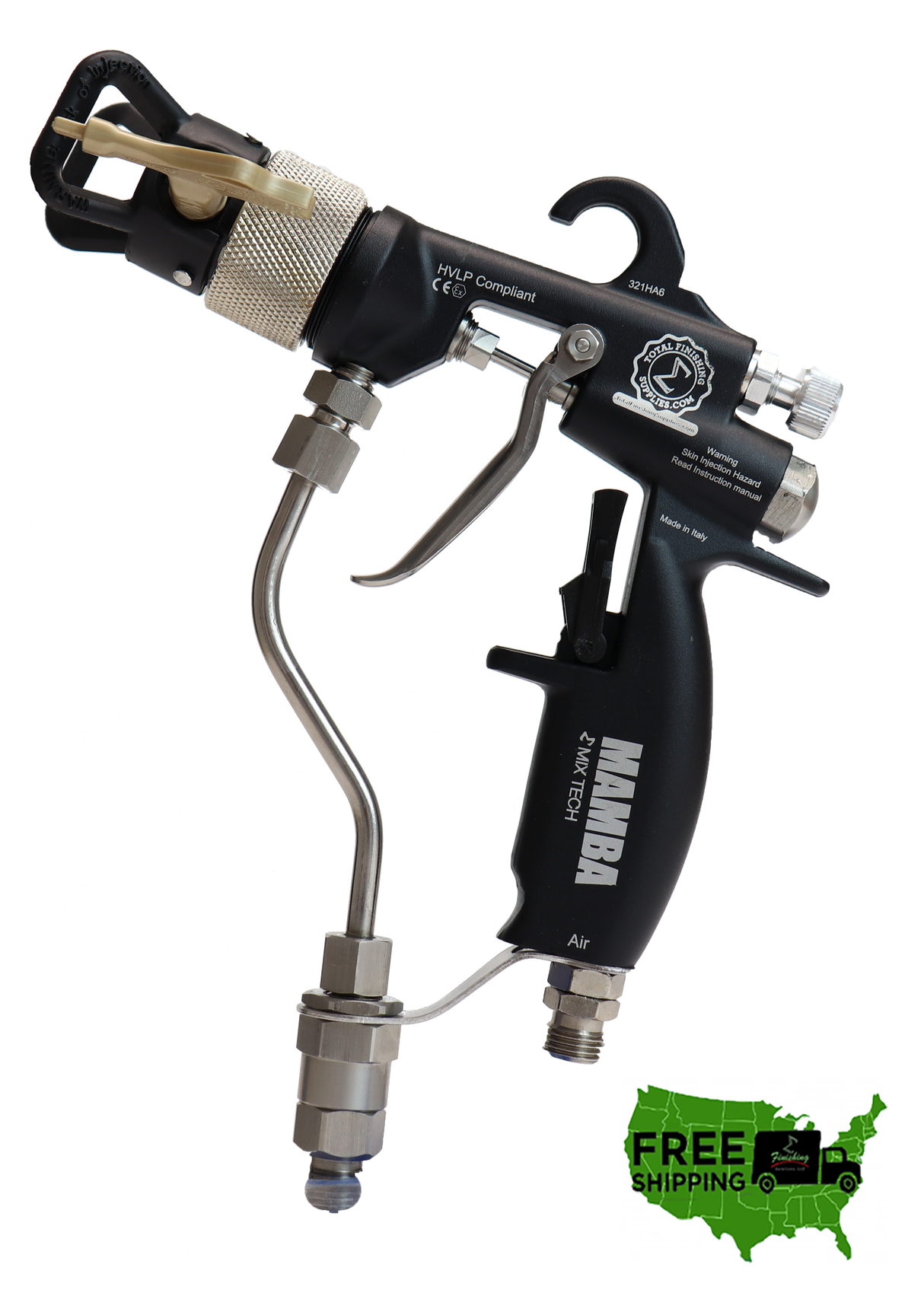

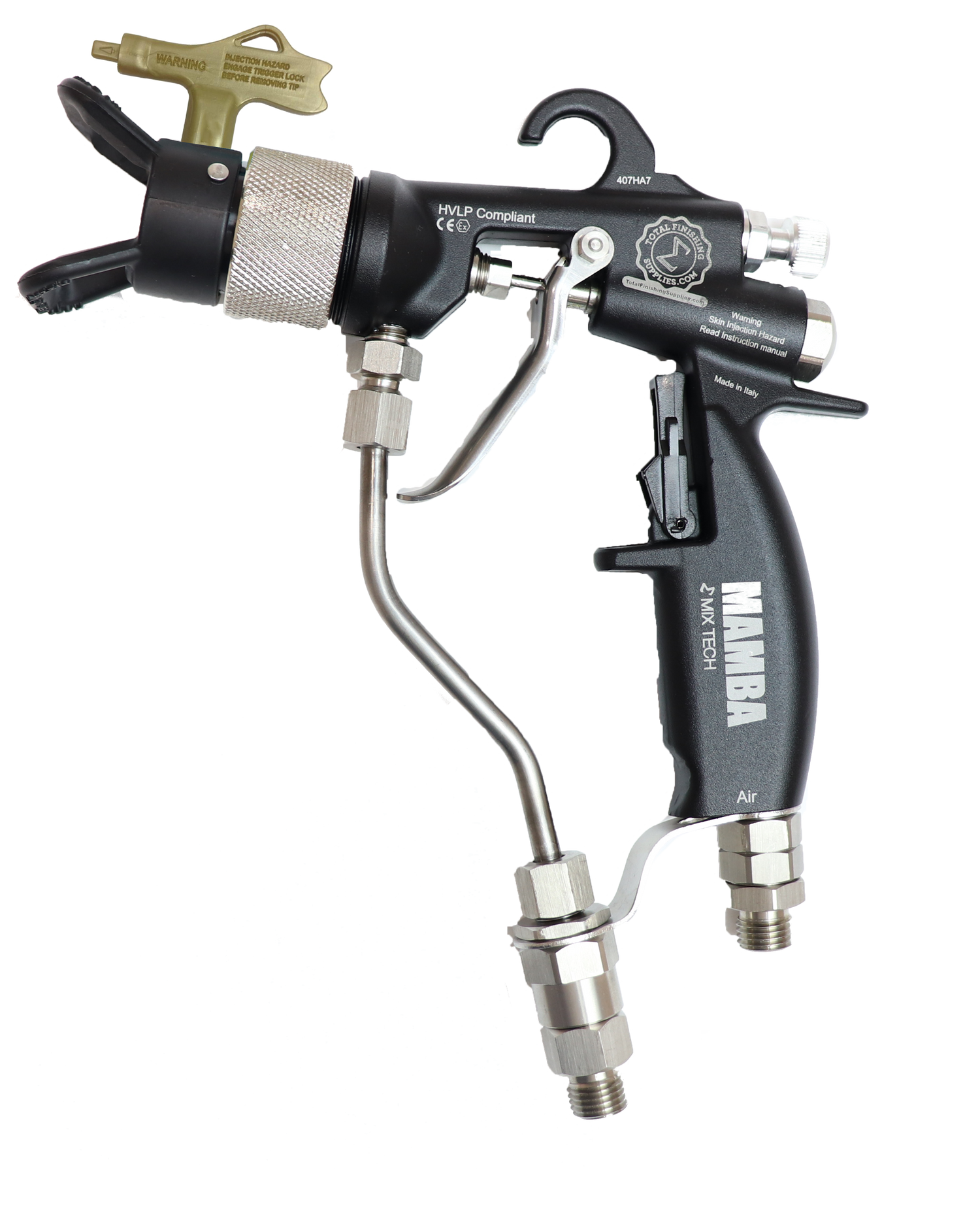

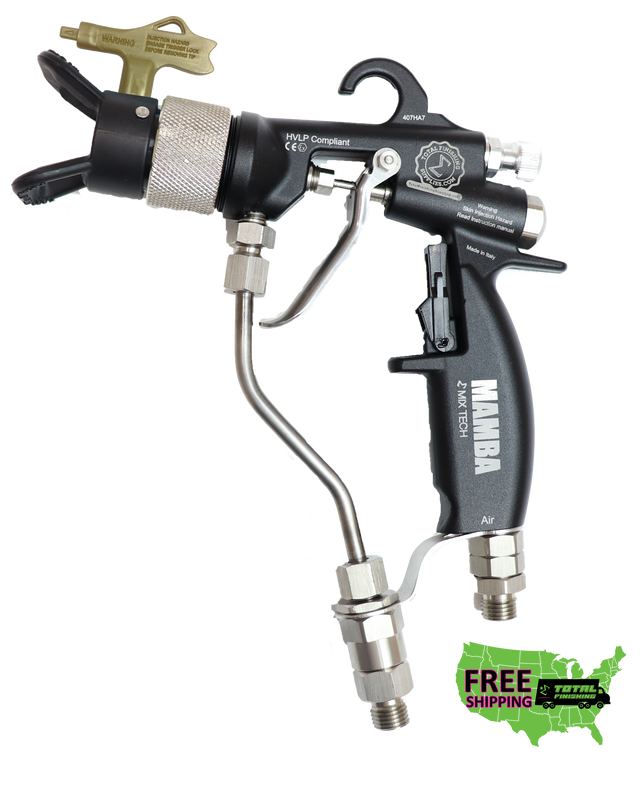

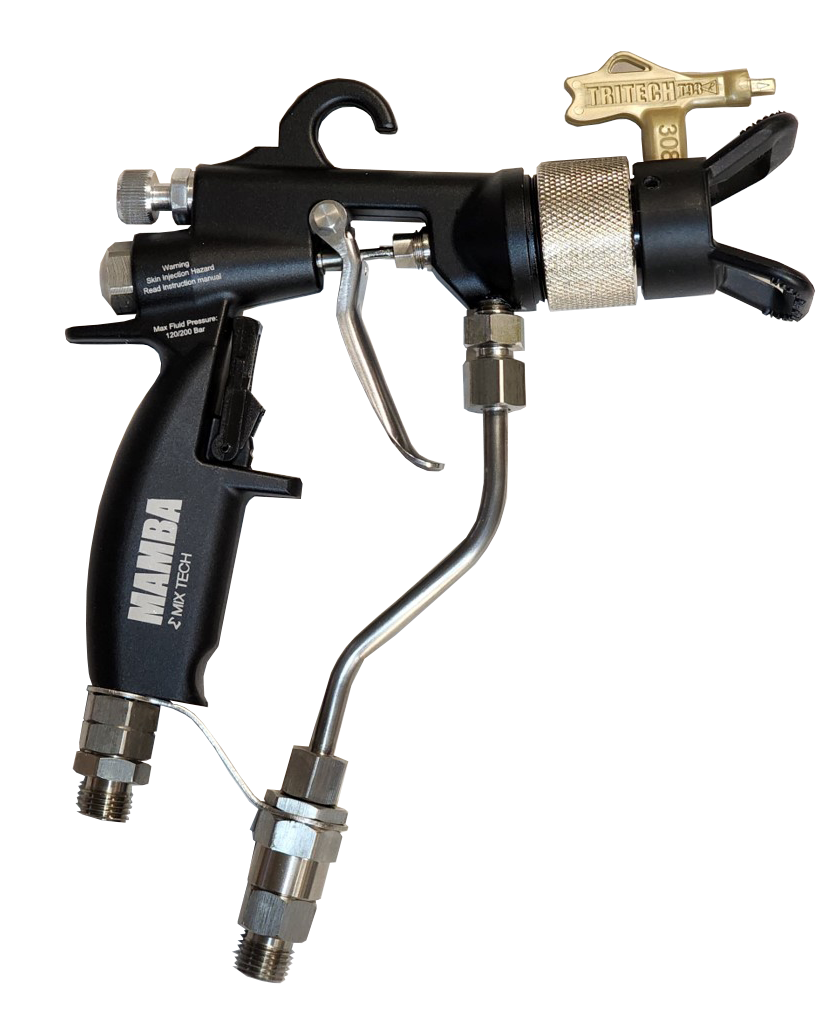

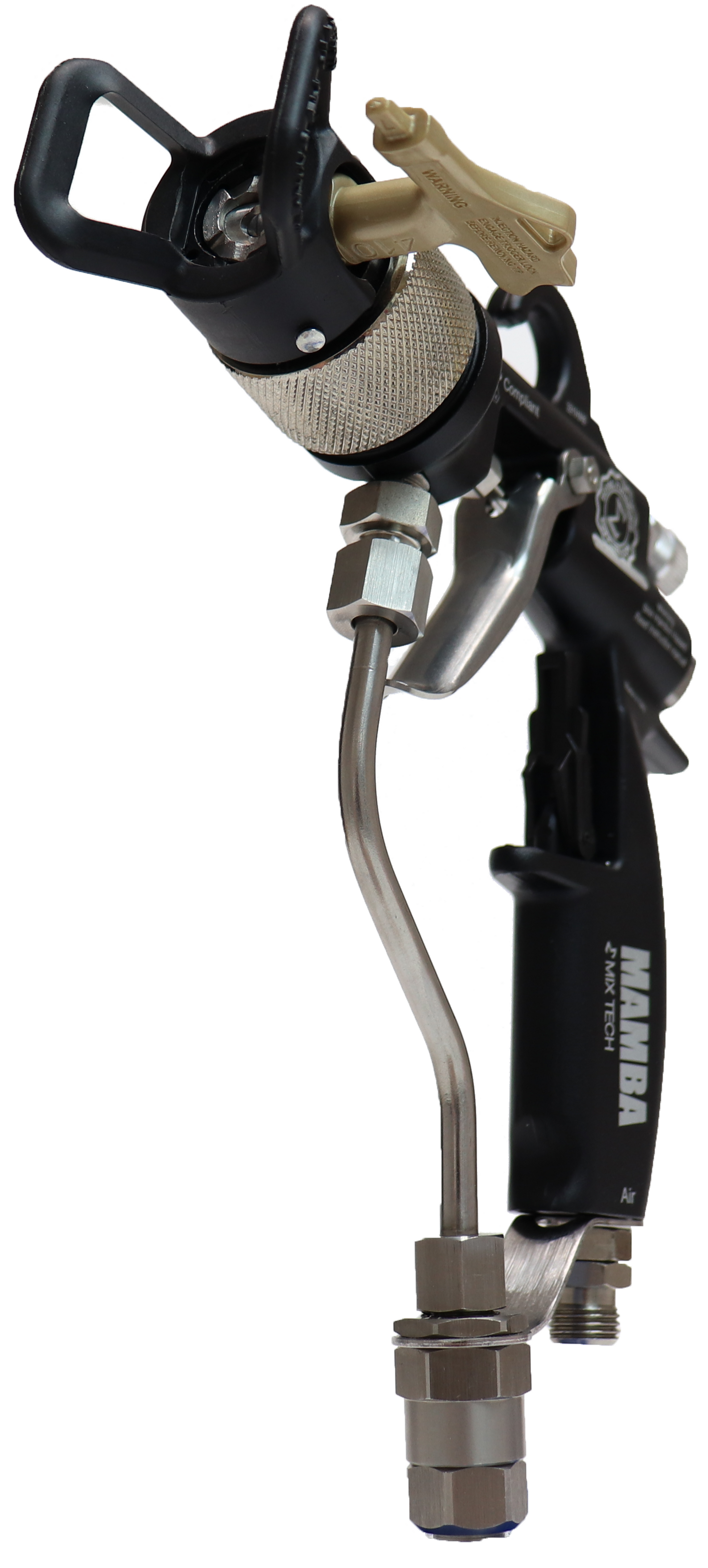

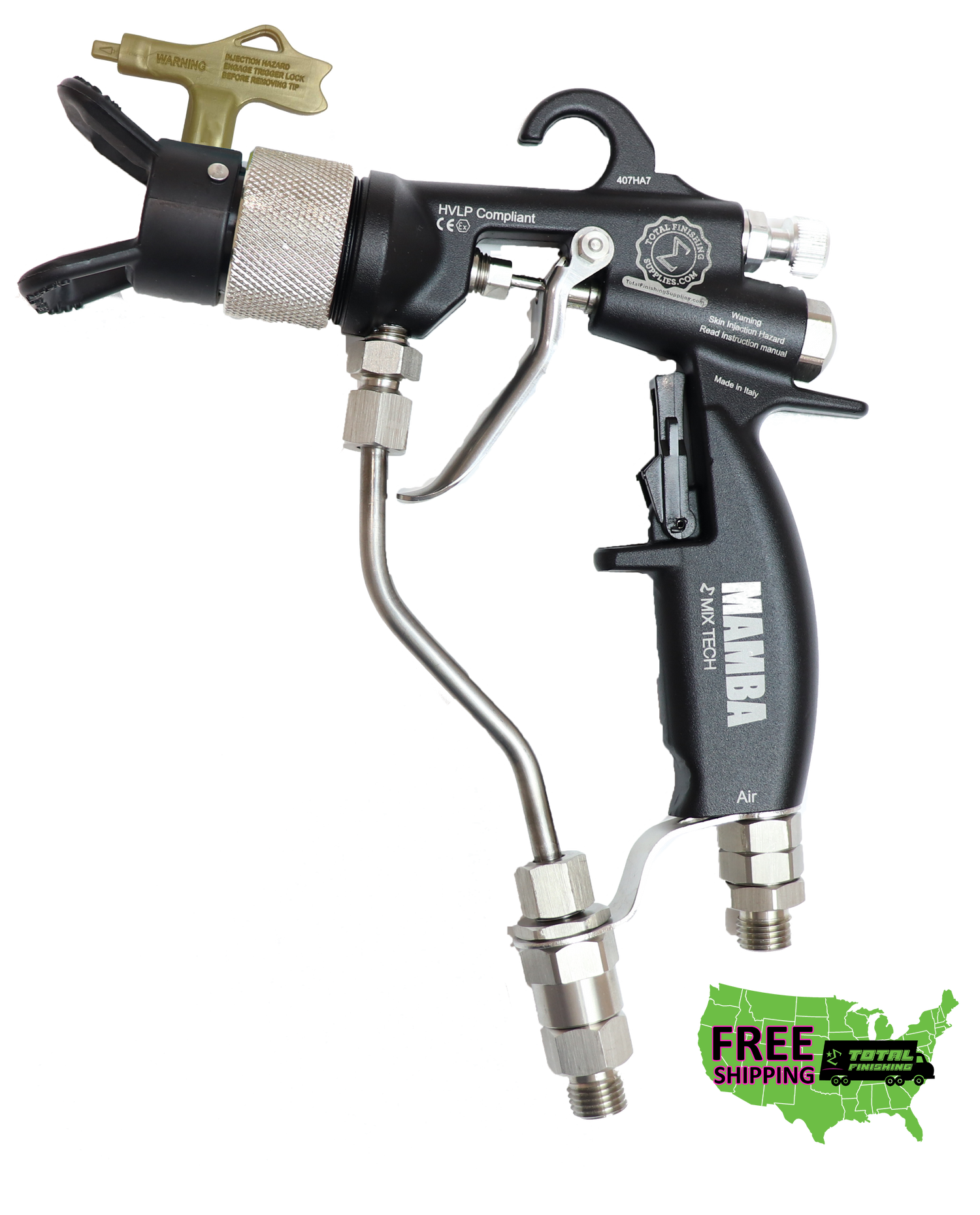

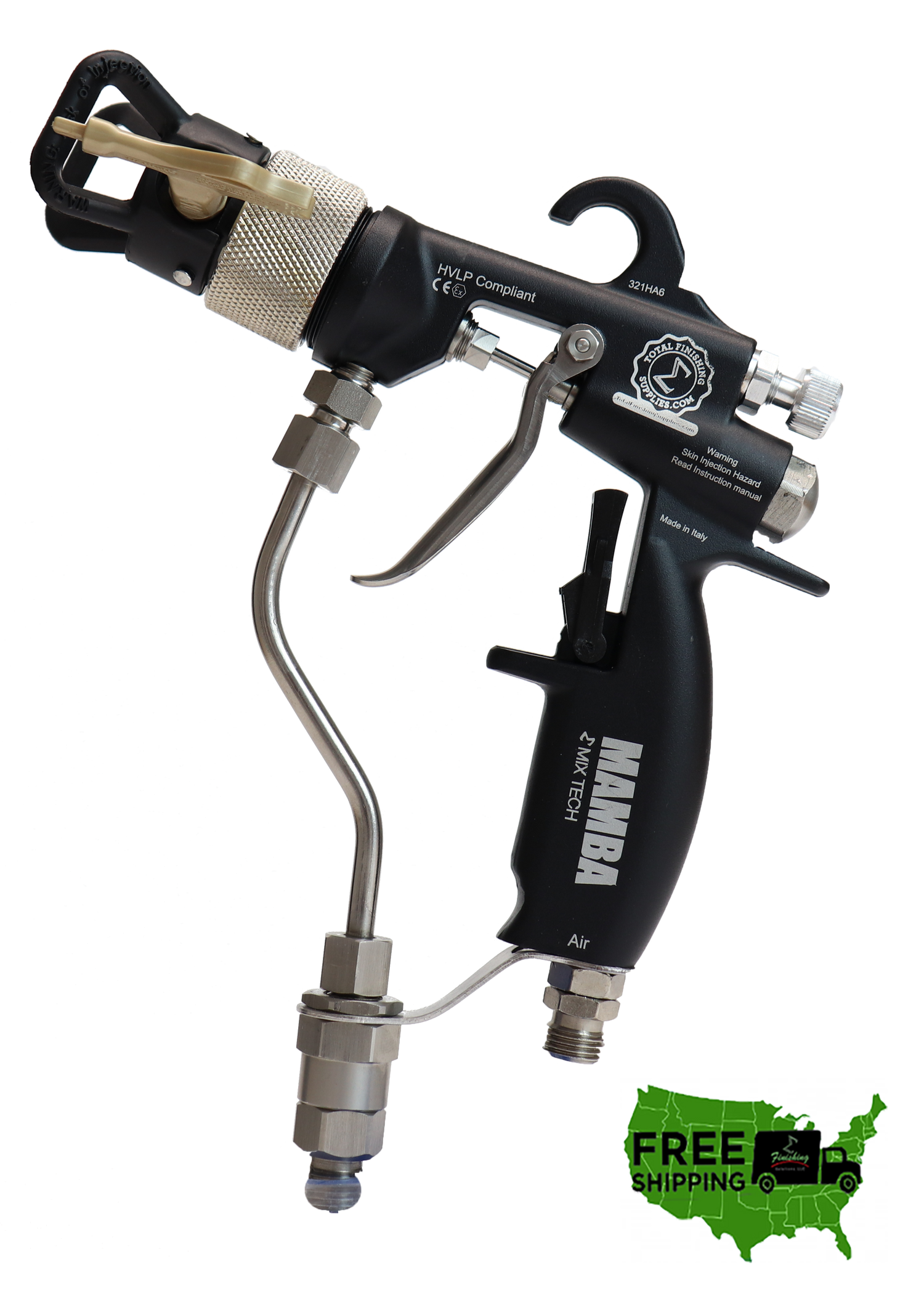

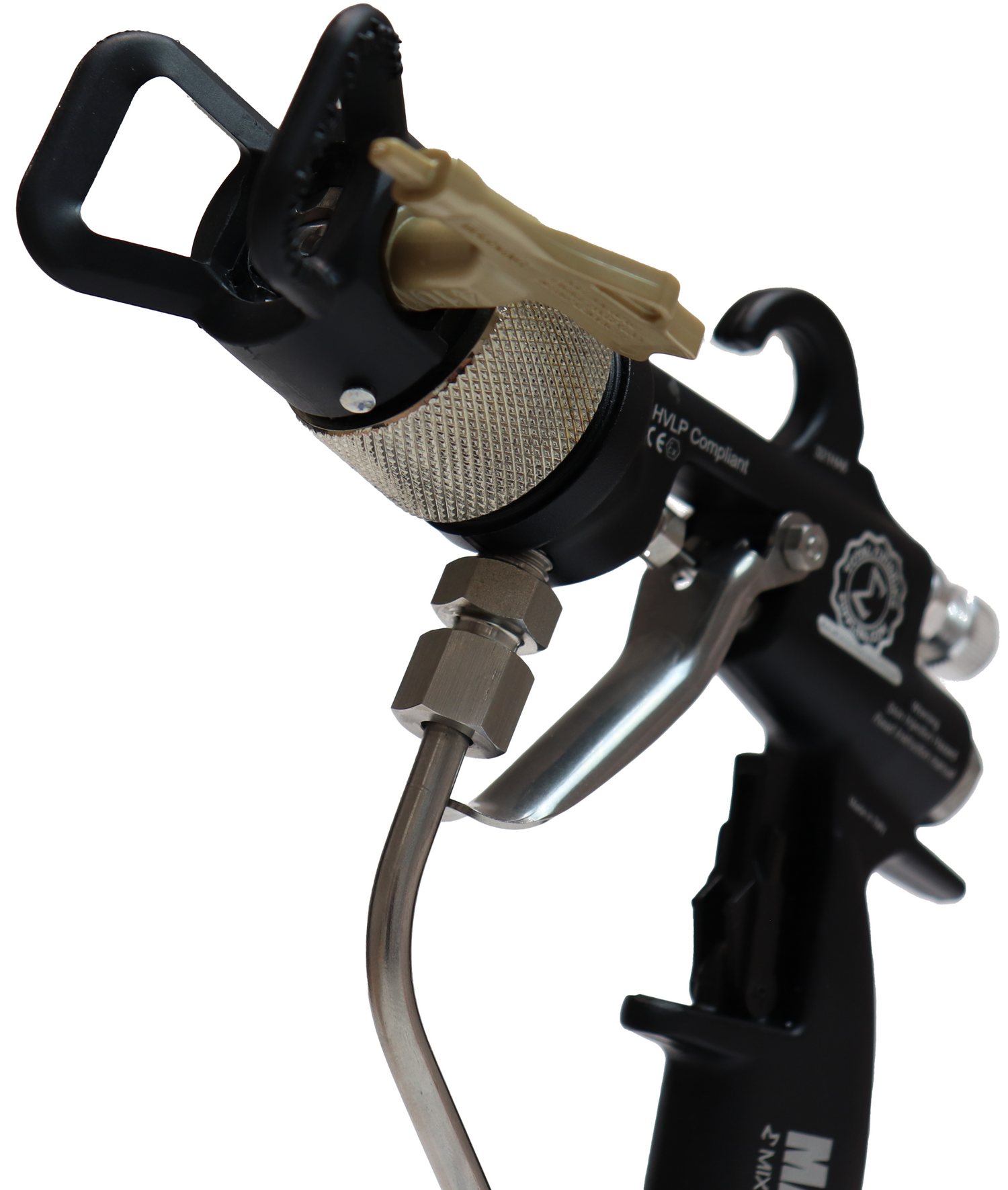

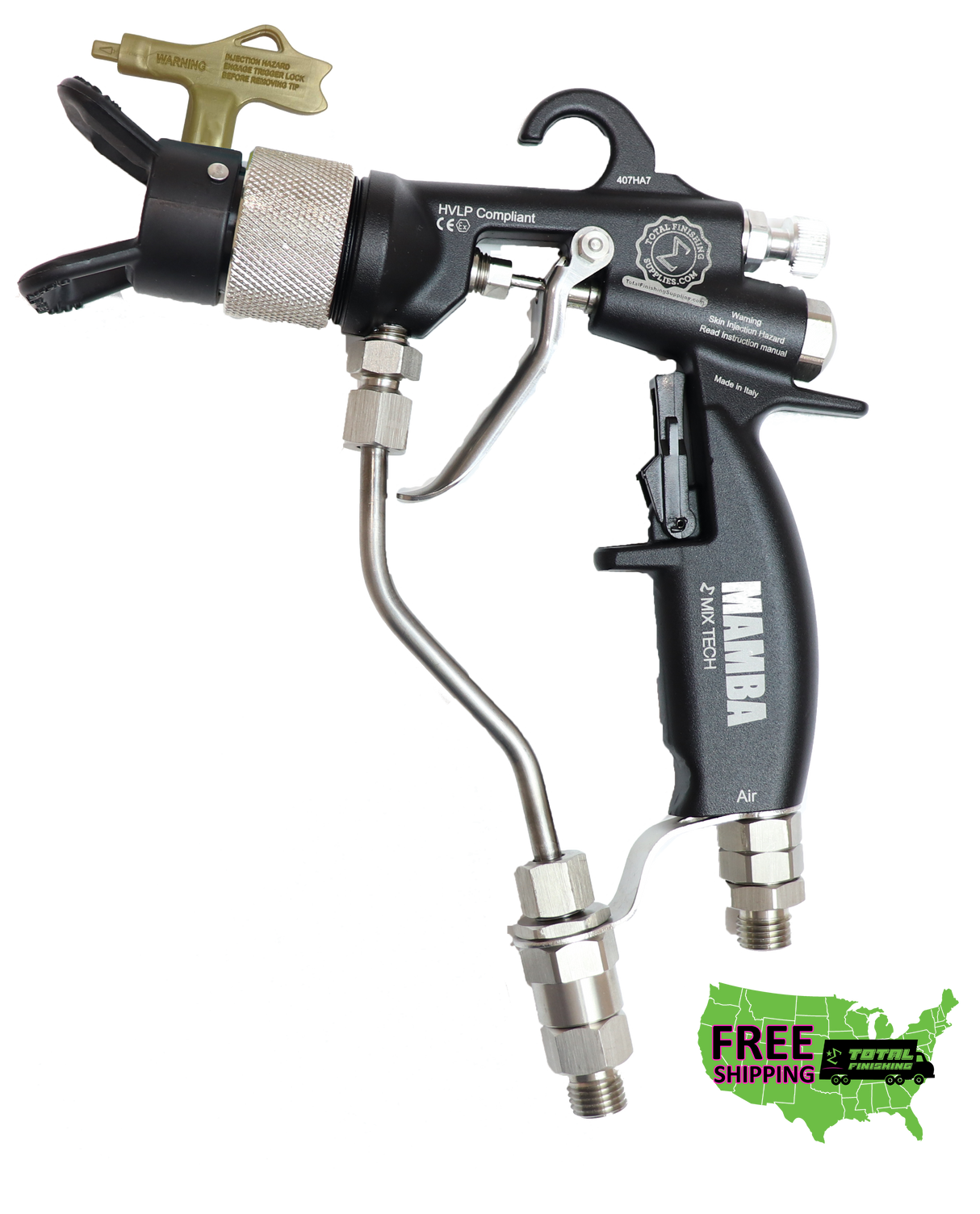

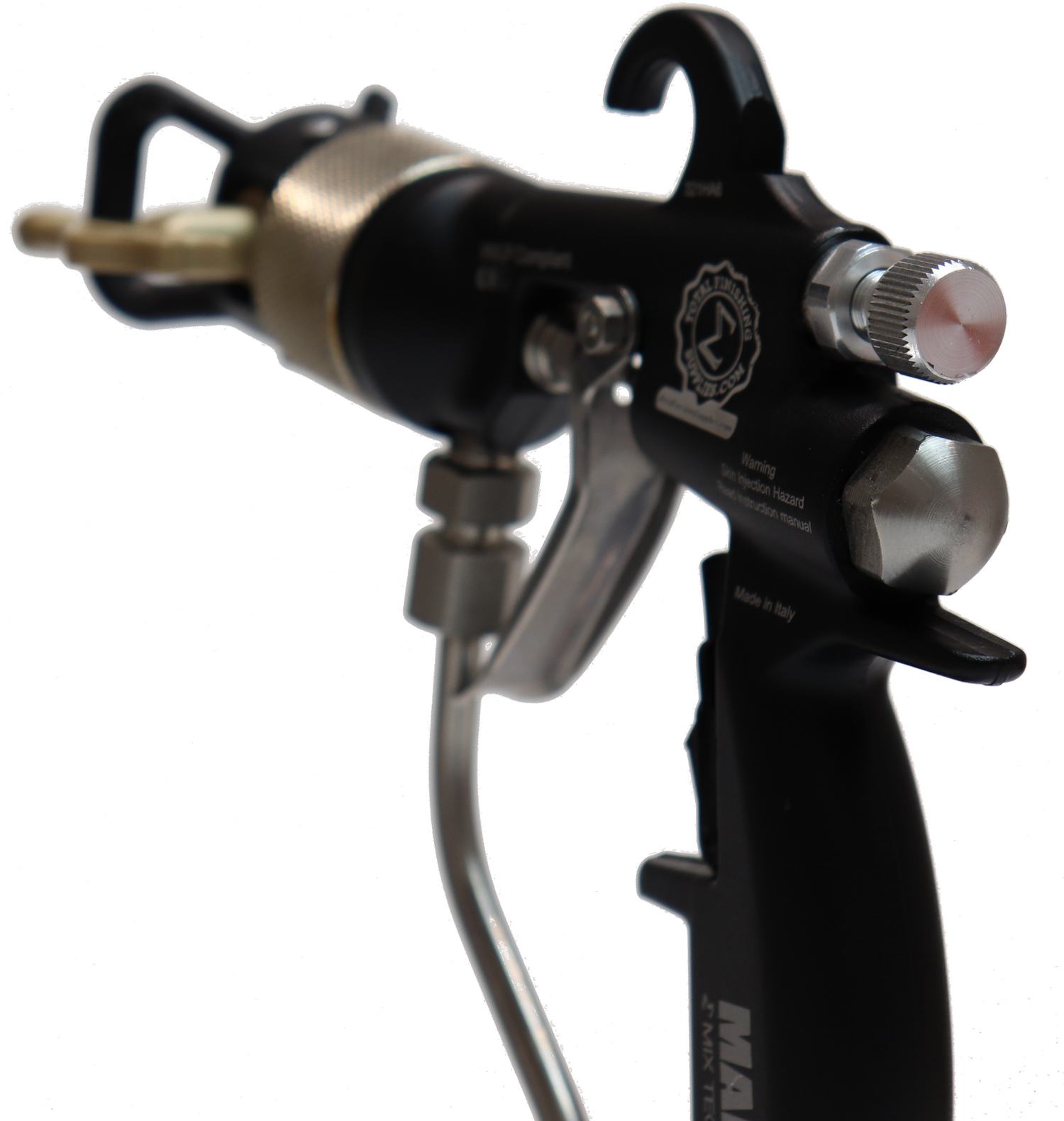

MAMBA® Mix-Tech Air Assisted Airless Manual Spray Gun with Reversible Tip

MAMBA® Mix-Tech Air Assisted Airless Manual Spray Gun with Reversible Tip

Manufacturer: Total Finishing Supplies

Part Number: Mamba

Description: The MAMBA® Mix Tech 200 bar (2900PSI) manual spray gun delivers exceptional performance, value, and finish quality. With a high transfer efficiency, the MAMBA® Mix Tech competes with other much higher-priced Graco® G40 RAC™ and G15 RAC™ spray guns.

Features:

• Material savings & environmental protection

• MAMBA® is manufactured by an ISO9000 facility

• HVLP compliant

• Unsurpassed atomization and quality of spraying at almost half the price

• Lightweight and ergonomic design for outstanding performance.

• Comparable to Graco® G40 RAC™ and G15 RAC™ along with the TriTech Fine Finish Reversible Tips

Reasons to choose the TFS MAMBA® over any other Air Assisted Airless (AAA) on the market:

1. You have high standards and like saving money! MAMBA® Mix Tech delivers Top tier performance at a mid-market price while offering rugged durability and superior atomization.

2. Get more done with less coating and waste! High Transfer Efficiency for Air Assisted Airless! Testing has shown this gun to have 86% transfer efficiency.

Specifications:

Fluid Inlet: NPSM 1/4"
Compressed Air Connection: NPT 1/4"
Max. Material Pressure: 200 bar / 2,900 psi
Max Material Pressure:  131°F (55°C)
Max Inlet Pressure: 8 bar / 116 psi
Operating Temperature Range:  41°–104°F (5°–40°C)
Weight: 1.3lb (0.6kg)
Max Sound Level:  82dB(A)

Literature

• Operating Manual
• Brochure
• Cut Sheet
• Tip Chart

Accessory and Parts List

• Air Assisted Airless Hose Set - 3/16" Fluid Hose
• Air Assisted Airless Hose Set - 1/8" Fluid Hose
• GripFx Spray Gun Grip
• TriTech Contractor Tips
• TriTech Ultra-Finish Tips
• TriTech Tip Seal & Gasket
• Reversible Tip Guard and Retainer/Air Cap
• MAMBA® Filter Support
• MAMBA® Filter Support Cap
• Non-OEM Tip Sieves (85-200 mesh)
• 1/4" M x 1/4" F Swivel
• 25' High-Pressure Fluid Line (select fittings when ordering)
• 25' Air Line

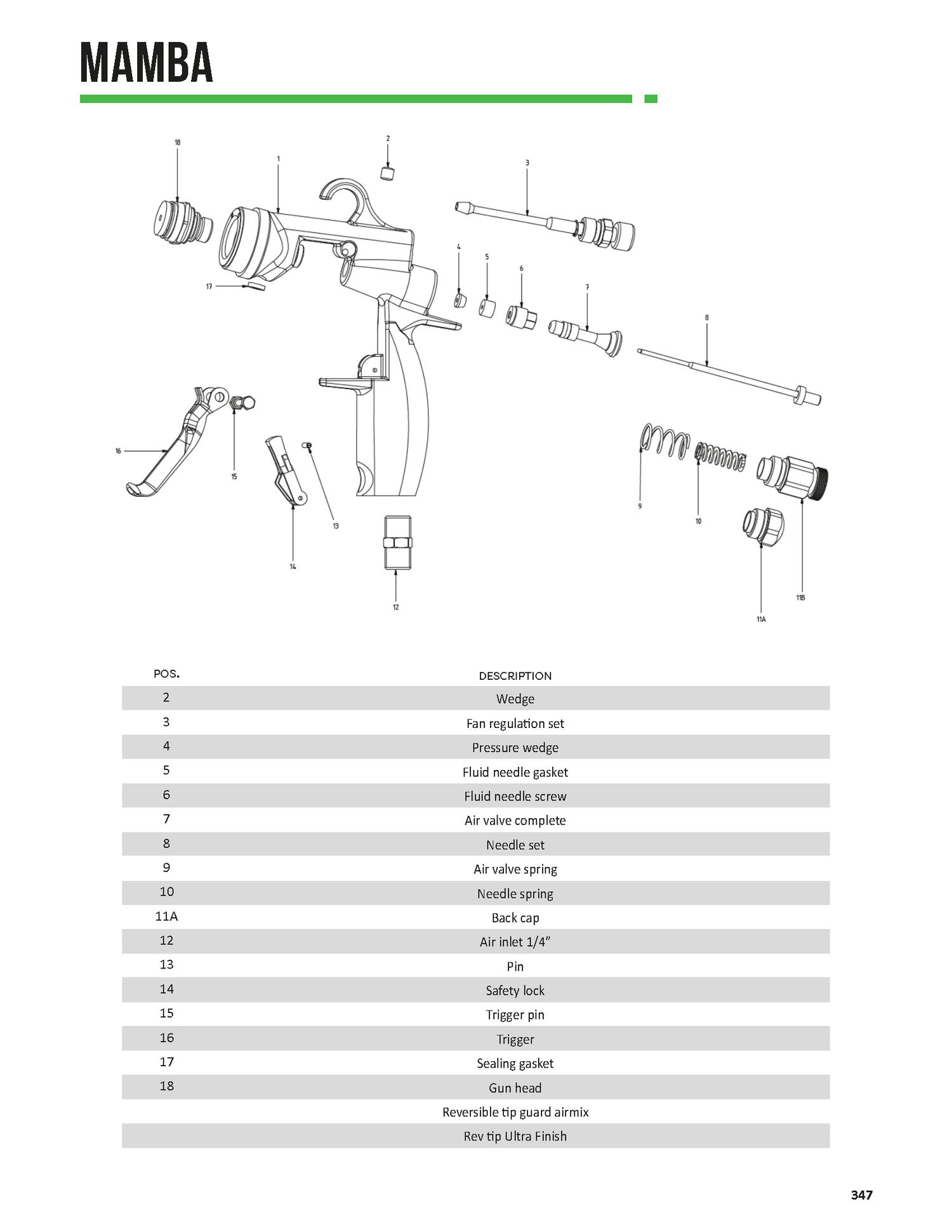

Replacement Part List

• Diffuser O-Ring Seal
• Reversible Tip Guard and Retainer
• Reverse Tip, Ultra Finish
• TriTech Tip Seal & Gasket
• Seal for Reversible Tip Guard, 5 pk
• 2. Wedge
• 3. Fan Regulation Set
• 4. Pressure Wedge
• 5. Fluid Needle Gasket
• 6. Fluid Needle Screw
• 7. Air Valve Complete
• 8. Needle Set
• 9. Air Valve Spring
• 10. Needle Spring
• 11A. Back Cap
• 12. Air Inlet 1/4"
• 13. Pin
• 14. Safety Lock
• 15. Trigger Pin
• 16. Trigger
• 17. Sealing Gasket
• 18. Gun Head

NO DISCOUNT CODES may be applied to this item

NOTES:

Not made by Graco®

Total Finishing Solutions, LLC is not affiliated with or sponsored or endorsed by Graco Inc. and is not one of their authorized distributors. Aftermarket non-oem replacement parts comparable to Graco® brand equipment are not manufactured or warrantied by Graco Inc. or any of its affiliates.

Click here to view other products, parts, & accessories!

Warranty:

1 year MFG warranty from MFG defect.

Guns are not returnable once it has been loaded with paint.

Comparable to: 262929 24C857 249238 288465
