Anest Iwata Wider1A Automatic Spray Gun
Description
Description

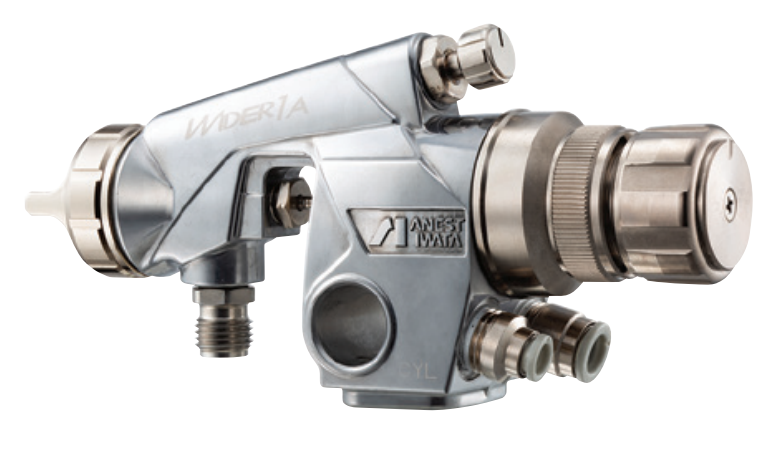

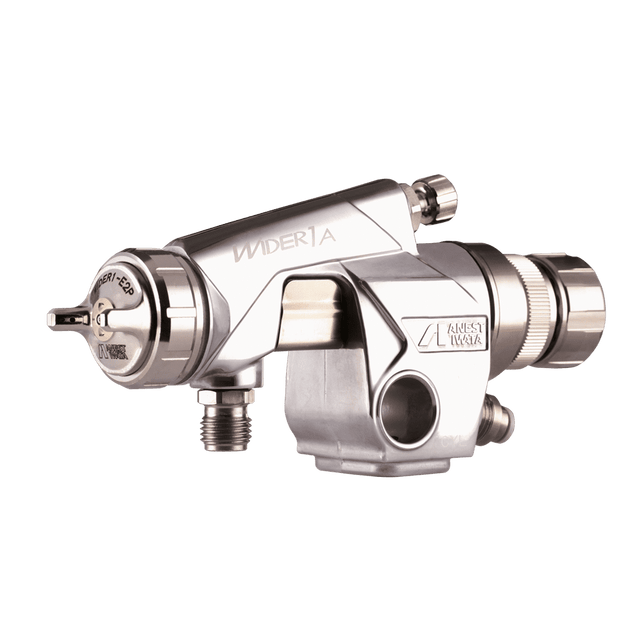

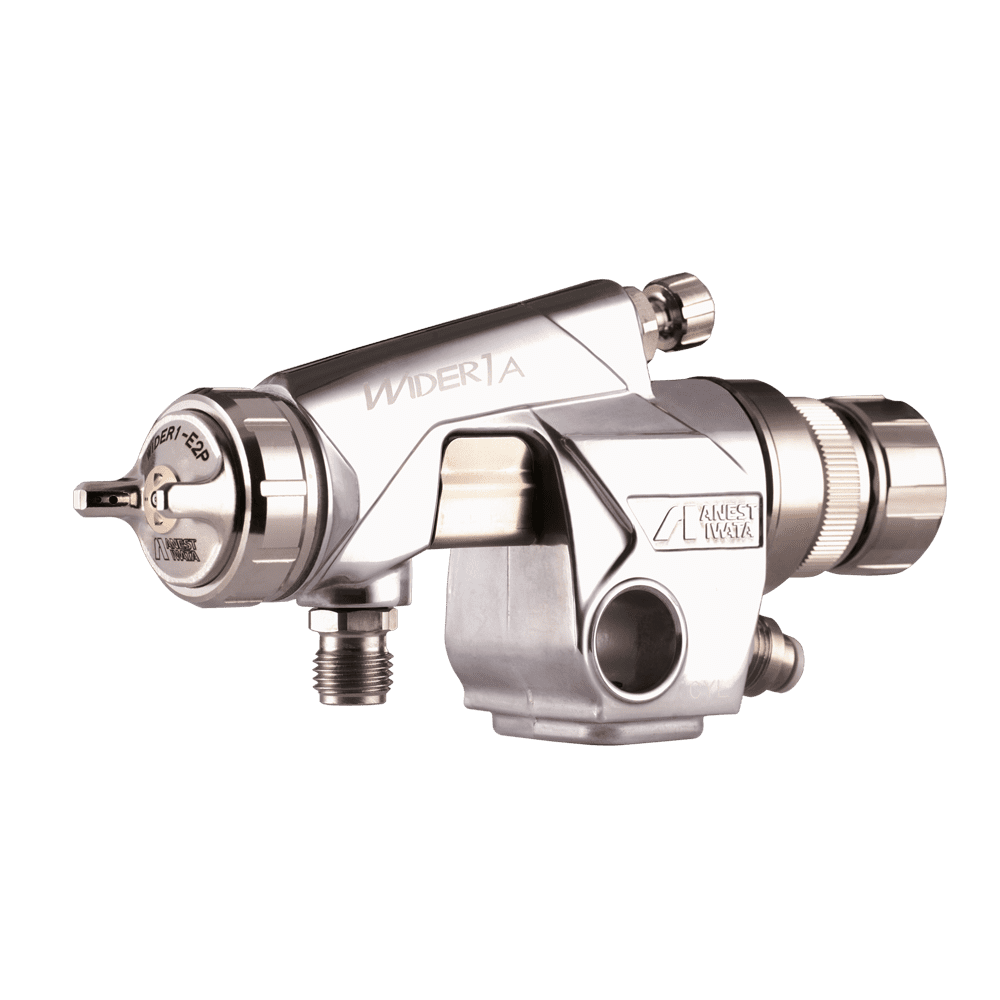

Wider1A Compact Size Automatic Spray Gun
Manufacturer: Anest Iwata
Part #: 5XXXW
Description: Low pressure (<100 psi) automatic spray gun with a compact size designed for installation and operation on automatic painting lines in the general industry sector such as reciprocators and robots. Smaller diameter versions are designed for painting smaller objects.
Features:
- Tool-less access to the piston assembly
- More linear pattern adjustment capabilities
- Redesigned fluid and air inlet for simpler connection
- Excellent atomization for flawless finishes
- Stainless steel fluid passages are suitable for waterborne and solvent based materials
- Various nozzle options are available to achieve desired spray pattern
- Improved adjustment knobs operate with a smoother action
- Air cap can be quickly detached in half the time for cleaning and maintenance
- Air valve seat set doesn’t need a special adjustment tool, so you can make changes on the spot
Specifications:
| Nozzle Size | Air Cap | Air Pressure | Fluid Rate | Air Consumption | Fan Pattern |
| 0.8mm | E2P | 43.5 psi | 150ml/min | 270 Nl/min | 190mm |
| 1.0mm | E2P | 43.5 psi | 200ml.min | 270 Nl/min | 220mm |
| 1.0mm | E1 | 43.5 psi | 100ml/min | 90 Nl/min | 140mm |
| 1.3mm | H2 | 43.5 psi | 250ml/min | 260 Nl/min | 230mm |
| 1.5mm | H2 | 43.5 psi | 270ml/min | 260 Nl/min | 250mm |
Parts and Accessories:
