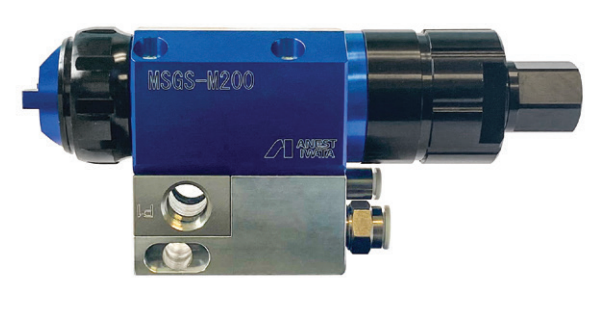

Anest Iwata MSGS-M200 Automatic Multi Spray Gun
Anest Iwata MSGS-M200 Automatic Multi Spray Gun
MSGS-M200 Automatic Air Assisted Airless Spray Gun
Manufacturer: Anest Iwata
Part Number: 7503
Description: The MSGS-M200 spray gun offers superior atomization, delivering world-class finish results and minimizing the need for rework. Setting itself apart from the competition, this spray gun operates at a lower air pressure, resulting in reduced air consumption, increased utility savings, and decreased overspray. With convenient tool-less access to the needle and piston, maintenance becomes a breeze. The versatile air cap accomodates various tip styles, while the manifold seamlessly integrates with popular existing features, simplifying the conversion process.
Features:
- Superior Atomization to achieve high gloss levels and maximize transfer efficiency
- Tool-less access for maintenance
- Seamlessly integrates with popular fixtures
- Versatile air cap can accommodate multiple tip styles
- Requires lower atomizing air pressures reducing overspray and saving utilities
Specifications:
- Max Pressure: 250bar /3626psi
- Air Nipple: G1/4"
- Fluid Nipple: G1/4"
Parts and Accessories:
| Ref. No. | Part No. | Description |
| 1 | 93019860 | MULTI AUTOMATIC SPRAY GUN ASSY |
| 2 | 93020350 | MANIFOLD UNIT |
| 3 | 96365051 | HEX HOLE BOLT |
| 4 | 96801750 | HEX SOCKET HALF UNION |
| 5 | 96801185 | HALF UNION |
| 6 | 96365050 | HEX HOLE BOLT |
| 7 | 93020400 | AIR ADJ. ASSY |
| 8 | 93004490 | AIR CAP COVER |
| 9 | 93004320 | AIR CAP |
| 10 | FLUID TIP | |
| 11 | 93019960 | NOZZLE HOLDER ASSY |
| 11-1 | W3COM2082 | V PACKING |
| 11-2 | W3COM2084 | O RING |
| 11-3 | 96639518 | O RING |
| 11-4 | 96995948 | O RING |
| 12 | 93019991 | NEEDLE PACKING UNIT |
| 12-1 | 96997064 | O RING |
| 12-2 | 96997016 | O RING |
| 13 | 93020201 | LEAKAGE DETECTOR |
| 14 | 96639004 | O RING |
| 15 | 96630008 | O RING |
| 16 | 93020280 | PISTON |
| 17 | 96630026 | O RING |
| 18 | 93020230 | NEEDLE VALVE BAR |
| 19 | 96997064 | O RING |
| 20 | 93020220 | RETAINER |
| 21 | 93020250 | NUT |
| 22 | 93020330 | PISTON SPRING |
| 23 | 93022820 | SPRING HOLDER |
| 24 | 93020340 | SPRING |
| 25 | 93022840 | SPRING GUIDE |
| 26 | 93020301 | CYLINDER |
| 27 | 93020320 | KNOB |
| 28 | 96639505 | O RING |
| 29 | 96639007 | O RING |
