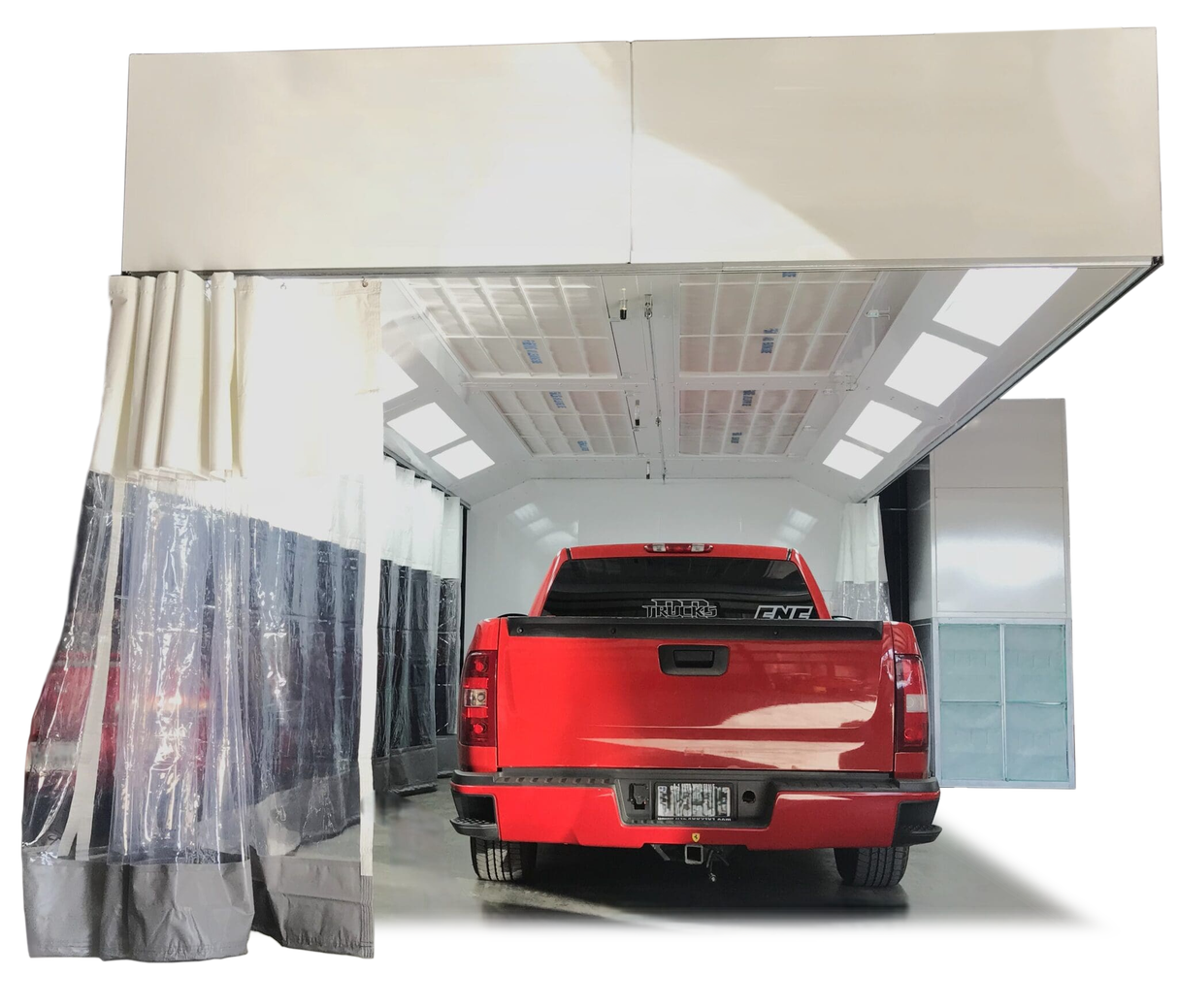

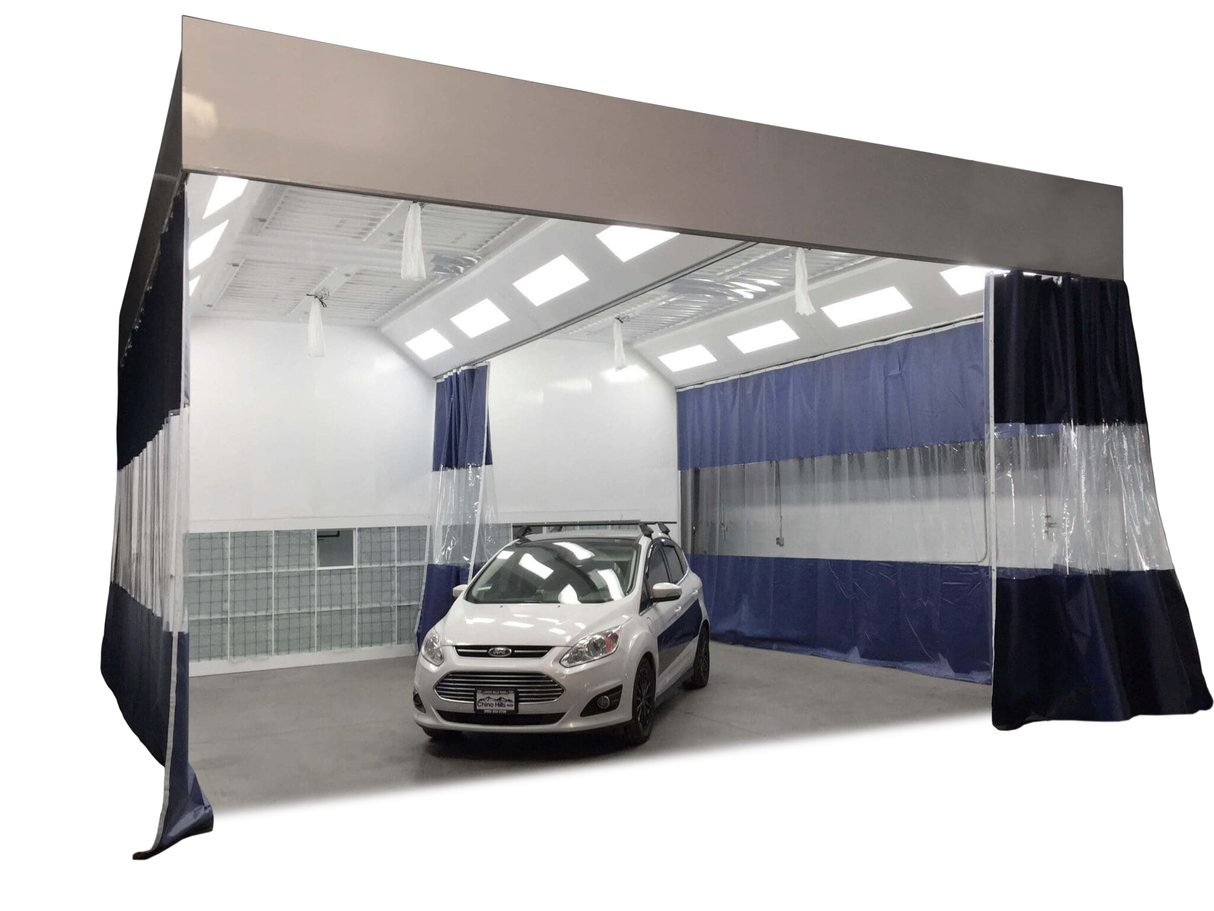

Total Finishing Semi-Down Flow Automotive Prep Station

Semi-Down Flow Automotive Prep Station

Manufacturer: Total Finishing

Part Number: TFSPrep - Semi-Down

Description: Fresh air enters the booth through the top filter plenum of the cabin, and travels down the cabin evenly into the back wall-centered exhaust plenum providing a safe environment and a supreme air flow for a great paint job. The prep station is available in multiple length, width and height options to suit any shop layout. The structure can be freestanding, with structural steel supports, or suspended from your shop ceiling

Heavy Duty Construction:

All of our single wall prep stations are made with premium 18 ga. Zinc galvanized steel panels, companion flanged and pre-punched at 6" on center for easy assembly with 1/4" nuts and bolts. Single Wall. Better airflow, lighting, and strength because of gabled roof design. TOP-Designed to meet the requirements of EPA’s 6H Paint Rule (40CFR63 Subpart HHHHHH), Total Finishing prep stations provide a controlled environment for sanding, priming and limited painting. When priming and painting, the amount of material sprayed shall not exceed one gallon in an eight-hour period.

• Fans & Motors: 208-240V, 3 Phase standard. Please call if alternative electrical is required.
  • (1) 30" Dia. Tube-axial fan with aluminum spark-proof blades belt drive exhaust fan

  • (1) 3hp 3ph Belt-drive motor 208-230/460v. 60 hz
• Filters:
  • (16) Exhaust filters w/ (16) exhaust filter grids

  • (2) Intake filter pads 37” x 117” x 2” Ceiling Diffusion Media is a 1” thick, scrim backed
• Curtains:
  • Auto bay curtain with hardware and tracking for Prep area. Tri-color curtain system on 10' straight track and two-wheel nylon roller.
• Available Sizes:
  • Available in 24' , 27', and 30' sections

Additional Booth Options:

• Lighting - Full booth illumination from LED (standard) 4’ Long, 4 tube LED T8 light fixtures 120v. ETL listed
• White Powder Coated Finish - ultra white inside and out of the spray booth. cover all wall panels, doors frame, floor channels and ceiling panels.
• Ducting Kit - Spray booth exhaust system includes: *(2) Plain duct, (1) Service door duct, (1) Flashing for the roof (1) damper cap

• UL Listed Control Panel with Emergency Stop

Additional Accessories:

• 4' Exhaust Stack Sections

• 3' Exhaust Stack Section with Clean-Out Door
• 45 Degree Elbow
• Upflow Cap with Damper
• Motor Enclosure

• Stack/Connector Ring
• Roof Flashing - Flat Roof / Pitched Roof

NFPA Guide

Ships by Truck Freight.
FOB California - You will be contacted with a freight quote or you can arrange your own freight.  Forklift required at the time of delivery.

Manufacturers Warranty
TFS warrants that all equipment sold hereby will be of the kind and quality described in this agreement. The equipment manufactured by TFS is guaranteed to be free from all latent defects in material and workmanship disclosed under normal use and service, and should any part thereof be found, within one year from the date of shipment, to be so defective at the time shipped, TFS will repair or, at TFS's option, replace said part. In the case of standard apparatus furnished, but not manufactured by TFS, such as fans, motors, ovens, heaters, controls, and light fixtures. TFS extends to the purchaser the same guarantee as is given by their respective manufacturers. TFS is not required to provide equipment or meet performance specifications or standards not expressly set forth in this agreement. TFS's liability hereunder, however, is expressly limited to the materials furnished by it and does not extend to any damages to buildings, contents, products, or persons. This warranty shall not apply to any of TFS's apparatus which shall have been altered or repaired outside of TFS's factory in any way so as, in TFS's judgment, to affect its performance, nor which has been subjected to misuse, negligence, accident or improper installation. IT IS EXPRESSLY AGREED THAT THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES OF FITNESS OR MERCHANTABILITY, EXPRESS OR IMPLIED.

All paint spray booths and spray booth accessories — including but not limited to ducting, lighting, and control panels — are custom made to order and are not refundable
