Binks Model 115 Conventional Touch Up Spray Gun

Model 115 Conventional Touch Up Spray Gun

This model is obsolete and is replaced by the Devilbiss Touch Up Spray Gun linked HERE

Manufacturer: Carlisle Binks

Part #: 6143-0901-3, 6143-0901-5

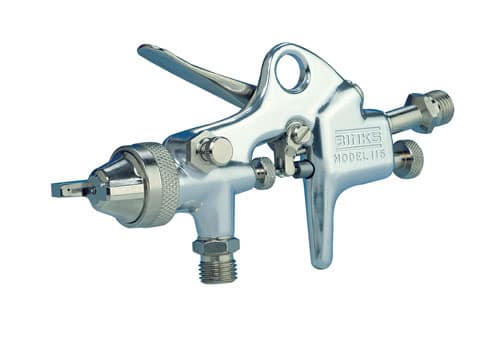

Description: The Model 115 is a small, lightweight precision touch-up spray gun for fine finishes.

The Model 115 is easy to use and ideal of touch-up shading and spotting jobs and features a one piece drop forged aluminum body with a brass fluid passage insert. The Model 115's overhead trigger is curved to fit the operator's index finger. It has a self-adjusting brass air nozzle allowing for adjustable spray patterns.

• Body:                  Drop-forged aluminum

• Weight:               8 Oz.

• Air Inlet:              1/4" NPS (M)

• Fluid Inlet:           1/4” NPS (M)

• Fluid Passages:   Brass/Electroless nickel Plated

• Feed Type:          Pressure/Siphon Feed
• Orifice Size:         1.8mm

Siphon Cup Options:

Literature:

• Manual
