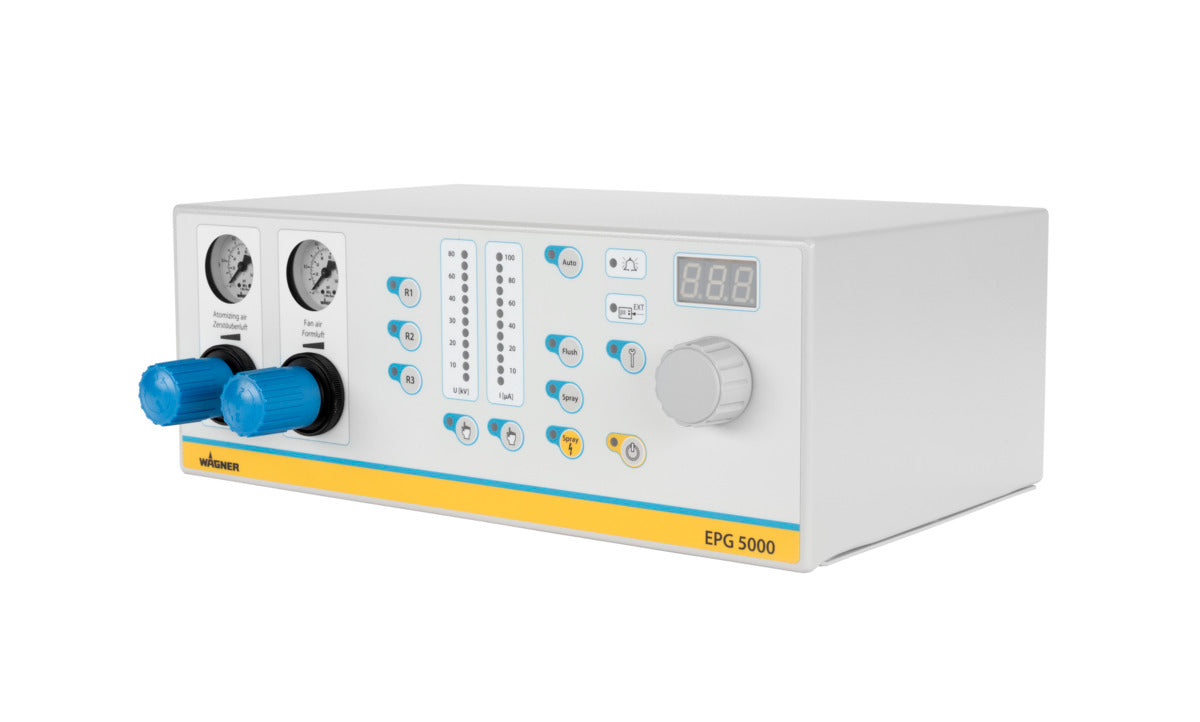

EPG 5000 Control Unit
Manufacturer: Wagner
Part Number: 2359918
Description: The EPG 5000 controls the automatic electrostatic guns for the use of solvent based paints.
Features:
- Comprehensive electrostatic control
Real-time adjustment or adaptation of the high voltage function via an external signal to the control unit EPG 5000. - High safety
Maximum operator safety thanks to an automatic shutdown of the high voltage function during flushing, interruptions during spraying or grounding faults. - Reliable
Comprehensive security and storage functions of the control areas by password entry minimize setting errors and the number of rejects. - Complete solution
Ideal for individual coating needs - the intelligent control of the EPG 5000 combines high voltage and compressed air control functions.
Specifications:
| Air Inlet Pressure Range (bar) |
6 bar - 8 bar
|
| Input Voltage (V) |
115 V - 230 V
|
| Input Power (W) |
0 W - 40 W
|
| Protection class |
IP 40
|
| Weight (kg) |
6.7 kg
|
| Operating Temperature (°C) |
0 °C - 40 °C
|
| Length / Depth (mm) |
370 mm
|
| Width (mm) |
136 mm
|
| Height (mm) |
295 mm
|
| Gun Spray Current (µA) |
100 µA
|
| Gun Spray Voltage (kV) |
80 kV
|
| Input Frequency (Hz) |
50 Hz - 60 Hz
|
| Certification |
Complies with ATEX directive, Complies with CE directive
|
Parts and Accessories:
- 360391 - Interface Cable EPG 5000 15m
- 360393 - Interface Cable EPG 5000 5m
- 2317600 - Interface cable VM 5000
- 130215 - Grounding cable 10 m; 32.8 ft
- 264332 - Grounding cable connection 0.75 m; 2.5 ft
- 2369616 - 19" rack fastening, complete
- 2369636 - Wall mount, complete
