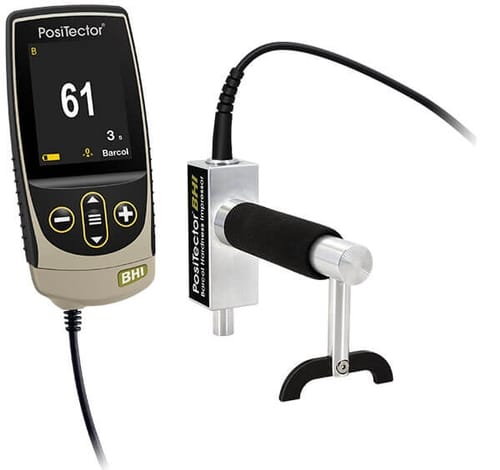

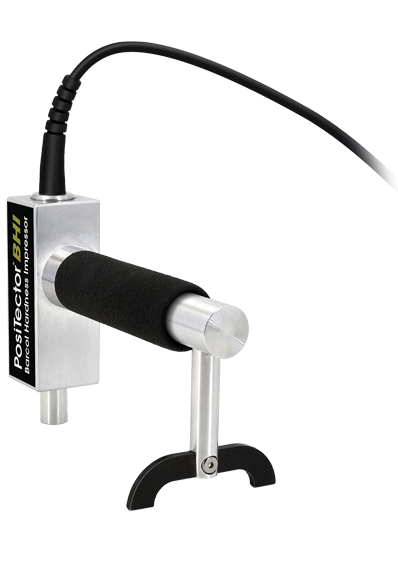

DeFelsko PosiTector® BHI Digital Barcol Hardness Impressor

PosiTector® BHI Digital Barcol Hardness Impressor

Manufacturer: DeFelsko

Part #: BHIX

Description: The PosiTector BHI measures the hardness of soft metals such as aluminum, aluminum alloys, copper, brass, and other materials such as harder plastics and fiber-reinforced plastic.

• Easy-to-read digital display

• Comparable to 934-1 Barcol Hardness Tester

• NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation

• NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure

• PosiTector interchangeable platform—attach any PosiTector probe to a single gage body

• USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software

• Certificate of Calibration included

Conforms to ASTM B648/D2583, DIN EN 59, and AS/NZS 3572.22

Features:

Simple

• Easy-to-read digital display

• Comparable to 934-1 Barcol Hardness Tester

• User-adjustable measurement time with on-screen countdown

• Includes spare, field replaceable indentor with replacement tool

• NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation

• NEW On-gage help explains menu items at the touch of a button

• RESET feature instantly restores factory settings

Durable

• NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure

• NEW Ergonomic design with durable rubberized grip

• Shock-absorbing, protective rubber holster for added impact resistance

• Hard-shell carrying case included

• Two year warranty on gage body AND probe

Accurate

• Certificate of Calibration included

• Hi-RES mode increases displayed resolution for precision applications

• Includes hard and soft aluminum alloy test disks and leveling plate to verify gage operation

• Conforms to national and international standards including ASTM

Versatile

• PosiTector body accepts all PosiTector 6000, 200, RTR, SPG, DPM, IRT, SST, UTG, SHD, BHI, and GLS probes easily converting from a coating thickness gage to a surface profile gage, dew point meter, soluble salt tester, ultrasonic wall thickness gage, hardness tester, or gloss meter

• 1 and 2 point calibration options with Cal Reset to restore factory settings

• Selectable display languages

• NEW Auto rotating display with Flip Lock

Powerful

• Continually displays/updates average, standard deviation, min/max, and number of readings while measuring

• NEW Screen Capture—save 100 screen images for record keeping and review

• HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits

• NEW Instant-on feature quickly powers up the gage if recently powered down

• NEW Up to 30% longer battery life

• USB Port for fast, simple connection to a PC and to supply continuous power

• PosiSoft USB Drive—stored readings and graphs can be accessed using universal
• PC/Mac web browsers or file explorers. No software required.

• Every stored measurement is date and time stamped

• Software Updates via the internet keep your gage current

• Includes PosiSoft suite of software for viewing, analyzing and reporting data

Standard Models:

• Includes ALL features as shown above plus...
• NEW Storage of 1,000 readings per probe—stored readings can be viewed or downloaded

Advanced Models:

• Includes ALL features as shown above plus...
• NEW Storage of 250,000 readings from multiple probes in up to 1,000 batches and sub-batches

• Auto Sub-Batch—automatically create new sub-batches after the desired number of readings are taken

• Live graphing of measurement data

• NEW Touchscreen keyboard for quickly renaming batches, adding notes, and more

• WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates

• Bluetooth 4.0 Technology for data transfer to a mobile device running the
• PosiTector App or optional portable printer. BLE API available for integration into third-party software.

• Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols

• Store thickness, profile, environmental, salt contamination, hardness, and wall thickness measurements in individual batches

Literature:

• Brochure
• Manual

Parts and Accessories:

• Replacement Glass Plate
• Replacement Indentors
• Test Disks

Packing List:

All gages come complete with test disks (2), leveling plate, replacement indentor with replacement tool, glass plate, protective rubber holster, wrist strap, 3 AAA batteries, instructions, hard shell case, protective lens shield, Long Form Certificate of Calibration, USB cable, PosiSoft Software, two (2) year warranty.
