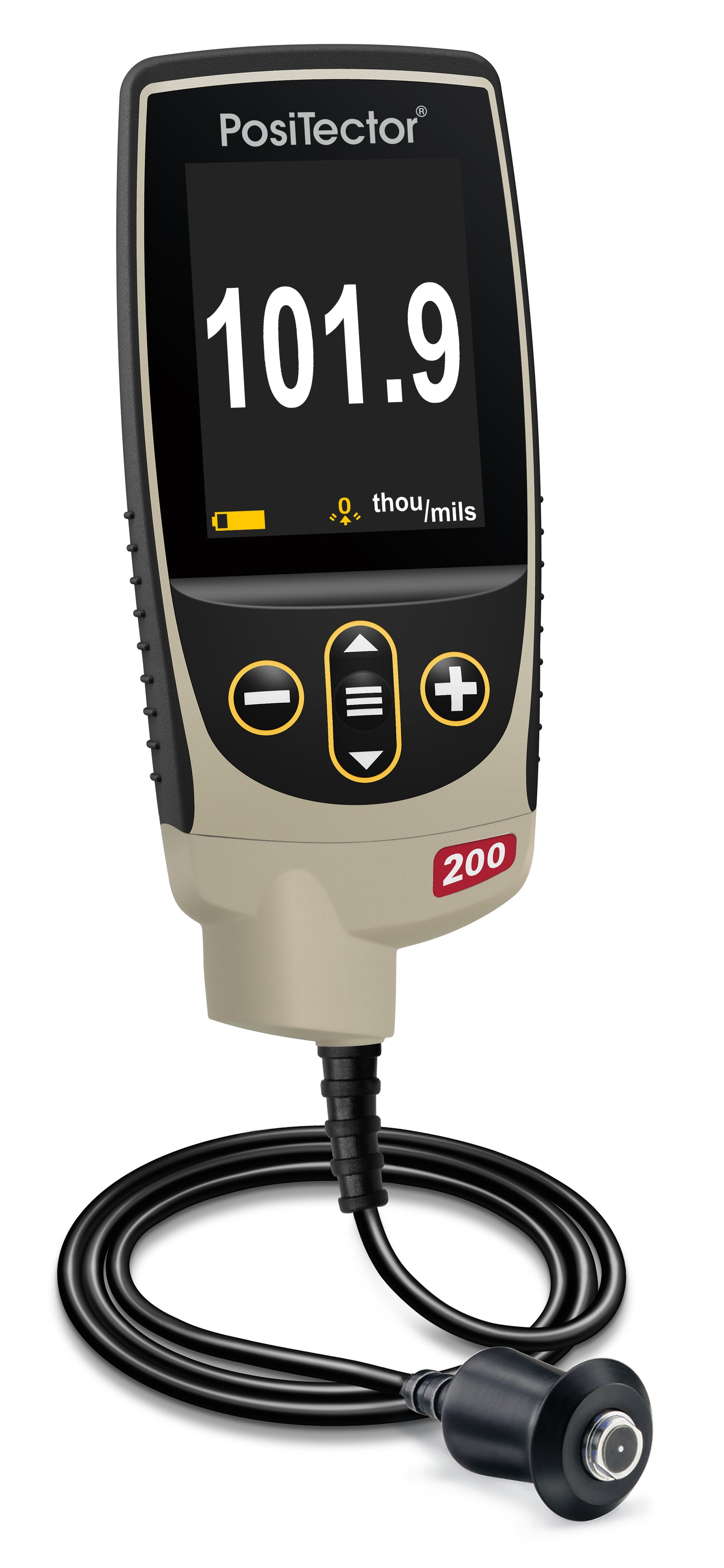

DeFelsko PosiTector 200

PosiTector 200

Manufacturer: DeFelsko

Part #: 200XX

Description: Coating Thickness Gages for Non-Metal Substrates.

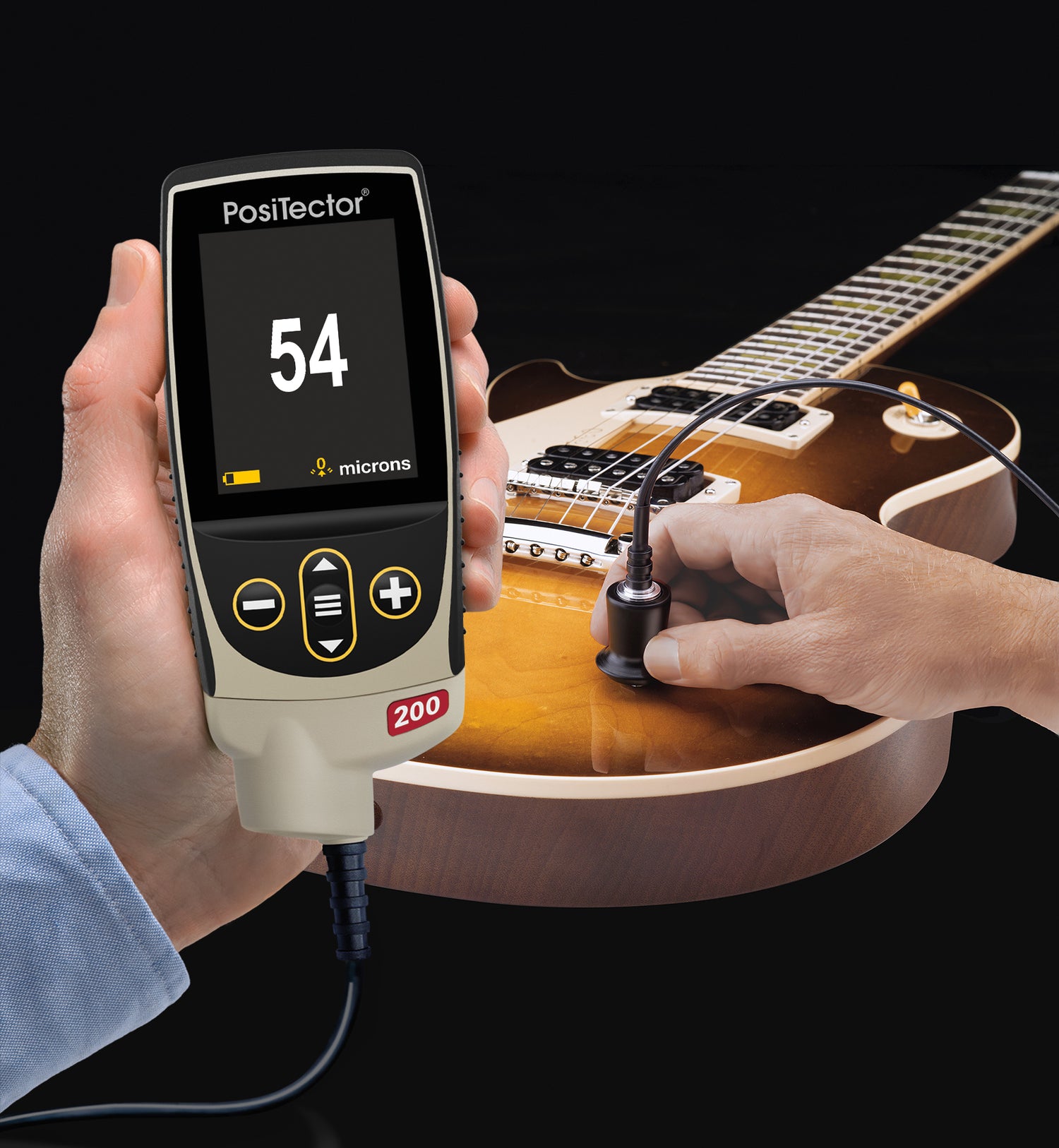

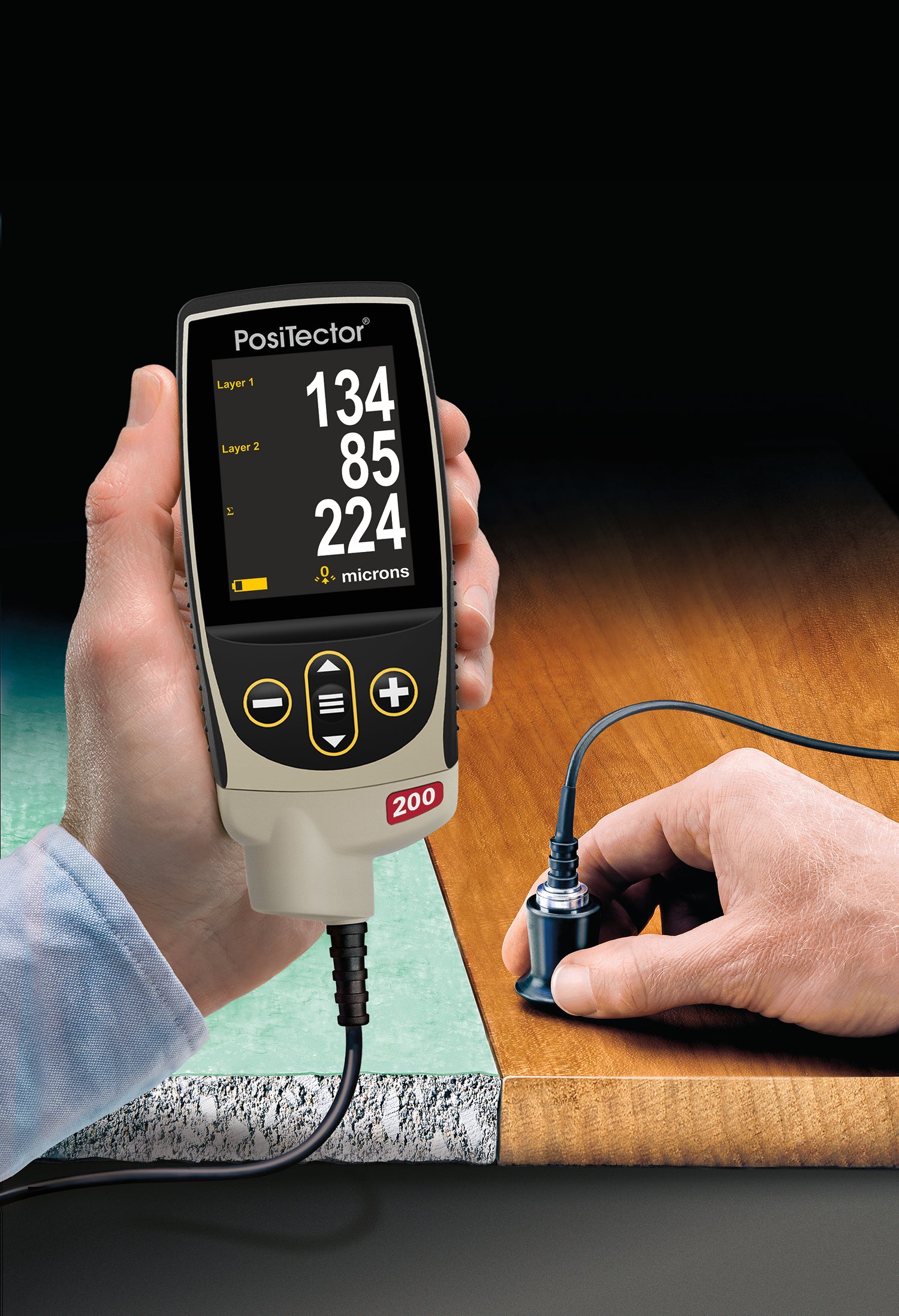

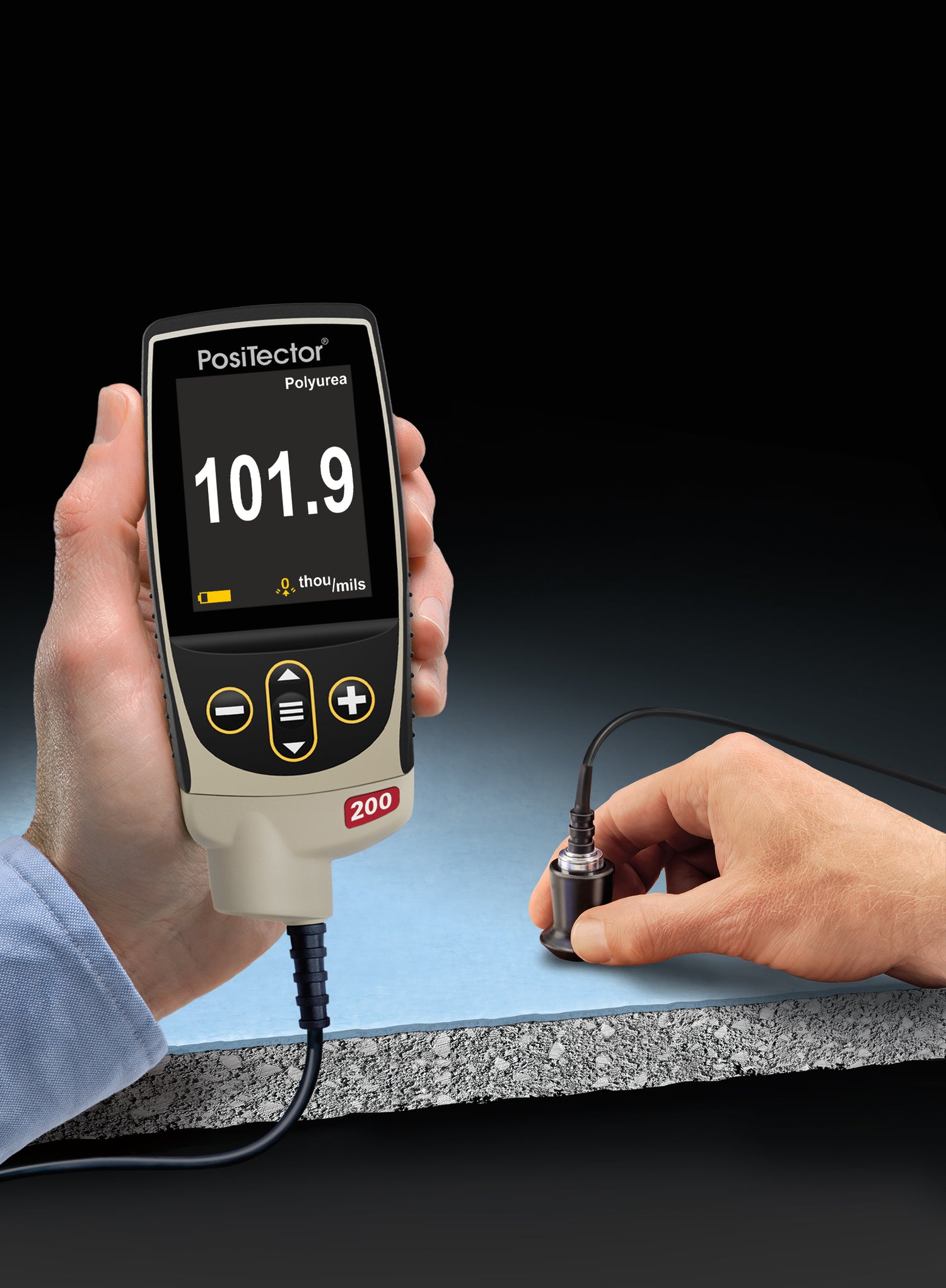

Non-destructively measures a wide variety of applications using proven ultrasound technology. Measure coating thickness over wood, concrete, plastic, and more. Advanced models measure up to 3 layers with graphics.

• Ready to measure—no calibration adjustment required for most applications
• NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
• NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
• PosiTector interchangeable platform—attach any PosiTector probe to a single gage body
• USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
• Certificate of Calibration showing traceability to NIST or PTB included (Long Form)

Simple

• Ready to measure—no adjustment required for most applications

• NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation

• NEW On-gage help explains menu items at the touch of a button

• RESET feature instantly restores factory settings

Durable

• NEW Weatherproof, dustproof, and water resistant—IP65-rated enclosure

• NEW Ergonomic design with durable rubberized grip

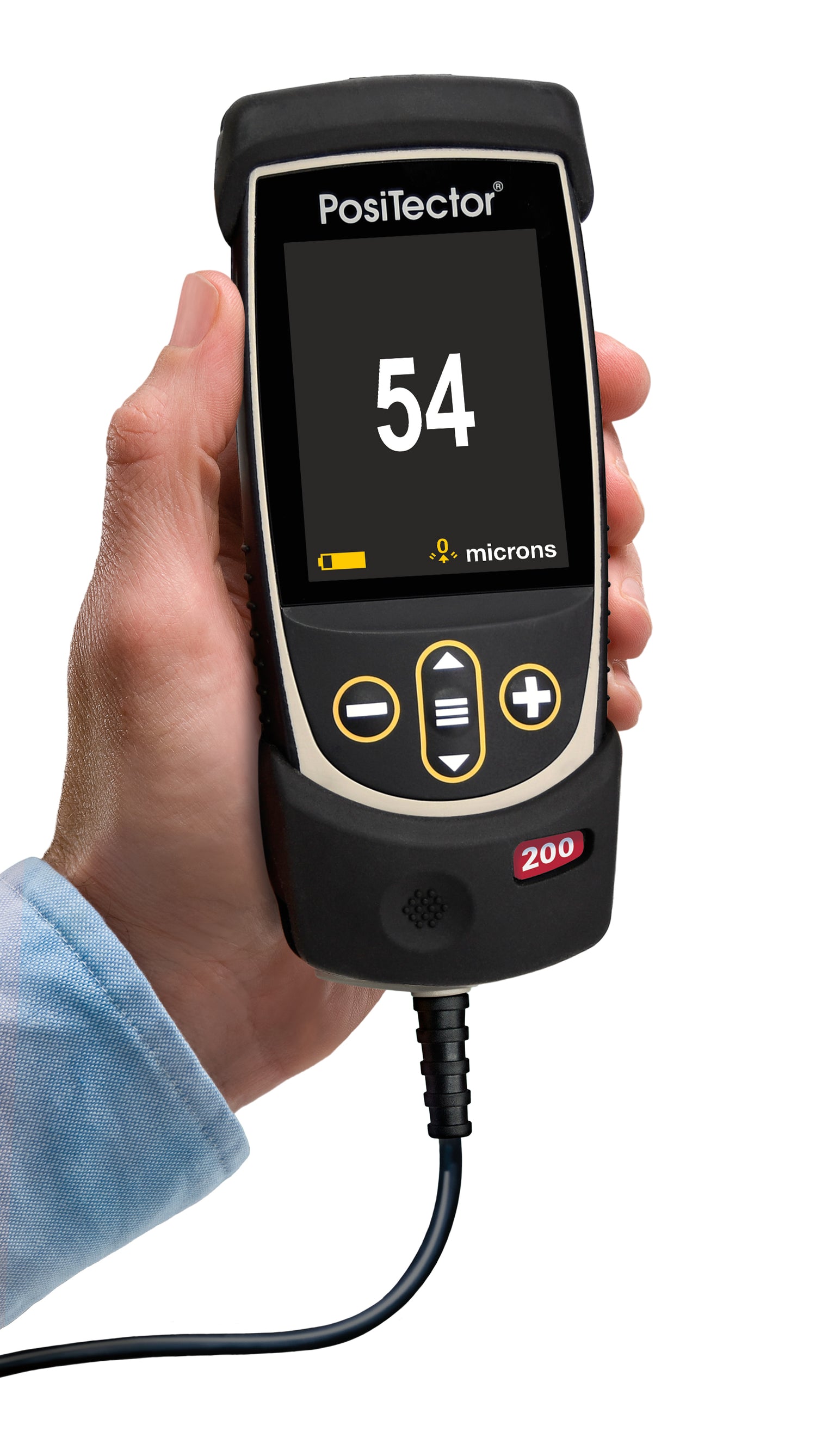

• Shock-absorbing, protective rubber holster for added impact resistance

• Two year warranty on gage body AND probe

Accurate

• Responsive transducers provide fast, accurate readings

• Certificate of Calibration showing traceability to NIST or PTB included

• Proven non-destructive ultrasonic technique conforms to ASTM D6132 and ISO 2808

Versatile

• PosiTector body accepts all PosiTector 6000, 200, RTR, SPG, DPM, IRT, SST, UTG, SHD, BHI, and GLS probes easily converting from a coating thickness gage to a surface profile gage, dew point meter, soluble salt tester, ultrasonic wall thickness gage, hardness tester, or gloss meter
• NEW Auto rotating display with Flip Lock

• Mils/Microns switchable

• Selectable display languages

Powerful

• Continually displays/updates average, standard deviation, min/max, and number of readings while measuring

• Max Thick Mode displays the deepest ultrasonic echo eliminating the need to adjust the Lo Range—ideal for ignoring unwanted surface echos

• NEW Screen Capture – save 100 screen images for record keeping and review

• NEW up to 30% longer battery life

• USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.

• PosiSoft USB Drive—stored readings and graphs can be accessed using universal
• PC/Mac web browsers or file explorers. No software required.

• Includes PosiSoft suite of software for viewing and reporting data

• Software Updates via web keep your gage current

Features:

Standard Models -

• Measure the total thickness of a coating system

• NEW Storage of 1,000 readings per probe—stored readings can be viewed or downloaded

Advanced Models -

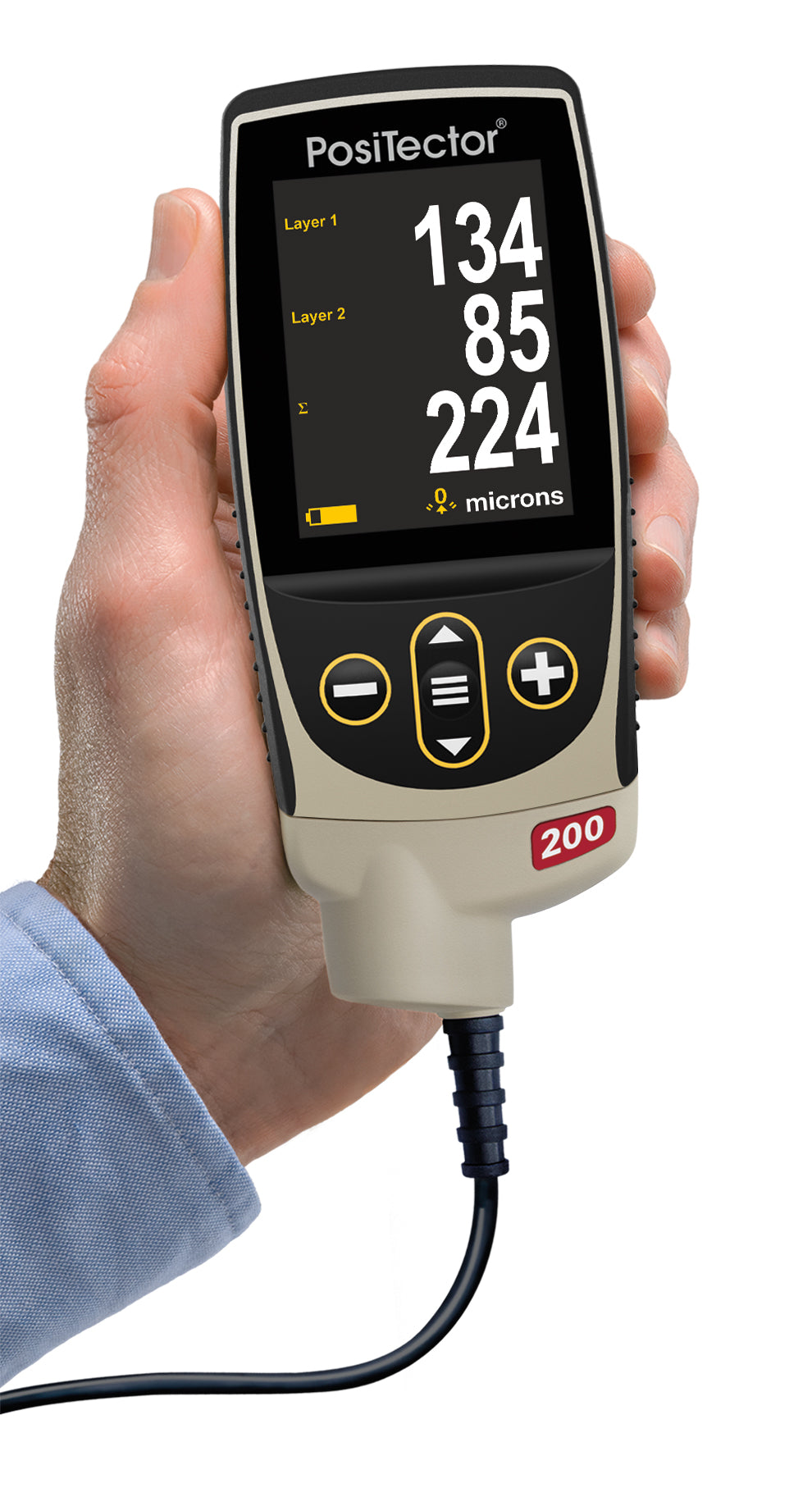

• Measure the total thickness of a coating system or up to 3 individual layer thicknesses in a multi-layer system.

• Graphics mode with screen capture for detailed analysis of the coating system

• NEW Storage of 250,000 readings in up to 1,000 batches

• NEW Prompted Batch Mode—create pre-defined batches with on-screen text and image prompts for each reading

• Live graphing of measurement data

• NEW SSPC-PA 9 modes help users comply with standards by prompting for min/max specifications, displaying the necessary readings, and automatically calculating statistics with a pass/fail result

• NEW Touchscreen keyboard for quickly renaming batches, adding notes, and more

• NEW Multiple stored calibration adjustments for measuring on a variety of coating applications

• WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates

• Bluetooth 4.0 Technology for data transfer to a mobile device running the
• PosiTector App or optional portable printer. BLE API available for integration into third-party software.

• Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols

Literature:

• Manual

	PosiTector 200 Measuring Probes 200B Probe 200C Probe 200D Probe
	Certified Standards A3 (Non-Ferrous) Certified coated metal plates are ideal for verifying the accuracy and operation of coating thickness gages and are an important component in fulfilling both ISO and in-house quality control requirements. Part No. STDA3
	Certified Plastic Shims Certified Plastic Shims (foils) provide an economical alternative to coated metal plates. They have a reduced accuracy of ±2 µm (±0.08 mil). A coating thickness gage measures shim thickness when this shim is placed over a smooth metal surface (zero plate).
	PosiTector Case Convenient hard shell case for carrying a PosiTector gage body and multiple probes - including any of the PosiTector 200 Coating Thickness probes, DPM Dew Point Meter probes, SPG Surface Profile probes, or UTG Ultrasonic Wall Thickness probes. Case has compartments for Certificates of Calibration, instruction manuals and other accessories.
	Pelican Case for PosiTector® Inspection Kits Heavy-duty, waterproof Pelican cases come complete with a custom foam insert to securely hold your PosiTector instruments and 3+ PosiTector probes.
	Ultrasonic Couplant Every PosiTector 200 and PosiTector UTG ships with (1) bottle of Ultrasonic couplant. Additional 4oz. bottles are available. (sold in cases of 2 or 12). MSDS. For use with the PosiTector 200, PosiTector UTG, PosiTector Inspection Kits.
	Certified Polystyrene Blocks Certified Polystyrene Blocks are ideal for verifying the accuracy and operation of coating thickness gages and are an important component in fulfilling both ISO and in-house quality control requirements.
	PosiTector Protective Lens Shields Pack of five thin plastic lens shields. Ideal for protecting the PosiTector display from paint overspray. One lens shield is included with every PosiTector instrument.
