Manufacturer: Elcometer
Part #: A456CXXTS
Description: The new Elcometer 456 separate coating thickness gauge sets new standards measuring the thickness of a coating, helping you to become more efficient.

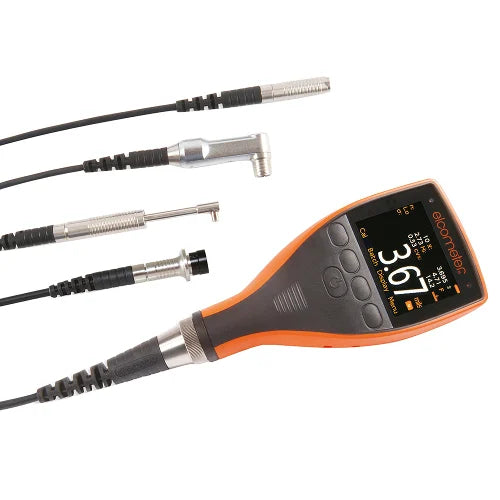

Separate models, with their wide range of probes, provide even greater measurement flexibility.
All probes are fully interchangeable; whilst ferrous gauges accept any ferrous probe and non-ferrous gauges accept any non-ferrous probes the dual FNF gauges accept all ferrous, non-ferrous and dual FNF probes.
The Elcometer 456 Integral is available as the Model B, Model S, and Model T. View data sheet below for a full breakdown of specifications. Our most advanced model, Model T features memory, alpha-numeric batching and Bluetooth® communication.
This model includes memory that stores up to 150,000 readings and up to 2,500 batch files; each are capable of storing a distinct calibration.
The Elcometer 456 Separate; Model T is available in the following variants (All variants require a probe):
- Ferrous
- Non-ferrous
- Ferrous / Non-ferrous
Packing List:
- Elcometer 456 gauge
- Wrist harness
- Protective case
- 2 x AA batteries
- Operating instructions
If you require certification, order the following with each gauge:
Elcometer 456 Probes:
| Part No. | Description |
| T456CF1S | Straight Ferrous Substrate Probe | Scale 1 |
| T456CN1S | Straight Non-Ferrous Substrate Probe | Scale 1 |
| T456CFNF1S | Straight Dual Ferrous/Non-Ferrous (FNF) Substrate Probe | Scale 1 |
| T456CF1E | Straight Sealed-Tip Ferrous Substrate Probe | Scale 1 |
| T456CF2S | Straight Ferrous Substrate Probe | Scale 2 |
| T456CN2S | Straight Non-Ferrous Substrate Probe | Scale 2 |
| T456CF2SW | Straight Waterproof Ferrous Substrate Probe | Scale 2 | 3' Cable |
| T456CF3S | Straight Ferrous Substrate Probe | Scale 3 |
| T456CN3S | Straight Non-Ferrous Substrate Probe | Scale 3 |
| T456CF6S | Straight Ferrous Substrate Probe | Scale 6 |
| - | |
| T456CFM3---A | Mini Straight Ferrous Probe | Scale 0.5 |
| T456CNM3---A | Mini Straight Non-Ferrous Substrate Probe | Scale 0.5 |
| - | |
| T456CFM3R45A | Mini 45° Ferrous Substrate Probe | Scale 0.5 | 45mm |
| T456CFM3R90A | Mini 90° Ferrous Substrate Probe | Scale 0.5 | 45mm |
| T456CNM3R90A | Mini 90° Non-Ferrous Substrate Probe | Scale 0.5 | 45mm |
| T456CFM3R90C | Mini 90° Ferrous Substrate Probe | Scale 0.5 | 150mm |
| T456CNM3R90C | Mini 90° Non-Ferrous Substrate Probe | Scale 0.5 | 150mm |
| T456CFM3R90D | Mini 90° Ferrous Substrate Probe | Scale 0.5 | 300mm |
| T456CNM3R90E | Mini 90° Non-Ferrous Substrate Probe | Scale 0.5 | 400mm |
| - | |
| T456CNMG3R90C | Mini 90° Non-Ferrous Graphite Probe | Scale 0.5 | 150mm |
| T456CNMG3R90E | Mini 90° Non-Ferrous Graphite Probe | Scale 0.5 | 400mm |
| - | |
| T456CFM5R90A | Mini 90° Ferrous Substrate Probe | Scale 1 | 45mm |
| T456CNM5R90A | Mini 90° Non-Ferrous Substrate Probe | Scale 1 | 45mm |
| T456CNM5R90C | Mini 90° Non-Ferrous Substrate Probe | Scale 1 | 150mm |
| T456CNM5R90E | Mini 90° Non-Ferrous Substrate Probe | Scale 1 | 400mm |
| T456CFME5R90A | Mini 90° Sealed-Tip Ferrous Substrate Probe | Scale 1 | 45mm |
| T456CF1R | Right Angle Ferrous Substrate Probe | Scale 1 |
| T456CF1R-5 | Right Angle Ferrous Substrate Probe | Scale 1 | 5m Cable |
| T456CFNF1R | Right Angle Dual Ferrous/Non-Ferrous Substrate Probe | Scale 1 |
| T456CF1U | Ultra Scan Probe for Ferrous Substrates | Range: 0-60mils |
| T456CF2U | Ultra Scan Probe for Ferrous Metal Substrates | Range: 0-200mils |
| T456CFNF1U | Ultra Scan Probe for Ferrous and Non-Ferrous Metal Substrates |
| - | |
| T456CF1P | Ferrous Substrate Plug In Integral Probe (PINIP™) | Scale 1 |
| T456CN1P | Non-Ferrous Substrate Plug In Integral Probe (PINIP™) | Scale 1 |
| T456CFNF1P | Dual Ferrous/Non-Ferrous (FNF) Substrate Plug In Integral Probe (PINIP™) | Scale 1 |
| T456CN2P | Plug In Integral Probe (PINIP™) Non-Ferrous Substrate Probe | Scale 2 |
| T456CF3P | Ferrous Substrate Plug In Integral Probe (PINIP™) | Scale 3 |
| T456CF2PHT | Hi-Temp (480°F) Ferrous Substrate Plug In Integral Probe (PINIP™) |
| T456CF1UARM | Model 456 Scale 1 Ultra/Scan Armored Probe |
