LPI Lift Systems Extended Reach 3-Axis Lift LP2

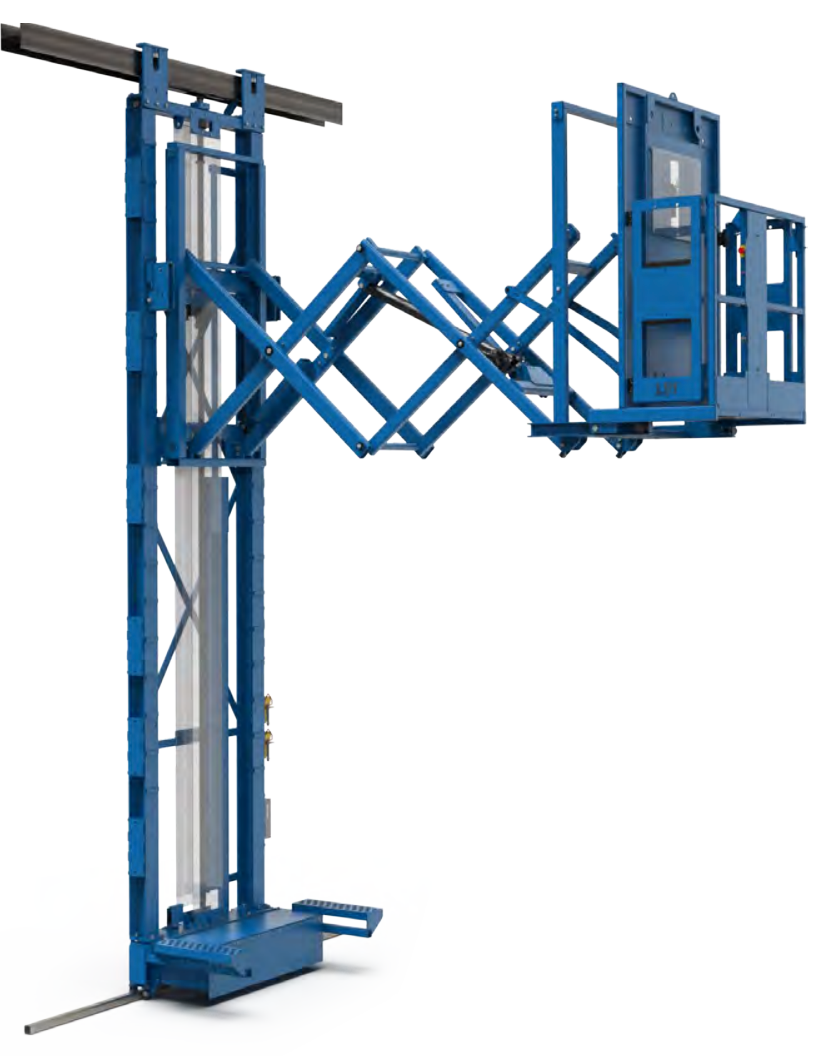

Extended Reach 3-Axis Lift LP2

Manufacturer: LPI Lift Systems

Part Number: LP2-XXX

Description: Extended reach lifts are similar in design to the standard LP2 lift, but are designed for booths or bays that are wider than normal, to accommodate large products or multiple products at the same time. Extended reach design allows the front of the platform to reach up to 14’ out from the booth wall.

Features:

• Raised platform height: Up to 21’

• Retracted dimension: 3’-8"

• Extended dimension: 14'

• Operator platform capacity: 400 lbs.

• Pneumatic/mechanical power unit

• Includes in-line Filter/Regulator/Lubricator

• Standard platform: 48” wide x 21” deep

• Self-closing/self-latching entry gates

Controls / Connection:

• Operator controls on front rail of platform

• Hand controls for Y-Axis, Z-Axis, & E-stop

• Foot control for X-Axis

• Base control to raise and lower platform

• Auxiliary unoiled air connection in platform

• Lift requires a clean, dry air supply (80 scfm @ 100 psi with a 40°F dew point)

Travel Speed:

• X-Axis (left/right): Variable up to 40 fpm

• Y-Axis (in/out): 15 fpm

• Z-Axis (up/down): 15 fpm

Dimensions:



You will be contacted with a freight quote for shipping. Forklift may be required at time of delivery
