Non-OEM Parts For Nordson® Encore® LT Manual Powder Spray Gun

Non-OEM Parts For Nordson® Encore® LT Manual Powder Spray Gun

Nordson® engineers, manufactures and markets differentiated products used for dispensing adhesives, coatings, sealants, biomaterials and other materials; for fluid management; for test and inspection; and for UV curing and plasma surface treatment.

TFS offers the highest quality non-oem aftermarket parts to service Nordson® equipment. Our experts are standing by to help you select the right product for your application. With more than 30 years of industry experience Total Finishing SUPPLIES has the right expertise. Please call or text us at 503-545-3176 with any questions. We're on standby to help!

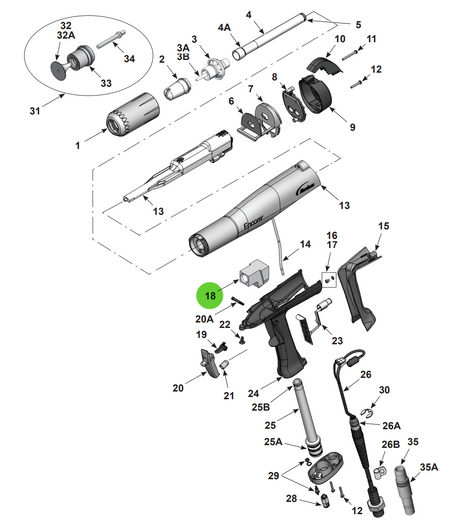

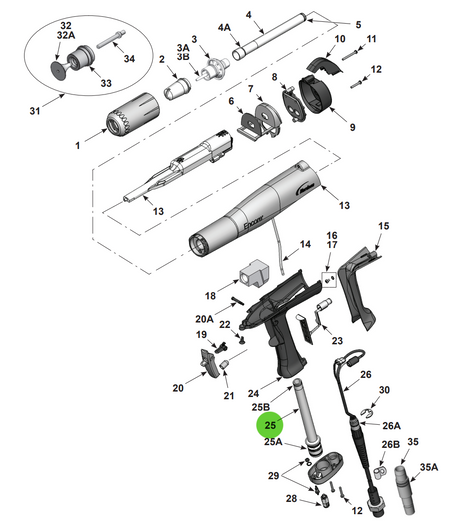

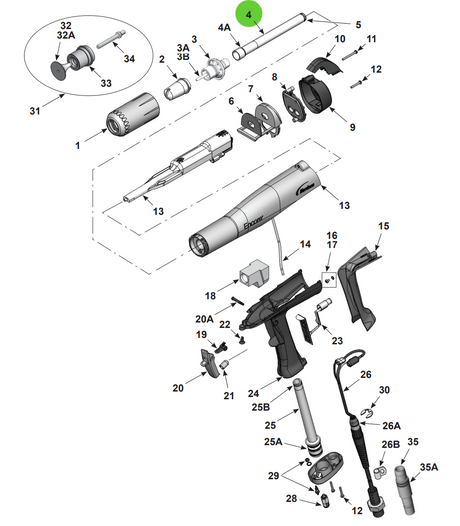

Spray Gun Parts -

Ref. No. Part No. Description

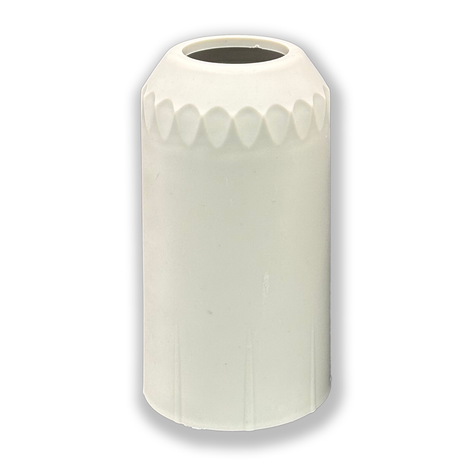

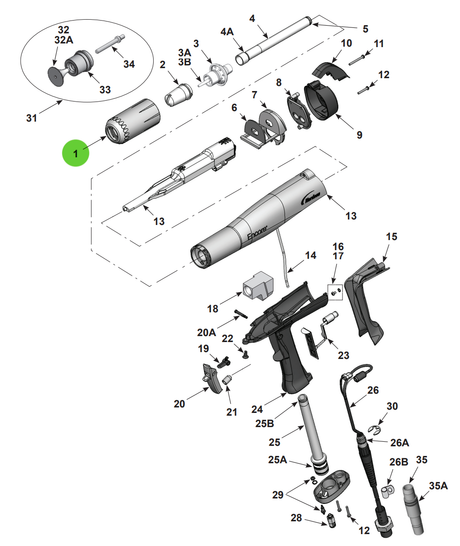

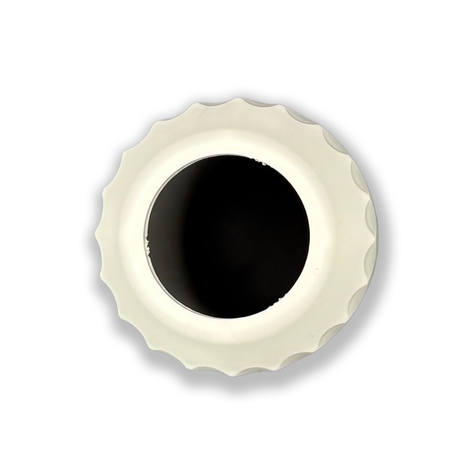

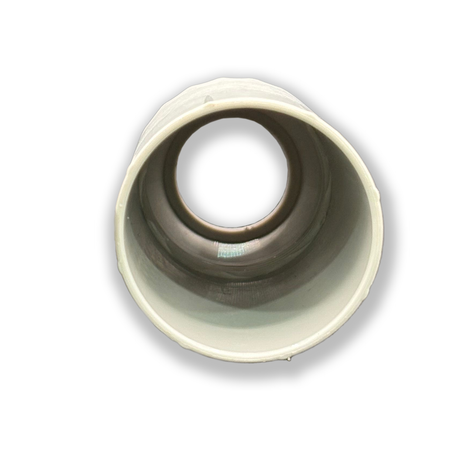

1 1081638 Nozzle Nut
2 1081658 NOZZLE, flat spray, 4 mm

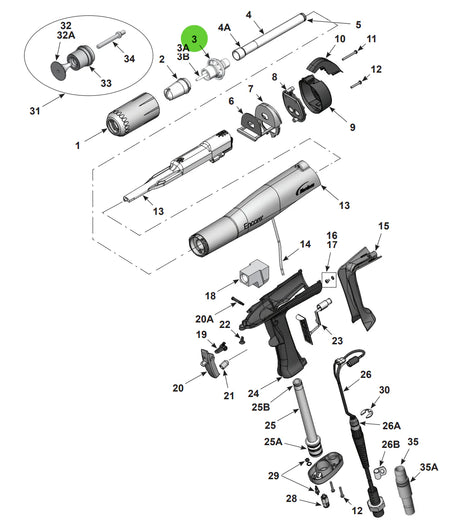

3 1604824 Electrode Assembly, Flat

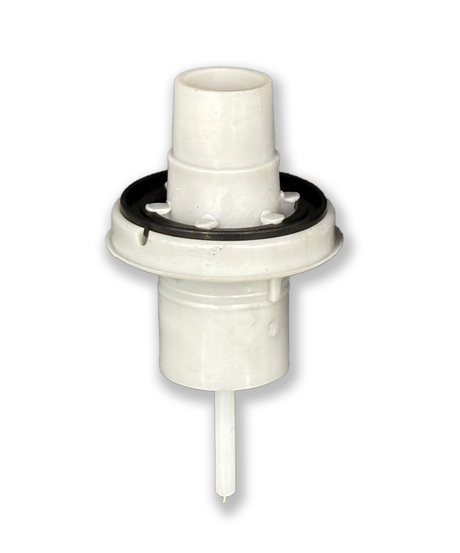

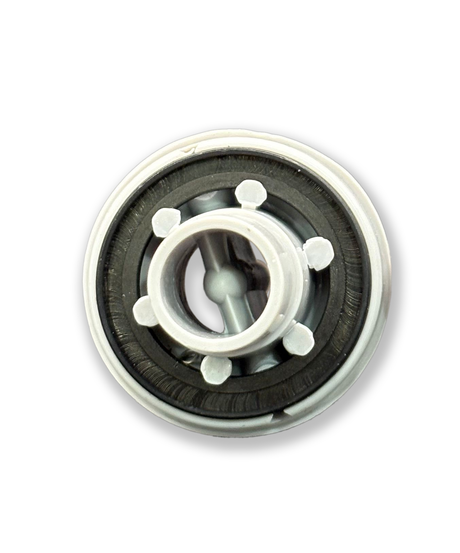

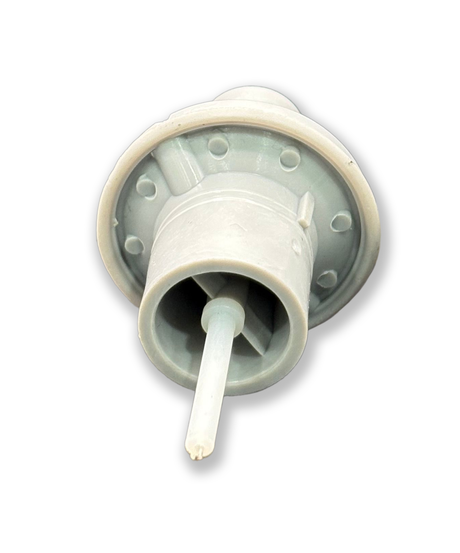

1106076 Electrode Assembly, Conical
3A 1106078 ELECTRODE, spring contact

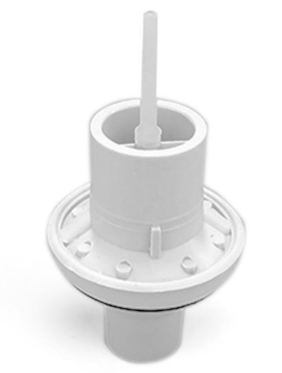

3B 1605863 HOLDER, electrode, M3, flat spray, Encore

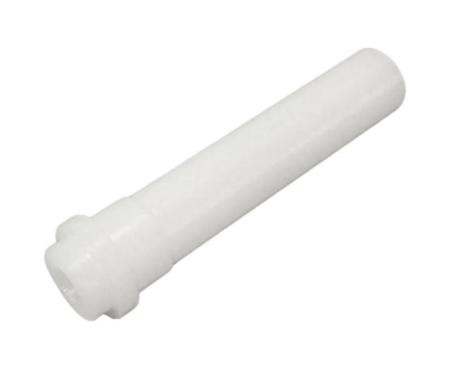

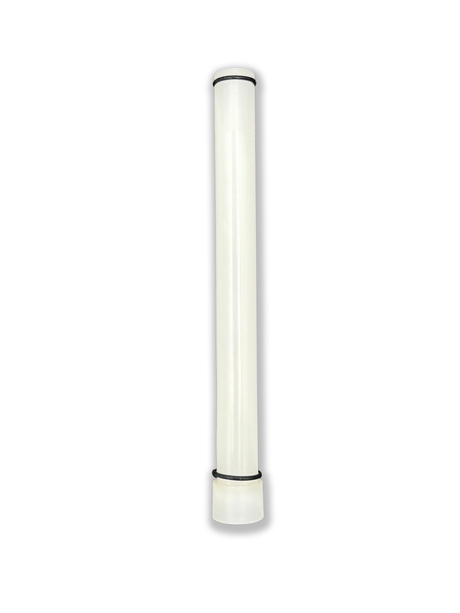

4 1085024 Powder Outlet Tube Kit
4A 941113 O-RING, silicone, 0.438 x 0.625 x 0.094 in.
5 1081785 O-RING, silicone, 0.468 x 0.568 x 0.05 in.
6 1088502 GASKET, multiplier cover, handgun
7 1106872 BULKHEAD, multiplier, handgun, Encore LT/XT
8 1087559 COVER, housing, Encore
9 1618782 KIT, gun display housing
10 1087760 HOOK, handgun
11 1078075 SCREW, pan head, recessed, M3 x 30, zinc
12 760580 SCREW, Philips head, M3 x 20, zinc
13 1608280 KIT, negative power supply/manual body, Encore
14 1088558 FILTER ASSEMBLY, handgun
15 1106871 HANDLE, ground pad, handgun, Encore LT/XT
16 983520 WASHER, lock, internal, M3, zinc
17 982427 MACHINE SCREW, pan head, recessed, M3 x 6, zinc

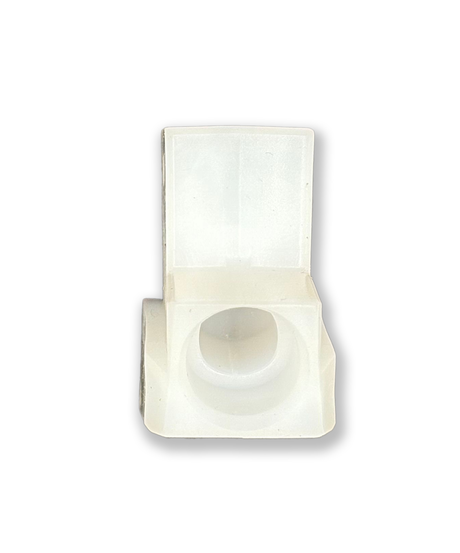

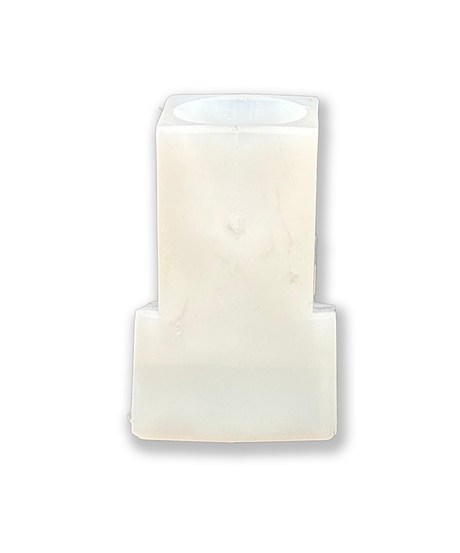

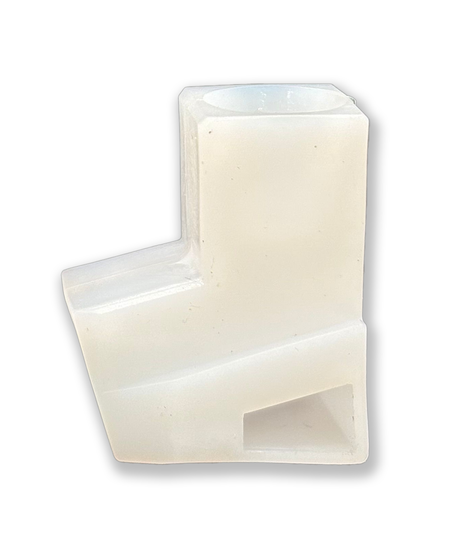

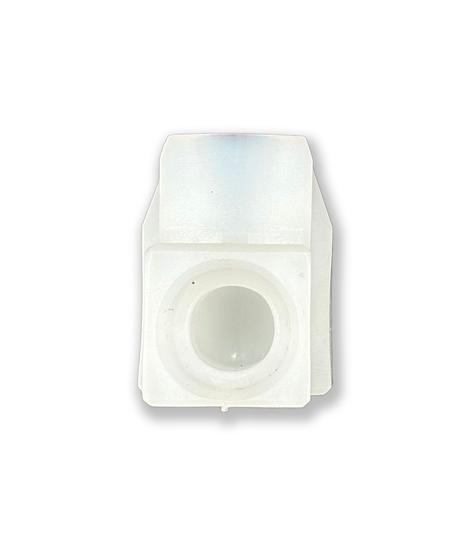

18 1096695 Powder Tube Elbow
19 1081540 TRIGGER, purge, setting, handgun
20 1606999 KIT, trigger w\ axle, Encore
21 1106892 ACTUATOR, switch, trigger, Encore LT/XT
22 1088601 SCREW, flat head, recess, M5x 10, nylon

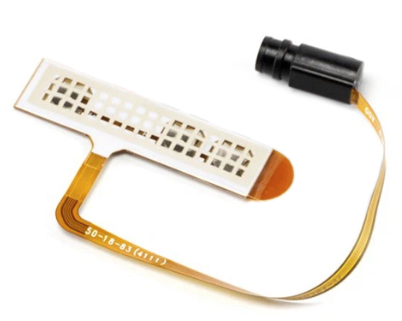

23 1108095 KIT, trigger switch, Encore LT
24 1106870 HANDLE, handgun, Encore LT/PE

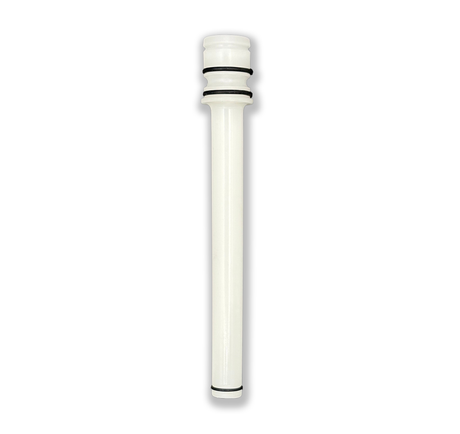

25 1085026 Powder Outlet Tube Kit
25A 1084773 O-RING, silicone, 18 mm ID x 2 mm wide
25B 1081785 O-RING, silicone, 0.468 x 0.568 x 0.05 in.
26 1106756 CABLE ASSEMBLY, spray gun, manual, Encore LT, 6 meter
26A 940129 O-RING, silicone, conductive, 0.375 x 0.50in.
26B 1604500 CLAMP, cable, 0.25 ID x 0.05 thick, white
27 1087762 BASE, handle, handgun
28 1081617 CHECK VALVE, male, M5 x 6 mm
29 1081616 FITTING, bulkhead, barb, dual, 10−32 x 4 mm
30 1081777 RETAINING RING, external, 10 mm
31 1604828 KIT, conical nozzle, Encore
32 1083206 DEFLECTOR ASSEMBLY, conical, 26 mm

1083205 DEFLECTOR ASSY, conical, 19 mm, Encore
32A 1098306 O-RING, Viton, 3 mm x 1.1 mm wide

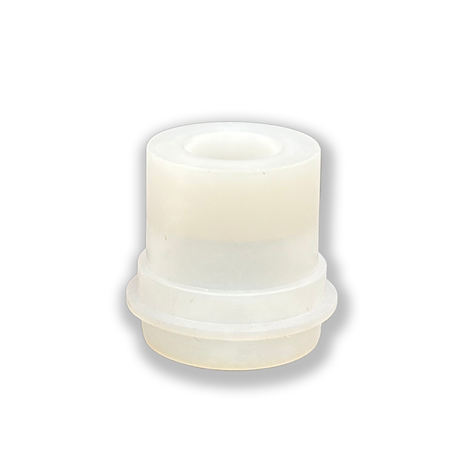

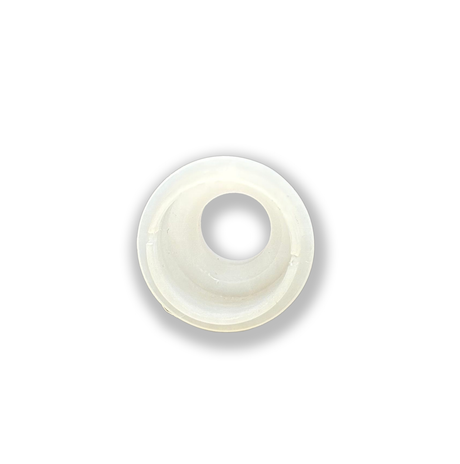

33 1082060 NOZZLE, conical
34 1605861 HOLDER, electrode, M3, conical, Encore
35 1106200 Hose Adapter Kit


Flat Spray Nozzles -
Part No. Description
1081656 2.5 mm Flat Spray
1081657 3 mm Flat Spray
1081658 4 mm Flat Spray
1081659 6 mm Flat Spray


Cross-Cut Nozzles -
Part No. Description

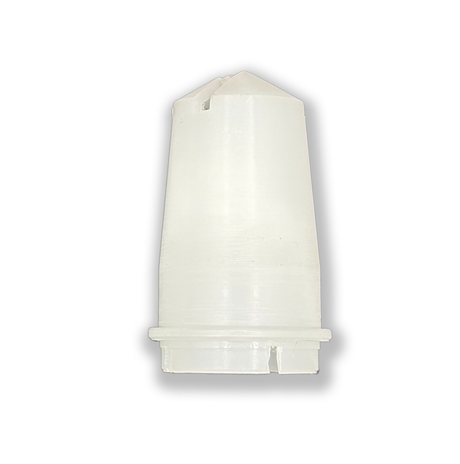

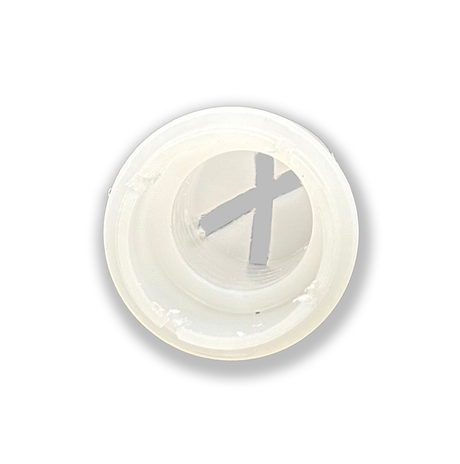

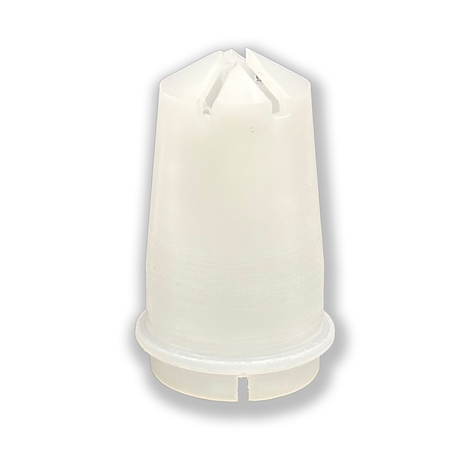

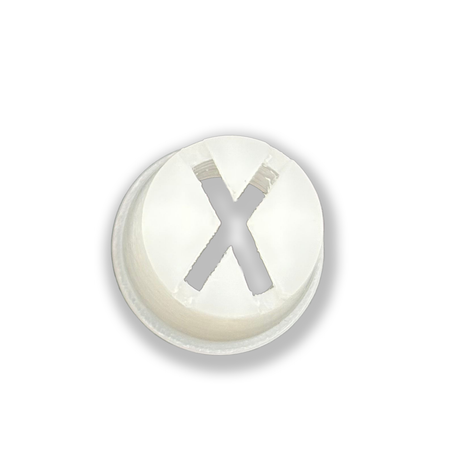

1082184 Cross-Cut Nozzle 60-Degree

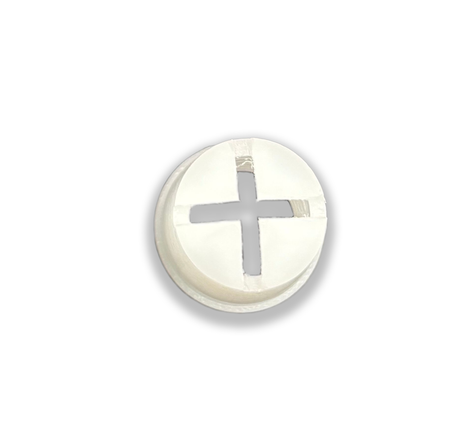

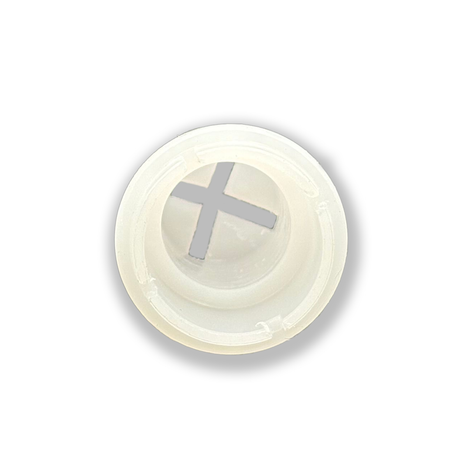

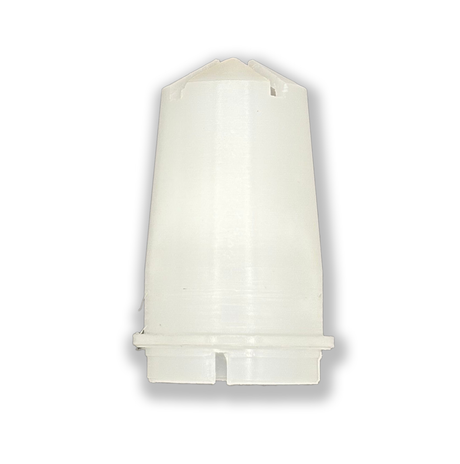

1082185 Cross-Cut Nozzle 90-Degree

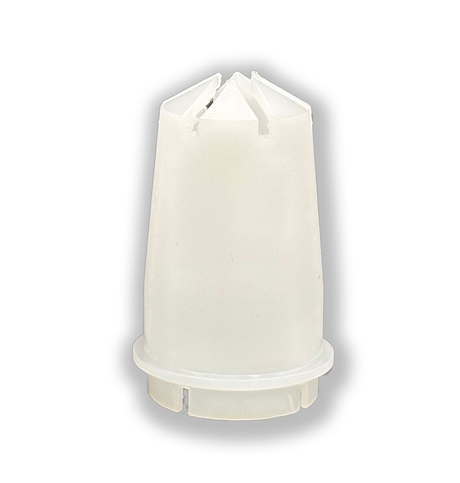

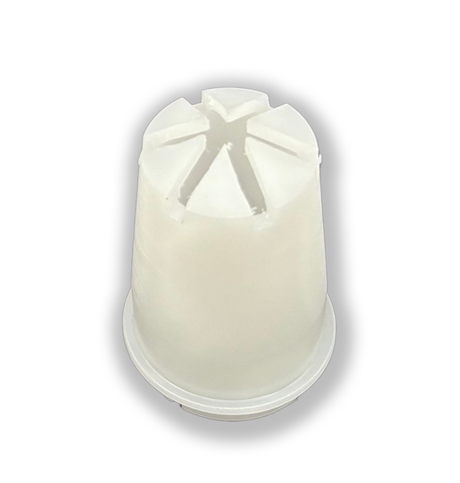

1082186 Cross-Cut Nozzle 2.5mm Castle


Conical Nozzles and Deflectors -
Part No. Description

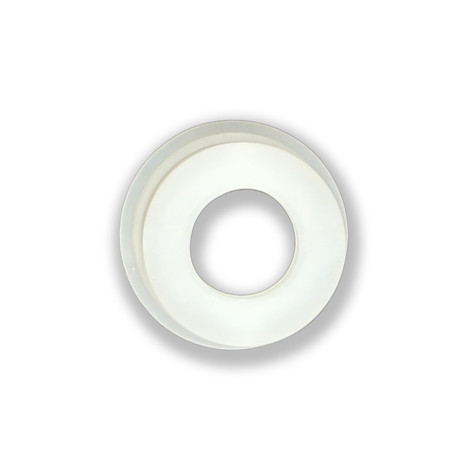

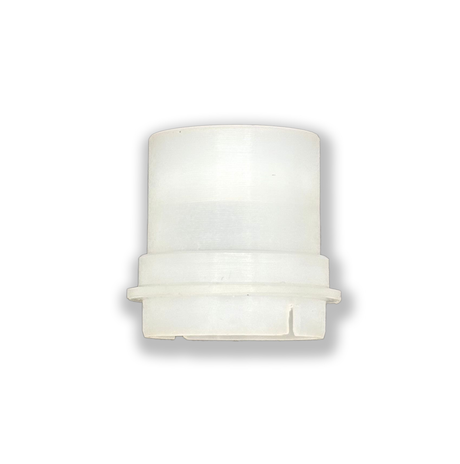

1082060 Conical Nozzle
1083201 16mm Deflector
1083205 19mm Deflector
1083206 26mm Deflector

NOTES:

Nordson®, Encore®, are registered trademarks of Nordson Corporation, and may claim unregistered trademark rights in other words. The advertised parts are intended to fit Nordson® spray and powder equipment. They are not, however, manufactured, endorsed, or sponsored by Nordson Corporation or any of their affiliates, and no warranty by Nordson Corporation or any of their affiliates applies. Total Finishing Solutions, LLC is not affiliated with or sponsored or endorsed by Nordson Corporation and is not one of their authorized distributors
