Sagola RIGA V25 (25:1) Air Assisted Airless Bellows Pump
Description
Description

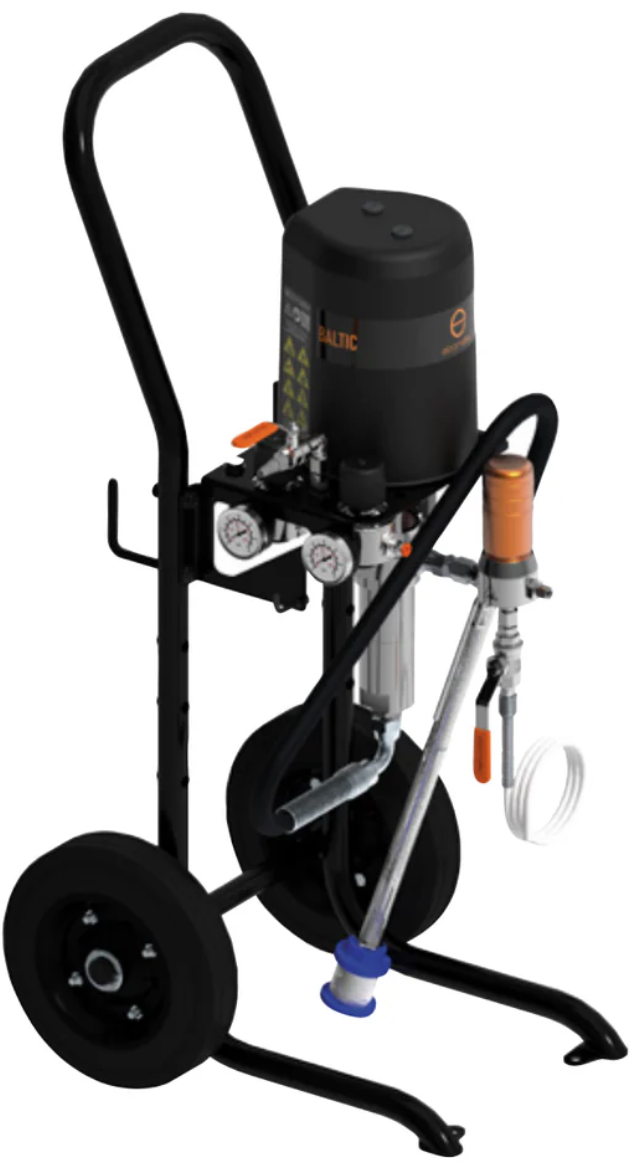

RIGA Vertical Bellows Pump
Manufacturer: Sagola
Part #: PSPB25AAA-T
Description: 25:1 Ratio vertical bellows pump. Cart mounted (wall mounting included). Includes air and product hose (23ft.), suction hose, and fluid regulator.
The gentle pumping action of the RIGA V air assisted airless pump, with its vertical bellows - combined with reduced sealing surfaces, provides excellent fluid handling and supply of shear-sensitive and moisture-sensitive materials.
Ideal for use with Solvent Based or Water Based materials.
|
|
Features:
- Smooth internal paint flow - Ideal for flat bed coating systems, the gentle bellows action of the Riga pump prevents paint bubbling of sheer sensitive materials such as varnishes UV-cure coatings, high-solid waterborne and solvent based materials.
- Durable and reliable - With minimal working parts to replace, the tough stainless steel and aluminium construction of the Riga provides long-lasting durability with minimal maintenance, even for highly demanding materials.
- Enclosed bellows system - The Riga ensures no air or moisture contamination - ideal for moisture sensitive coatings even when if it fails, thanks its closed system with no exposed seals or packing.
- Easy to use and maintain - Riga bellows pumps are easy to operate and simple to maintain.
Specifications:
| Ratio | 25:1 |
| Max Fluid Particle Size | 0.25mm (10mils) |
| Fluid Temp Range | 40-140 deg F |
| Fluid Inlet | 3/4” BSP Male |
| Fluid Outlet | 1.4” BSP Male |
| Wetted Parts | Polyamide, Stainless Steel, Aluminum, Hard Chrome, Polyethylene |
| Air Pressure Operating Range | 1-7bar (14-101psi) |
| Air Consumption at 100bar, 5.7 CPM | 24.31 lpm (0.86 cfm) |
| Maximum Air Inlet Pressure | 7bar (101psi) |
| Air Inlet | 1/4" BSP Female |
| Air Exhaust / Silencer Port | 1/4" BSP Female |
| Compressor Requirements (Minimum) | 24.31 lpm (0.86 cfm) |
| Ambient Air Temp Operating Range | -10 - 60°C (14 - 140°F) |
| Maximum Fluid Outlet Working Pressure | 176bar (2552psi) |
| Stroke Length | 44mm (1.73") |
| Maximum Spray Tip Size | 0.45m (0.018") |
| Product Output per Cycle | 42.33 cc (1.38fl oz/min) |
| Free Flow Delivery @ 60 CPM | 2.54lpm (86.08fl oz/min) |
| Weight (Pump only) | 9.7kg (21.4lb) |
| Weight (Cart Mount with Suction Hose) | 24.5kg (54lb) |
| Dimensions (Cart Mount) | 17.3 x 19.3 x 39.33" |
Parts and Accessories:
- Recommended spray gun - Sagola Mini Xtreme
