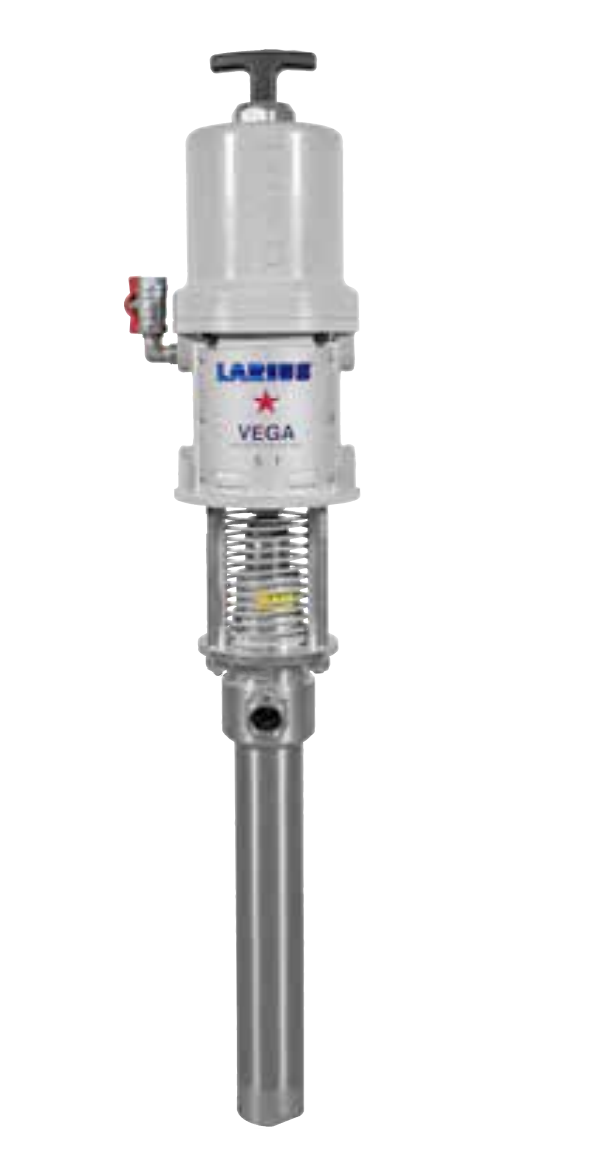

SAMOA Vega 5:1 Pneumatic Piston Transfer Pump, Stainless Steel, Long

Vega 5:1 Pneumatic Piston Transfer Pump, Stainless Steel, Long

Manufacturer: SAMOA

Part Number: LA91362

Description: Vega 5:1 Pneumatic Piston Transfer Pump, Stainless Steel, Long Version.

The proven performance of self-priming piston transfer pump allows accurate handling and transfer of a wide range of fluids, guaranteeing efficient operation, maximum productivity and the possibility of supplying multiple workstations simultaneously.

Features:

• Atex certified Ex II 2 G c IIB T6

• Low starting pressure

• Fast priming product flow

• Adjustable material flow

• High quality material gaskets

• No product leakage

• Low noise level

• Less components, reduced maintenance

Dimensions:

Specifications:

Pump pressure ratio	5:1
Air pressure range	3 - 8 bar
Maximum fluid outlet pressure	40 bar
Delivery per cycle	170cc
Delivery at 60 cycles/min	10 l/min (2.64 gal/min)
Air inlet thread	3/8" BSPP (F)
Air consumption at 60 cycles/min	198 - 462 l/min (52 - 122 gal/min)
Fluid outlet thread	3/4" BSPP (F)
Pump cylinder tube materiar	AISI 303 - AISI 304 Stainless Steel
Piston material	AISI 420 B Stainless Steel
Seals material	PTFE
Air motor piston diameter and stroke	Ø 3" - 3"
