SATA HRS Pressure Cup Gun
Description
Description

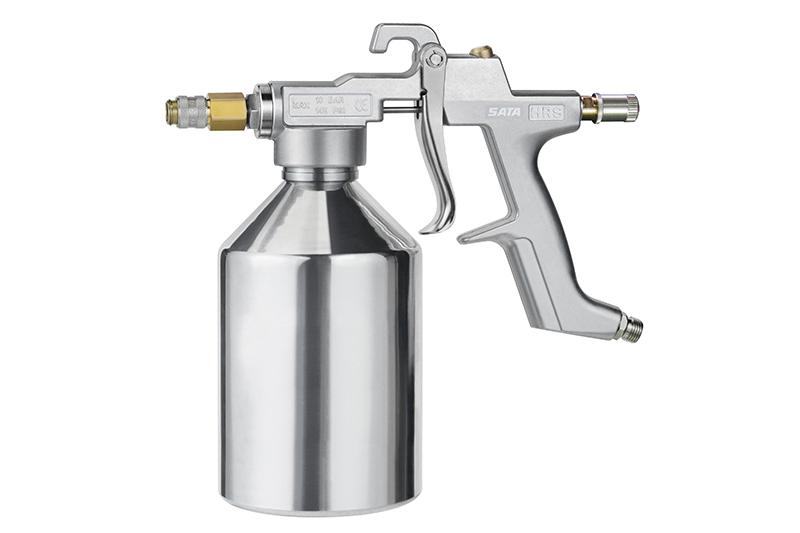

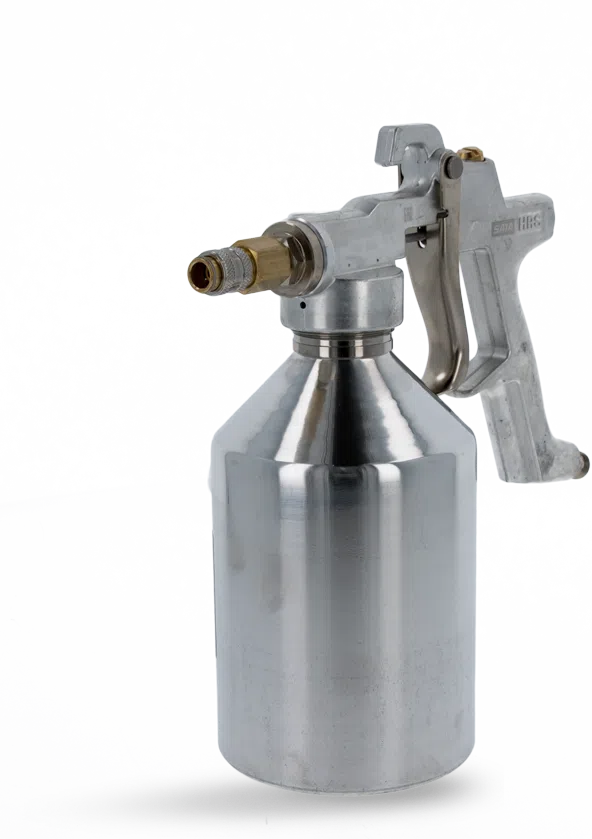

HRS Pressure Cup Gun
Manufacturer: SATA
Part #: 9795
Description: Specialized equipment for hollow cavity and underbody corrosion protection. The SATA HRS pressure cup gun allows cavity preservation in a wide range of applications. The precise fan guidance ensures accurate work and the all-metal design ensures a long service life.
Features:
- Precise spray fan control
- 1.0 l cup (max. 10 bar)
- Versatile – with optional three included wands (steel door wand #16071, flexible nylon wand #16113, and hook wand #16139)
- Quick and easy – probe change with proven SATA material coupling system
- Fine atomisation – even with highly viscous materials by pressurisation with up to 10 bar
- Long life – due to all-metal design
- Useful details in well-known SATA quality – like the material check valve
Parts and Accessories:
| Part # | Description |
| 182 | Counter Nut |
| 208 | Material Flow Control Nut |
| 3426 | Safety Washer 4mm |
| 8300 | Suction Pipe, Drilled |
| 8318 | Sealing Ring |
| 8359 | Material Coupling |
| 10322 | Guide Sleeve Complete |
| 11437 | End Screw |
| 11445 | Compression Spring |
| 11460 | Air Piston |
| 11494 | Cam Rod |
| 11502 | Paint Needle 1.5 |
| 11510 | Mixing Cap |
| 11544 | Compression Spring |
| 12591 | Bracket Bolt |
| 15438 | Paint Needle Packing |
| 16071 | Fixed Door Wand 1.3mm |
| 16113 | Flexible Nylon Wand 1.3mm |
| 16139 | Venturi Hook Wand 0.7mm |
| 16170 | Wand Coupling, Large, Type 2 |
| 24372 | Flat Hook Nozzle for HRS |
| 25486 | Round Spray Nozzle |
| 41806 | 1.0L Aluminum Pressure Pot |
| 53082 | O-Ring 12x1.5mm |
| 68890 | Inflow Valve |
| 133983 | Air Connection Piece G 1/4a |
| 157305 | Trigger |
| 193060 | Bushing Seal for Cup |
Log In or Register to See Pricing
Total Finishing Supplies is an authorized SATA Distributor. Beware of sites that claim to offer genuine SATA items. They may not be authorized and you may be buying a fake or an item that won't be covered under SATA's warranty.
