SATA Filter Series 200

SATA Filter Series 200

Manufacturer: SATA

Part #: 43752, 44404, 141226, 189290, 141218

Description: Economical combi fine filter unit for highest air quality requirements in paint application as well as for air-supplied breathing systems. For installation in spray booths, prep decks and other workshop areas.

Product Benefits:

• Excellent compressed air quality - removes oil, water and particles
• User-friendly and easy to maintain
• Activated charcoal cartridge (third filter stage) removes oil vapours from the breathing air
• 2,000 Nl/min air flow - sufficient air volume to supply two spray guns simultaneously with both clean spraying air and breathing air
• Air inlet: G 1/2" female thread; Air outlet: 1/4" male thread

Options Available:

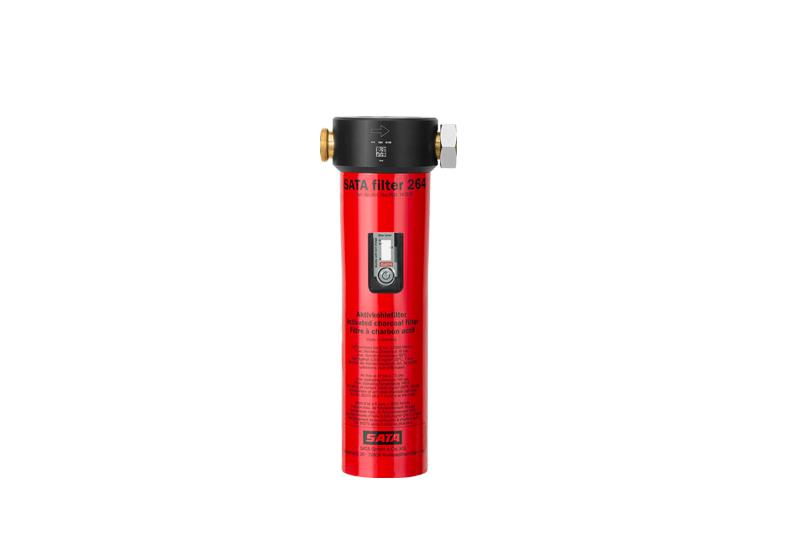

• SATA filter 264 single-stage activated charcoal filter to retrofit SATA filter 244 to SATA filter 284
• SATA filter 242 L double-stage sinter filter/fine filter without pressure regulator, for pipeline installation (G 1/2" female thread)

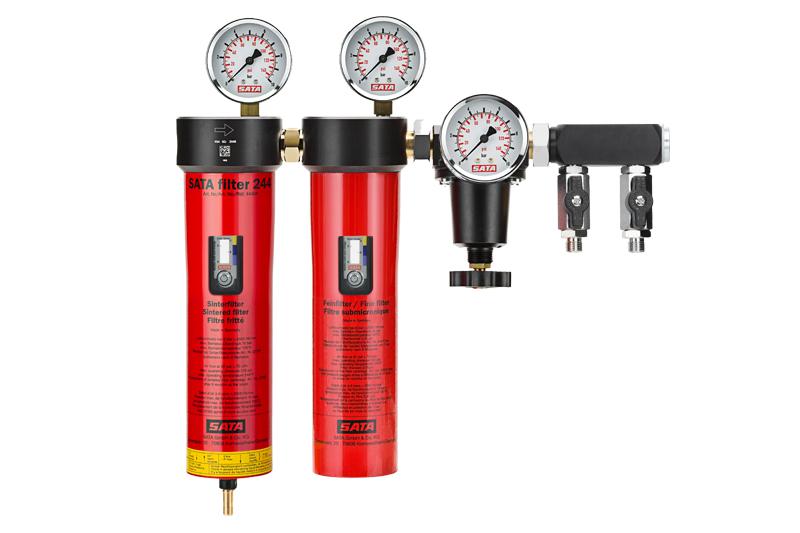

• SATA filter 244 double-stage sintered filter/fine filter, pressure regulator, outlet module (2 x air coupling/nipple 9 mm)
• SATA filter 284 L 3-stage sinter filter/fine filter/activated charcoal filter, for air circuit installation (G 1/2" female thread)

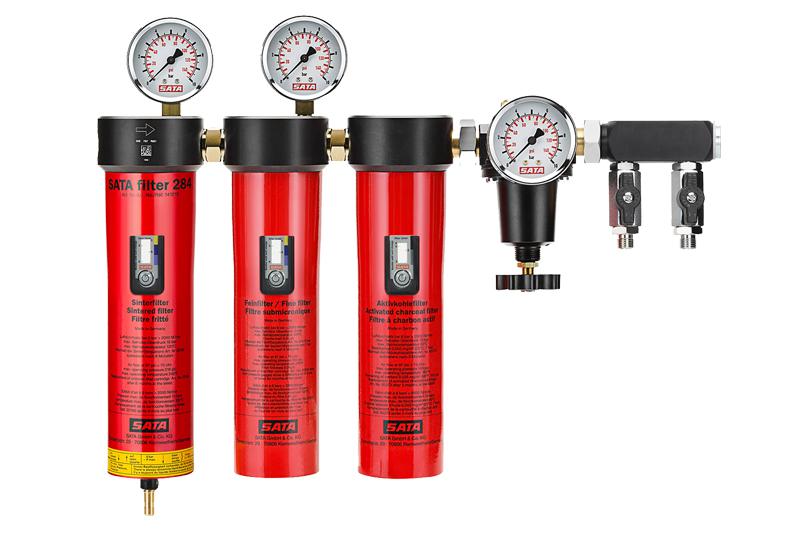

• SATA filter 284 triple-stage sintered filter/fine filter/activated charcoal filter, pressure regulator, outlet module (2x air coupling/nipple 9 mm)
• Portable *S*A*M*S w/ 284 3-Stage Filter, Air Vision 5000 Respirator, CO Monitor, Feeder Hose, and 50' Breathing Hose


Parts and Accessories:

• Premo Flex Hose
• 22160 - Sintered Bronze Cartridge
• 81810 - Fine Filter Cartridge
• 85373 - Activated Charcoal Cartridge

Literature:

• Manual
