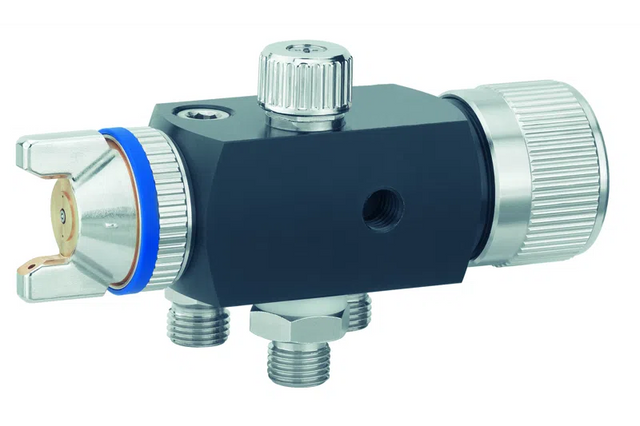

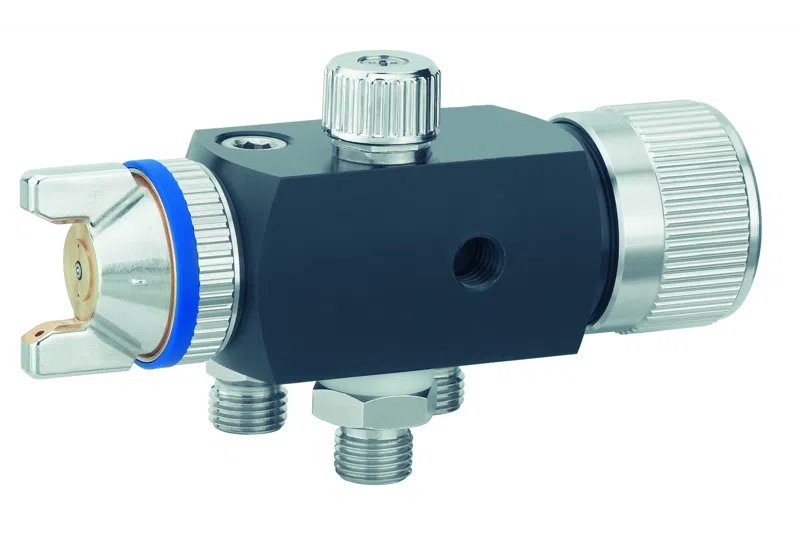

SATAjet LP-S 2000 RP
Manufacturer: SATA
Part #: 929XX
Description: Automatic, externally controlled marking gun for automatic painting machines and painting robots. External control enables high cycle frequencies.
Product Benefits
- Can be integrated into existing control and application systems
- Stepless regulation of the fan geometry via round and flat fan regulation directly at the gun
- Circulation mode and variant for precise round spray fan
- Process reliability through self-adjusting sealing elements
- Low maintenance requirements, easy replacement of components
- For marking tasks and processes with high cycle frequency
RP: Extra Fast - RP spray guns stand for maximum working speed with optimized high-pressure technology and low overspray.
| Technical Data: | RP |
| Air Consumption: |
7-9 CFM |
| Air Pressure Min. | 45psi |
| Air Pressure Max. | 150 psi |
| Fluid Pressure Max. | 75 psi |
Parts and Accessories:
| Part No. | Description |
| 1503 | Countersunk Screw |
| 1933 | Teflon Sealing |
| 3418 | Washer 3,7 DIN 125, Brass |
| 3574 | Compression Spring |
| 3582 | Packing Screw |
| 3657 | Control Knob |
| 3939 | Spinde Cpl |
| 20297 | Compression Spring |
| 22418 | Teflon Sleeve |
| 24349 | Backing Plate |
| 40253 | Regulation Cap LP-S |
| 40832 | Repair Kit |
| 45385 | Hex. Nut M9X1 |
| 57976 | Distance Sleeve |
| 62513 | Air Distribution Ring |
| 64212 | Mounting Post |
| 64766 | Spacer Ring |
| 67116 | Locking Screw |
| 69724 | Closing Screw |
| 133934 | Packings |
| 134593 | Air Dist. Rings |
| 144618 | Fixing Bolt |
