SATAminijet 1000 A S HVLP
Description
Description

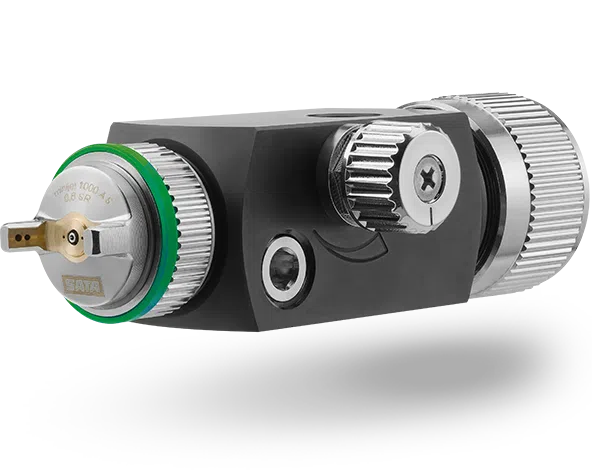

SATAminijet 1000 A S HVLP
Manufacturer: SATA
Part #: 149XXX
Description: Automatic, externally controlled marking gun for automatic painting machines and painting robots. External control enables high cycle frequencies. Nozzle system for fine coating results on small surfaces and for complex detail coatings.
Product Benefits
- Can be integrated into existing control and application systems
- Stepless regulation of the fan geometry via round and flat fan regulation directly at the gun
- Circulation mode
- Process reliability through self-adjusting sealing elements
- Low maintenance requirements, easy replacement of components
- Finest atomisation for detail coatings
- Ideal for thin layers
- For marking tasks and processes with high cycle frequency
HVLP: Extra Economical - HVLP paint spray guns achieve particularly high transfer rates with their low-pressure technology.
| Technical Data: |
HVLP |
| Atomization Air Pressure: |
72-80 psi |
| Air Consumption: | 7 CFM |
| Air Pressure Min. | 43 psi |
| Air Pressure Max. | 150 psi |
| Material Pressure Max. | 75 psi |
| Material Temp. Max. | 175 F |
Parts and Accessories:
| Part No. | Description |
| 1503 | Countersunk Screw |
| 1933 | Teflon Sealing |
| 2188 | Spindle, Complete |
| 3418 | Washer, 3.7 DIN 125, Brass |
| 3574 | Compression Spring |
| 3582 | Packing Screw |
| 20297 | Compression Spring |
| 22418 | Teflon Sleeve |
| 24349 | Backing Plate |
| 40253 | Regulation Cap |
| 45385 | Hex. Nut M9X1 |
| 57976 | Distance Sleeve |
| 65557 | Regulation Knob |
| 67116 | Locking Screw |
| 127399 | Air Dist. Ring |
| 144618 | Fixing Bolt |
Log In or Register to See Pricing
Total Finishing Supplies is an authorized SATA Distributor. Beware of sites that claim to offer genuine SATA items. They may not be authorized and you may be buying a fake or an item that won't be covered under SATA's warranty.
