Total Brush Sander™
Total Brush Sander™
Manufacturer: Total Finishing Supplies
Part Number: TFS-TBS
Description: The Total Brush Sander™ is a conveyored cup brush sealer-sanding system designed for effortlessly sanding wood profiles, including cabinetry, doors, trim, and molding. Engineered for precision and efficiency, this innovative tool features high-quality abrasive bristles that conform to contours, ensuring a smooth, consistent finish without damaging delicate details. Whether you're preparing surfaces for staining or refining your final product, the Total Brush Sander™ delivers professional-grade results with minimal effort. Perfect for woodworkers, cabinetmakers, and trim specialists, this versatile sanding solution enhances productivity while maintaining superior craftsmanship.
Features:
- Unique Surface 360-degree Brush sanding technology

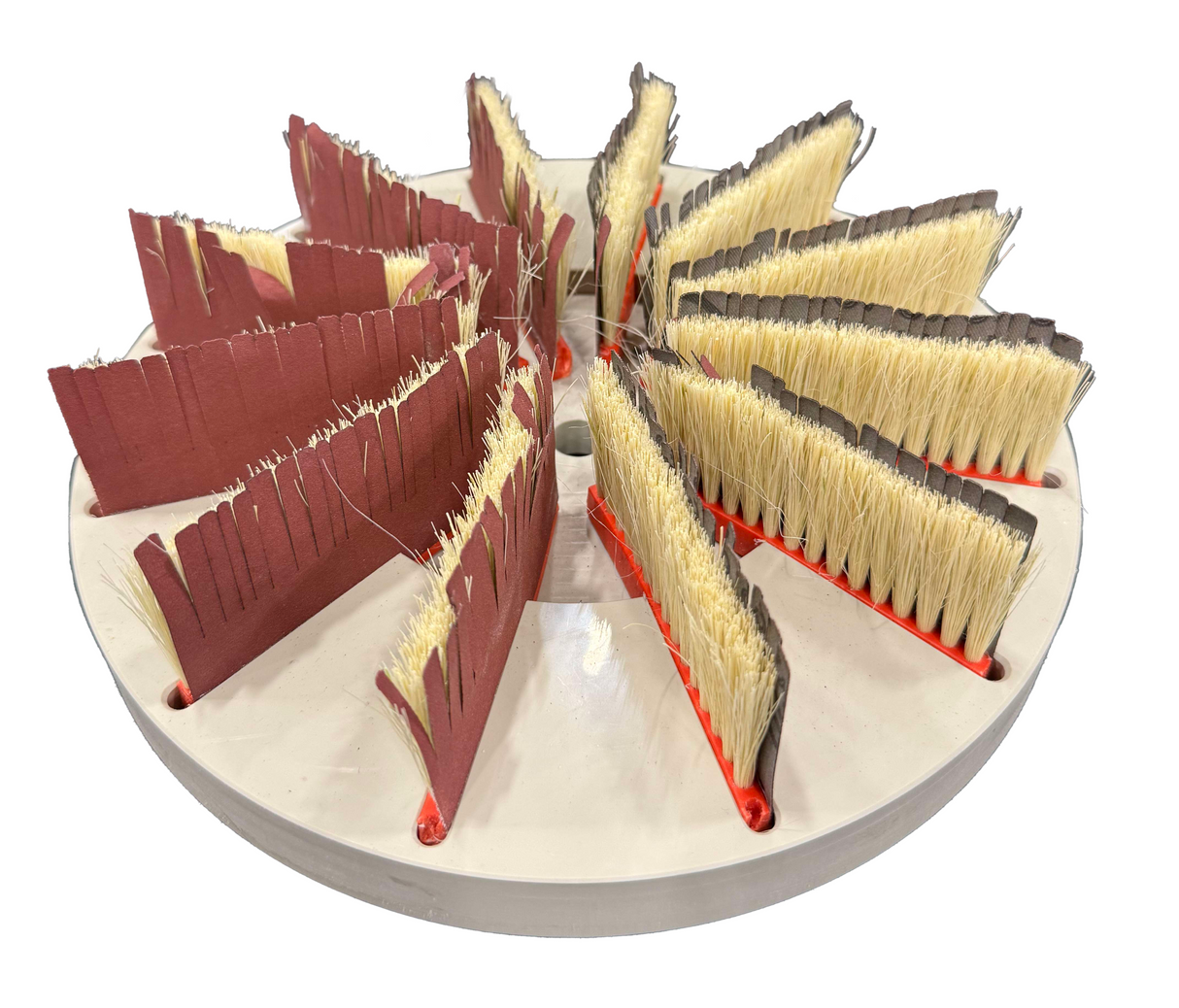

- Easy LOW-COST brush and abrasive replacement
- Easy operation with touch screen control display – 6 customizable programs for easy and fast change-over

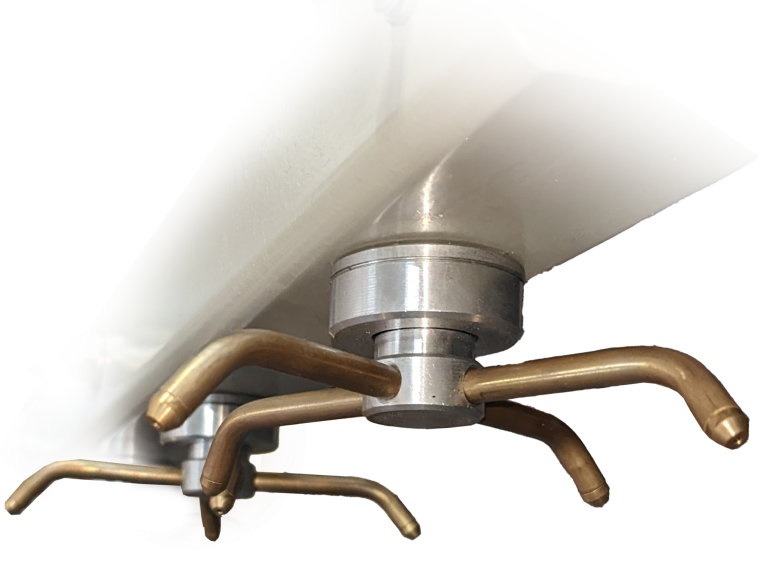

- Automatic cleaning function, leaving the doors dust free and ready for finishing
- Different size machines to fit any size Shop from 39” to 51"
- Requires 230v/208v, 3ph, 40 amp, 90psi
Specifications:
| Working Width: | 39" Max or 51" Max |
| Min. Size Panel: | 4" x 4" |
| Min. Material Thickness: | 0.04" |
| Max. Material Thickness: | 8" |
| Working Height: | 33" |
| Feed Speed: | 5 - 33 ft/min. |
| Brush RPM: | 100 - 700 |
| Oscillation RPM: | 20 - 60 |
| Brush Head Diameter: | 10" |
| Voltage: | 230V, 3 phase, neutral & earth |
| Frequency: | 60Hz |
| Amps: | 20 |
| Main Drive Motor: | 1.5kW |
| Oscillation Motor: | 0.55kW |
| Raise/Lower Motor: | 0.20kW |
| Machine Size (39" Capacity Model): | 65" W x 75" L x 60" H |
| Machine Size (51" Capacity Model): | 81" W x 75" L x 60" H |
Extraction Requirements:
| No. of Dust Outlets: | 4 x 4" |
| Required Extraction (39" Capacity Model): | 2500 m3 / hr |
| Required Extraction (51" Capacity Model): | 3500 m3 / hr |
LTL Vancouver WA. You will be contacted with a freight quote for shipping
