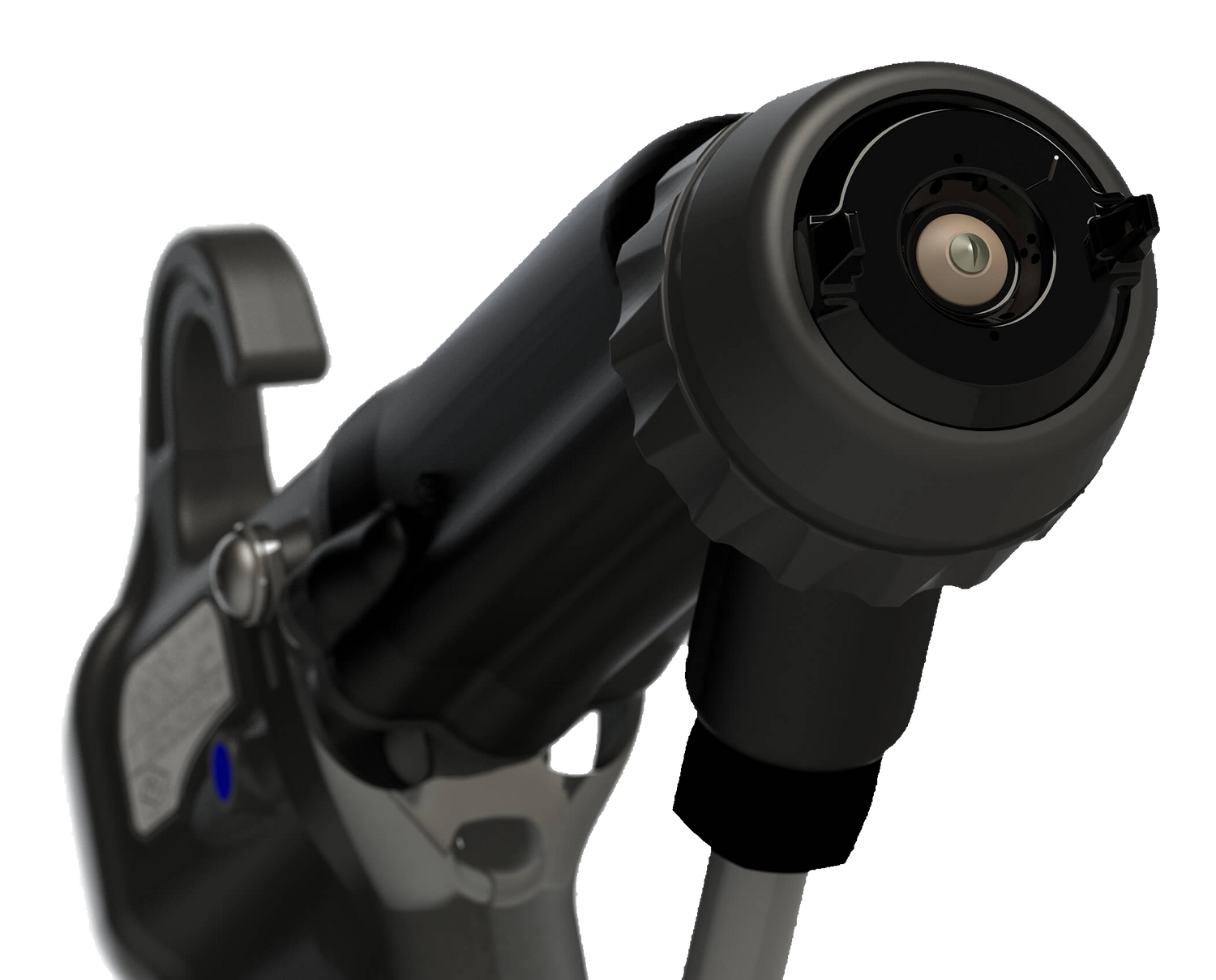

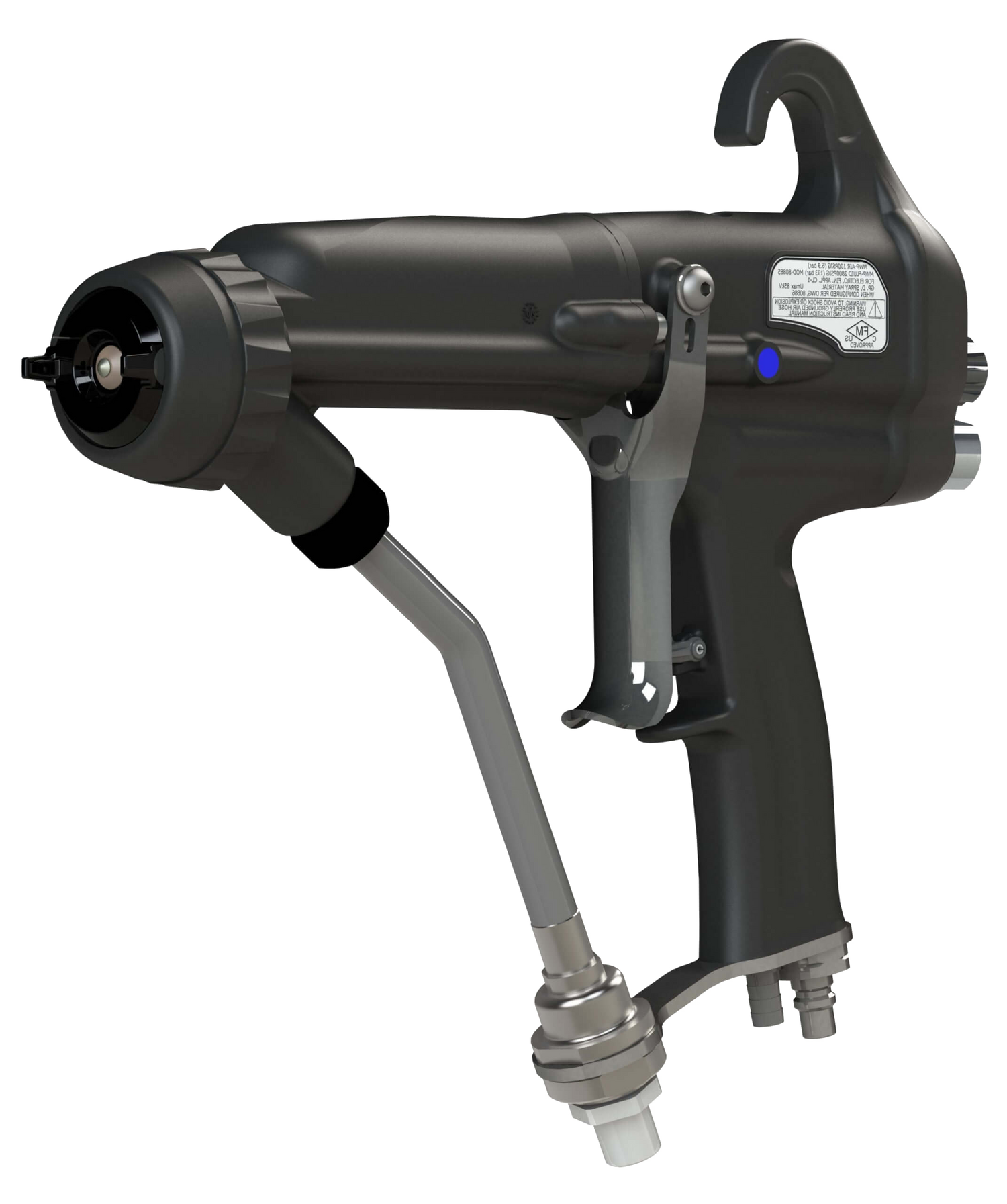

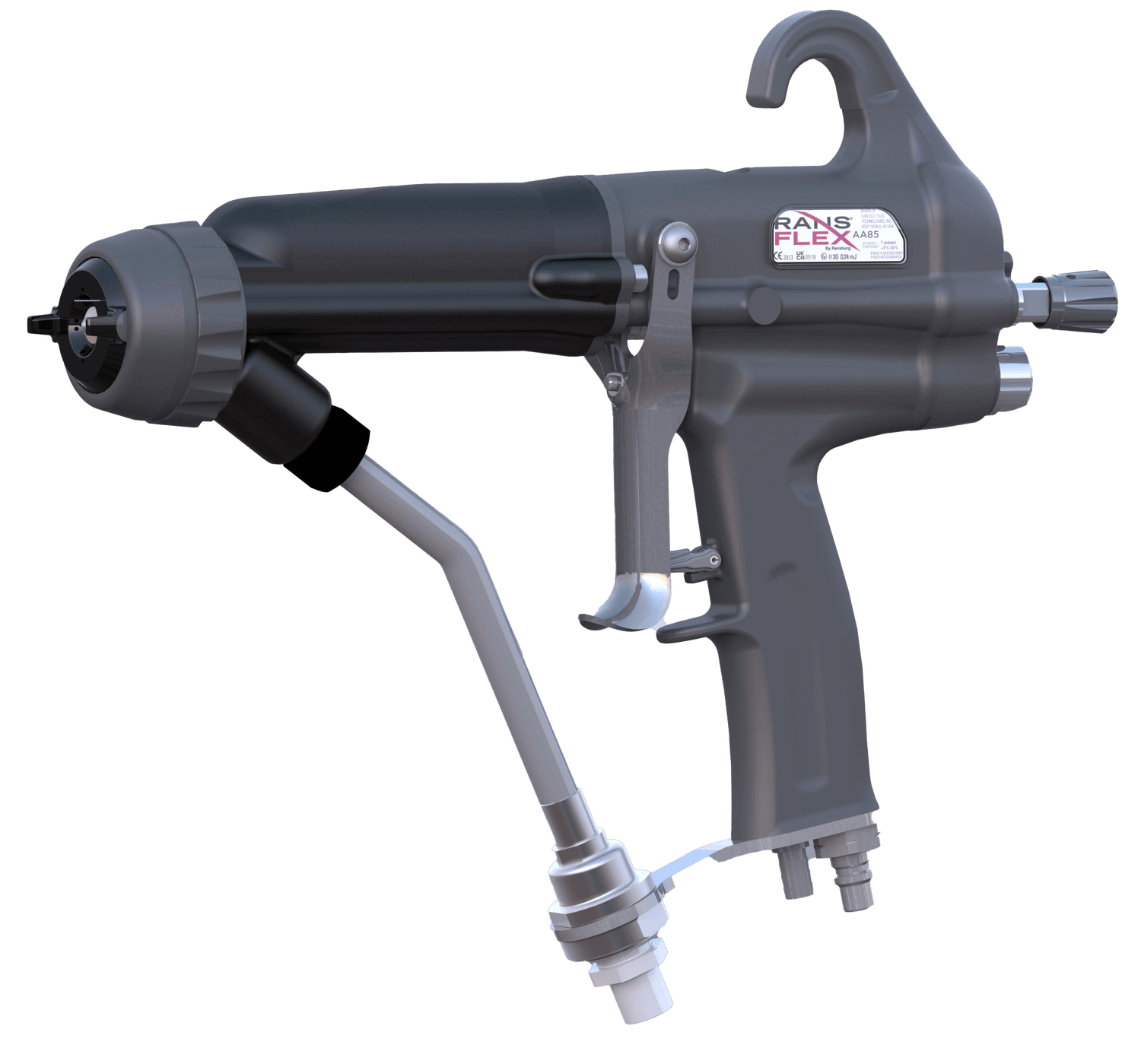

RansFlex AA85 Electrostatic Applicator
RansFlex AA85 Electrostatic Applicator - Select One is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Description
Description
Manufacturer: Ransburg
Part Number: 80885-08100, 80885-08105
Description:
Standard Kits Include - Ranflex AA85, 0.33mm/0.013” Standard Carbide Tip, and a 2-finger trigger.
Best in class atomization in a compact, lightweight applicator, the new RansFlex applicator offers features and benefits that meet stringent customer requirements.
The RansFlex air-assisted airless electrostatic applicator is powered by an onboard generator, eliminating the need for an external power supply. Designed with the operator in mind, the RansFlex handle incorporates grip improvements with the better balance to reduce operator fatigue. DeVilbiss atomization technology is coupled with Ransburg power to provide superior atomization and high transfer efficiency backed by a 3-year limited warranty.
- Ergonomic fit, feel balance and control:
- A sleek and smooth exterior makes cleaning and maintenance fast and easy.
- Superior air cap performance for high transfer efficiency.
- Simple, robust design.
- Three-phase motor to reduce vibration.
- Color-coded nozzles for easy identification.
- Performance, operator comfort, high transfer efficiency, and ease of maintenance.
Technical Specifications
| Weight without Hoses | 715g (25.2 oz) |
| Height | 229mm (9") |
| Width Max | 51mm (2") |
| Length | 279mm (11") |
| Max Operating Voltage | 85 KV |
| Max Current Draw | 90 uA |
| Min Air Inlet Pressure | 3.0 Bar (45 psig) |
| Paint Conductivity | 0.1 mΩ to infinity |
| Max Fluid Pressure | 207 Bar (3000 psig) |
| Material | Solvent-based coatings |
Accessories
| 7997-36 | 3/16" ID Fluid Hose Assembly, 11m/ 36' |
| 7994-50 | 3/16" ID Fluid Hose Assembly, 15m/ 50' |
| 7994-75 | 3/16" ID Fluid Hose Assembly, 23m/ 75' |
| 7994-100 | 3/16" ID Fluid Hose Assembly, 30m/ 100' |
| 80558 | Ranflex Air Hoses,LH Thread, QD 5m-20m |
| 80386-00 | 4-Finger Trigger Kit |
| 80566-00 | Small Profile 2-Finger Trigger Kit |
| 76104-00 | 1/8" ID Whip Hose Assembly, 1m/ 40" |
| 4SN-4SW | Fluid Inlet Swivel Fitting |
Literature -
Spare Parts:
| Part # | Description |
| 80740-XXXX | Carbide Fluid Tip Assembly |
| 80907-XXXX | Fluid Tip Assembly With Pre-Orifice Sapphire |
| 80738-00 | Electrode |
| 80859-00-K3 | Insert, Conductive (Kit of 3) |
| 80696-00 | Gasket Kit |
| 80735-00 | Air Cap Assembly |
| 80744-00 | Air Assist Needle Shaft Assembly |
| 7720-02-K3 | Paint Filter Kit, 0.009, 60 Mesh, Course |
