Samoa UP20 Aluminum Pivot Series 2" Air-Operated Double Diaphragm Pump

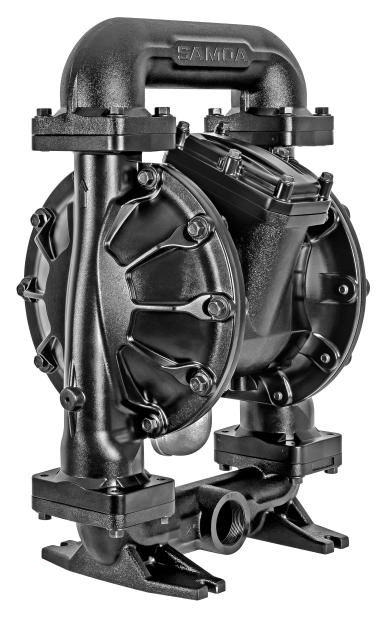

UP20 Aluminum Pivot Series 2" Air-Operated Double Diaphragm Pump

Manufacturer: Samoa

Part #: UP20A-NAC-ATZ

Description: Air operated double diaphragm pumps for dosing, spraying, transferring, evacuating and distributing a wide variety of fluids. SAMOA offers a wide range of material options for chemical compatibility and to withstand abrasion, temperature and fatigue caused by demanding conditions.

Features:

• Higher Efficiency - Maximum fluid flow with reduced air consumption.
• Increased Reliability - No stall, no icing, reliable start-up and longer air valve and diaphragms life.

• Unique Frictionless Picot-Shaft - Fast shifting reduces air cosumption, with a smooth pump operation, no icing and no whistle noises.
• Easy Servicing - Simplified maintenance and cleaning. Components designed for long life and reliability.
• This Pivot Series Compact Line model is a fully groundable ATEX certified pump, for use in potentially explosive atmospheres (Ex II2 GD IIB/IIC 95 ˚C)

Materials:

Central Body and Air Chambers:	Aluminum
Fluid Chambers and Manifolds:	Aluminum
Hardware Bolts:	Carbon Steel
Valve Seats:	Aluminum
Valve Balls:	PTFE
Diaphragm Type and Material:	2-Piece PTFE
Wetted materials	ptfe-ptfe-aluminium



Specifications:

Pump Size	2"
Pressure Ratio	1:1
Maximum Free Flow Delivery	650 l/min (172 gal/min)
Air Pressure Range	1.5 - 8 bar (20 - 120 psi)
Max. Size Solids in Suspension	6.4 mm (1/4")
Max. Dry Suction Head	5 m (16 ft)
Max. Wet Suction Head	8 m (26 ft)
Displacement Per Cycle	4.5 l (1.2 gal)
Fluid Inlet Connection	2" NPT (F)
Fluid Outlet Connection	2" NPT (F)
Air Inlet Connection	3/4" NPT (F)
Air Exhaust Connection	1-1/2" NPT (F)
Sound Level	83 dB
Certification	ATEX
Weight	46 kg (101 lb)



Parts and Accessories:

Part No.	Description
UP15R-WP-00Z	Diaphragm Kit
UP15R-WP-0T0	Ball Kit
UP15R-WP-A00	Seat Kit
UP15R-WP-999	Seat O-Ring Kit
UP15R-AM-1A0	Air Valve Module
UP15R-AM-200	Air Sensor Kit
UP15R-AM-300	Air Shaft Kit
UP15R-HP-6A0	Air Piston Kit
UP15R-HP-7A0	Fluid Piston Kit
UP15R-HP-1AN	Inlet Manifold
UP15R-HP-2AN	Outlet Manifold
UP15R-HP-3A0	Fluid Cover
UP15R-HP-5A0	Central Body
UP15R-AM-400	Air Motor Seals Kit
UP15R-HP-8A0	Central Body Air Cap Kit
UP15R-HP-4A0	Air Cover
UP15R-AM-500	Air Exhaust Kit
