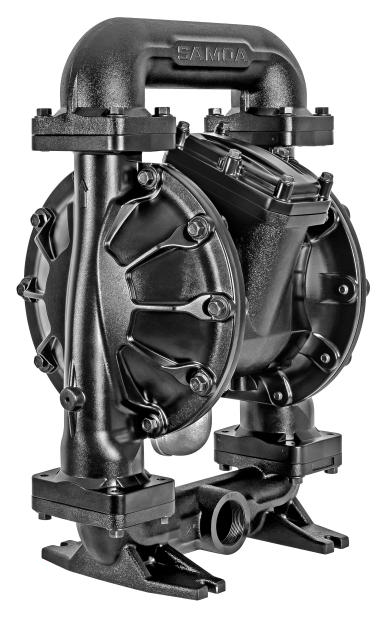

UP20 Aluminum Pivot Series 2" Air-Operated Double Diaphragm Pump
Manufacturer: Samoa
Part #: UP20A-NAC-ATZ
Description: Air operated double diaphragm pumps for dosing, spraying, transferring, evacuating and distributing a wide variety of fluids. SAMOA offers a wide range of material options for chemical compatibility and to withstand abrasion, temperature and fatigue caused by demanding conditions.
Features:
- Higher Efficiency - Maximum fluid flow with reduced air consumption.
- Increased Reliability - No stall, no icing, reliable start-up and longer air valve and diaphragms life.
- Unique Frictionless Picot-Shaft - Fast shifting reduces air cosumption, with a smooth pump operation, no icing and no whistle noises.
- Easy Servicing - Simplified maintenance and cleaning. Components designed for long life and reliability.
- This Pivot Series Compact Line model is a fully groundable ATEX certified pump, for use in potentially explosive atmospheres (Ex II2 GD IIB/IIC 95 ˚C)
Materials:
| Central Body and Air Chambers: | Aluminum |
| Fluid Chambers and Manifolds: | Aluminum |
| Hardware Bolts: | Carbon Steel |
| Valve Seats: | Aluminum |
| Valve Balls: | PTFE |
| Diaphragm Type and Material: | 2-Piece PTFE |
| Wetted materials | ptfe-ptfe-aluminium |
Specifications:
| Pump Size | 2" |
| Pressure Ratio | 1:1 |
| Maximum Free Flow Delivery | 650 l/min (172 gal/min) |
| Air Pressure Range | 1.5 - 8 bar (20 - 120 psi) |
| Max. Size Solids in Suspension | 6.4 mm (1/4") |
| Max. Dry Suction Head | 5 m (16 ft) |
| Max. Wet Suction Head | 8 m (26 ft) |
| Displacement Per Cycle | 4.5 l (1.2 gal) |
| Fluid Inlet Connection | 2" NPT (F) |
| Fluid Outlet Connection | 2" NPT (F) |
| Air Inlet Connection | 3/4" NPT (F) |
| Air Exhaust Connection | 1-1/2" NPT (F) |
| Sound Level | 83 dB |
| Certification | ATEX |
| Weight | 46 kg (101 lb) |
Parts and Accessories:
| Part No. | Description |
|
UP15R-WP-00Z |
Diaphragm Kit |
|
UP15R-WP-0T0 |
Ball Kit |
|
UP15R-WP-A00 |
Seat Kit |
|
UP15R-WP-999 |
Seat O-Ring Kit |
|
UP15R-AM-1A0 |
Air Valve Module |
|
UP15R-AM-200 |
Air Sensor Kit |
|
UP15R-AM-300 |
Air Shaft Kit |
| UP15R-HP-6A0 | Air Piston Kit |
| UP15R-HP-7A0 | Fluid Piston Kit |
| UP15R-HP-1AN | Inlet Manifold |
| UP15R-HP-2AN | Outlet Manifold |
| UP15R-HP-3A0 | Fluid Cover |
| UP15R-HP-5A0 | Central Body |
| UP15R-AM-400 | Air Motor Seals Kit |
| UP15R-HP-8A0 | Central Body Air Cap Kit |
| UP15R-HP-4A0 | Air Cover |
| UP15R-AM-500 | Air Exhaust Kit |
