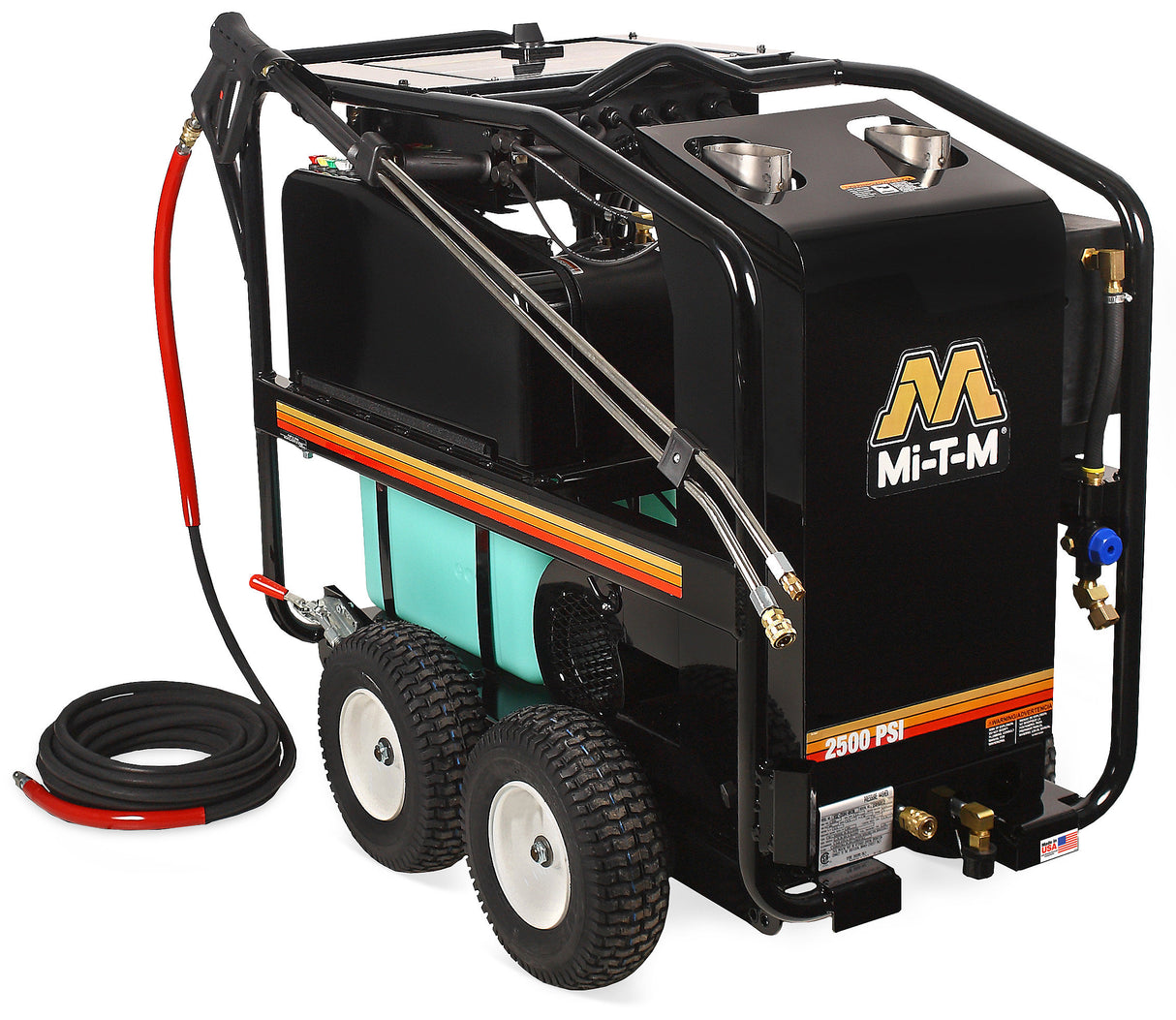

HSE-2504-0M10
The HSE Series of belt driven hot water pressure washers are ideal for cleaning applications requiring 20 or more hours of use a week. Recommended for heavy, consistent cleaning applications this model is great for industrial and commercial jobs where you need to tackle nasty grime, oil and dirt.
Pump: External bypass system allows more water into the system to protect from heat build-up · Forged brass manifold · Thermal relief valve · High pressure detergent injector
Motor: Totally enclosed fan-cooled electric motor with manual thermal overload protection · 35-foot power cord
Frame: Reinforced powder coated steel tube frame with center balanced lift · 13-inch flat-free tires
Components: Energy-efficient top-fired heat exchanger · No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)
Miscellaneous: Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F
Unit Includes: Quick connect nozzles - 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided high pressure hose with quick connects · Adjustable pressure insulated dual lance · Professional-grade insulated trigger gun with safety lock-off
Specifications
-
PSI
2500
-
GPM
3.2
-
Horsepower/Motor
6.0 HP, 230V, 1Ø, 25.0A
-
Pump
General
-
Mi-T-M No.
3-0202
-
Plug Type
NEMA 6-30P
-
Burner Fuel Tank Capacity
10.0 gallon
-
Burner Fuel Cons.
2.10 gph
-
BTU Per Hour
294,000
Weights & Dimensions
-
Net Weight
569.00 lbs.
-
Shipping Weight
699.00 lbs.
-
Length
49.50 in.
-
Width
28.00 in.
-
Height
40.50 in.
Options
-
HX-0070 Auto Start/Stop
When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart
-
HX-0071 Auto Start/Stop - Steam
When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart; Reduces pressure to 350-PSI by adjusting unloader valve counter-clockwise, spray temperatures will rise 240°F above ambient with a maximum of 300°F
-
HX-0074 Auto Start/Stop - CAD Cell
When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart; Monitors burner for proper ignition
-
HX-0075 Auto Start/Stop - Steam - CAD Cell
When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart; Reduces pressure to 350-PSI by adjusting unloader valve counter-clockwise, spray temperatures will rise 240°F above ambient with a maximum of 300°F; Monitors burner for proper ignition
-
HX-0088 Skid Feet
Stationary applications
-
HX-0161 Hour Meter
Displays the number of hours unit has been in operation
Limited Warranties:
- 1 Year Electric Motor
- 3 Year Coil
- 7 Year General Pump
